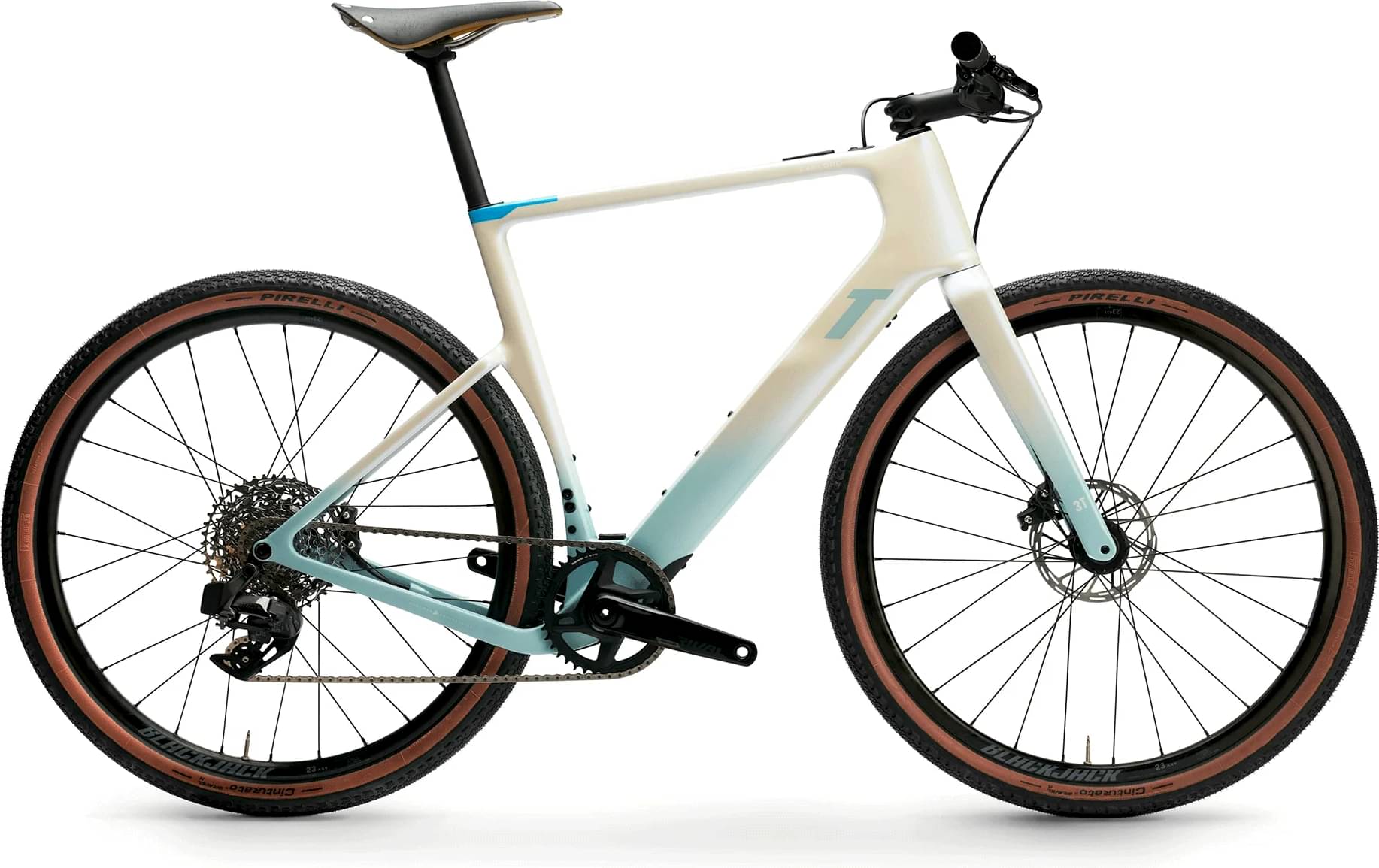

3T BMW URBAN ELECTRIC 2024
2024 E-bike
Estimate price |
8,949$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX350 (350Wh) battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
145cm - 160cm
51cm
157cm - 171cm
54cm
168cm - 180cm
56cm
176cm - 186cm
58cm
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T’s in-house filament-winding using a combination of high-strength/high-stiffness fibers, combined with RTM resin injection. Made in Italy
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR Max 44T
Shift Levers
SRAM Rival AXS
Cassette
12-speed SRAM Rival AXS XPLR 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Rodi Alloy 650b
Tires
Pirelli Cinturato Gravel H 650b
Brakes
Brakes
SRAM Rival AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Flatbar LTD Carbon - 70cm
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Saddle
Brooks Cambium
Seatpost
3T Carbon 27.2 round seatpost - Zero offset
Motor & Battery
Motor
Mahle X20 System
Battery
Mahle iX350 (350Wh) battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.497 mm | 1.512 mm | 1.533 mm | 1.557 mm | 1.584 mm |
| Front Center | 597 mm | 606 mm | 602 mm | 607 mm | 616 mm | 636 mm |
| Rake | 62 mm | 61 mm | 53 mm | 54 mm | 54 mm | 55 mm |
| Trail | 63 mm | 58 mm | 58 mm | 50 mm | 47 mm | 46 mm |
| Stack | 520 mm | 542 mm | 564 mm | 584 mm | 604 mm | 632 mm |
| Reach | 351 mm | 362 mm | 373 mm | 381 mm | 388 mm | 399 mm |
| Top Tube Length | 510 mm | 527 mm | 545 mm | 559 mm | 574 mm | 593 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 122 mm | 142 mm | 158 mm | 175 mm | 196 mm | 225 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1003 mm | 1012 mm | 1009 mm | 1014 mm | 1024 mm | 1044 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
| Rider Max Height | 160 cm | 171 cm | 180 cm | 186 cm | 195 cm | cm |
