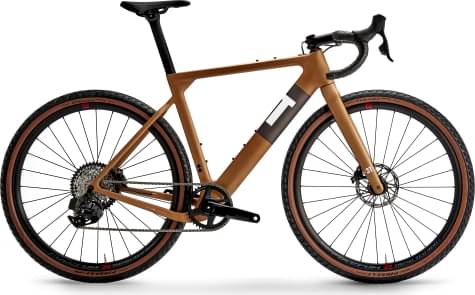

3T PRIMO RIVAL AXS XPLR 1X12 2024
2024 Road
Estimate price |
4,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro Team
Suspension Fork
3T Fango
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR Max 44T
Shift Levers
SRAM Rival AXS
Cassette
12-speed Rival AXS XPLR 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring ( XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 700c
Tires
–
Brakes
Brakes
SRAM Rival AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
APTO STEALTH
Handlebar
–
Headset
Sealed cartridge 1.125” - 1.5”
Seat
Saddle
–
Seatpost
3T Exploro seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.444 mm | 1.474 mm | 1.502 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591 mm | 598 mm | 606 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 67 mm | 58 mm | 58 mm |
| Stack | 517 mm | 546 mm | 575 mm | 604 mm |
| Reach | 366 mm | 378 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 550 mm | 571 mm | 592 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 71.1 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 101 mm | 125 mm | 150 mm | 180 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 996 mm | 1003 mm | 1011 mm | 1032 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 178 cm | 188 cm |
