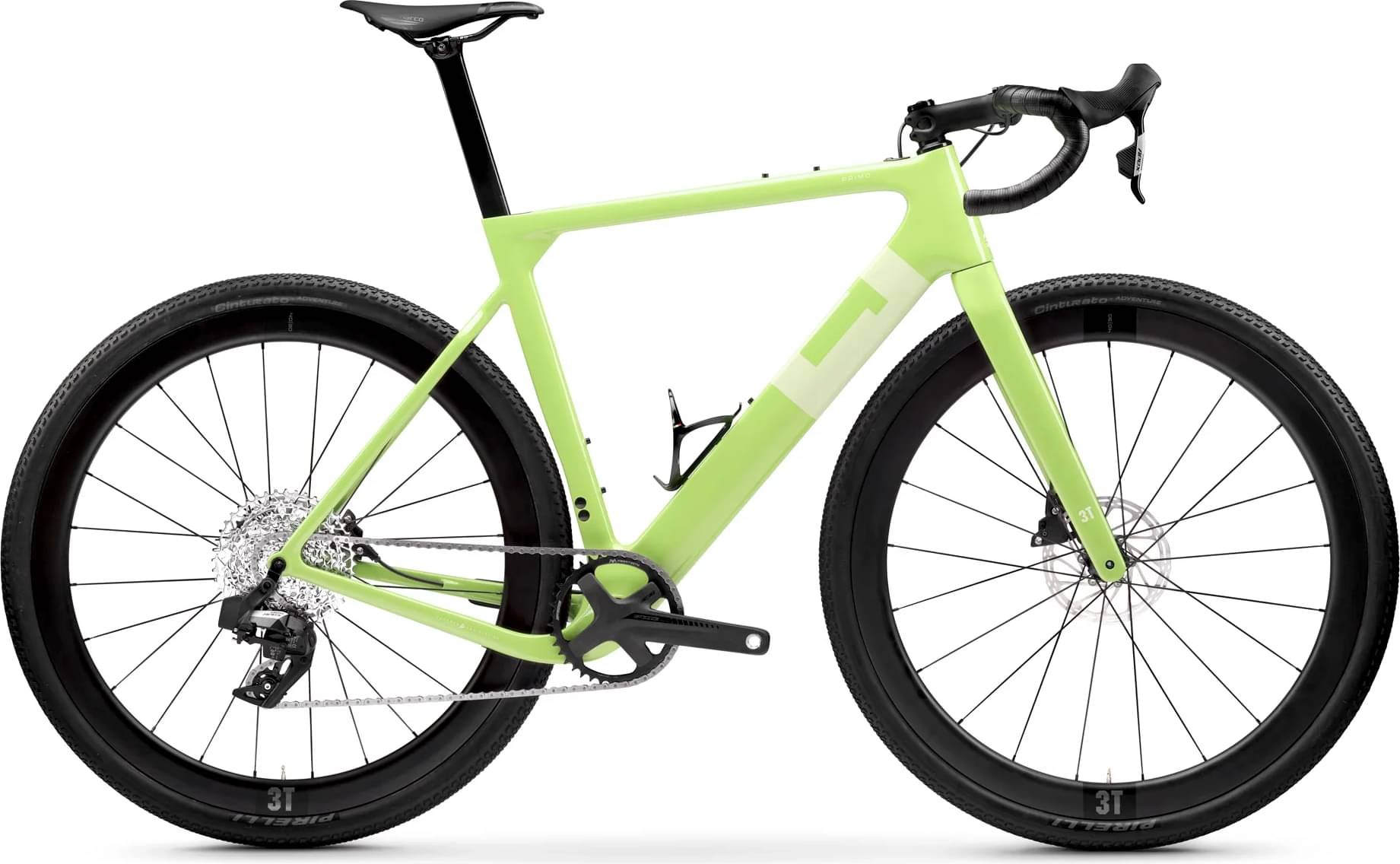

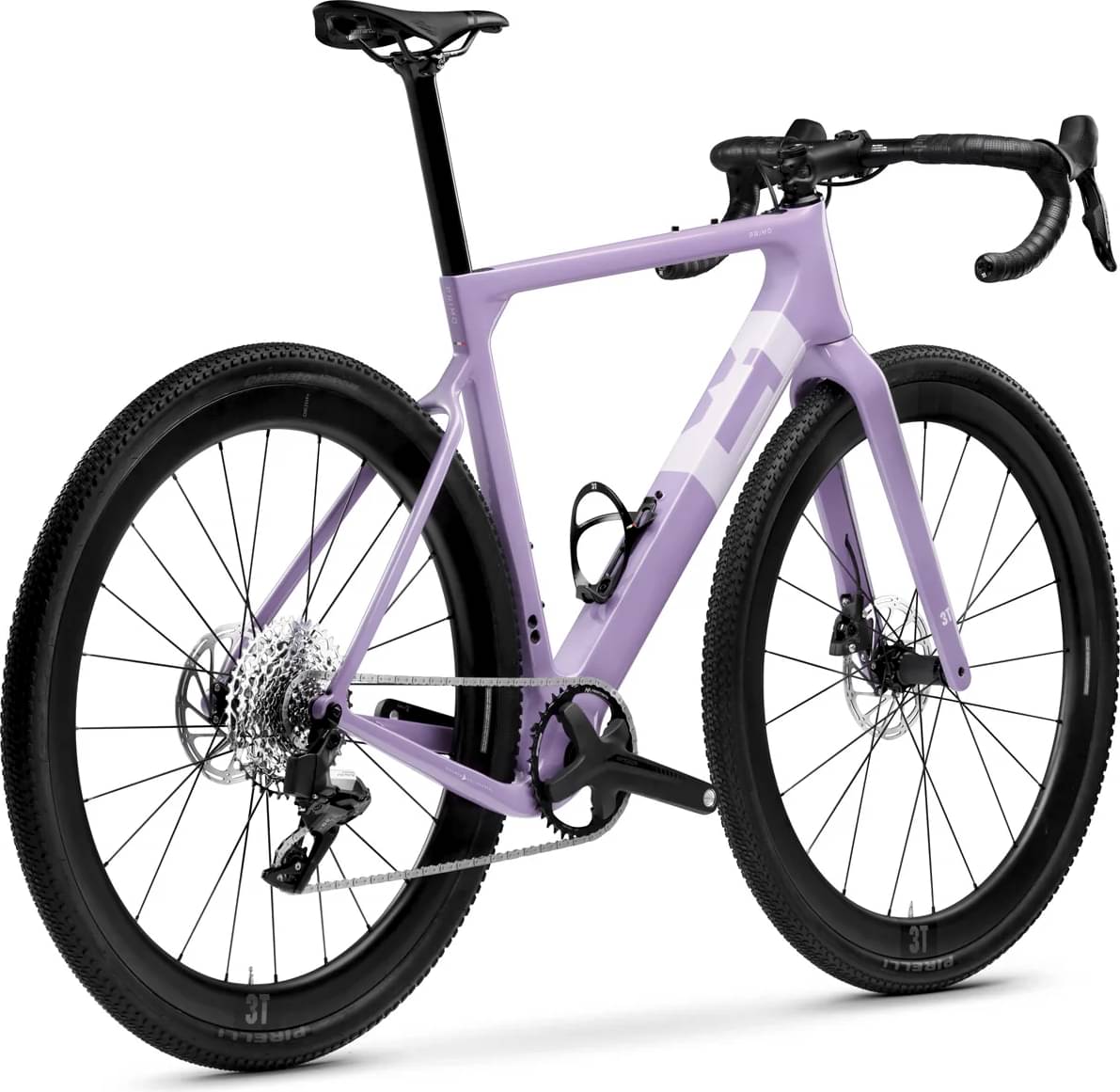

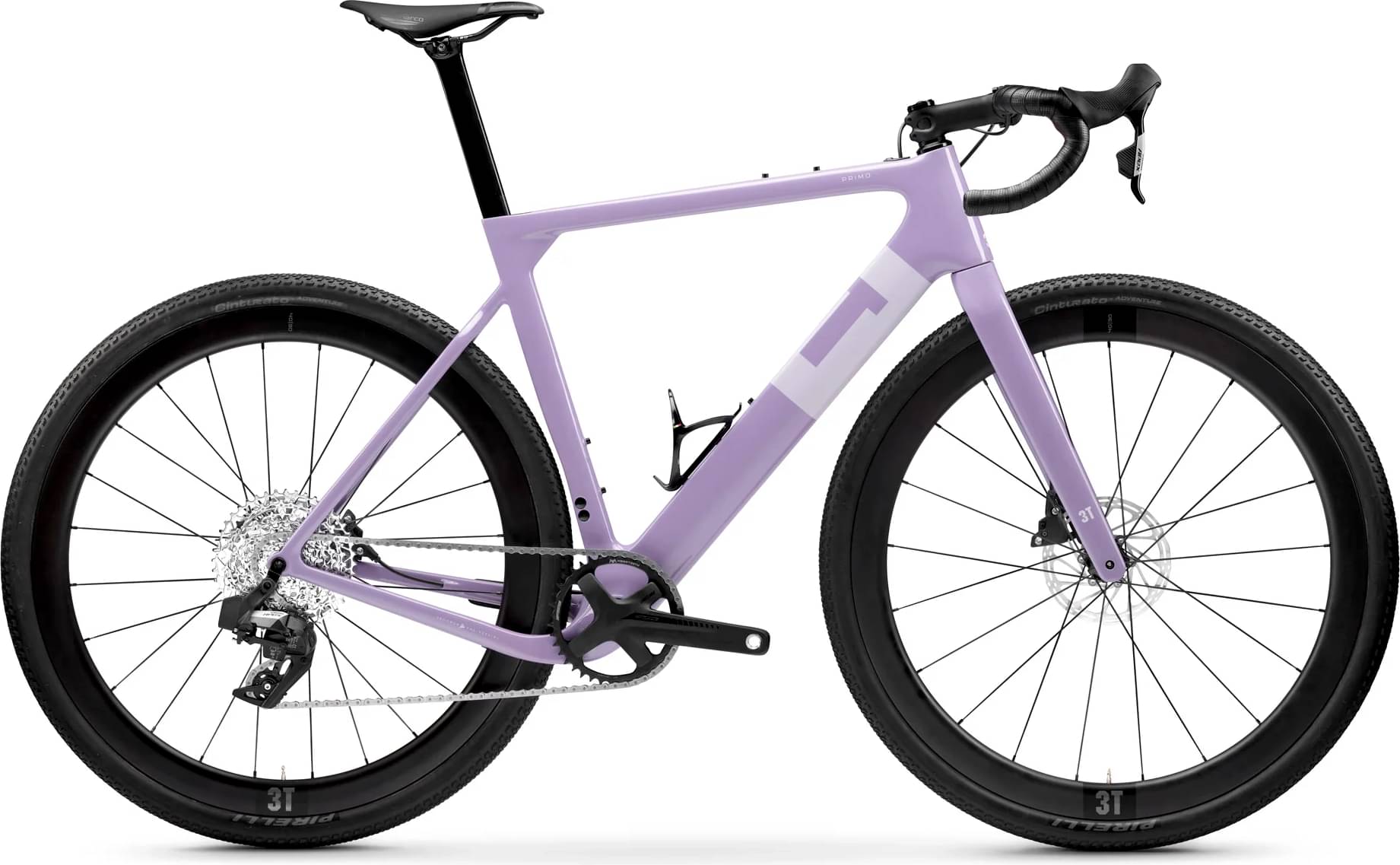

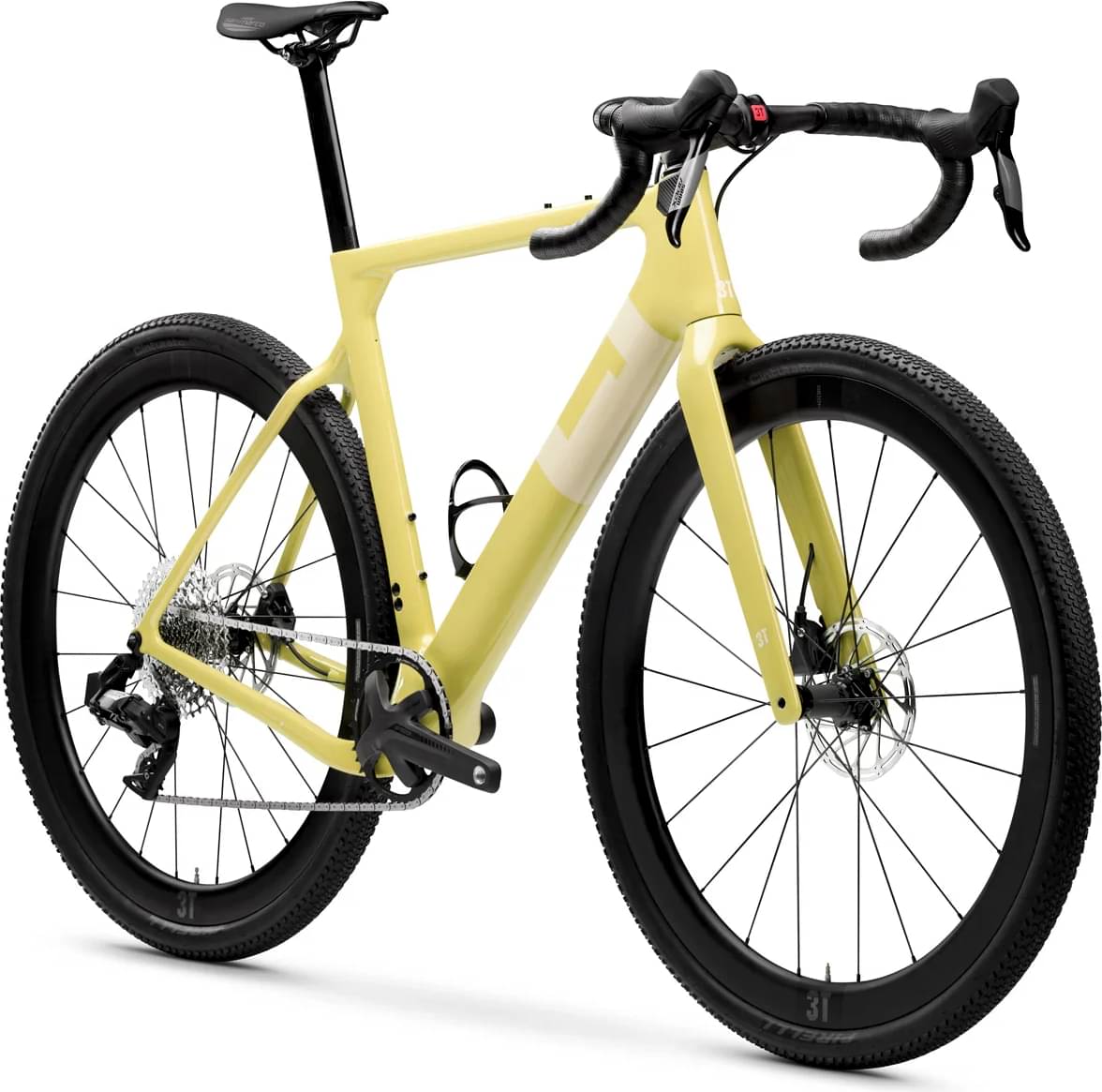

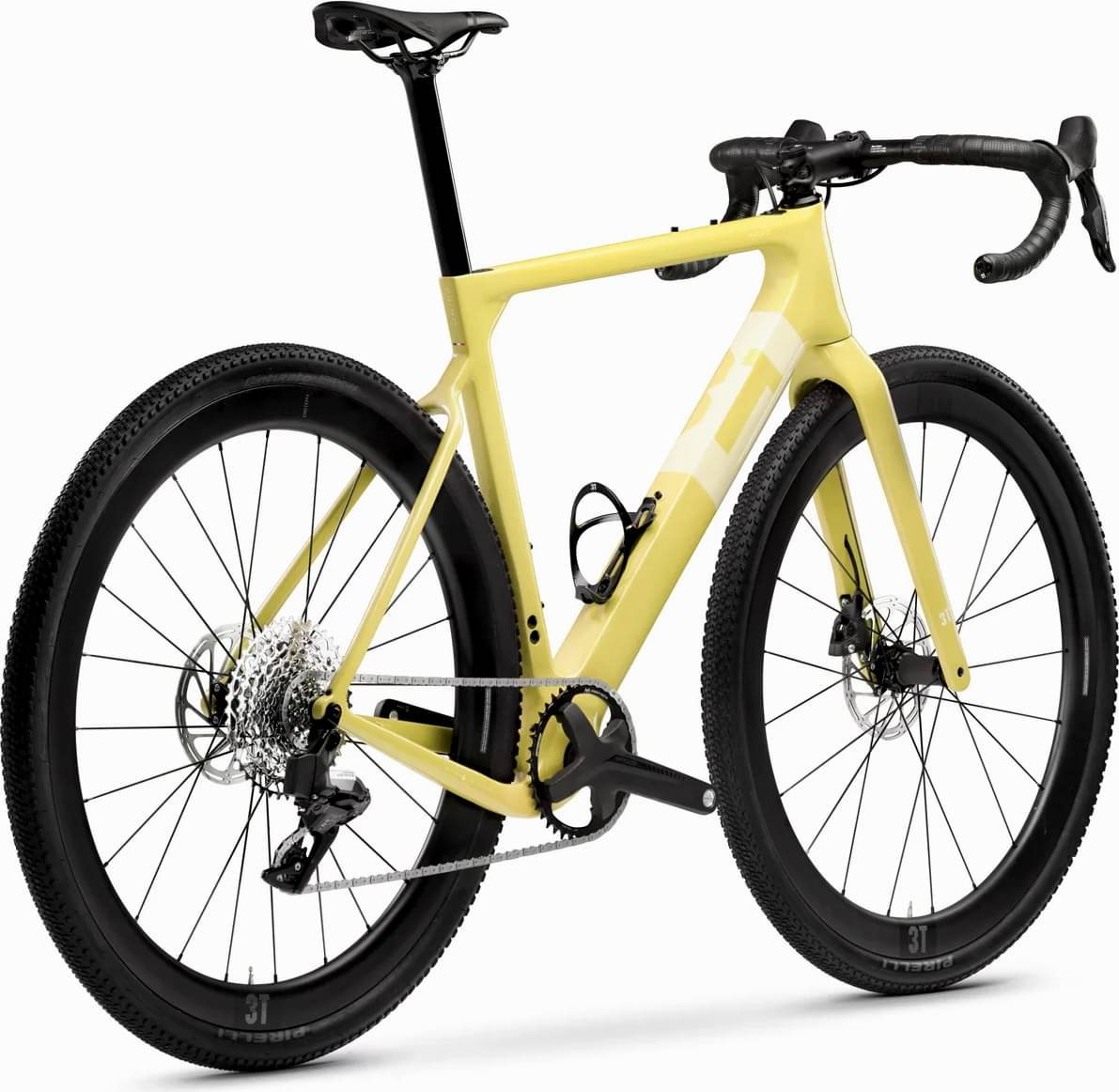

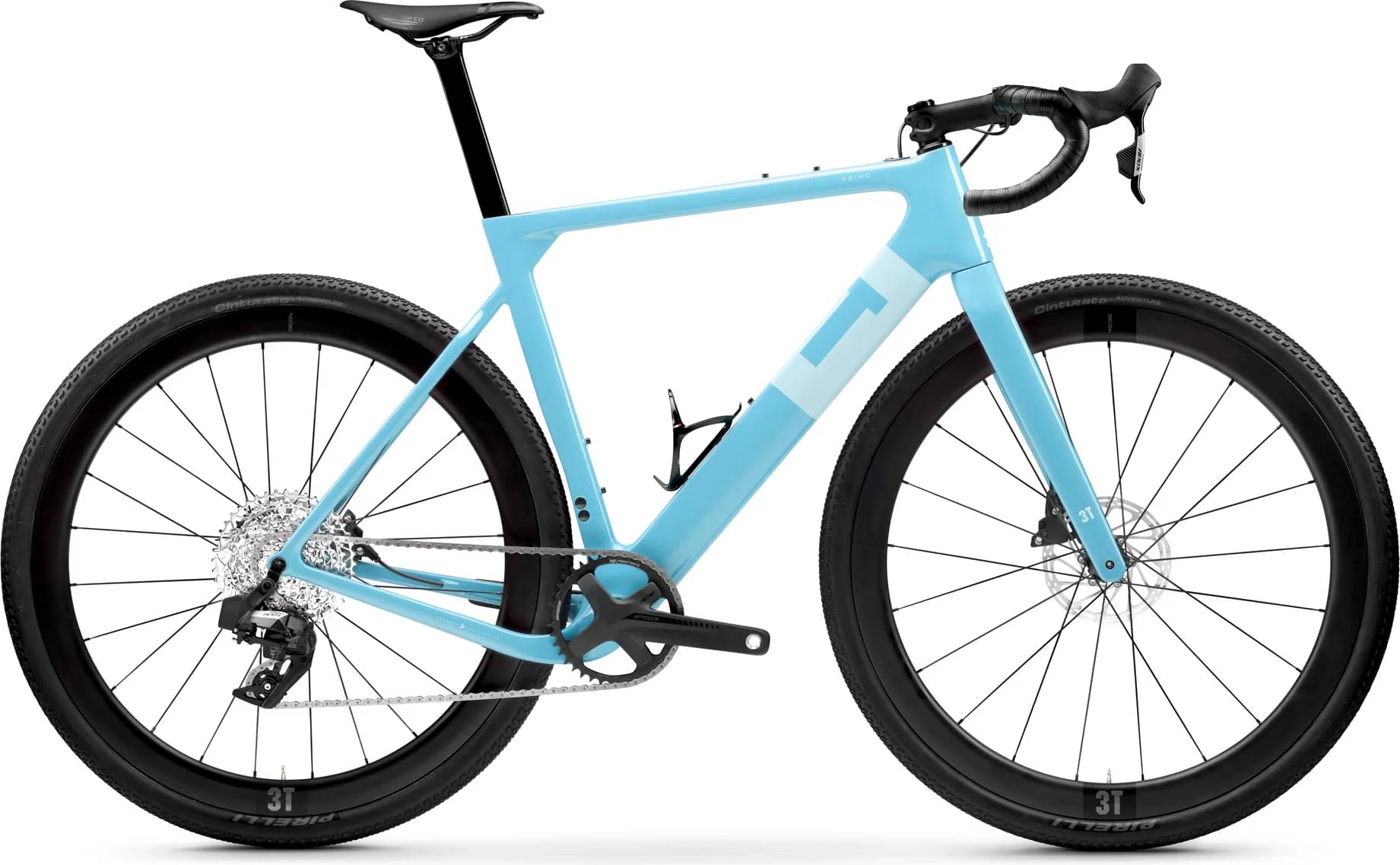

3T PRIMO WPNT APEX XPLR AXS 1×12 700c CARBON 2024
2024 Road
Estimate price |
5,985$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex XPLR, Apex AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
168cm - 180cm
LG
178cm - 191cm
XL
188cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
Suspension Fork
3T Fango
Drivetrain
Rear Derailleur
SRAM Apex XPLR Max 44T
Shift Levers
SRAM Apex AXS
Cassette
SRAM Rival XPLR AXS 10-44T
Crank
FSA Omega BB386EVO, 40T (S: 170mm - M&L: 172,5mm - XL: 175mm)
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
3T Discus 40I30 or Zipp303S depending on availability
Tires
Pirelli Cinturato Adventure 700x45
Brakes
Brakes
SRAM Apex Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (S:80mm -M:90mm - L: 100mm - XL:110mm)
Handlebar
3T Superergo LTD (S: 40cm - M&L: 42cm - XL: 44cm)
Headset
Sealed cartridge 1.125” - 1.5”
Seat
Saddle
San Marco Shortfit or San Marco Shortfit 2.0 Off Road depending on availability
Seatpost
3T Primo setpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.444 mm | 1.474 mm | 1.502 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591 mm | 598 mm | 606 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 67 mm | 58 mm | 58 mm |
| Stack | 517 mm | 546 mm | 575 mm | 604 mm |
| Reach | 366 mm | 378 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 550 mm | 571 mm | 592 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 71.1 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 101 mm | 125 mm | 150 mm | 180 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 996 mm | 1003 mm | 1011 mm | 1032 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 191 cm | 201 cm |
