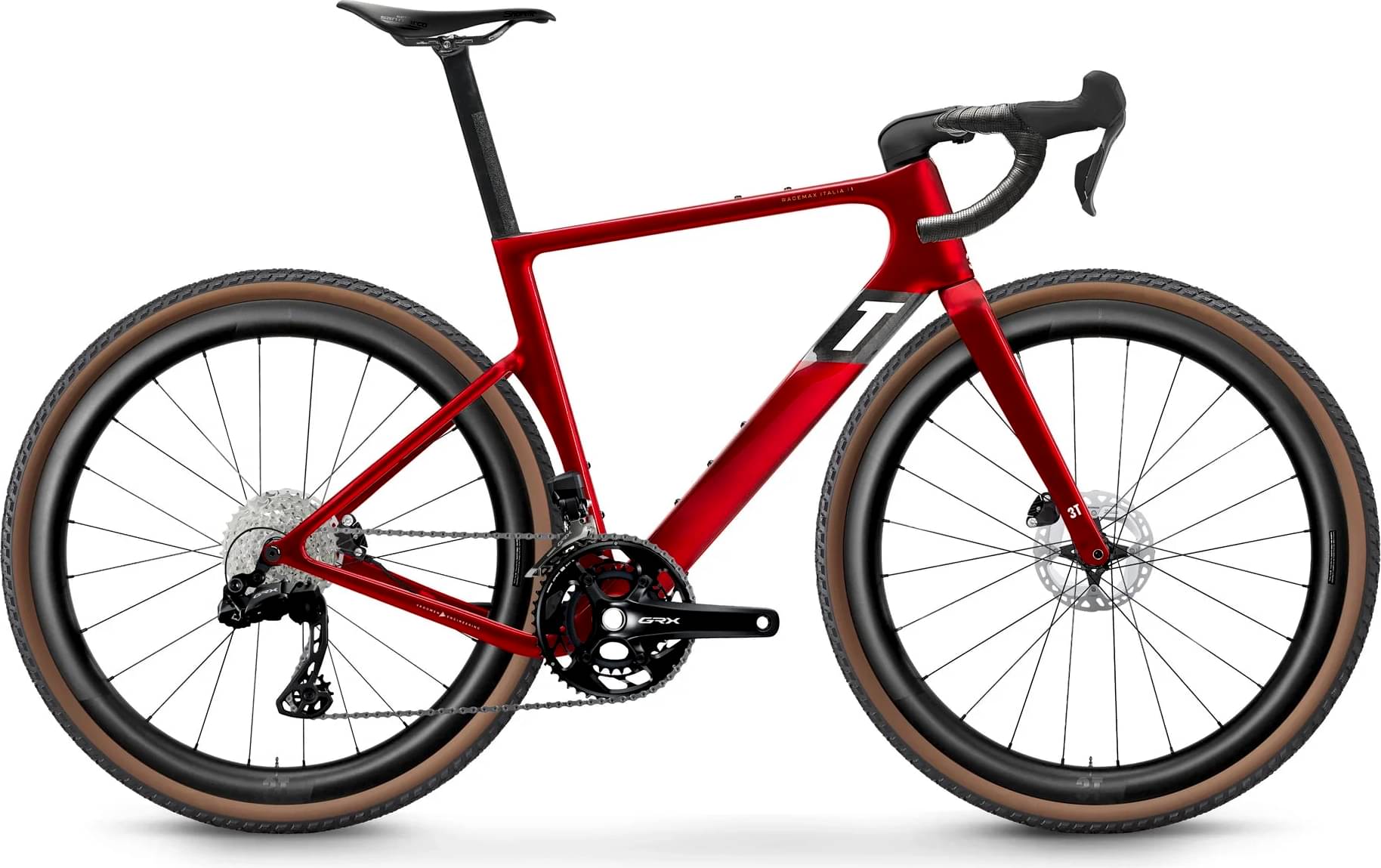

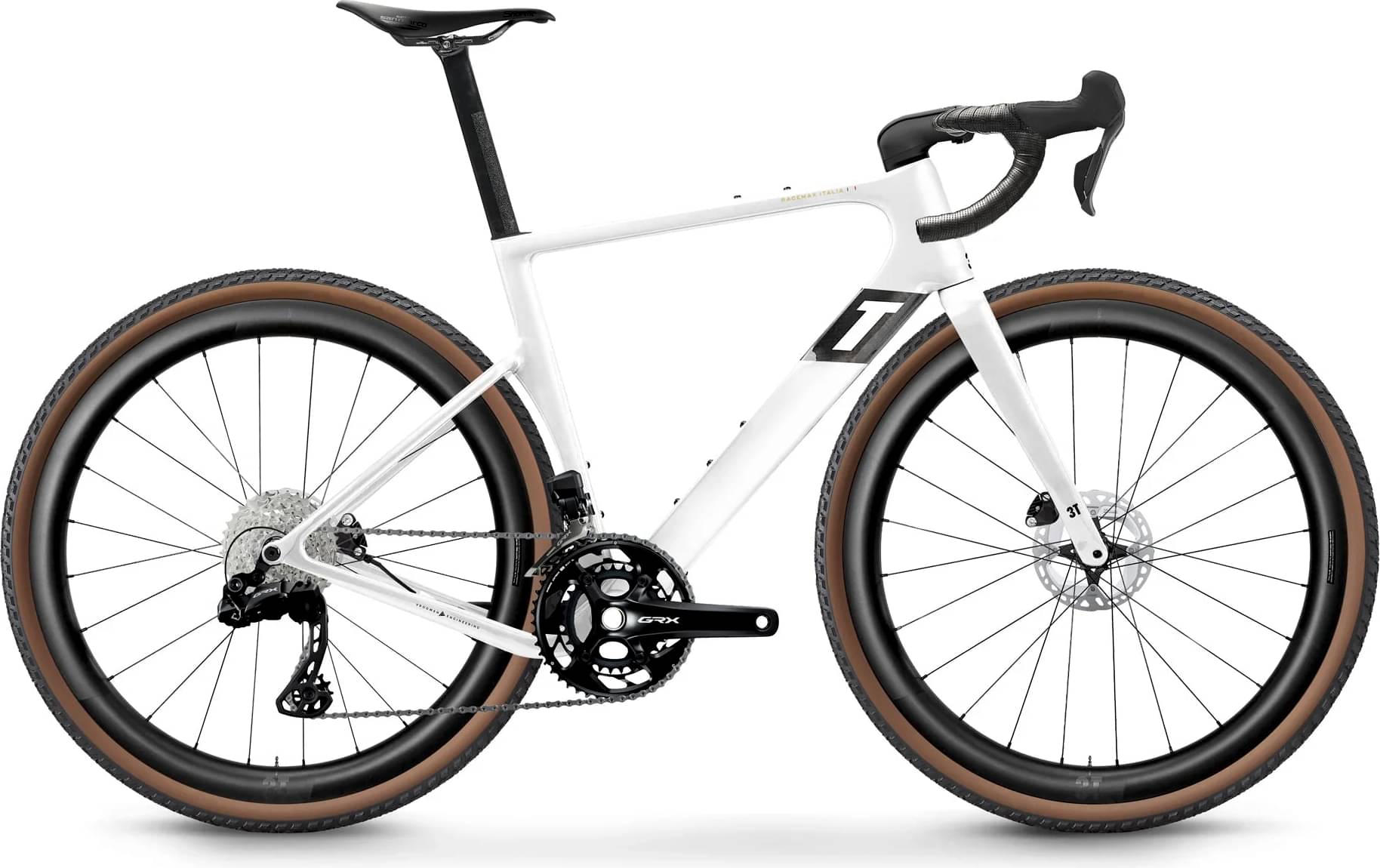

3T RACEMAX ITALIA GRX Di2 2X12 DISCUS 45/40 Cti 2024
2024 Road
Estimate price |
10,964$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
157cm - 171cm
54cm
168cm - 180cm
56cm
176cm - 186cm
58cm
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T’s in-house filament-winding using a combination of high-strength/high-stiffness fibers, combined with RTM resin injection. Made in Italy
Suspension Fork
3T Fango RaceMax Integrale w/ compact crown
Drivetrain
Rear Derailleur
Shimano GRX Di2 RD-RX825 12s
Front Derailleur
Shimano GRX Di2 FD-RX825 12s
Shift Levers
Shimano GRX Di2 ST-RX825 12s
Cassette
Shimano CS-R8101-12 10-34T
Crank
Shimano GRX FC-RX820-2 12s 48/31 (51: 170mm, 54&56: 172.5, 58&61: 175mm)
Wheels
Rims
3T Discus 45 I 40 LTD Carbon Ti hubs
Tires
Pirelli Cinturato Gravel H 700x40
Brakes
Brakes
Shimano GRX BR-RX820 w/ Shimano RT-CL800 160MM rotors
Cockpit
Stem
3T More (K-Edge GPS mount included) - (48: 80mm - 51: 90mm - 54:100mm - 56: 110mm - 58: 120mm )
Handlebar
3T Aeroghiaia Integrale LTD (51: 40cm - 54&56: 42cm - 58: 44cm)
Headset
3T MinMax Integrale IS42/34 | IS47/38(36deg)
Seat
Saddle
San Marco Shortfit or San Marco Shortfit 2.0 Off Road depending on availability
Seatpost
3T RaceMax Italia Integrale seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.513 mm | 1.534 mm | 1.554 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274 mm | 276 mm |
| Front Center | 612 mm | 607 mm | 612 mm | 622 mm |
| Rake | 61 mm | 54 mm | 54 mm | 53 mm |
| Trail | 67 mm | 65 mm | 59 mm | 56 mm |
| Stack | 544 mm | 566 mm | 586 mm | 606 mm |
| Reach | 364 mm | 374 mm | 382 mm | 390 mm |
| Top Tube Length | 518 mm | 536 mm | 549 mm | 563 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° |
| Head Tube Length | 147 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1018 mm | 1013 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 176 cm | 183 cm |
| Rider Max Height | 171 cm | 180 cm | 186 cm | 195 cm |
