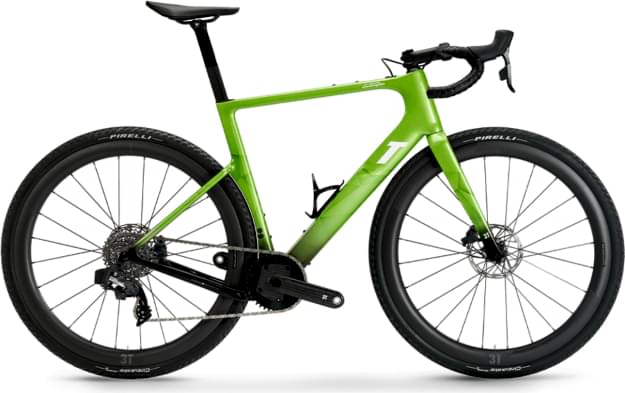

3T Racemax x Automobili Lamborghini 2024
2024 Road
Estimate price |
11,074$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T RaceMax Italia (available in sizes 51, 54, 56, 58)
Suspension Fork
3T Fango RaceMax Integrale w/ compact crown
Drivetrain
Rear Derailleur
SRAM Force D1 AXS max 36T
Shift Levers
SRAM Force D1 AXS
Cassette
12-speed Rival AXS 10-36T
Crank
3T Torno Team, 40T chainring (51: 170mm - 54&56: 172.5mm - 58: 175mm)
Wheels
Rims
3T Discus 45 | 32 LTD
Tires
Pirelli Cinturato Gravel M 40mm 700c
Brakes
Brakes
SRAM Force D1 AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
Apto Stealth Integrale (51:80mm - 54: 90mm - 56:100mm - 58:110mm)
Handlebar
3T Aeroghiaia LTD bar (51: 40cm - 5&56: 42cm - 58: 44cm)
Headset
3T MinMax Integrale IS42/34 | IS47/38(36deg)
Seat
Saddle
San Marco Shortfit
Seatpost
Racemax Seatpost for Ritchey Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.513 mm | 1.534 mm | 1.554 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274 mm | 276 mm |
| Front Center | 612 mm | 607 mm | 612 mm | 622 mm |
| Rake | 61 mm | 54 mm | 54 mm | 53 mm |
| Trail | 67 mm | 65 mm | 59 mm | 56 mm |
| Stack | 544 mm | 566 mm | 586 mm | 606 mm |
| Reach | 364 mm | 374 mm | 382 mm | 390 mm |
| Top Tube Length | 518 mm | 536 mm | 549 mm | 563 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° |
| Head Tube Length | 147 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1018 mm | 1013 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 176 cm | 183 cm |
