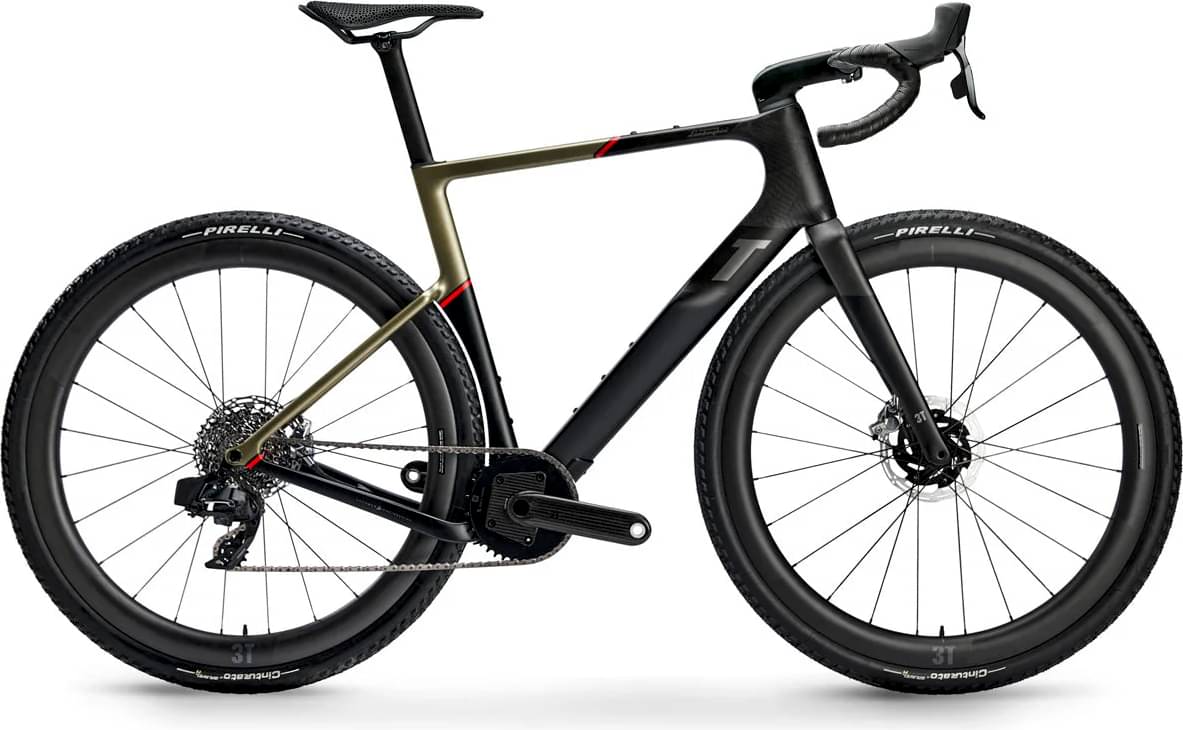

3T RACEMAX X HURACAN STERRATO 2024
2024 Road
Estimate price |
15,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
157cm - 171cm
54cm
168cm - 180cm
56cm
176cm - 186cm
58cm
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T?s in-house filament-winding using a combination of high-strength/high-stiffness fibers
Suspension Fork
3T Fango RaceMax Integrale w/ compact crown
Drivetrain
Rear Derailleur
SRAM Red AXS max 36T
Shift Levers
SRAM Red AXS
Cassette
12-speed Rival AXS 10-36T
Crank
3T Torno
Wheels
Rims
3T Discus 45 I 40 LTD w/Carbon Ti hubs
Tires
Pirelli Cinturato Gravel M 40mm 700c
Brakes
Brakes
SRAM Red AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T More integrale (51: 80mm
Handlebar
3T Aeroghiaia LTD bar (51: 40cm - 5&56: 42cm - 58: 44cm)
Headset
3T MinMax Integrale IS42/34 | IS52/40 (36deg)
Seat
Saddle
Fizik Antares Adaptive 00
Seatpost
Racemax Seatpost for Ritchey Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.513 mm | 1.534 mm | 1.554 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274 mm | 276 mm |
| Front Center | 612 mm | 607 mm | 612 mm | 622 mm |
| Rake | 61 mm | 54 mm | 54 mm | 53 mm |
| Trail | 67 mm | 65 mm | 59 mm | 56 mm |
| Stack | 544 mm | 566 mm | 586 mm | 606 mm |
| Reach | 364 mm | 374 mm | 382 mm | 390 mm |
| Top Tube Length | 518 mm | 536 mm | 549 mm | 563 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° |
| Head Tube Length | 147 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1018 mm | 1013 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 176 cm | 183 cm |
| Rider Max Height | 171 cm | 180 cm | 186 cm | 195 cm |
