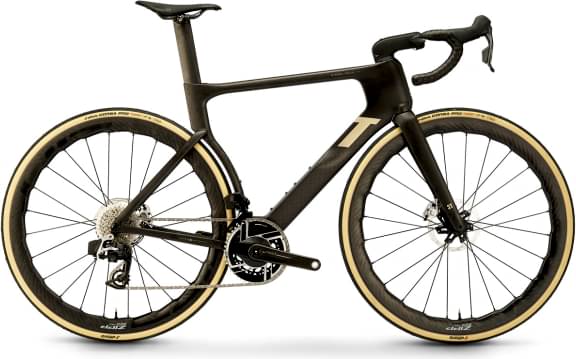

3T STRADA ITALIA RED E1 AXS 2X12 ZIPP 353 NSW PROJECT X 2024
2024 Road
Estimate price |
17,004$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Strada Italia Integrale (2x with removable FD hanger)
Drivetrain
Rear Derailleur
SRAM Red E1 AXS max 36T
Front Derailleur
SRAM Red E1 AXS
Shift Levers
SRAM Red E1 AXS
Cassette
12-speed Red E1 AXS 10-33T
Crank
SRAMRed E1 AXS Power Meter 48-35T, narrow Q-factor (51: 170mm - 54&56: 172,5mm - 58: 175mm)
Wheels
Rims
Zipp 353 NSW, 25mm internal width, hookless rim
Tires
Vittoria Corsa Pro TLR 700x30
Brakes
Brakes
SRAM Red E1 AXS Hydraulic Disc w/ SRAM Red E1 160mm rotor
Cockpit
Stem
3T More integrale (51: 90mm, 54: 100mm, 56: 110mm, 58: 120mm)
Handlebar
3T Aeroflux Integrale LTD ( 51: 40cm - 54&56: 42cm - 58: 44cm)
Headset
3T MinMax Integrale IS42/34 | IS47/38(36deg)
Seat
Saddle
San Marco Shortfit Superleggera
Seatpost
3T Strada Italia seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.458 mm | 1.479 mm | 1.5 mm |
| Bottom Bracket Height | 261 mm | 263 mm | 263 mm | 266 mm |
| Front Center | 596 mm | 587 mm | 601 mm | 615 mm |
| Rake | 60 mm | 49 mm | 49 mm | 49 mm |
| Trail | 52 mm | 53 mm | 53 mm | 53 mm |
| Stack | 532 mm | 554 mm | 574 mm | 594 mm |
| Reach | 369 mm | 380 mm | 388 mm | 396 mm |
| Top Tube Length | 537 mm | 555 mm | 569 mm | 583 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 496 mm | 520 mm | 537 mm | 555 mm |
| Head Tube Angle | 71 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Head Tube Length | 143 mm | 159 mm | 179 mm | 203 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 991 mm | 983 mm | 997 mm | 1013 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 178 cm | cm |
