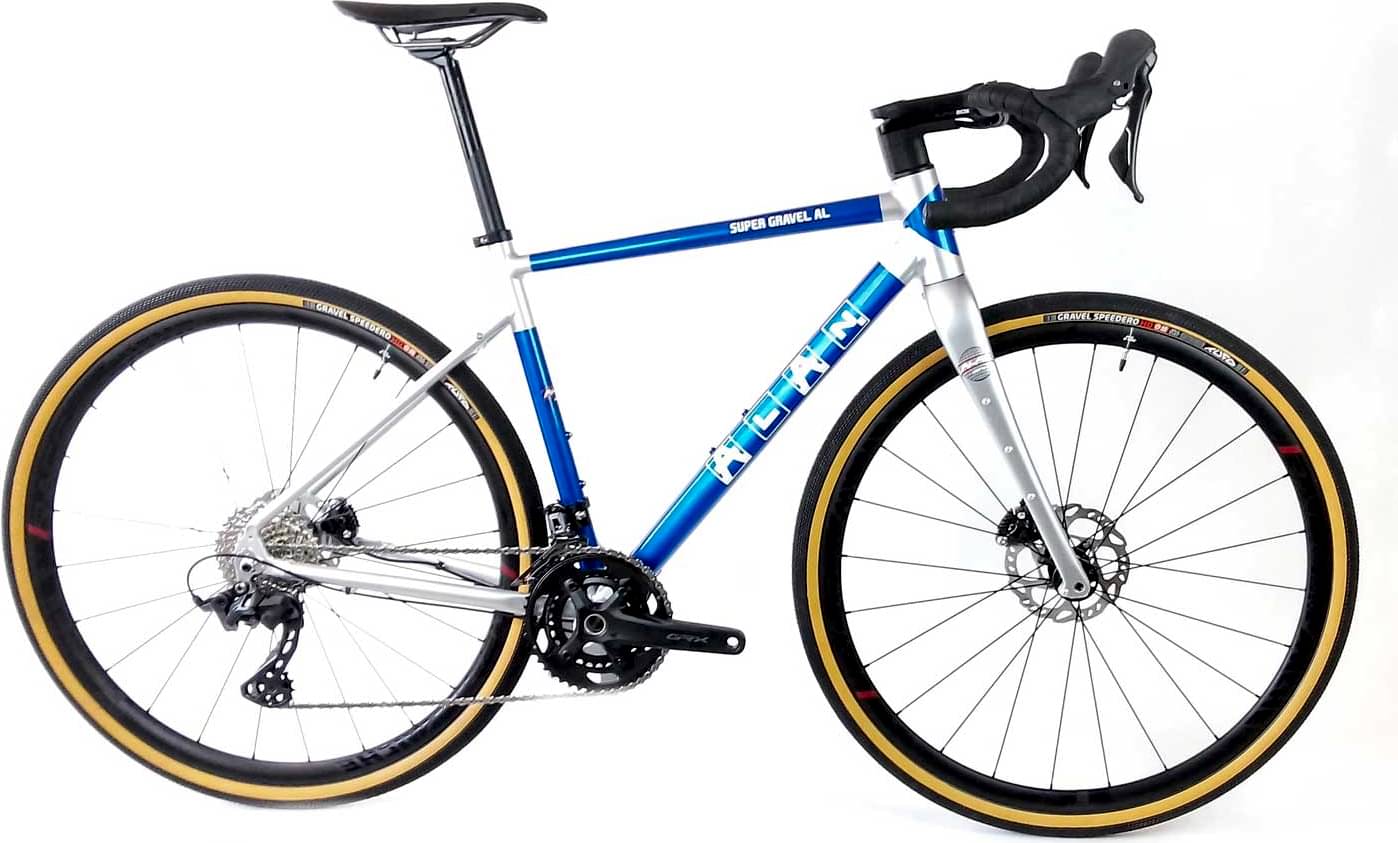

Alan Super Gravel AL 2024

Bike details

Overview

Key information split into simple groups.

Sizing

Parts list

Components

Ergal alloy frame with semi-integrated cable routing weight 1.600 g Sizes: XS-S-M-L-XL-XXL

Bottom bracket BSA threaded. Flat mounts disc brake

Seat tube ID 27,2 mm. Max tire size 700x42 or 650bx47

Bottom bracket BSA threaded. Flat mounts disc brake

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	LG	XL	XXL
Stack Reach Ratio	1.517 mm	1.513 mm	1.479 mm	1.503 mm	1.541 mm	1.524 mm
Bottom Bracket Height	279 mm	279 mm	279 mm	279 mm	279 mm	279 mm
Rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Stack	534 mm	543 mm	556 mm	577 mm	598 mm	614 mm
Reach	352 mm	359 mm	376 mm	384 mm	388 mm	403 mm
Top Tube Length	500 mm	510 mm	530 mm	550 mm	565 mm	585 mm
Seat Tube Length	430 mm	455 mm	495 mm	520 mm	540 mm	575 mm
Head Tube Angle	70 °	70 °	71 °	71.5 °	72 °	72.5 °
Head Tube Length	110 mm	120 mm	130 mm	150 mm	170 mm	185 mm
Chainstay Length	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Wheels	700	700	700	700	700	700
Rider Min Height	158 cm	165 cm	169 cm	177 cm	183 cm	186 cm
Rider Max Height	167 cm	173 cm	180 cm	186 cm	191 cm	194 cm
