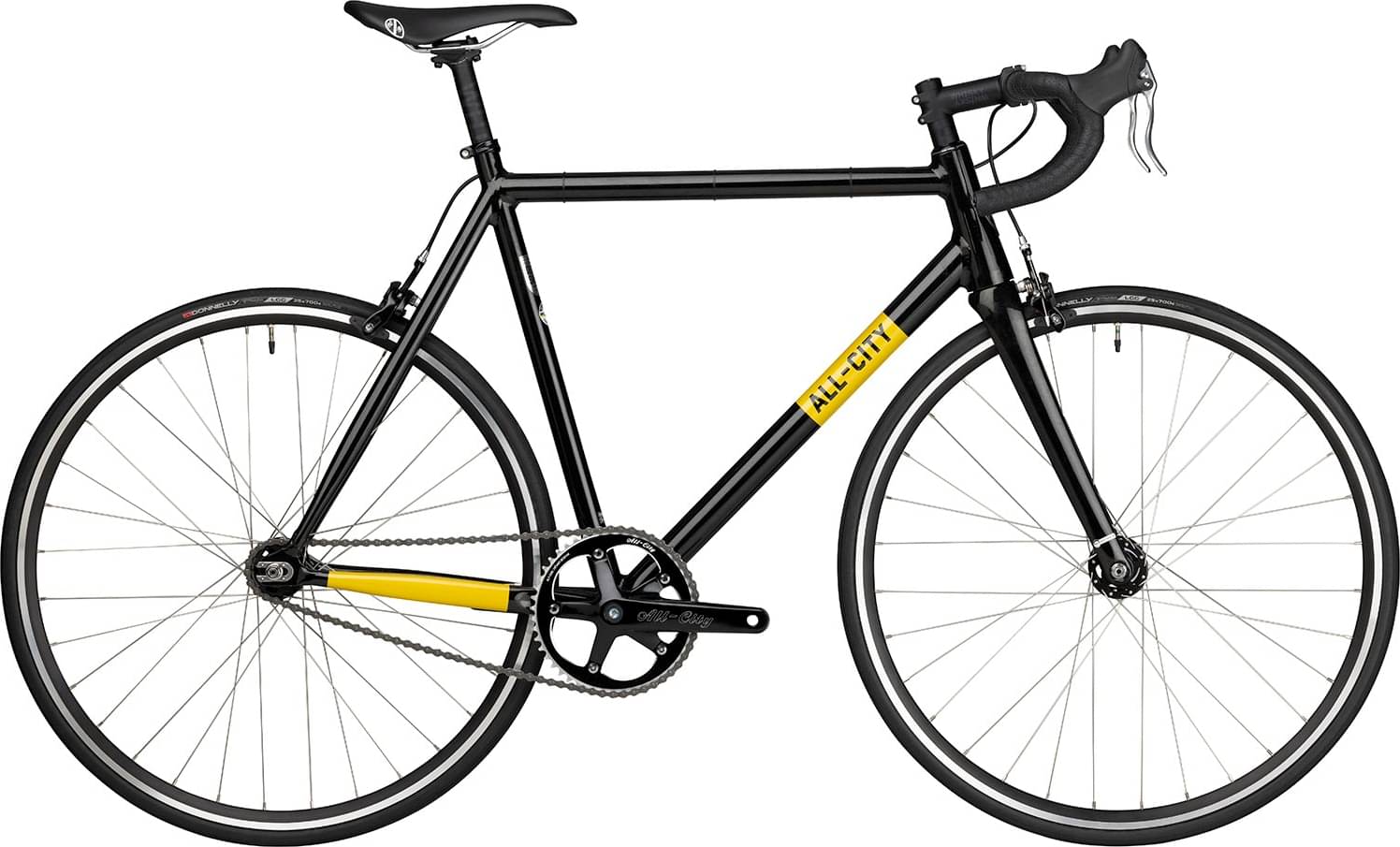

All City All-City Thunderdome 2023
2023 Road
Estimate price |
1,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-City Alumasonic, TIG Welded
Suspension Fork
Whisky No.7 RD Tapered
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Crank
All-City 612 Track Crank, 165mm, 49t ring
Bottom Bracket
Square Taper, 68 x 110mm steel cups, sealed bearings
Chain
KMC B1H-Wide
Wheels
Front Hub
JoyTech A565, 32h
Rear Hub
JoyTech A566, 32h
Rims
Alex AT505, 32h, with CNC Brake Track
Tires
Donnelly Strada LGG, 700x25, 60tpi
Brakes
Brakes
Tektro R326
Brake Levers
Tektro RL340
Cockpit
Stem
Whisky No.7
Handlebar
Whisky No.7
Headset
Cane Creek 40 Series
Seat
Saddle
Black Saddle
Seatpost
Whisky No.7
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.33 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 571 mm | 577 mm | 593 mm | 609 mm | 630 mm | 651 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 59 mm | 59 mm | 58 mm | 59 mm | 59 mm |
| Stack | 485 mm | 501 mm | 520 mm | 539 mm | 563 mm | 587 mm |
| Reach | 370 mm | 376 mm | 386 mm | 395 mm | 409 mm | 422 mm |
| Top Tube Length | 502 mm | 512 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 113 mm | 128 mm | 148 mm | 168 mm | 193 mm | 218 mm |
| Chainstay Length | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm |
| Wheelbase | 953 mm | 959 mm | 975 mm | 991 mm | 1012 mm | 1033 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 734 mm | 758 mm | 783 mm | 808 mm | 835 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Thunderdome is an Allcity Thunderdome model. 5 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Track bikes
If you want an acceptable Track bike you should know that the average price is 1503$. However, even though the average price of a Track bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, All-City Thunderdome price was 1599$. Comparing this to the average Track bike price, we see that the price is 6.39% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, All-City Thunderdome 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. All-City Thunderdome has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
