Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

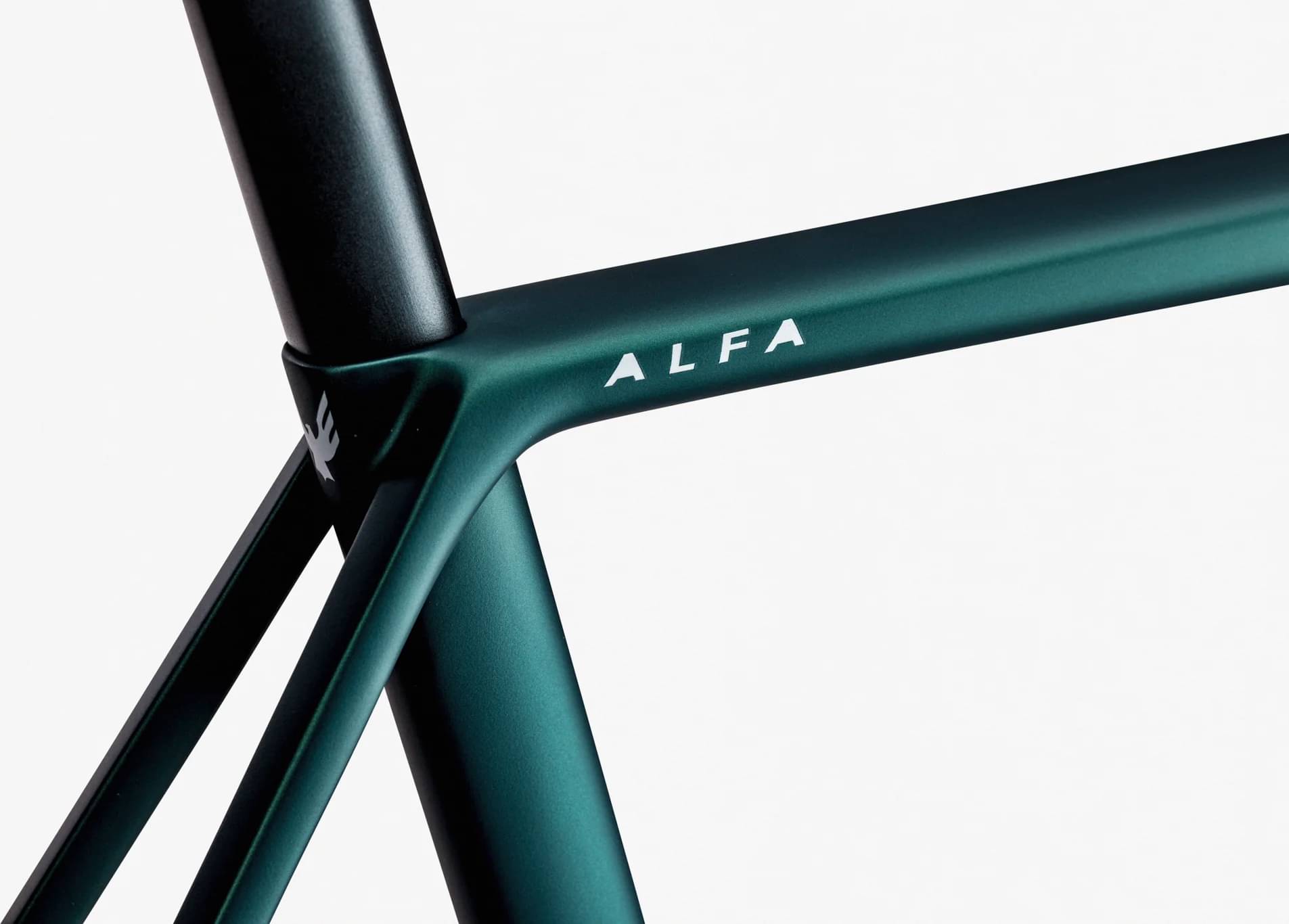

Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

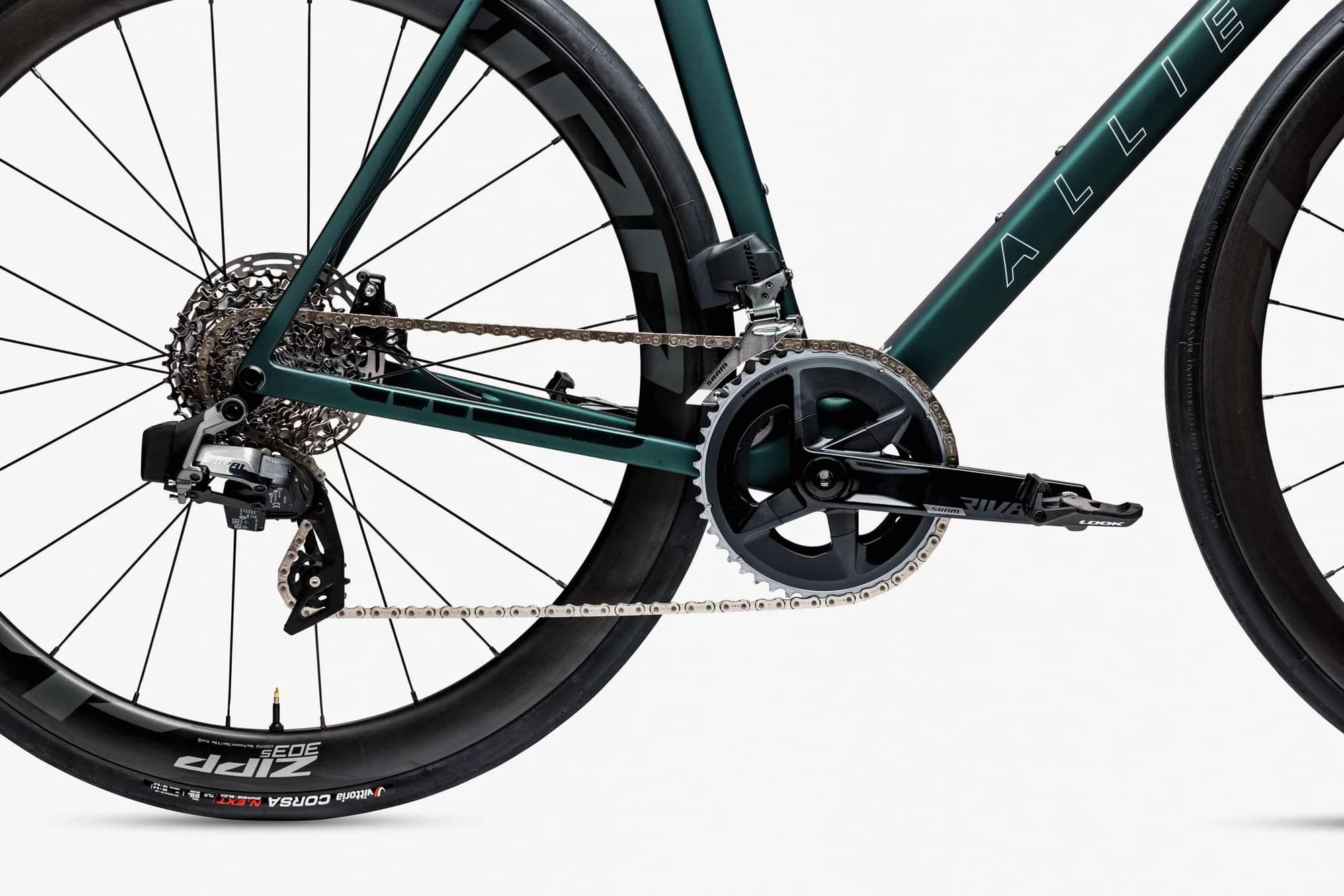

Drivetrain

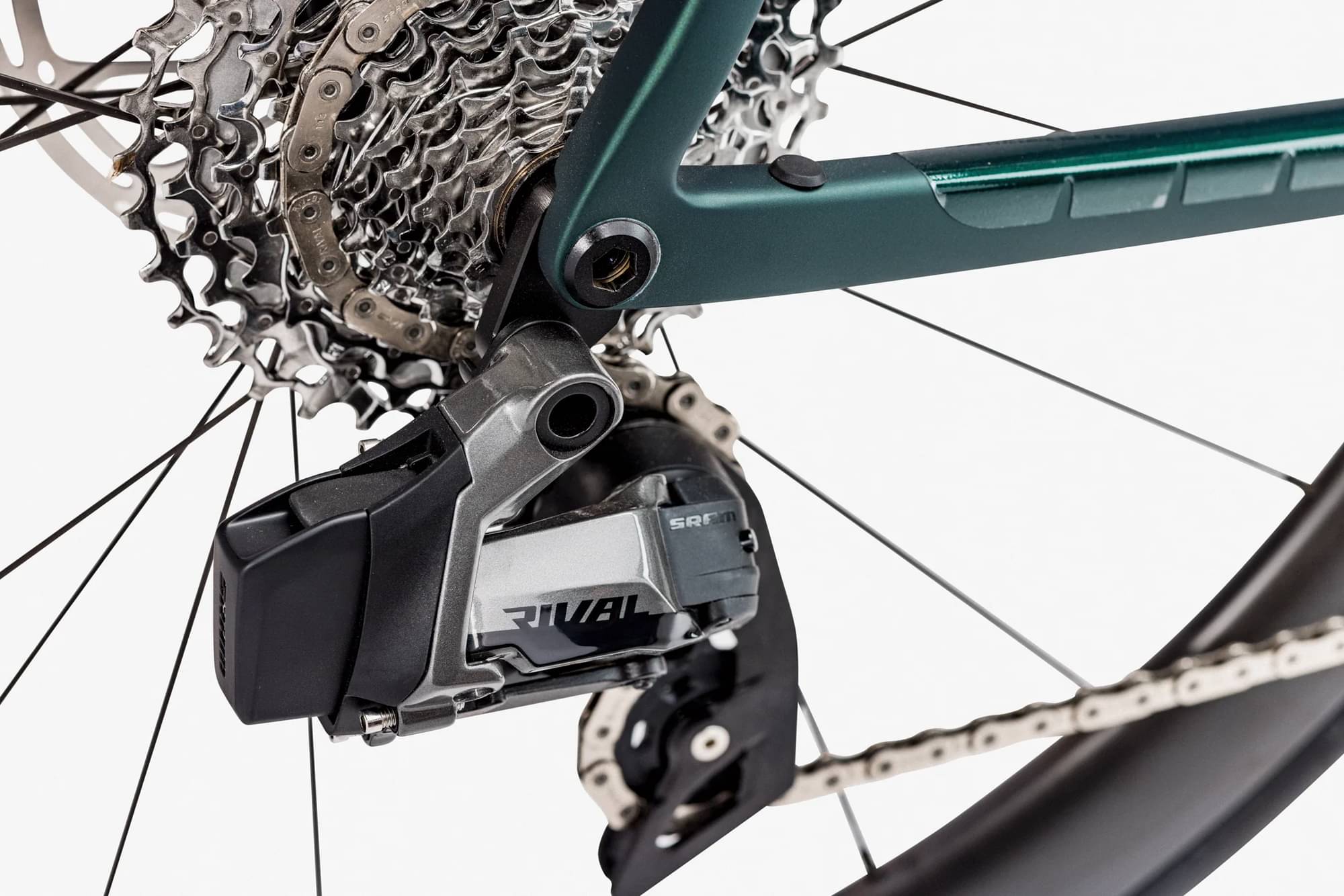

Rear Derailleur
SRAM Rival AXS
Front Derailleur
SRAM Rival AXS
Shift Levers
SRAM Rival AXS
Cassette
SRAM Rival XG-1250-D1 10-36

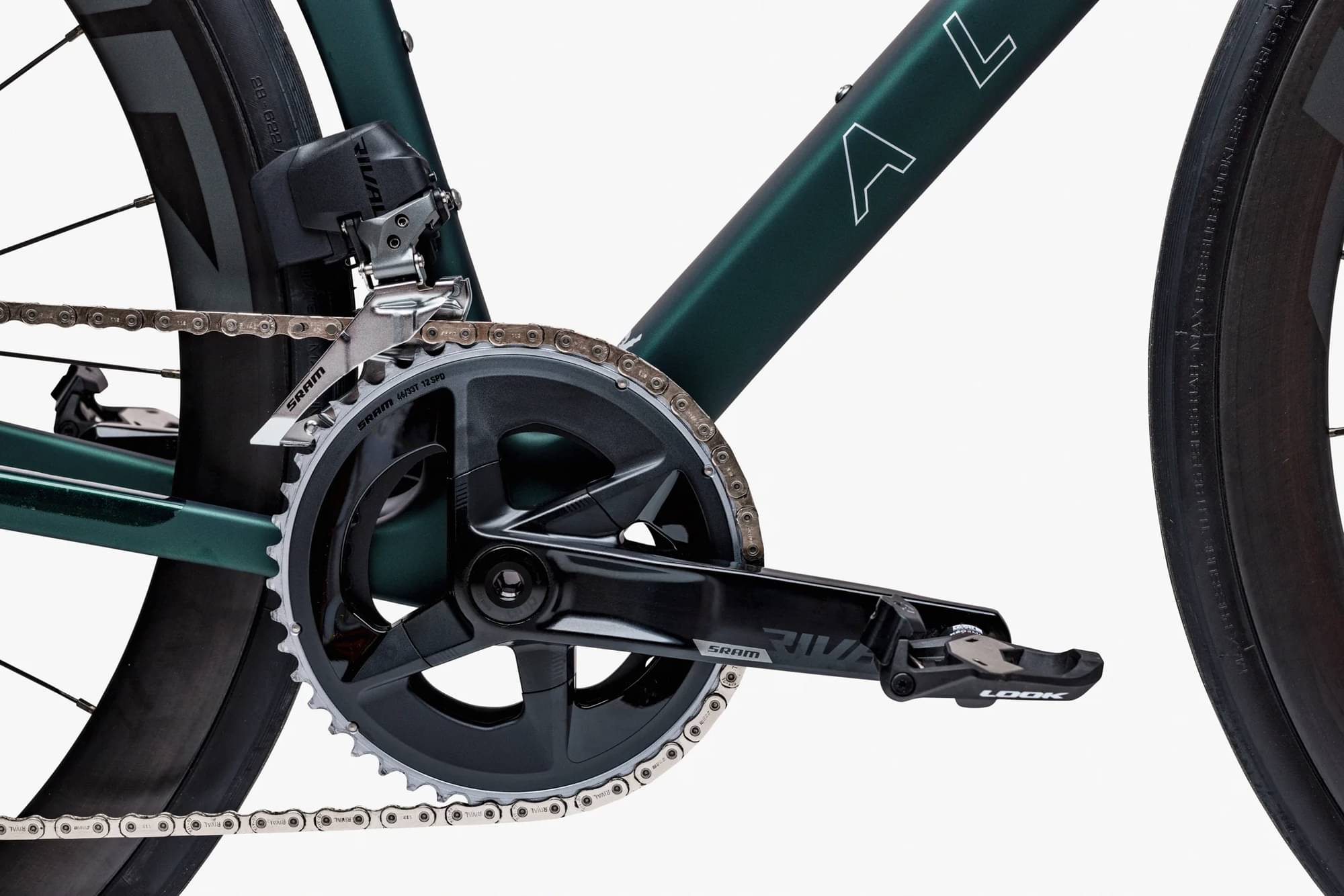

Crank
SRAM Rival AXS 46/33
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM Rival D1
Wheels
Rims
Zipp 303 S Tubeless Disc-Brake
Tires
Vittoria Corsa N.EXT TLR 700x28
Brakes
Brakes

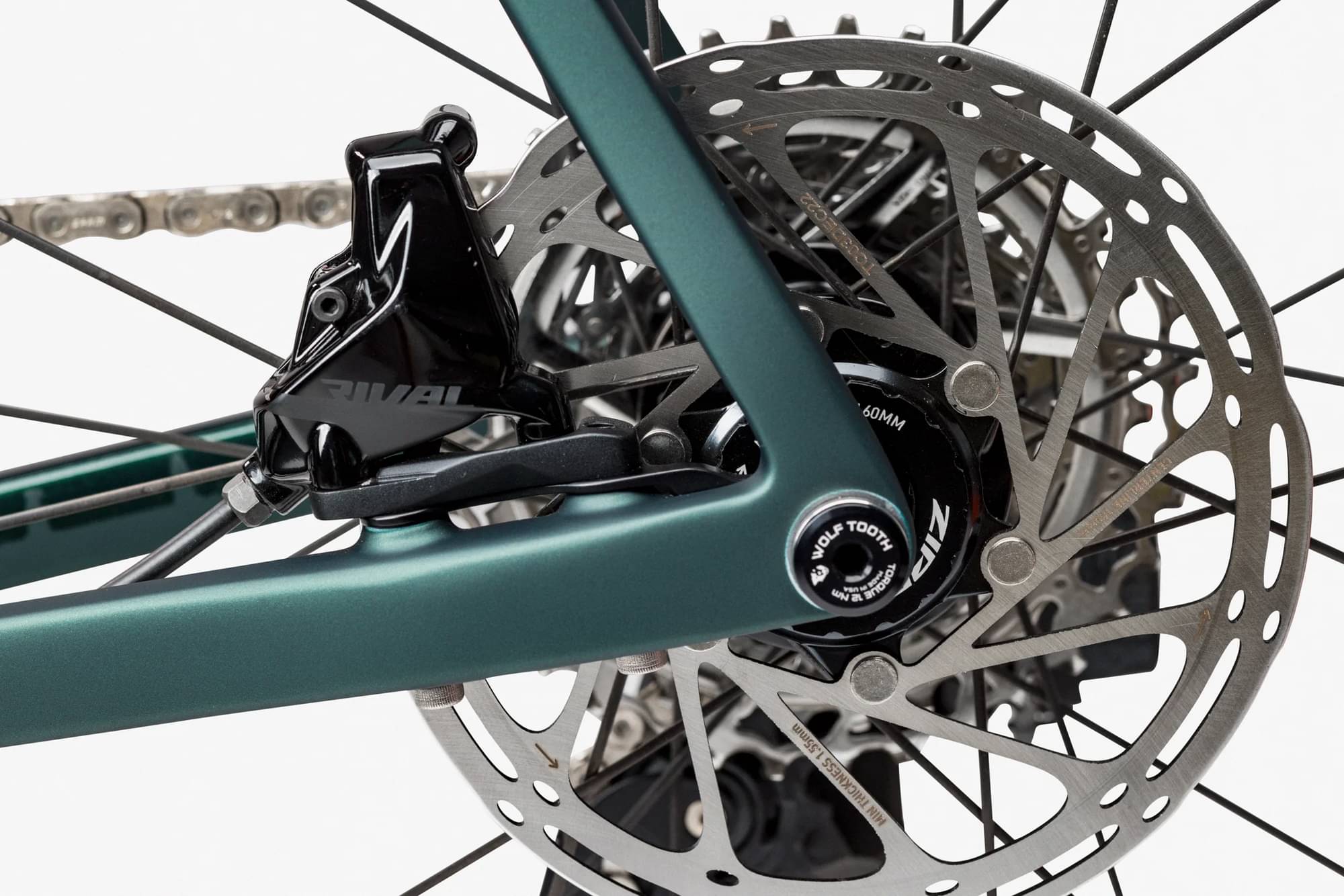

SRAM Rival AXS Hydraulic w/G3 CL 160mm Rotors
Cockpit
Stem
ALLIED Integrated
Handlebar
FSA Energy Compact
Seat
Saddle
Selle Italia Model X
Seatpost
ALLIED ALFA
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.384 mm | 1.414 mm | 1.439 mm | 1.473 mm | 1.512 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 569 mm | 573 mm | 585 mm | 594 mm | 609 mm | 622 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 64 mm | 65 mm | 58 mm | 55 mm | 55 mm | 55 mm |
| Stack | 515 mm | 530 mm | 550 mm | 570 mm | 595 mm | 620 mm |
| Reach | 375 mm | 383 mm | 389 mm | 396 mm | 404 mm | 410 mm |
| Top Tube Length | 523 mm | 535 mm | 547 mm | 565 mm | 580 mm | 594 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 490 mm | 510 mm | 530 mm | 560 mm | 585 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 109 mm | 121 mm | 142 mm | 161 mm | 187 mm | 214 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 968 mm | 972 mm | 984 mm | 993 mm | 1008 mm | 1021 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 750 mm | 780 mm | 780 mm | 800 mm | 830 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
