Allied BC40 SRAM X0 Eagle Transmission 2025
2025 Mountain
Estimate price |
8,985$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Silver Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox SID Ultimate 3P Crown 120
Rear Shock
Rock Shox SIDLuxe Ultimate 3P Lever
Drivetrain
Rear Derailleur

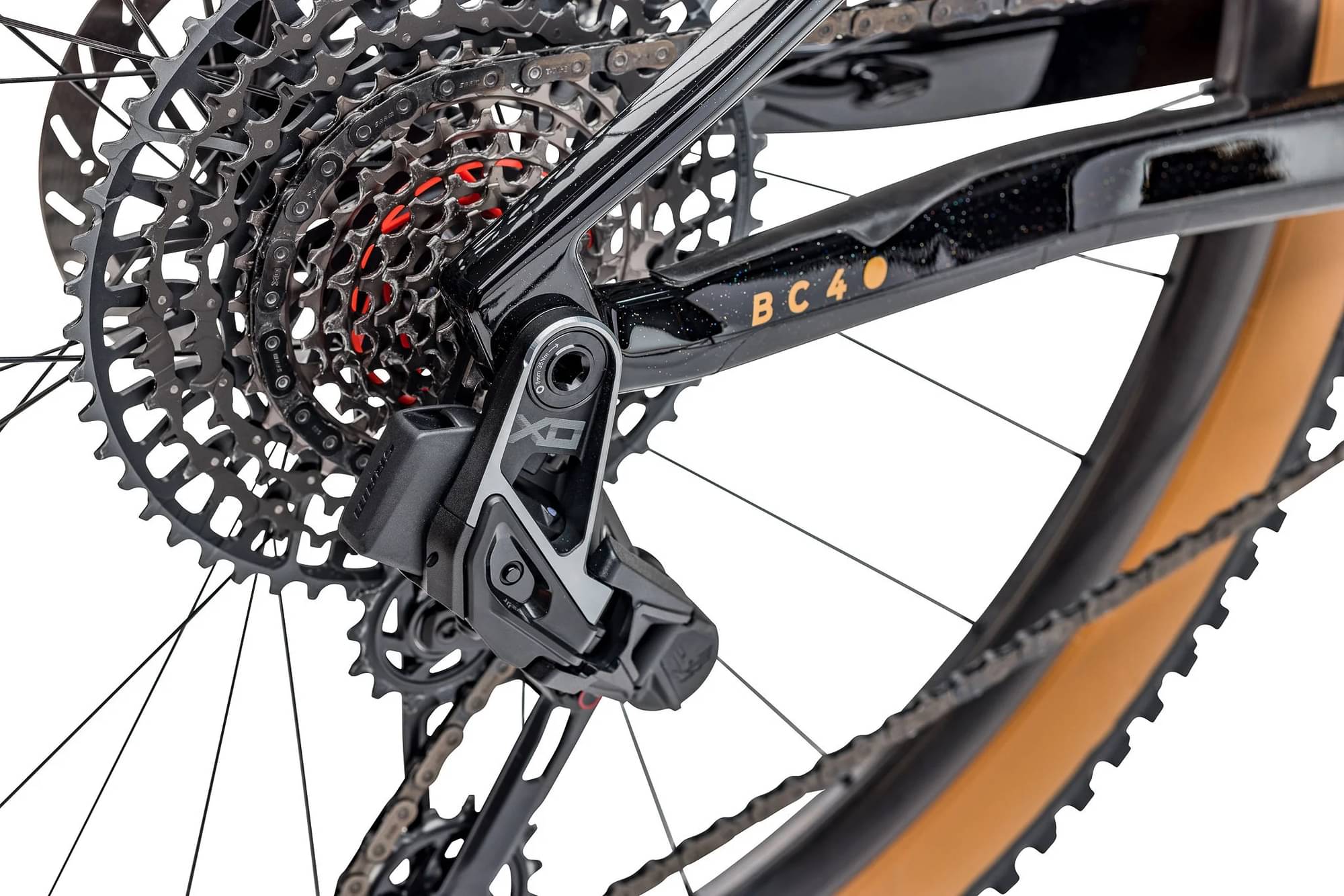

SRAM XO Eagle AXS Transmission
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod Bridge Controller
Cassette
SRAM XS 1295 Eagle Transmission 10-52
Crank
SRAM XO Eagle Transmission
Bottom Bracket
SRAM Dub 73 BSA
Chain
SRAM XO Transmission
Wheels
Rims
Industry Nine 1/1 Trails S Carbon
Tires
Vittoria Syerra 29x2.40
Brakes
Brakes
SRAM Level Silver Stealth 4-Piston 180 Front / 160 Rear
Cockpit
Stem
Race Face Turnbine R
Handlebar
Race Face Next R Carbon
Seat
Saddle
Selle Italia Model X SuperFlow
Seatpost
Fox Transfer P-SE Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.369 mm | 1.309 mm | 1.263 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 598 mm | 609 mm | 622 mm | 633 mm |
| Reach | 420 mm | 445 mm | 475 mm | 501 mm |
| Top Tube Length | 569 mm | 596 mm | 630 mm | 659 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1145 mm | 1174 mm | 1210 mm | 1241 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
