Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

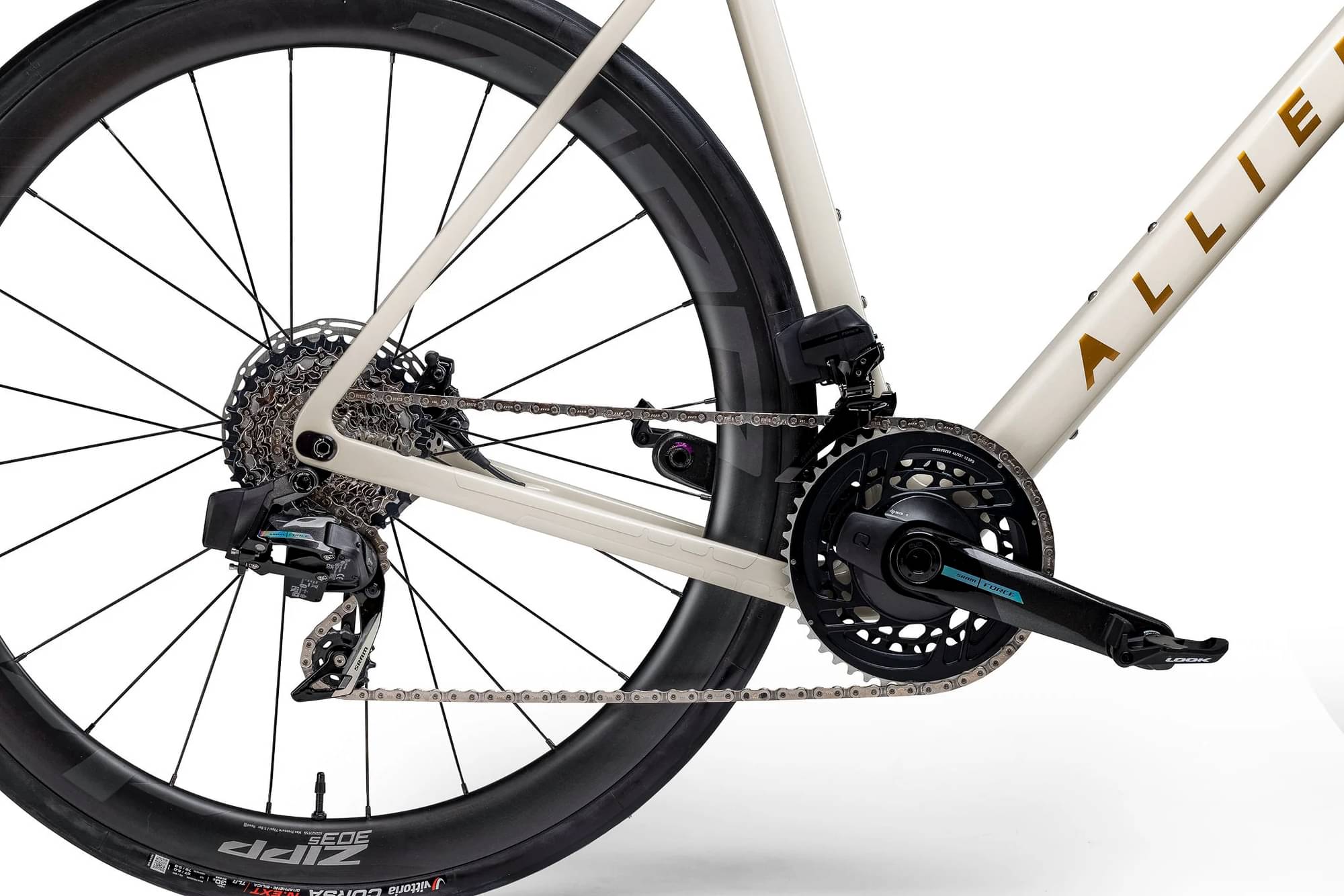

Drivetrain

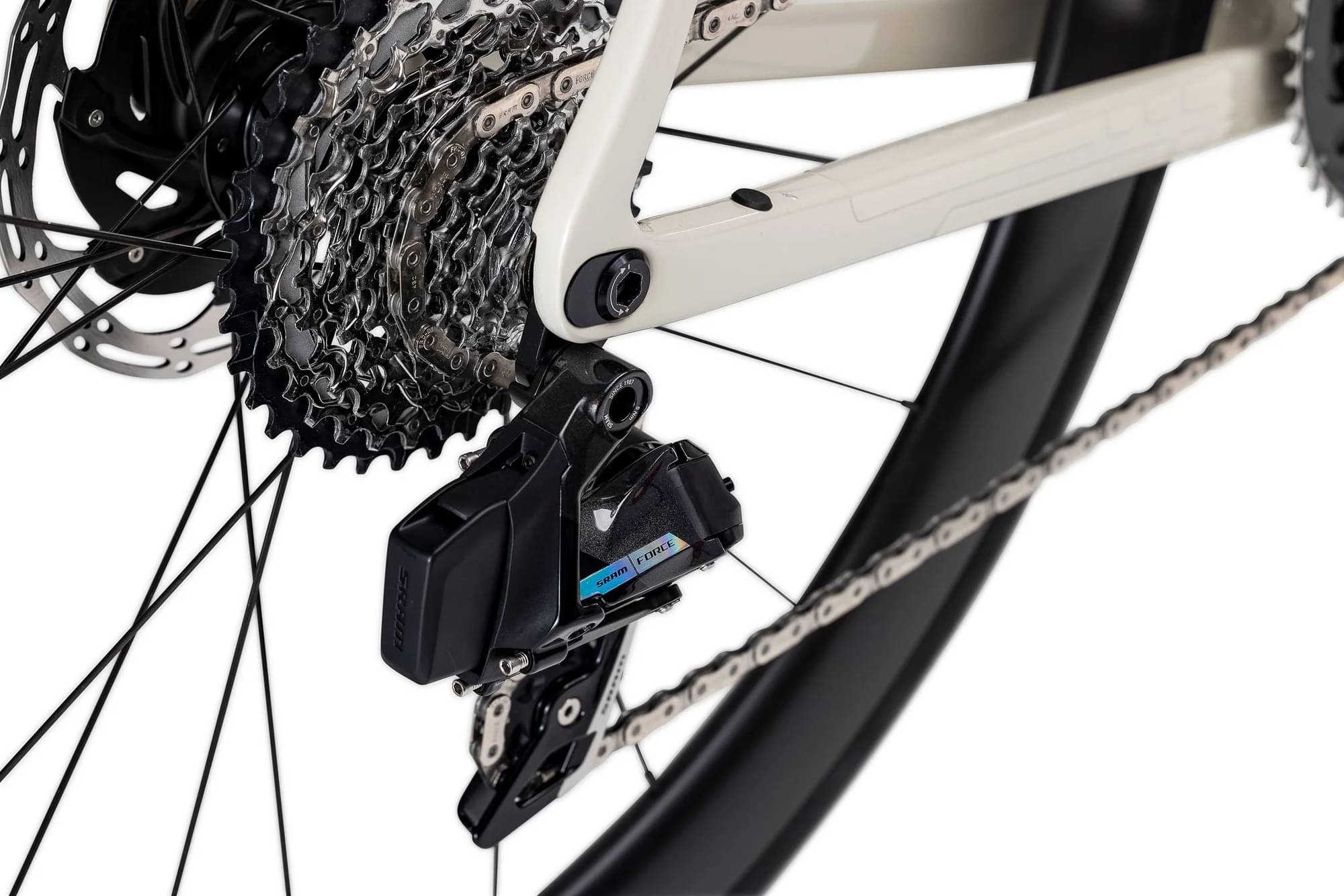

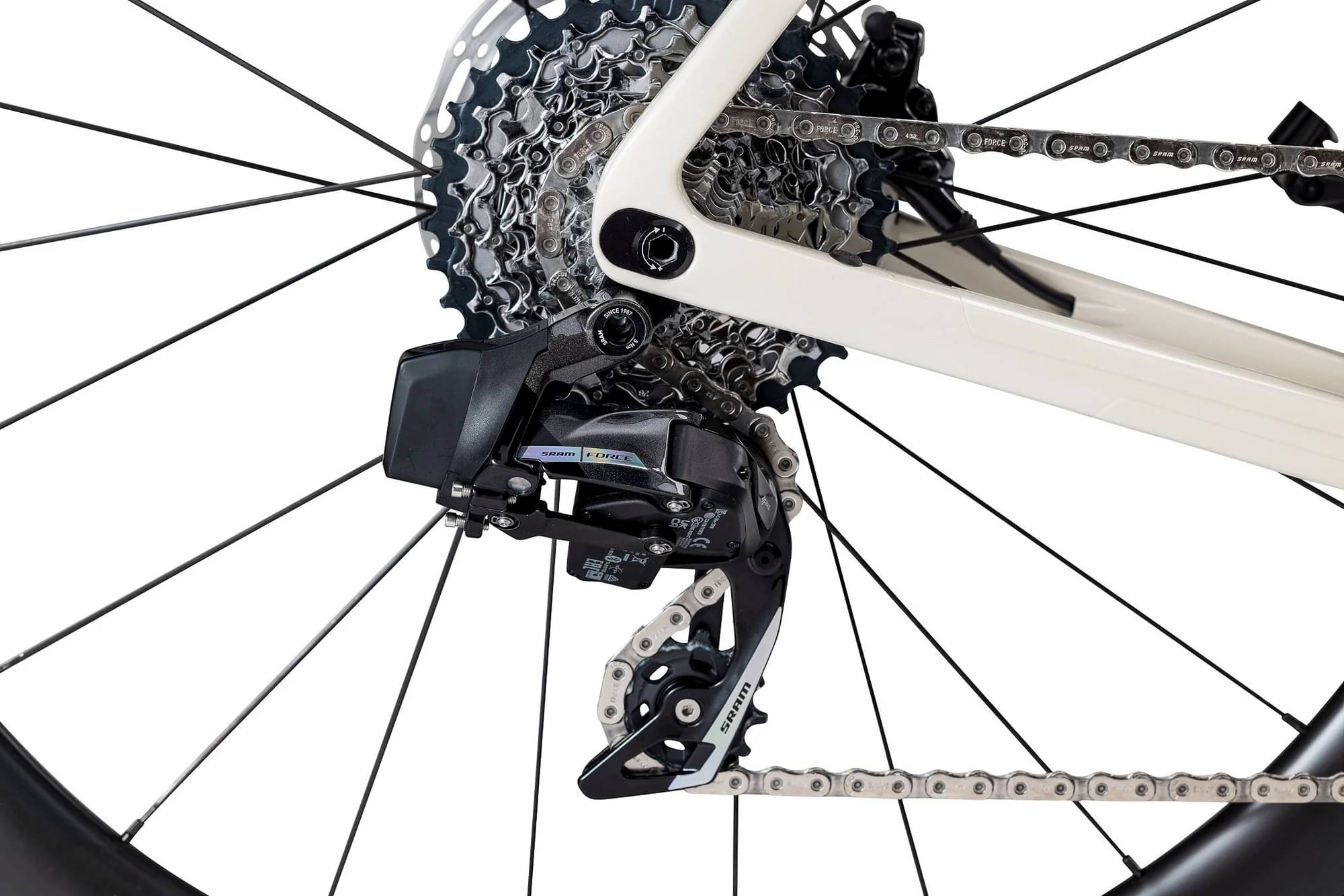

Rear Derailleur
SRAM Force AXS D2

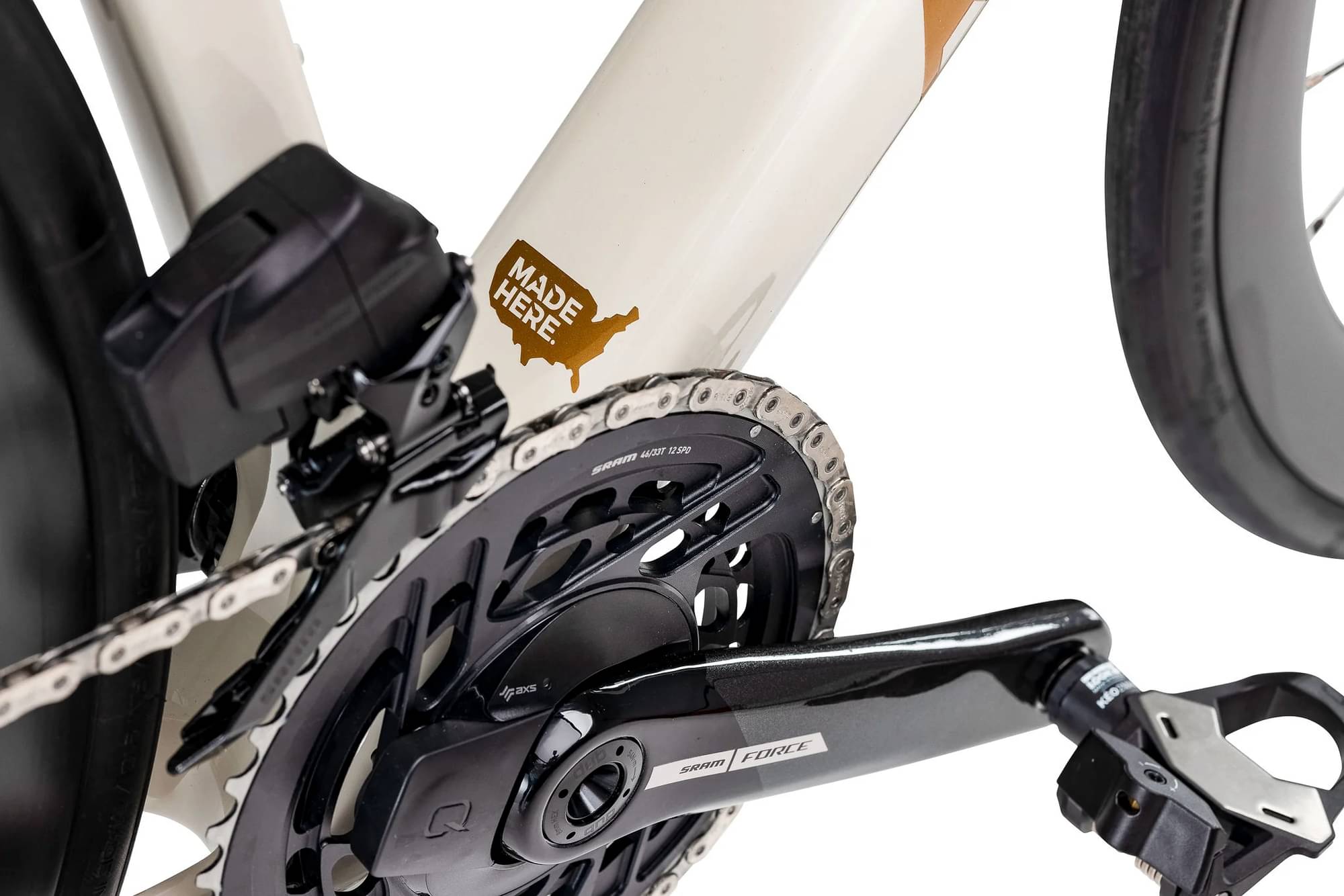

Front Derailleur
SRAM Force AXS
Shift Levers
SRAM Force AXS D2
Cassette
SRAM Force XG-1270-D1 10-33

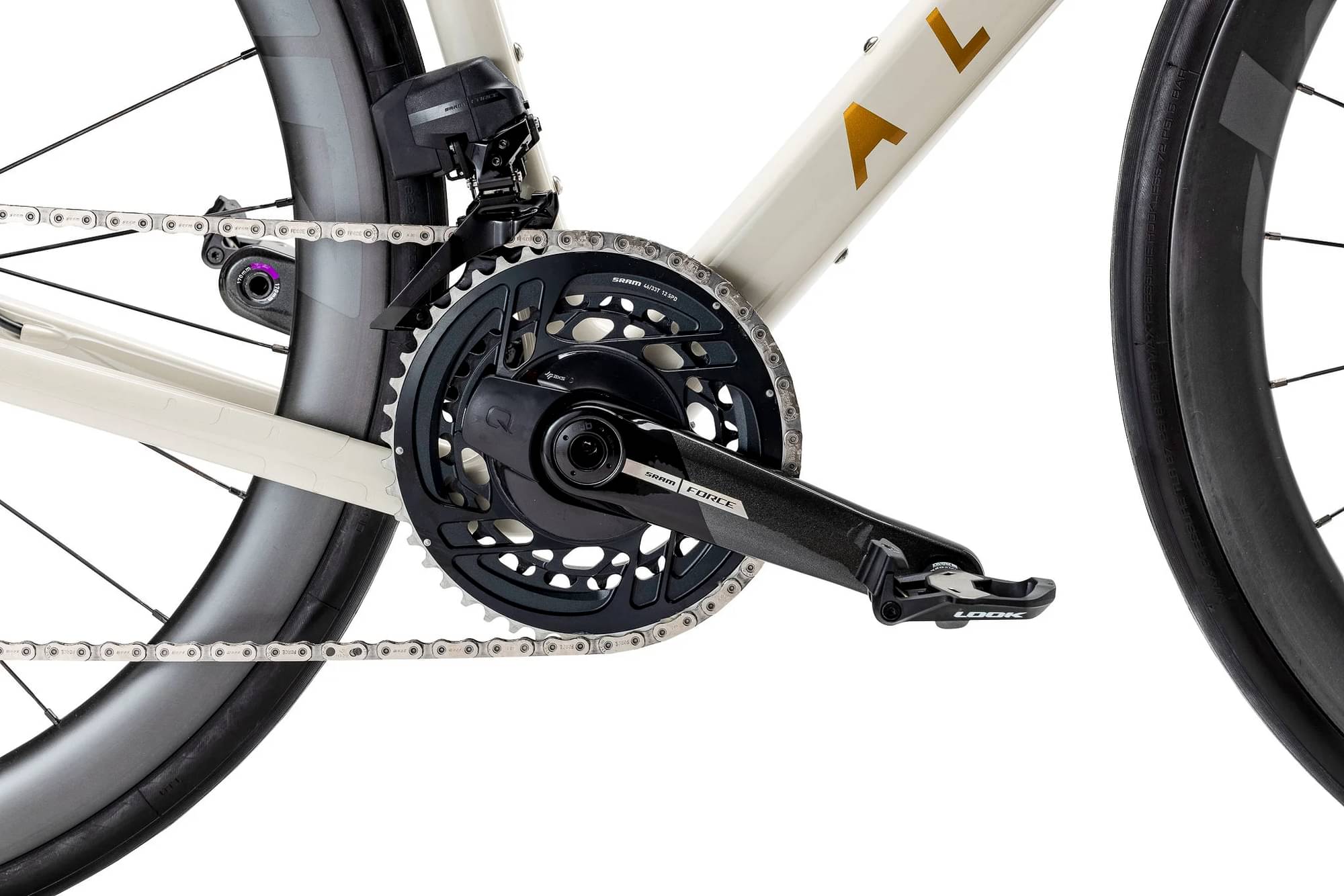

Crank
SRAM Force AXS D2
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM Force Flattop
Wheels
Rims
Zipp 303 S
Tires
Vittoria Corsa N.EXT TLR 700x28
Brakes
Brakes
SRAM Force AXS HRD

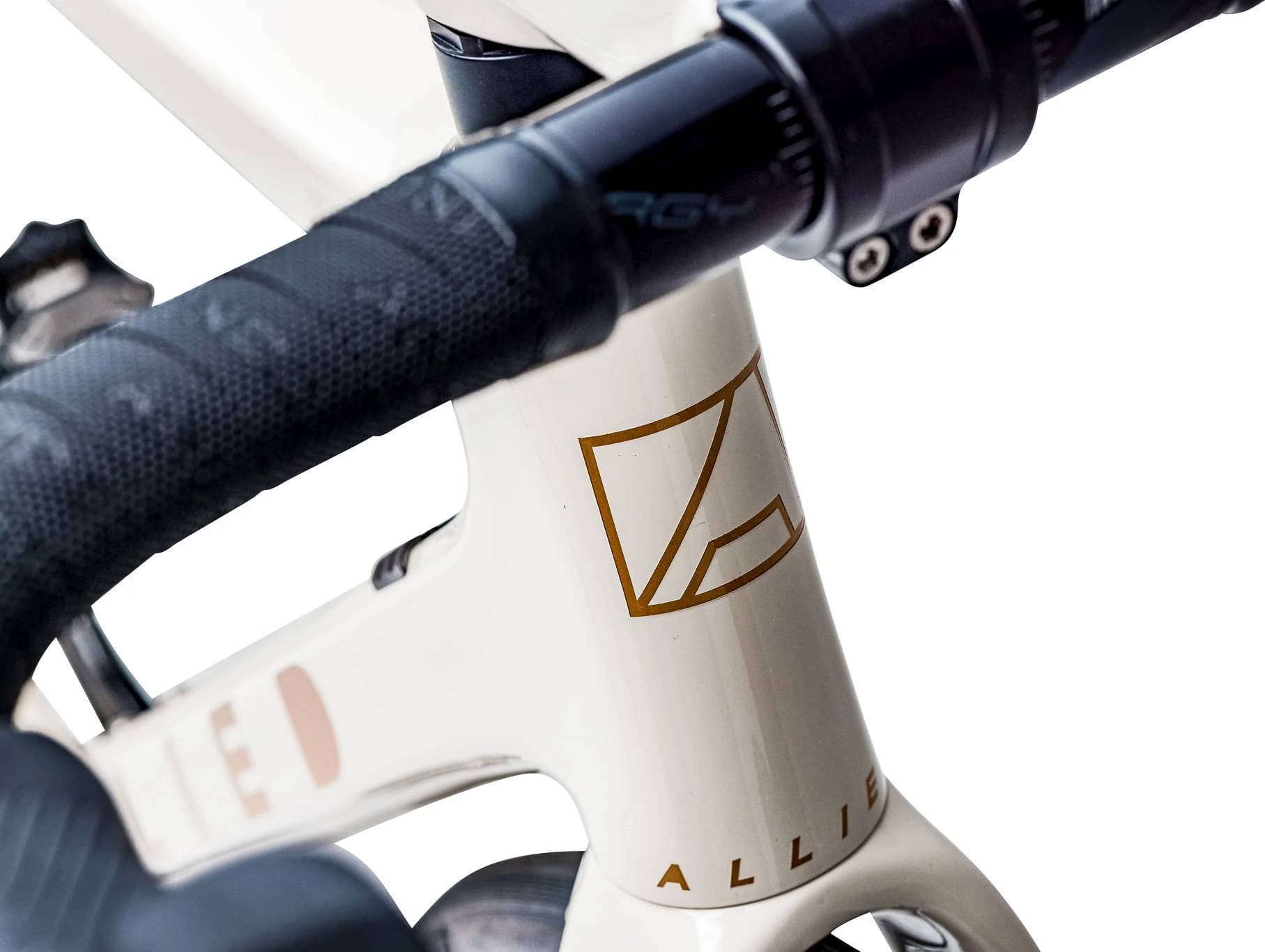

Cockpit
Stem
ALLIED ECHO
Handlebar
FSA Energy Compact
Seat
Saddle
Selle Italia Novus Boost EVO Superflow

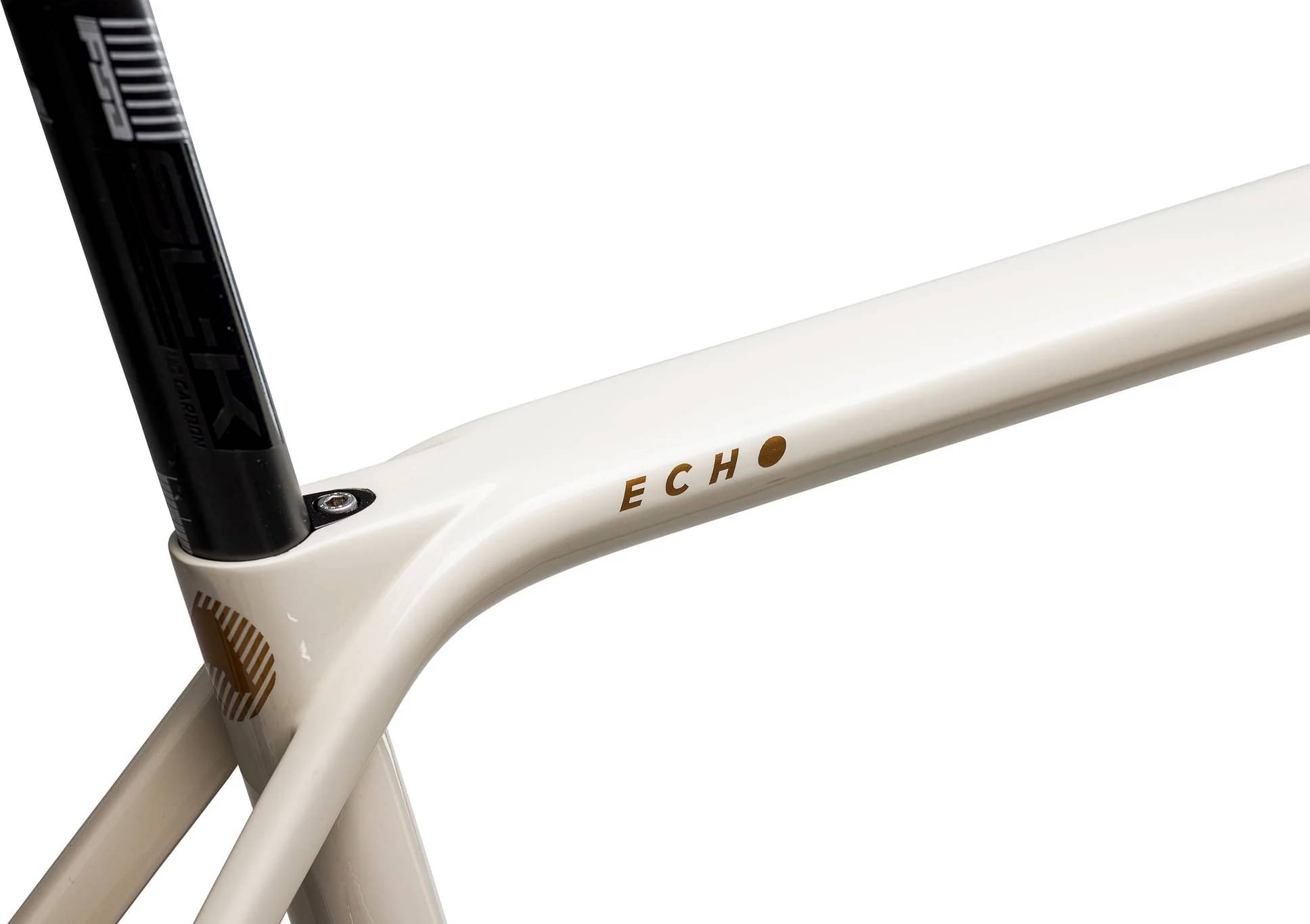

Seatpost
FSA SL-K Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.391 mm | 1.421 mm | 1.447 mm | 1.48 mm | 1.516 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 515 mm | 530 mm | 550 mm | 570 mm | 595 mm | 620 mm |
| Reach | 372 mm | 381 mm | 387 mm | 394 mm | 402 mm | 409 mm |
| Top Tube Length | 515 mm | 528 mm | 550 mm | 564 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 971 mm | 985 mm | 988 mm | 1001 mm | 1017 mm | 1032 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 722 mm | 736 mm | 769 mm | 804 mm | 825 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
