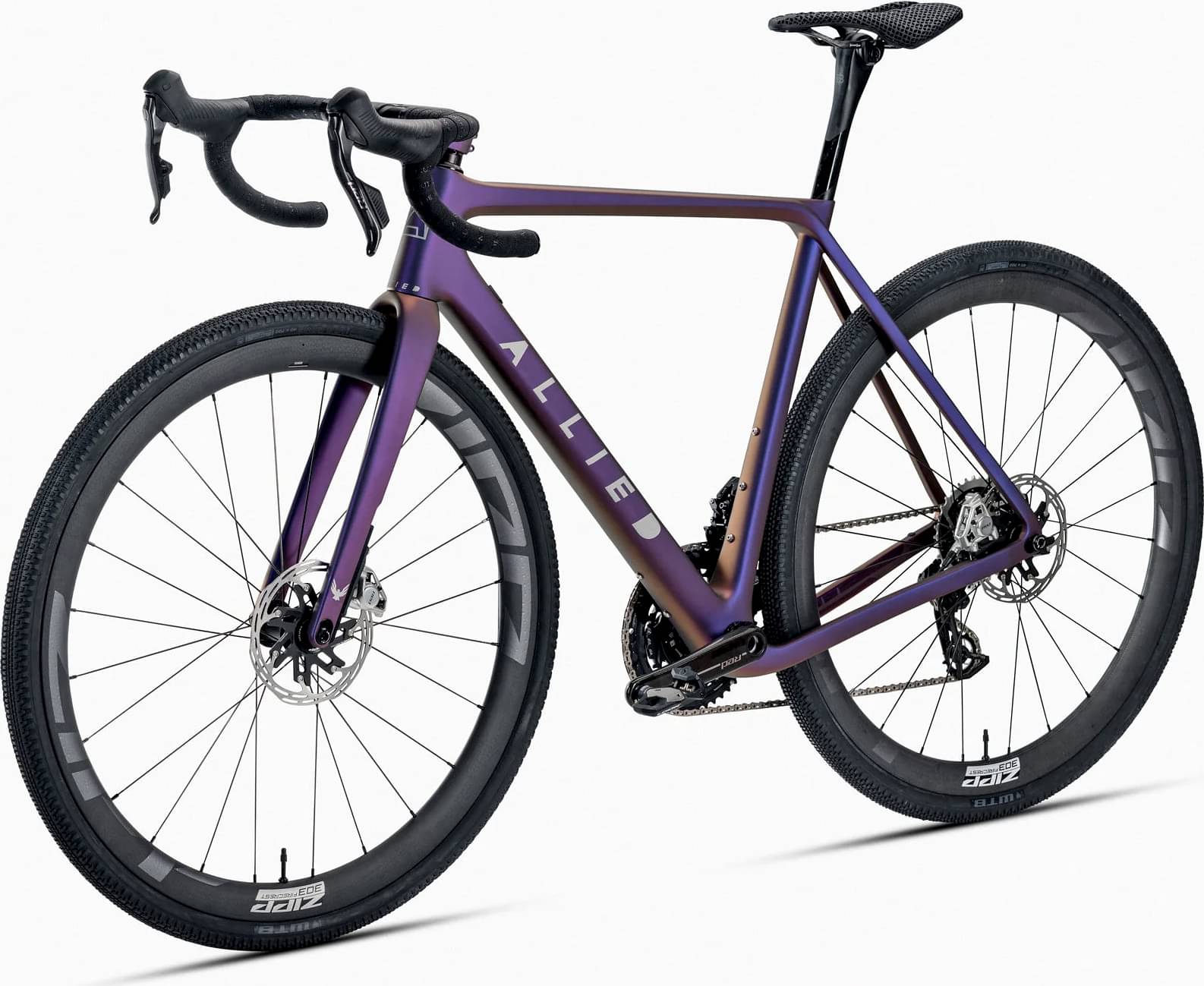

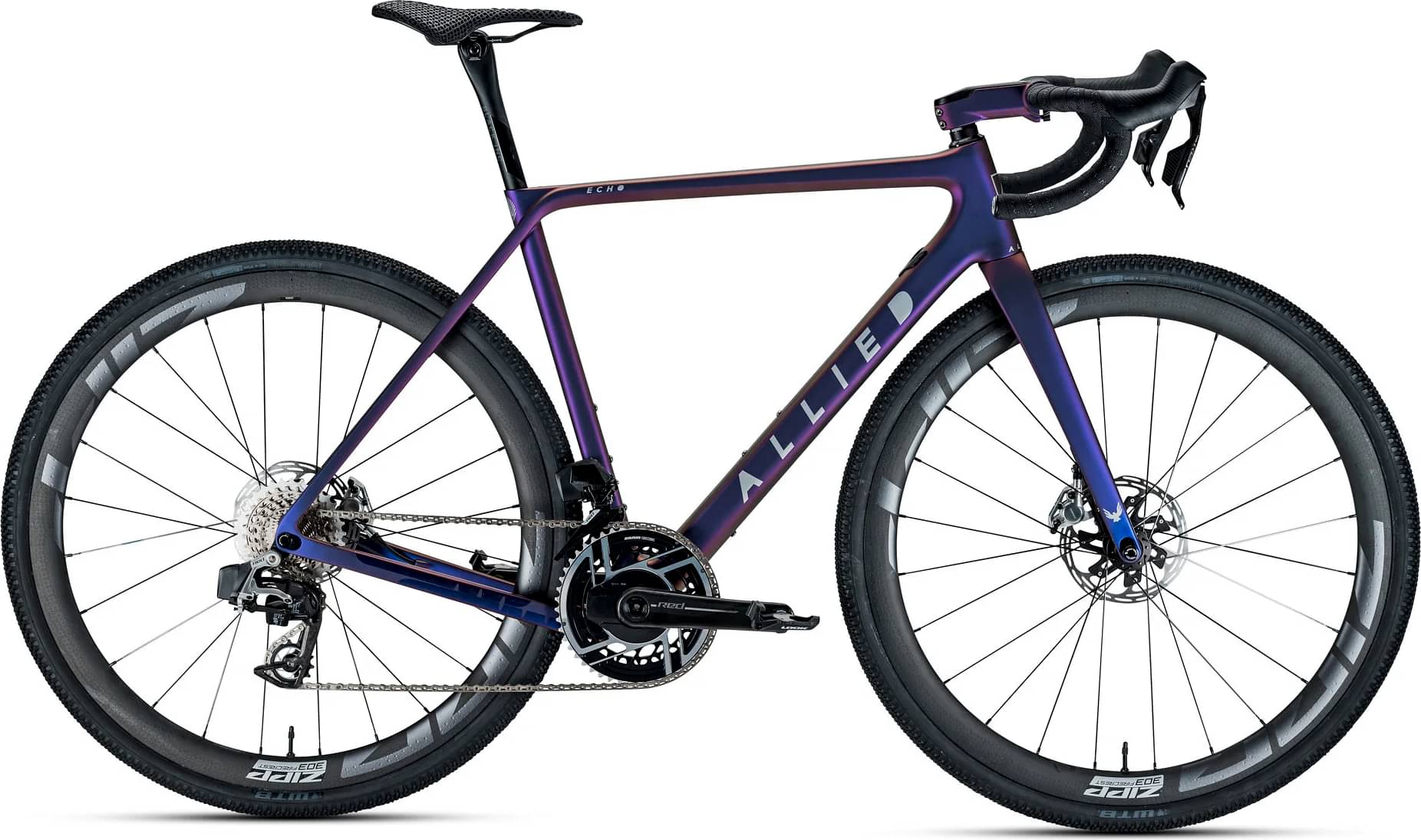

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
ALLIED ECHO
Drivetrain

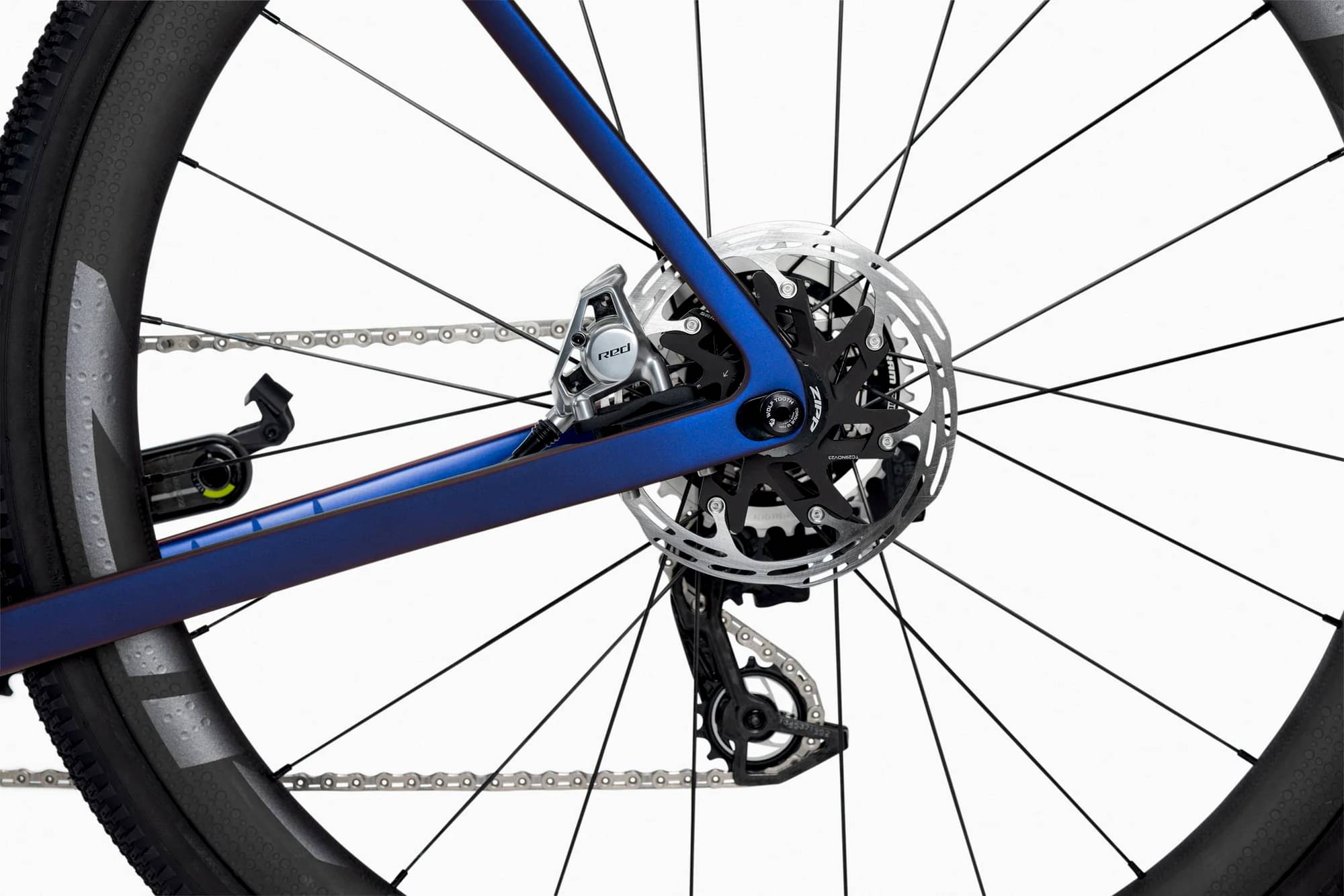

Rear Derailleur
SRAM RED AXS E1
Front Derailleur
SRAM RED AXS E1

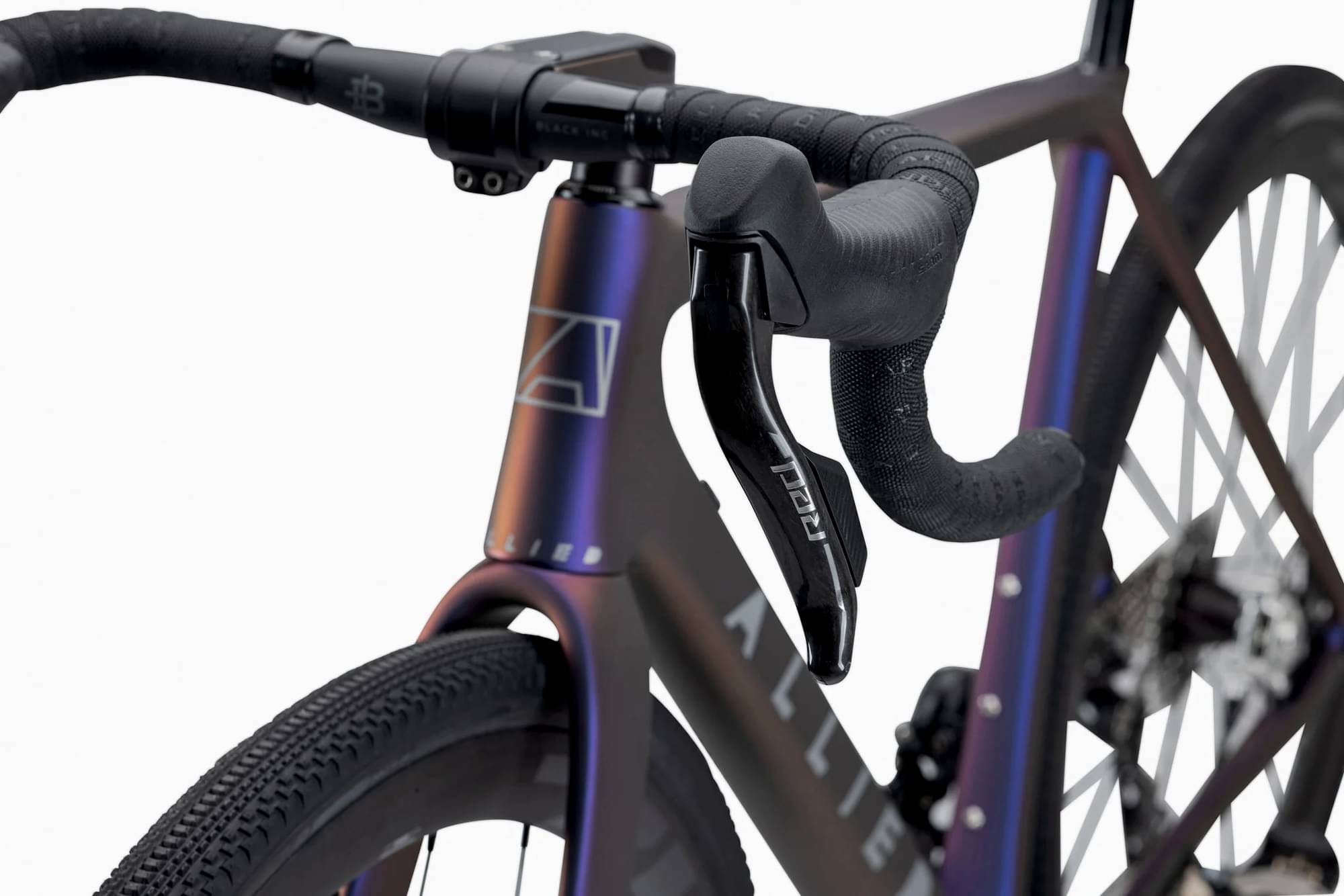

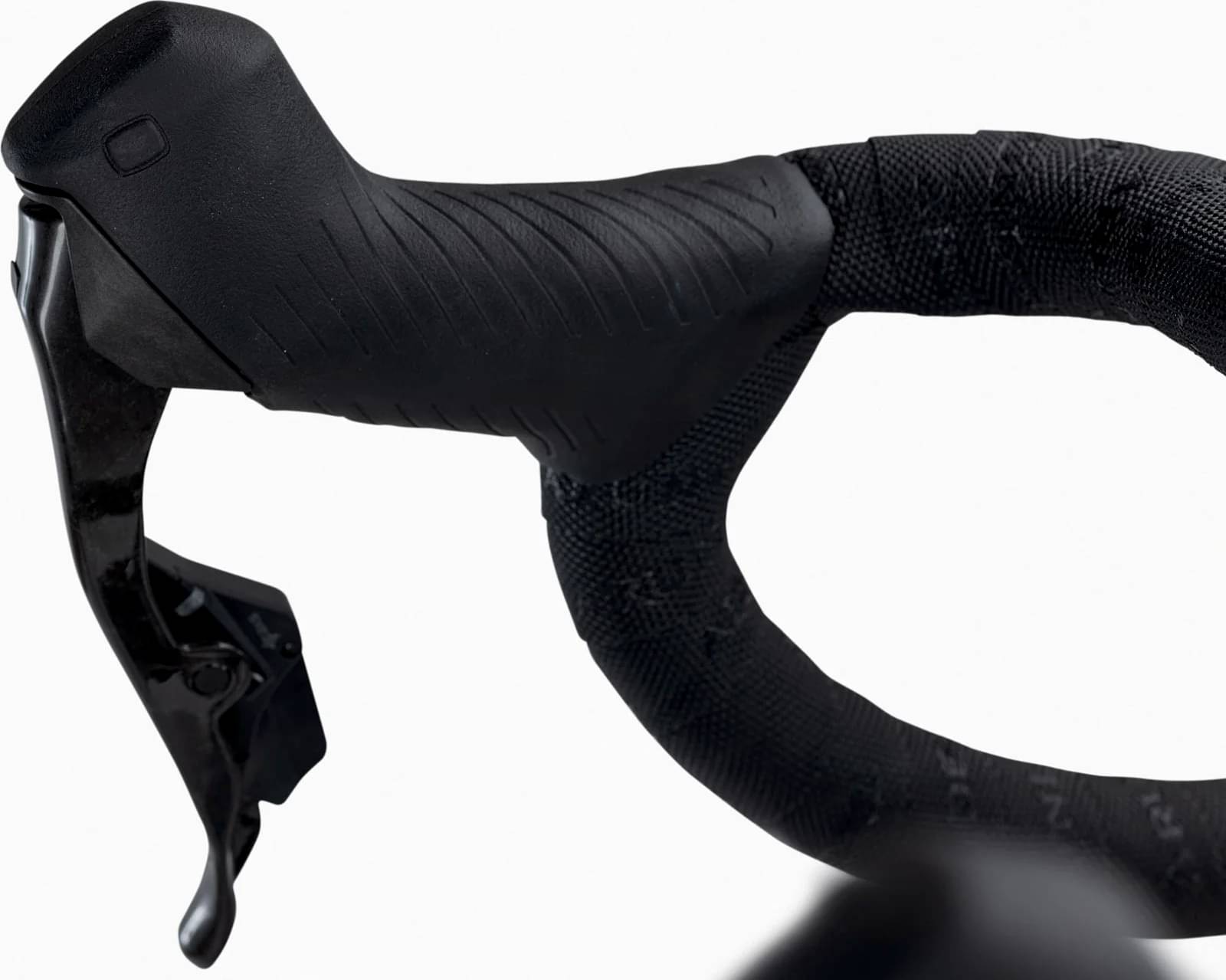

Shift Levers
SRAM RED AXS E1
Cassette
SRAM Red XG-1290-E1 10-36 Silver
Crank
SRAM RED E1
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM RED E1 Silver
Wheels
Rims
Zipp 303 Firecrest Tubeless Disc-Brake
Tires
Vittoria Corsa Pro TLR 700x30

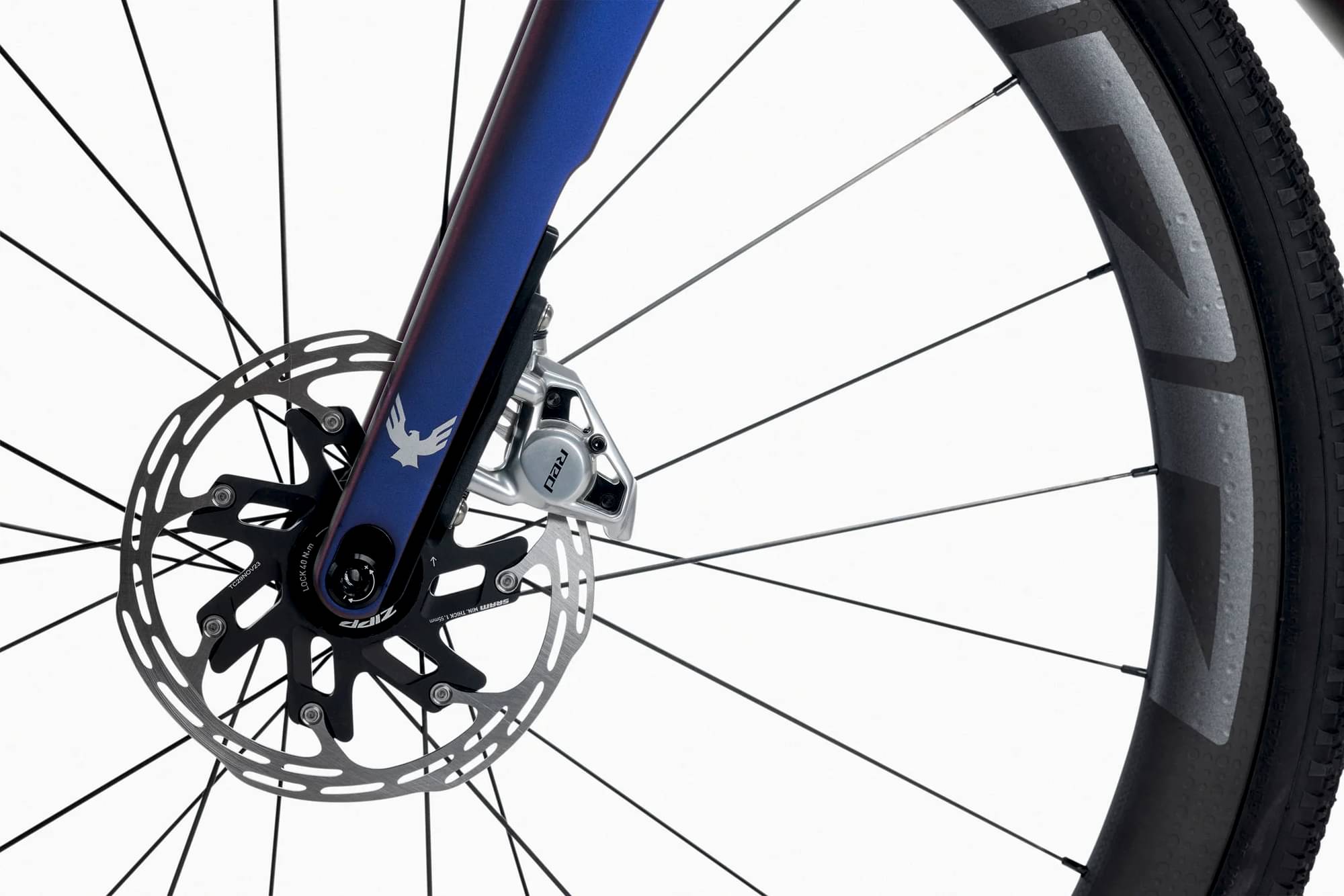

Brakes
Brakes
SRAM RED AXS E1 HRD w/Paceline X 160/160mm Rotors

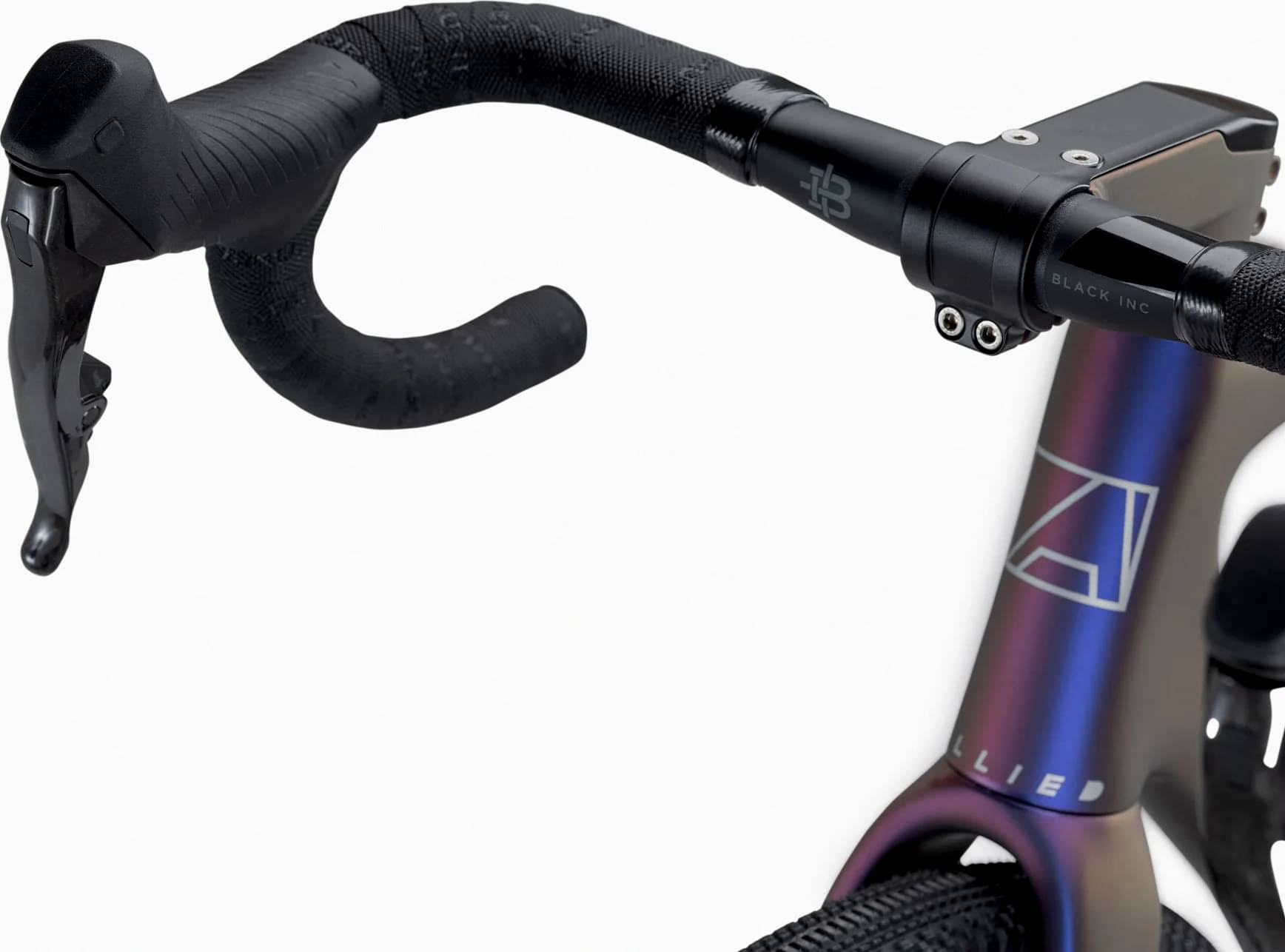

Cockpit
Stem
ALLIED ECHO
Handlebar
Black Inc Carbon Road
Seat
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
Black Inc Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.391 mm | 1.421 mm | 1.447 mm | 1.48 mm | 1.516 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 515 mm | 530 mm | 550 mm | 570 mm | 595 mm | 620 mm |
| Reach | 372 mm | 381 mm | 387 mm | 394 mm | 402 mm | 409 mm |
| Top Tube Length | 515 mm | 528 mm | 550 mm | 564 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 971 mm | 985 mm | 988 mm | 1001 mm | 1017 mm | 1032 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 722 mm | 736 mm | 769 mm | 804 mm | 825 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
