Bike details
Overview
Key information split into simple groups.

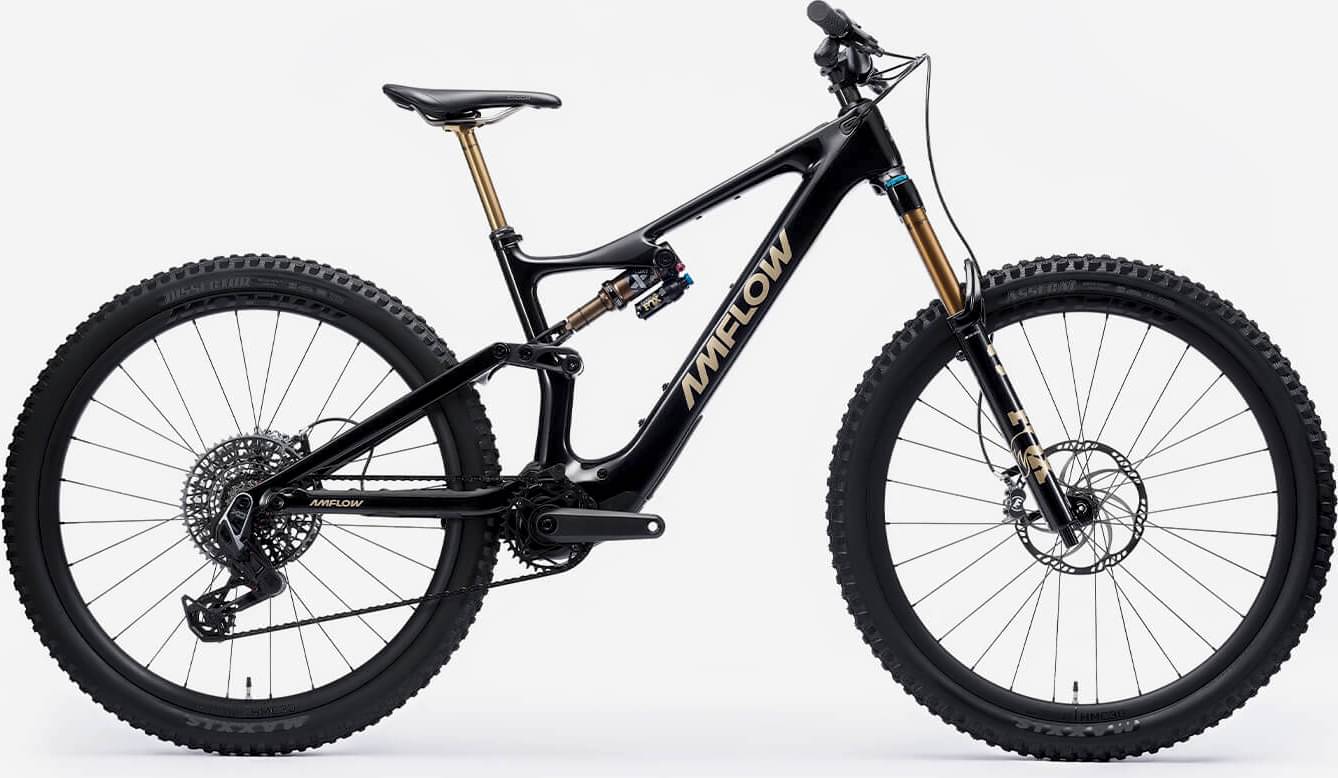

Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Suspension Full -
Motor DJI 850W 105Nm mid-drive -
Battery Avinox M1 Drive Unit: 105 N·m, Avinox Screen: 2-inch OLED Control Display, Avinox Integrated Battery: 800Wh, Avinox Wireless Controllers: Right and left sides, Avinox Fast Charger: 12A/508W -
Brakes Magura MT7 Pro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Amflow PL Carbon Frame, Cosmic Black, 150mm rear travel, Compatible with 27.5" and 29" rear wheels
Suspension Fork
2026 FOX 36 Factory, 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake
Rear Shock
2026 FOX FLOAT X Factory, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment
Wheels
Rims
Amflow HMC-30, Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready, Spokes: SAPIM E-Light Straightpull, Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt, Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR, Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Brakes
Brakes
Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Cockpit
Stem
Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
Handlebar
Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Seat
Saddle
Ergon SM PRO M/L
Seatpost
Fox Transfer Factory, Travel adjustable in 5mm, M: 125-150mm, L/XL: 155-180mm, XXL: 185-210mm
Motor & Battery
Motor
Avinox M1 Drive Unit: 105 N·m, Avinox Screen: 2-inch OLED Control Display, Avinox Integrated Battery: 800Wh, Avinox Wireless Controllers: Right and left sides, Avinox Fast Charger: 12A/508W
Battery
Avinox M1 Drive Unit: 105 N·m, Avinox Screen: 2-inch OLED Control Display, Avinox Integrated Battery: 800Wh, Avinox Wireless Controllers: Right and left sides, Avinox Fast Charger: 12A/508W
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.367 mm | 1.322 mm | 1.282 mm | 1.248 mm |
| Bottom Bracket Height | 345.5 mm | 345.5 mm | 345.5 mm | 345.5 mm |
| Front Center | 782 mm | 810 mm | 844 mm | 873 mm |
| Rake | 45 mm | 45 mm | 48 mm | 45 mm |
| Trail | 129 mm | 129 mm | 125 mm | 129 mm |
| Stack | 618 mm | 628 mm | 641 mm | 655 mm |
| Reach | 452 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 595 mm | 620 mm | 648 mm | 676 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 500 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1227 mm | 1255 mm | 1289 mm | 1318 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 780 mm | 785 mm | 790 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" |
