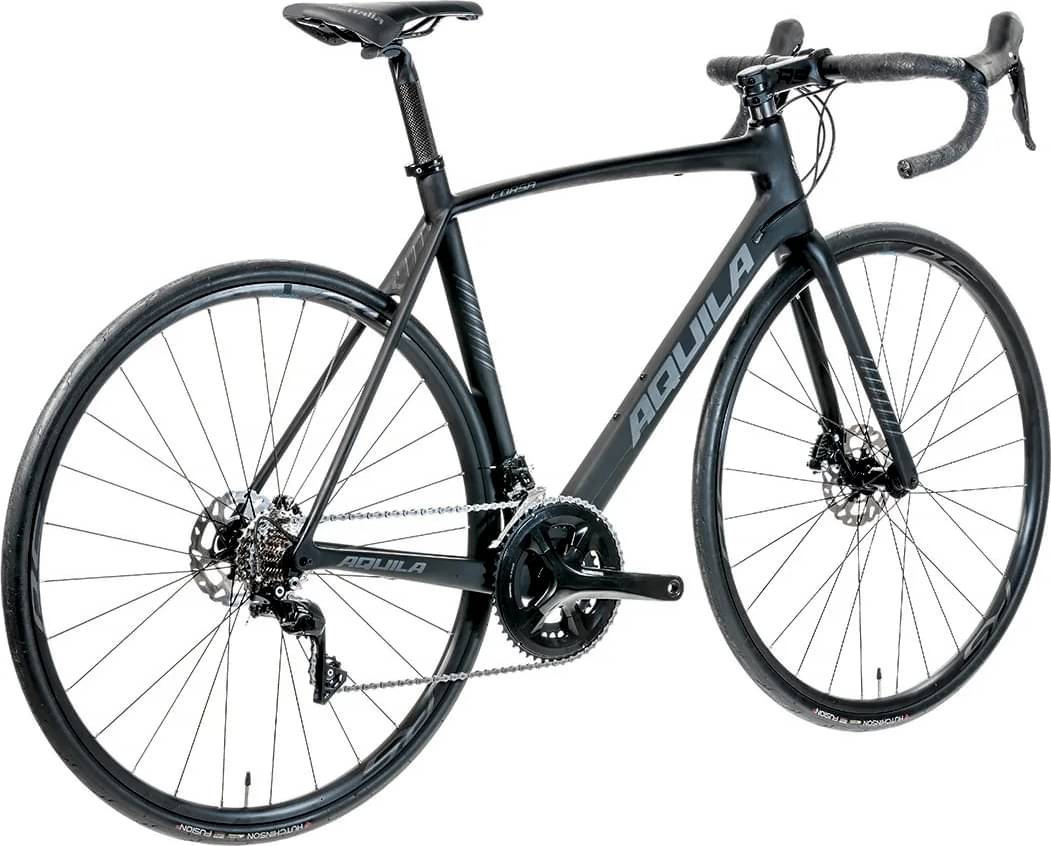

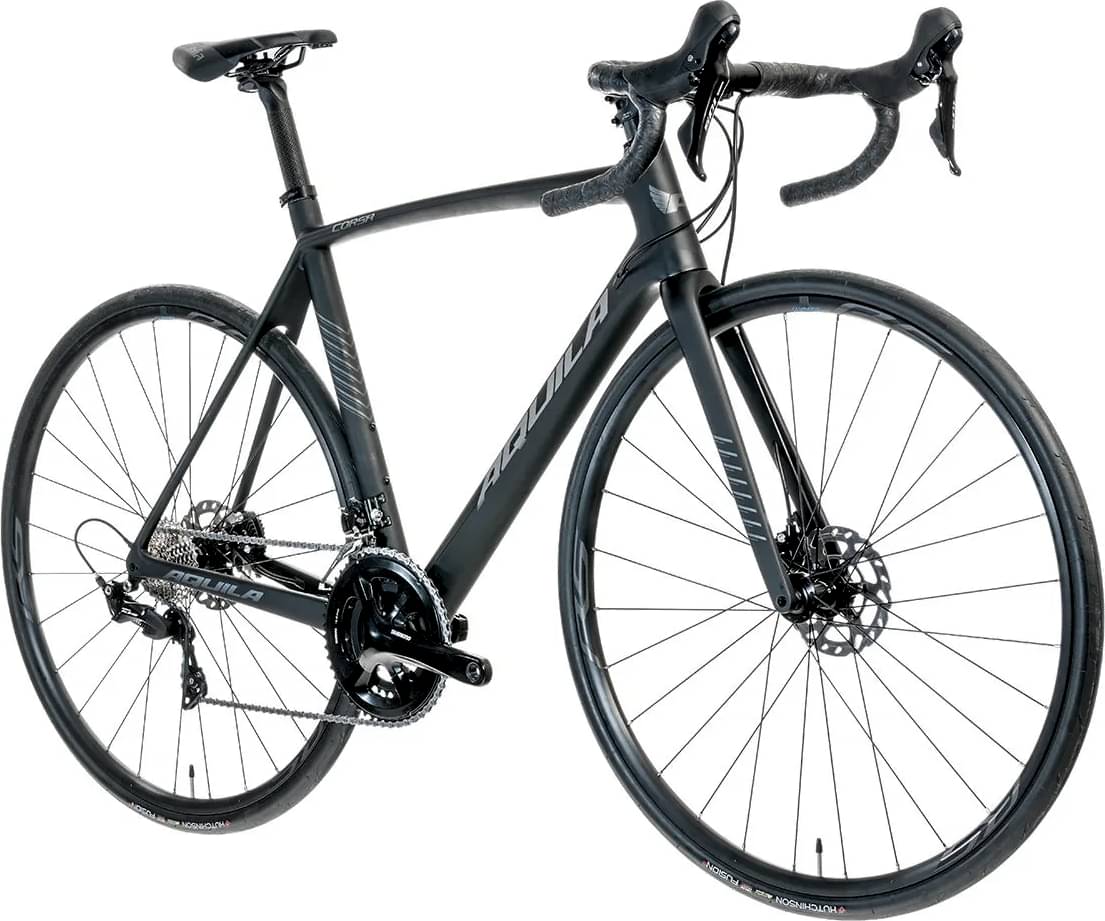

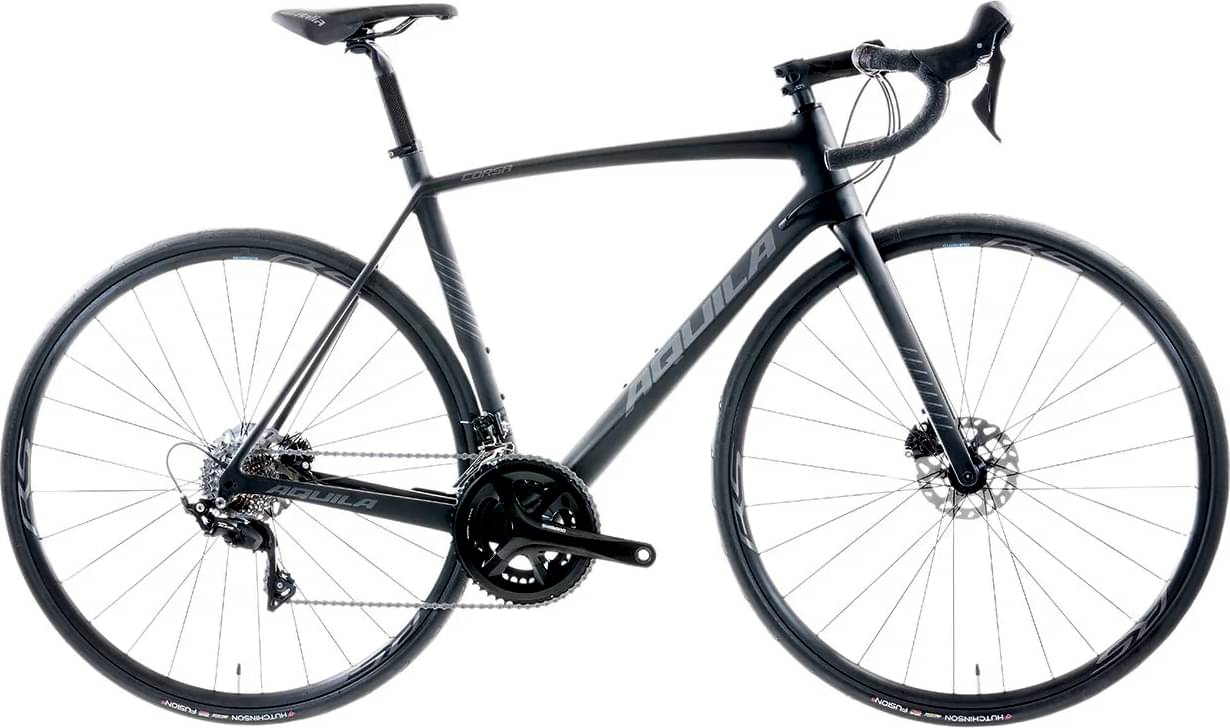

Aquila Corsa Carbon – Shimano Tiagra 4720 2024
2024 Road
Estimate price |
1,929$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila Corsa Carbon
Drivetrain
Rear Derailleur
RD4700, Tiagra 10 speed
Front Derailleur
FD4700, Tiagra 10 speed
Shift Levers
/ Brake Set ST4720, Tiagra 10 speed Hydraulic
Cassette
CSHF500, Tiagra 10 speed 1128T
Crank
FC4700, Tiagra 11 speed
Bottom Bracket
Shimano
Chain
Shimano CN 4601
Wheels
Rims
Shimano WHRS171
Tires
Hutchinson Fusion 5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Realspeed RS10
Handlebar
Realspeed ErgoEndurance
Headset
Aquila 11/8”
Seat
Saddle
Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.388 mm | 1.44 mm | 1.455 mm | 1.515 mm | 1.587 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 585 mm | 584 mm | 585 mm | 590 mm | 595 mm | 603 mm |
| Rake | 45 mm | 45 mm | 42 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 62 mm | 59 mm | 53 mm | 50 mm | 50 mm |
| Stack | 509.7 mm | 531 mm | 558.4 mm | 569.5 mm | 595.3 mm | 624.1 mm |
| Reach | 373.2 mm | 382.7 mm | 387.8 mm | 391.3 mm | 393 mm | 393.2 mm |
| Top Tube Length | 505 mm | 525 mm | 540 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 500 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 72 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm | 155 mm | 180 mm | 210 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 993 mm | 991 mm | 993 mm | 998 mm | 1002 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 731 mm | 760 mm | 783 mm | 802 mm | 828 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
