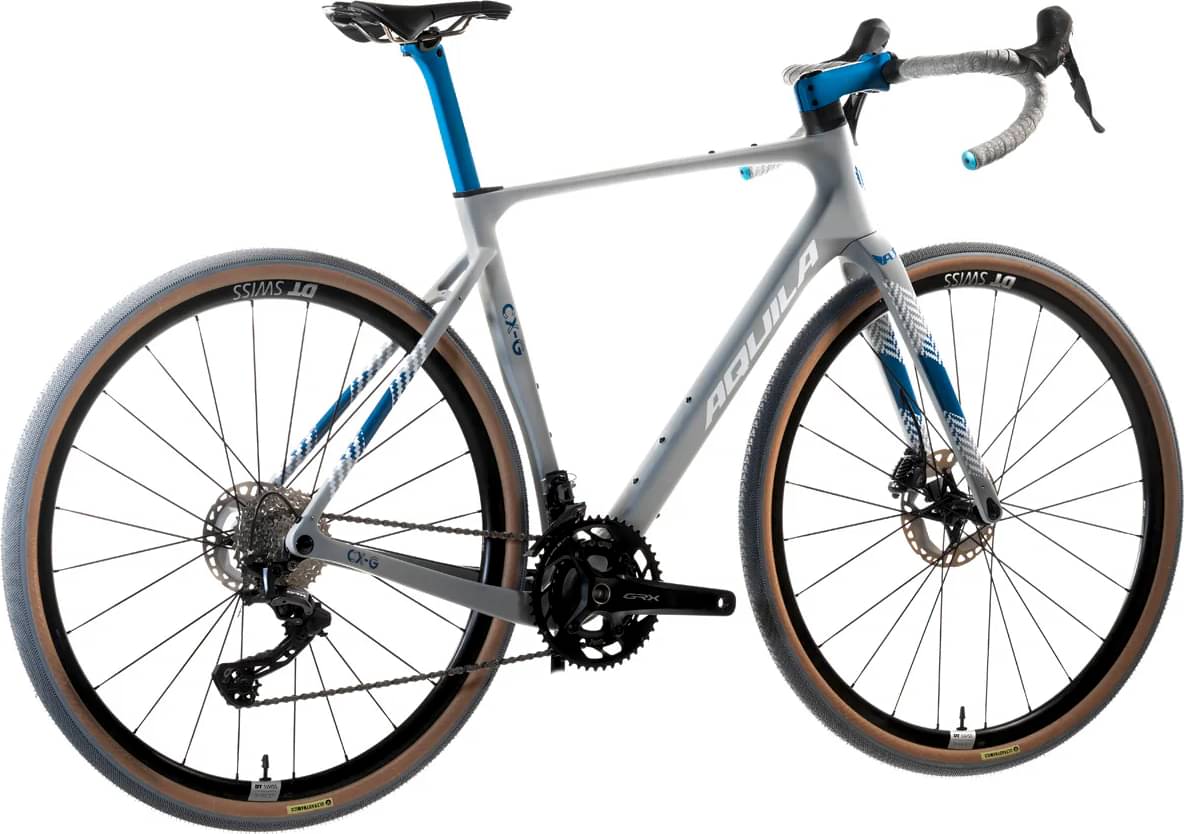

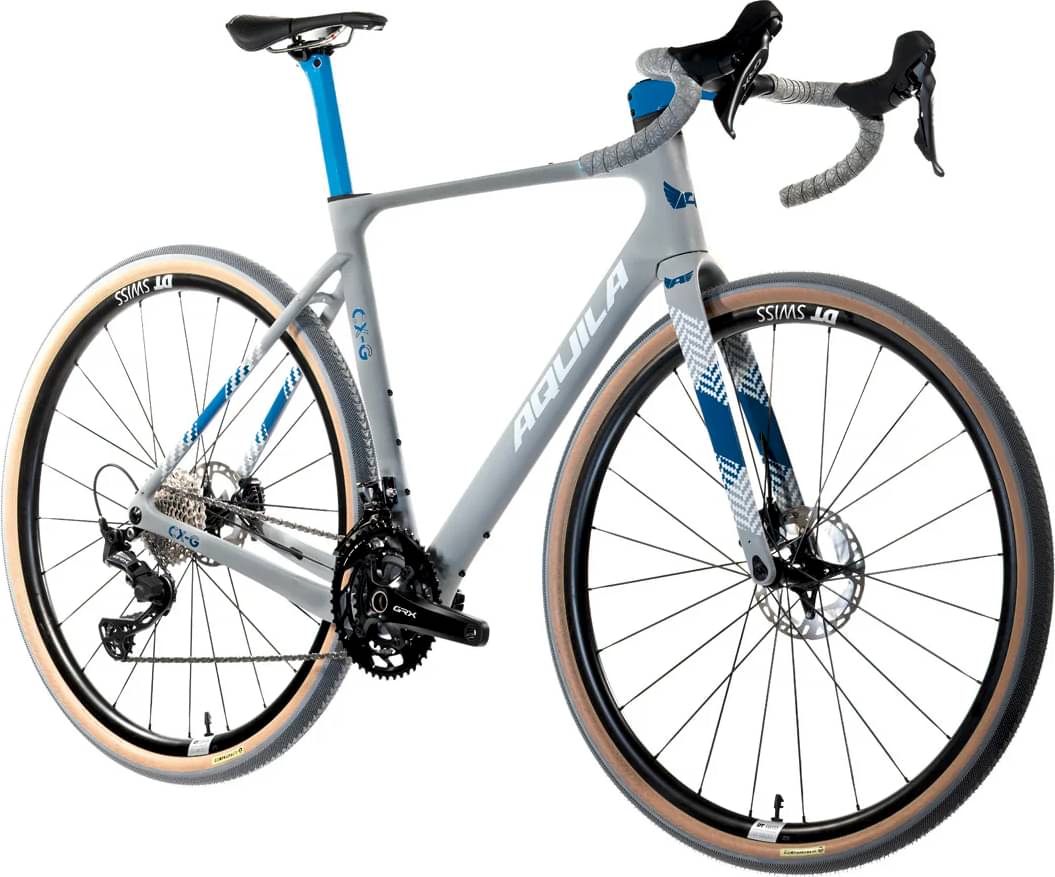

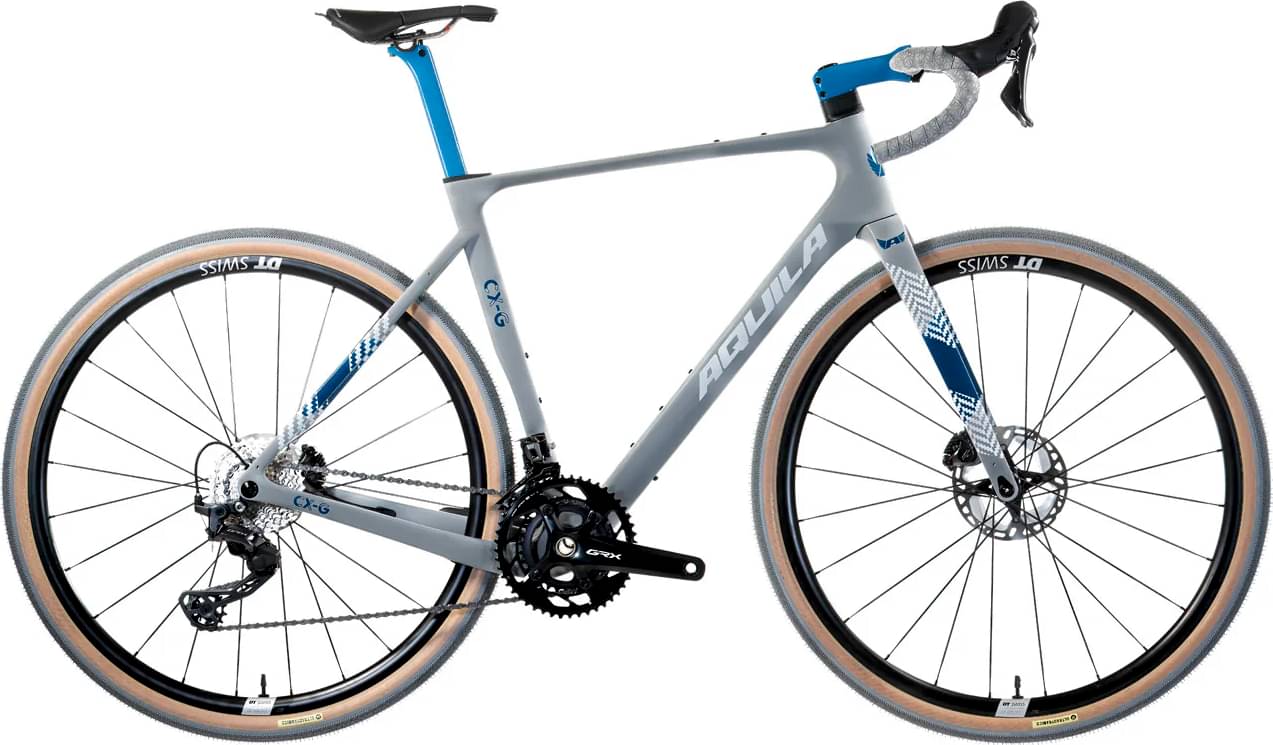

Aquila CX-G 2.0 – Shimano GRX RX820 12 Speed 2024
2024 Road
Estimate price |
3,753$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

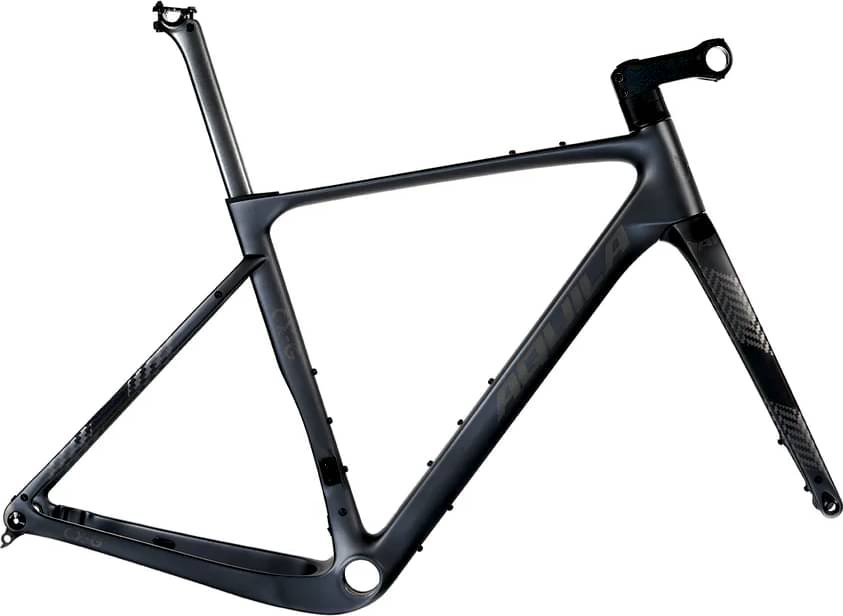

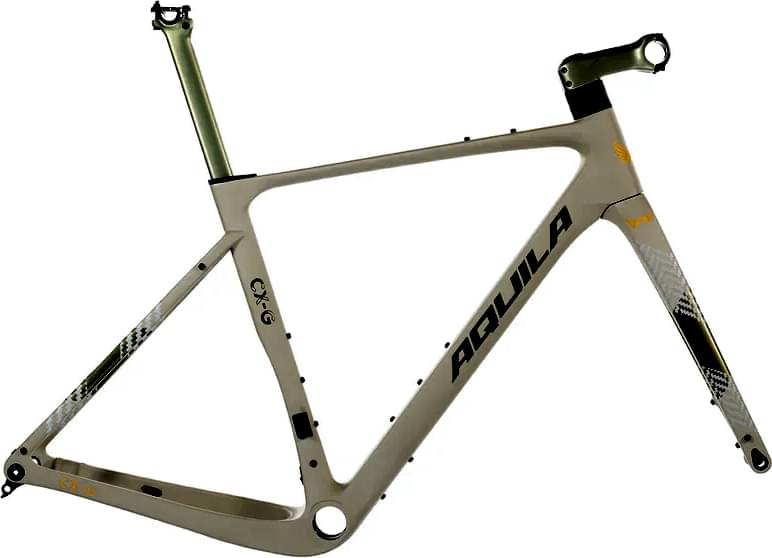

Frame Carbon -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Brakes
Brakes
Hydraulic Disc

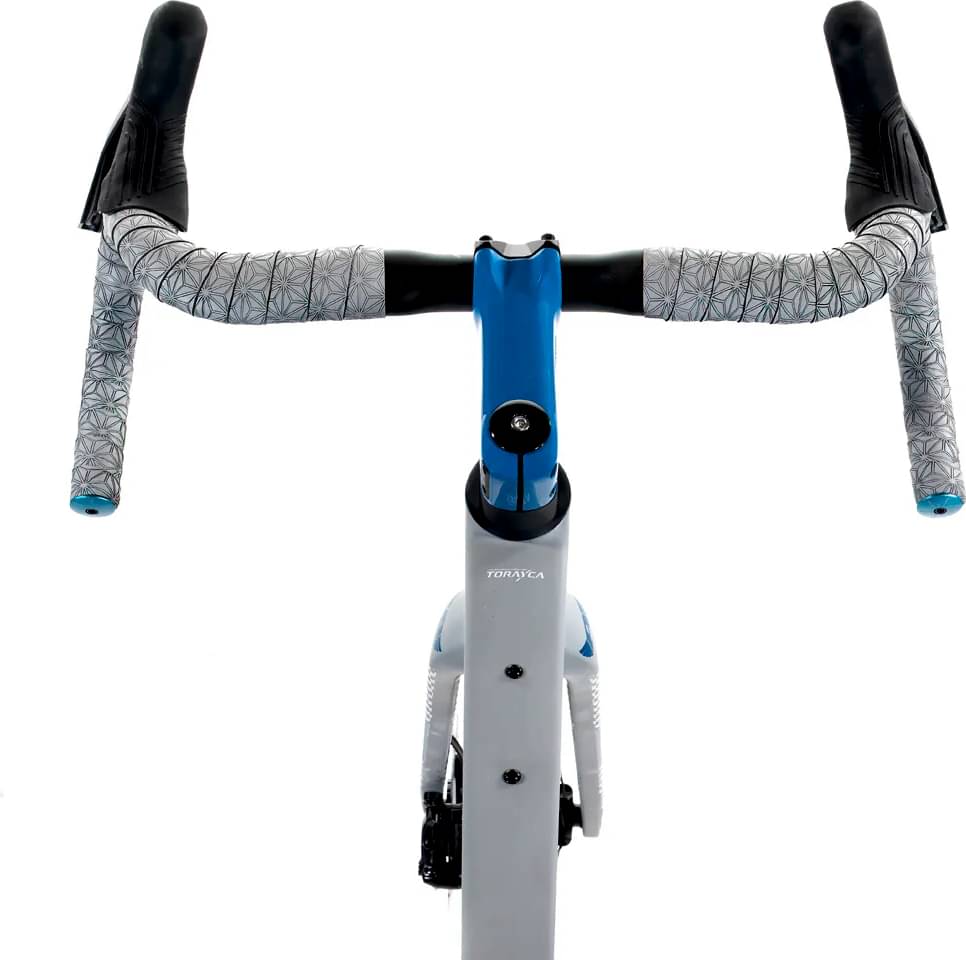

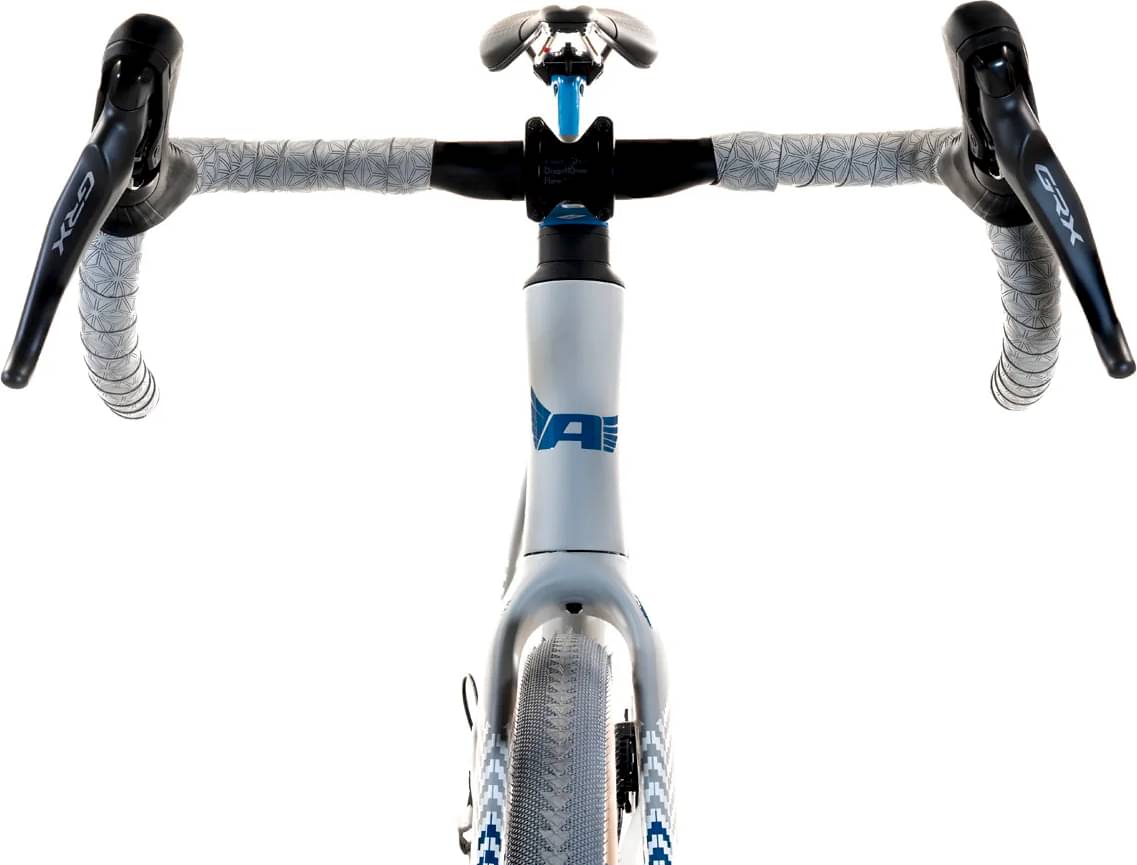

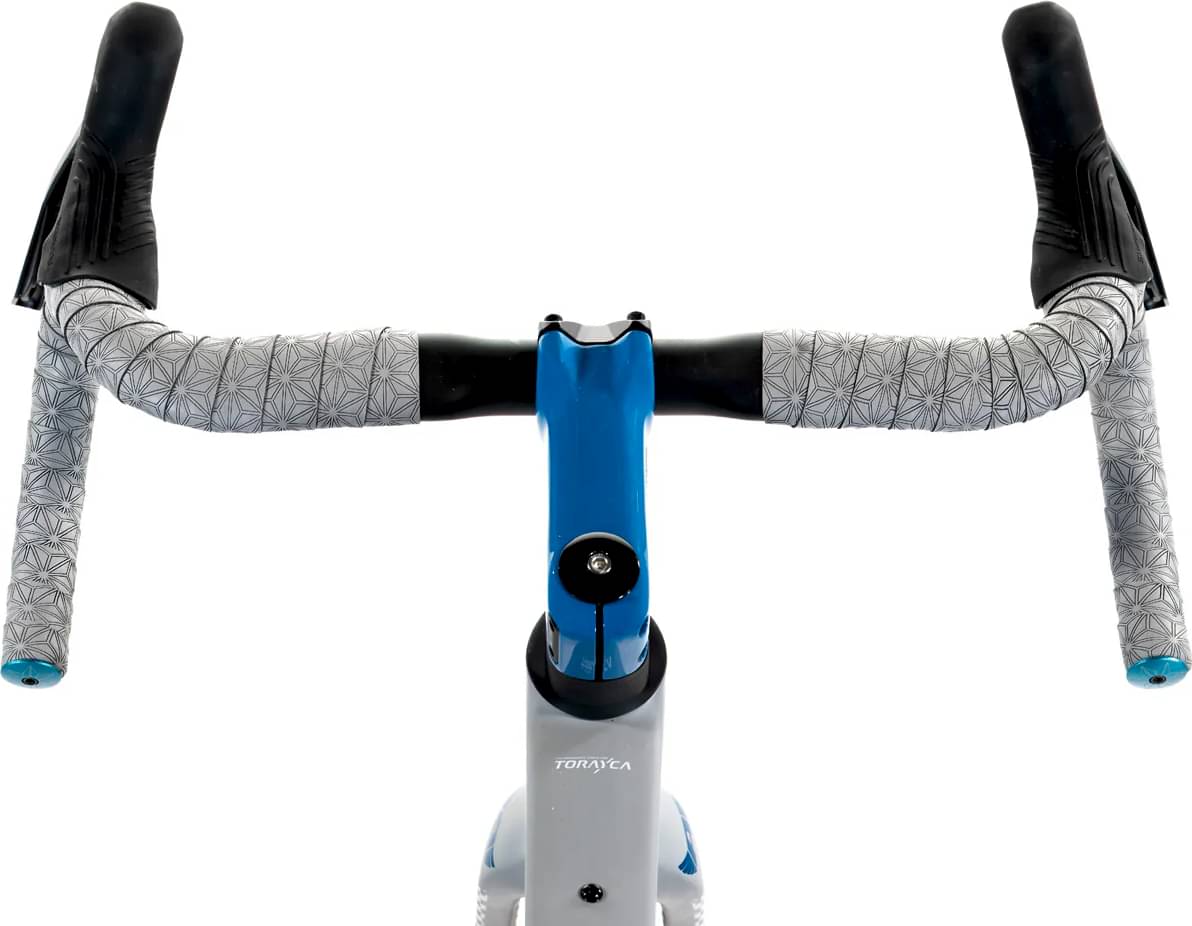

Cockpit
Stem
CXG Carbon Integrated
Headset
Aquila Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.477 mm | 1.503 mm | 1.543 mm | 1.551 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 594 mm | 599 mm | 600 mm | 610 mm |
| Rake | 49 mm | 49 mm | 50 mm | 51 mm |
| Trail | 72 mm | 68 mm | 64 mm | 60 mm |
| Stack | 545 mm | 562 mm | 577 mm | 594 mm |
| Reach | 369 mm | 374 mm | 374 mm | 383 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 165 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1018 mm | 1024 mm | 1025 mm | 1035 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
