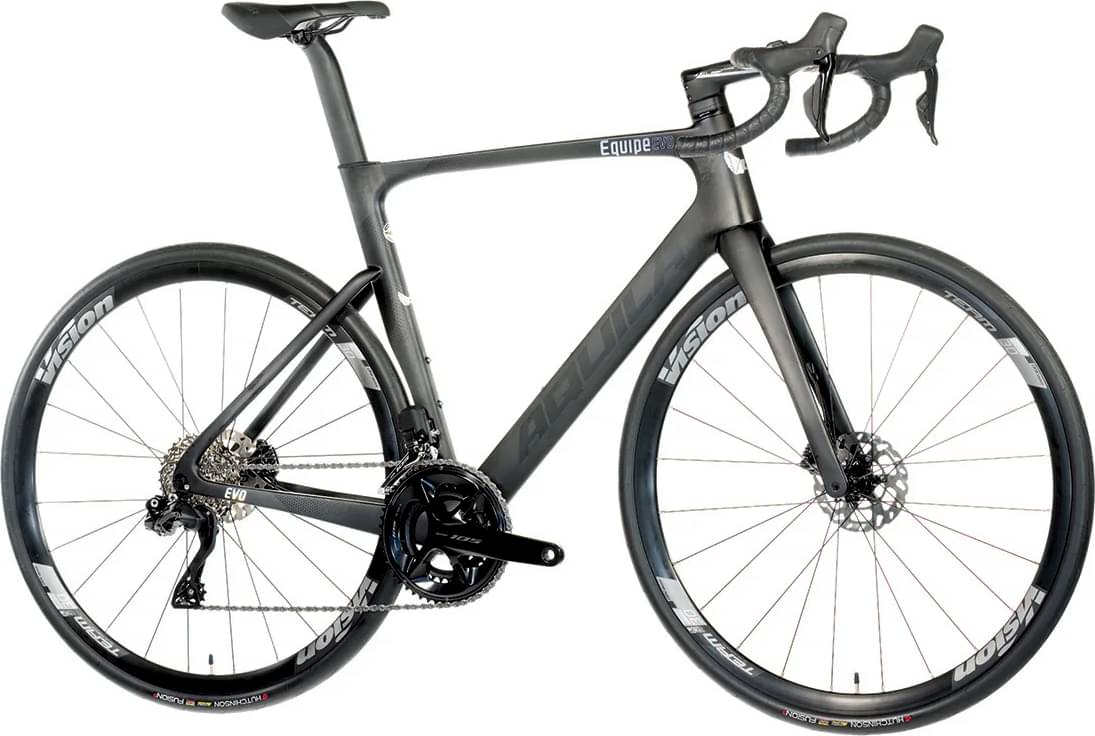

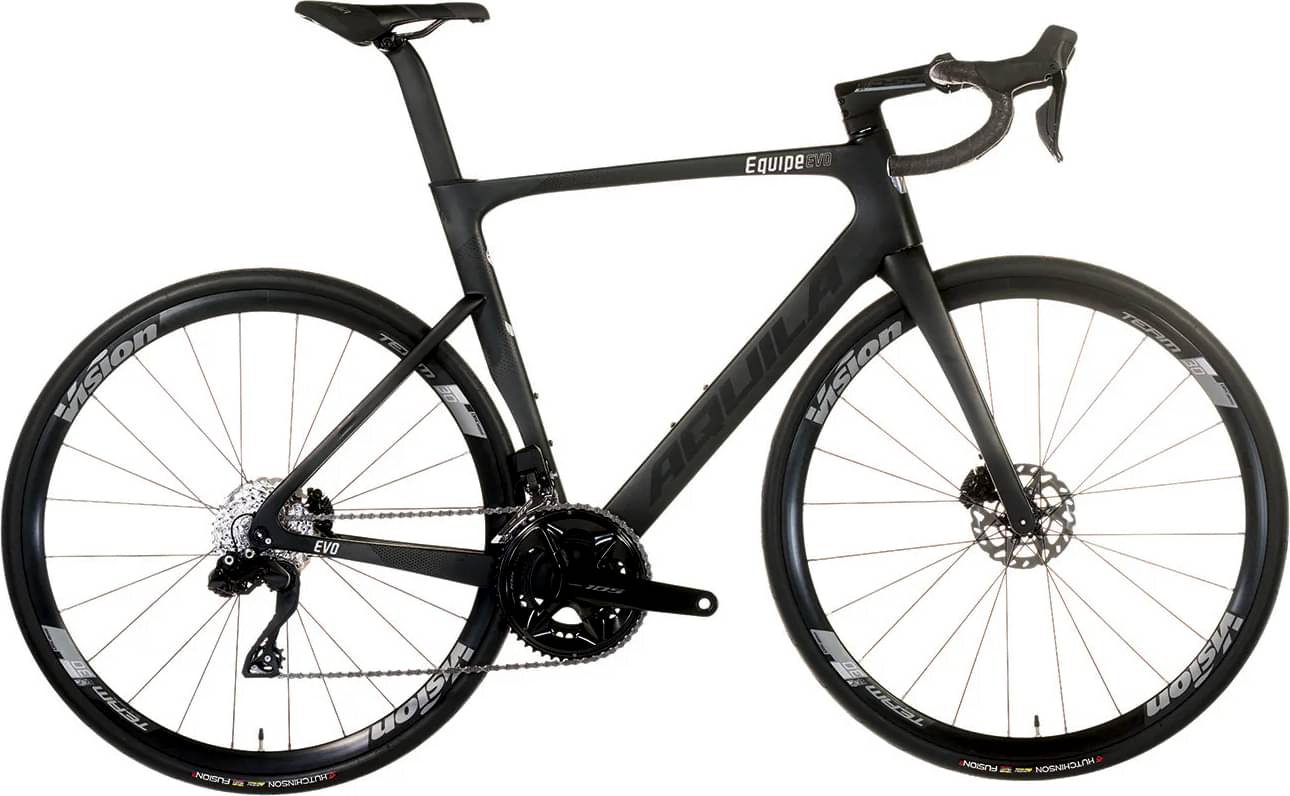

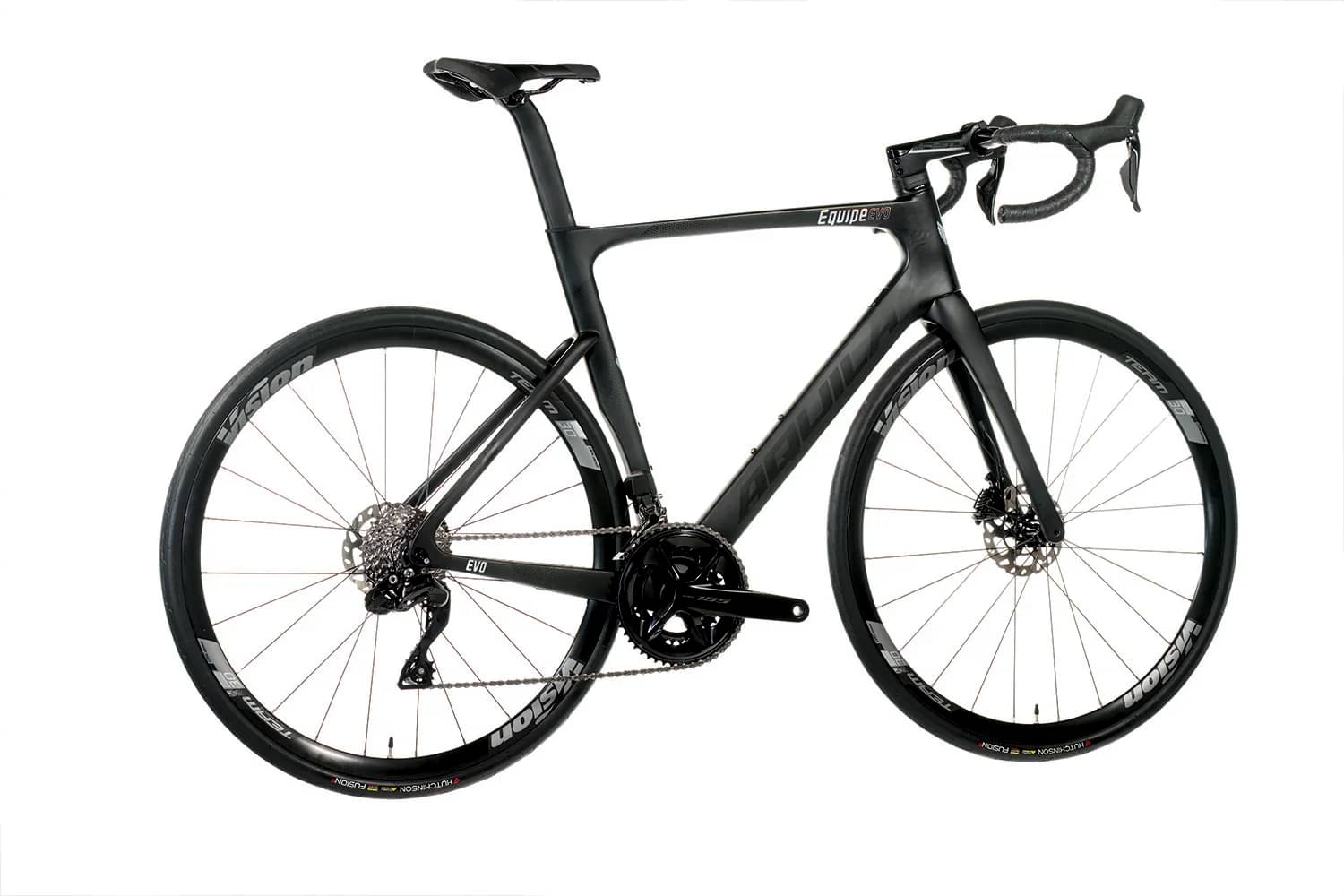

Aquila Equipe EVO – Shimano 105 R7170 2024
2024 Road
Estimate price |
3,574$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila Equipe EVO, HS, Bar/Stem, Seat post

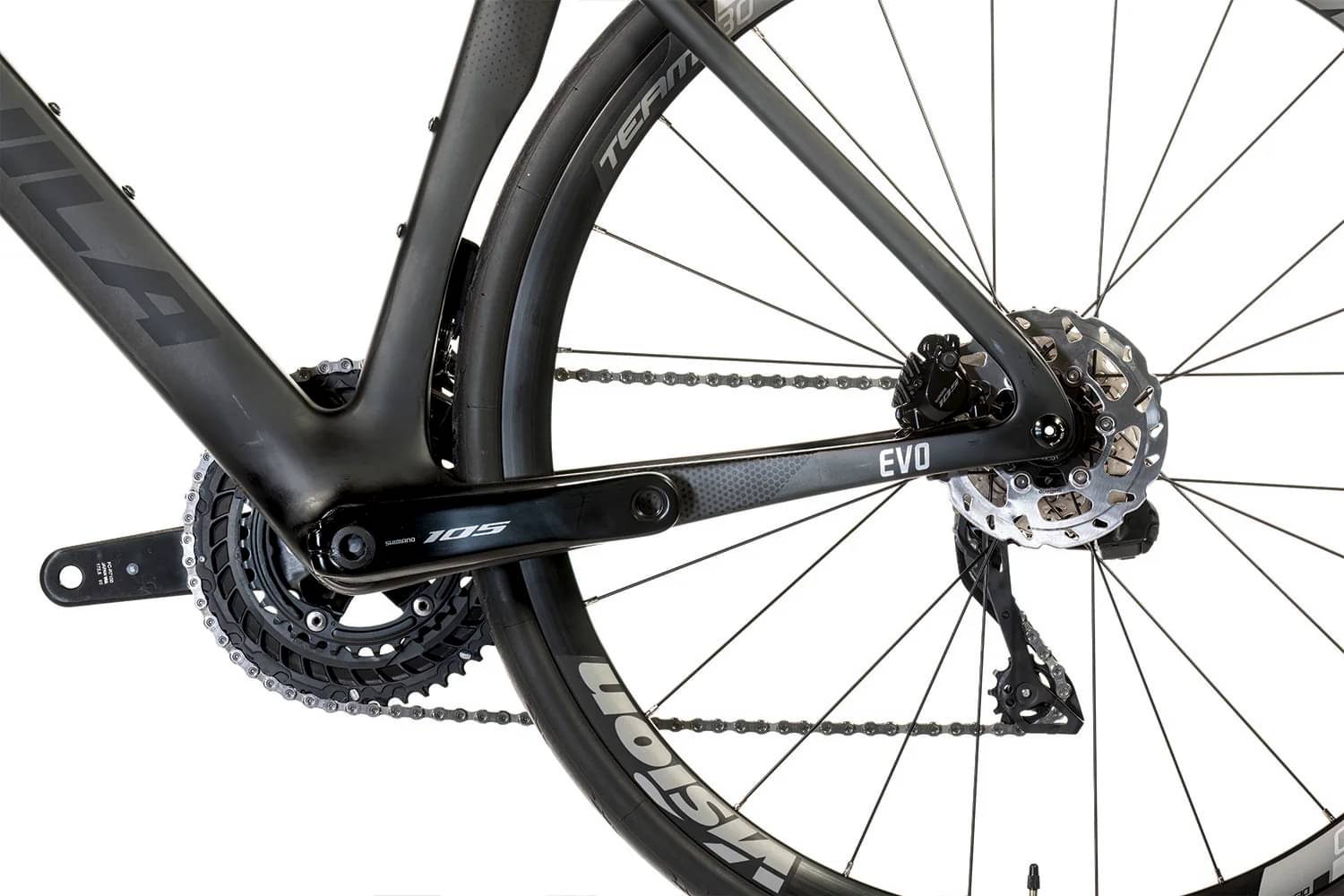

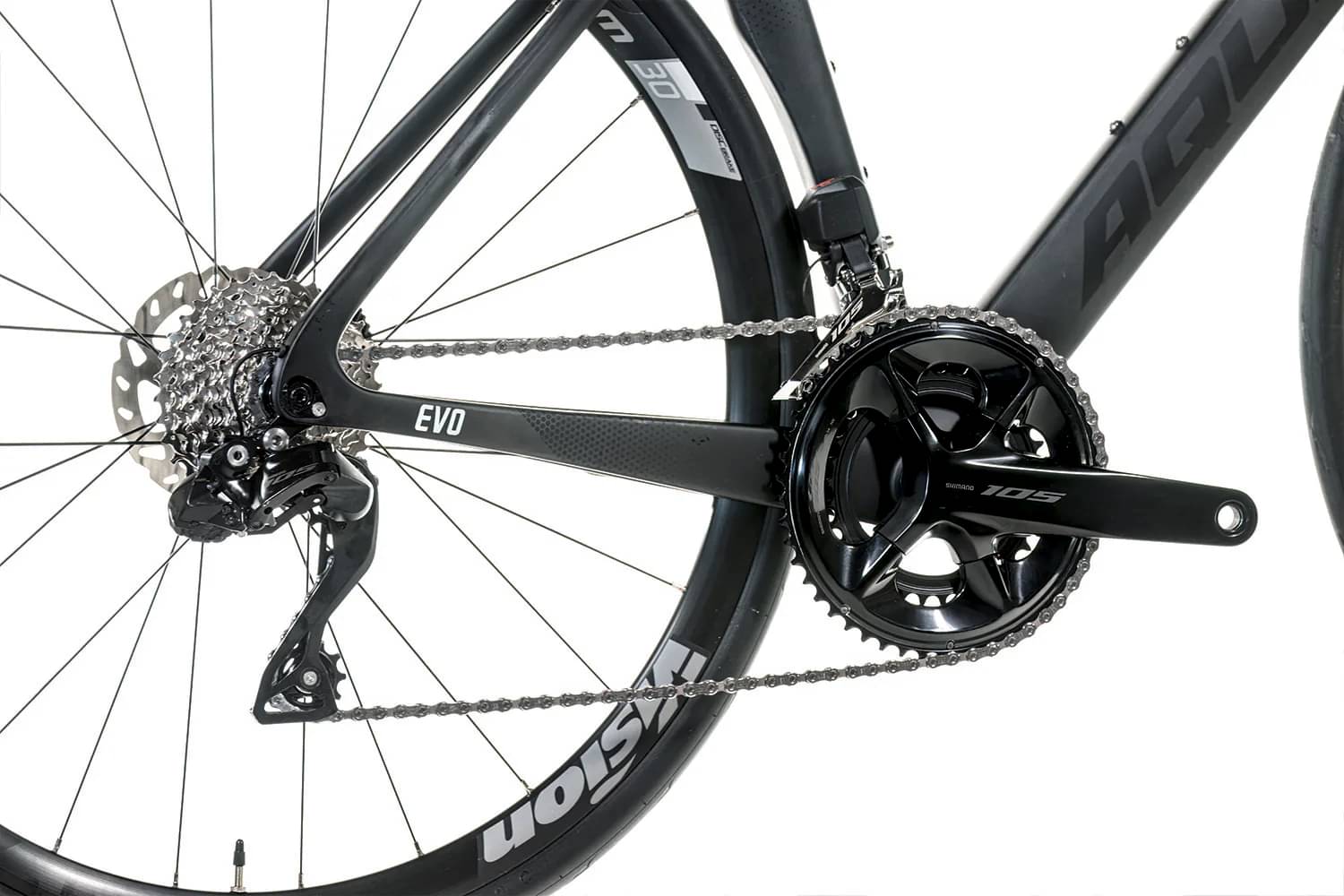

Drivetrain
Rear Derailleur
RDR7150F, 105 Di2
Front Derailleur
FDR7150F, 105 Di2
Shift Levers
STR7170, 105 Di2 Hydraulic W/BRR7170Calipers
Cassette
CSR7100, 105 12 Speed
Crank
FCR7100
Bottom Bracket
Shimano BB86
Chain
CNHG601
Wheels
Rims
Vision Team 30 Disc
Tires
Hutchinson Fusion 5 Galactik
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
FSA ACR
Handlebar
FSA Energy ACR
Headset
FSA ACR
Seat
Saddle
Selle Italia Novus Boost
Seatpost
EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.386 mm | 1.381 mm | 1.387 mm | 1.424 mm | 1.442 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 572 mm | 573 mm | 573 mm | 575 mm | 581 mm | 592 mm |
| Rake | 45 mm | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 69 mm | 65 mm | 59 mm | 56 mm | 53 mm |
| Stack | 500 mm | 506 mm | 515 mm | 527 mm | 547 mm | 568 mm |
| Reach | 364 mm | 365 mm | 373 mm | 380 mm | 384 mm | 394 mm |
| Top Tube Length | 498 mm | 503 mm | 510 mm | 531 mm | 541 mm | 562 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 435 mm | 460 mm | 480 mm | 495 mm | 520 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 967 mm | 968 mm | 968 mm | 970 mm | 976 mm | 987 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
