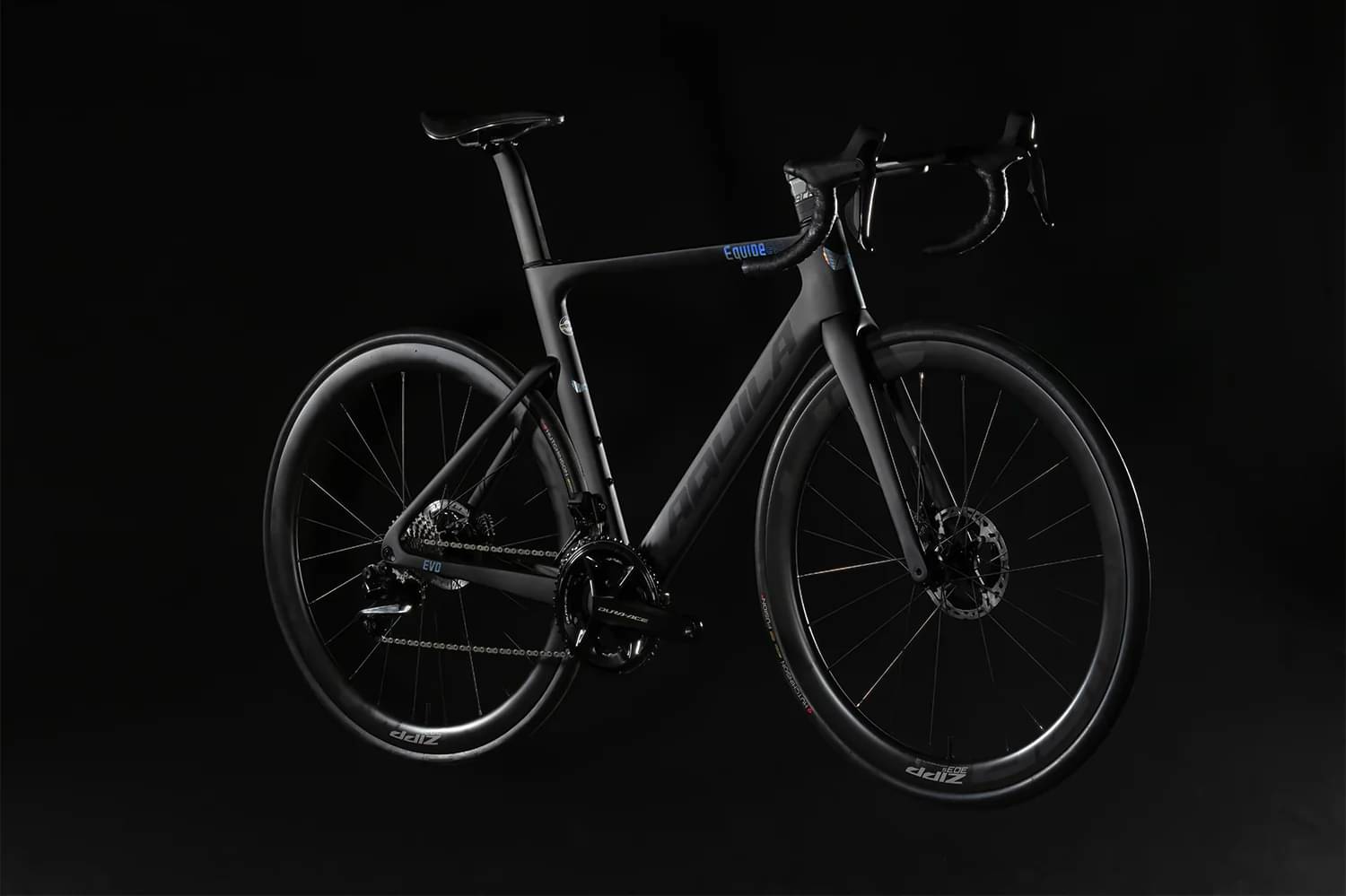

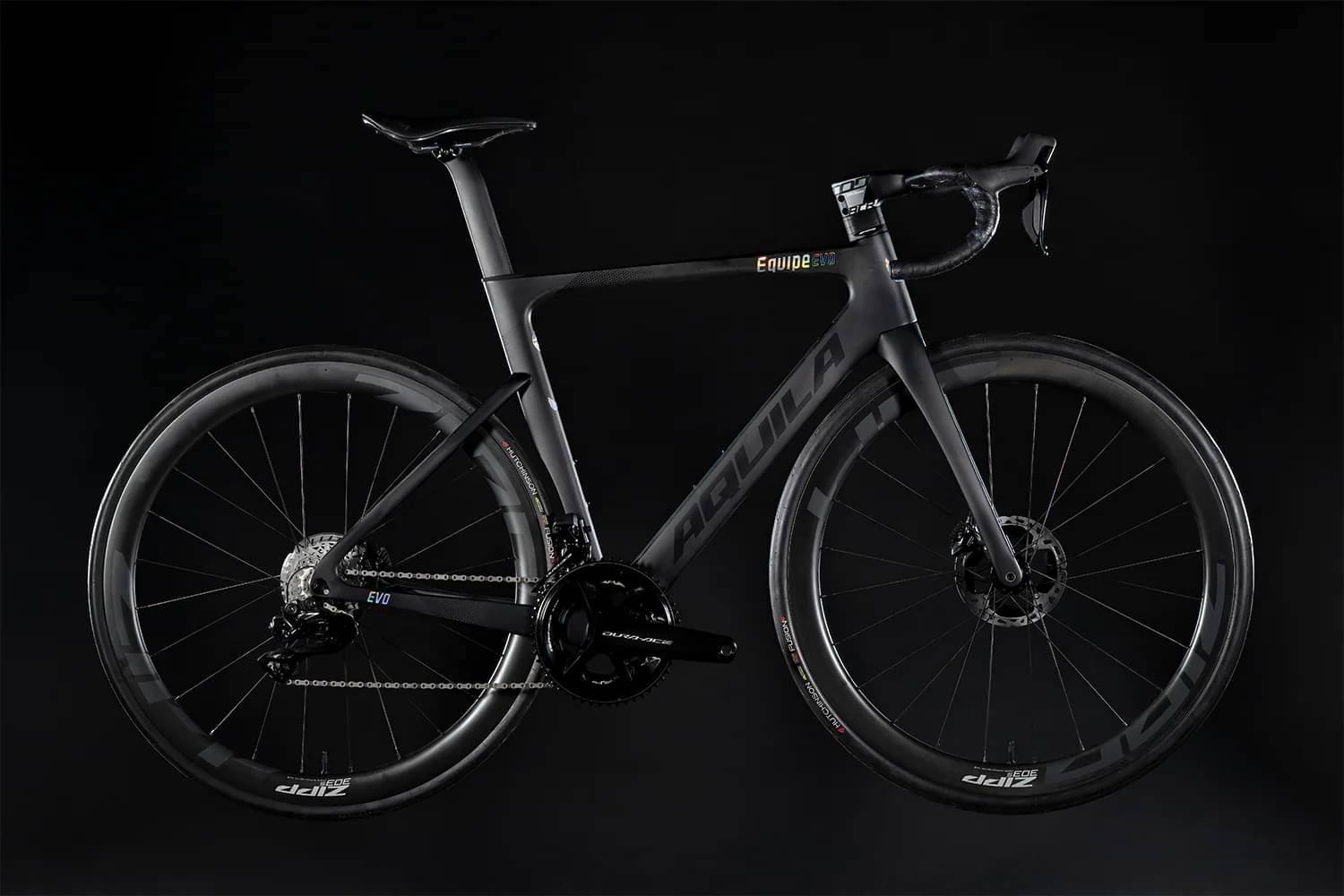

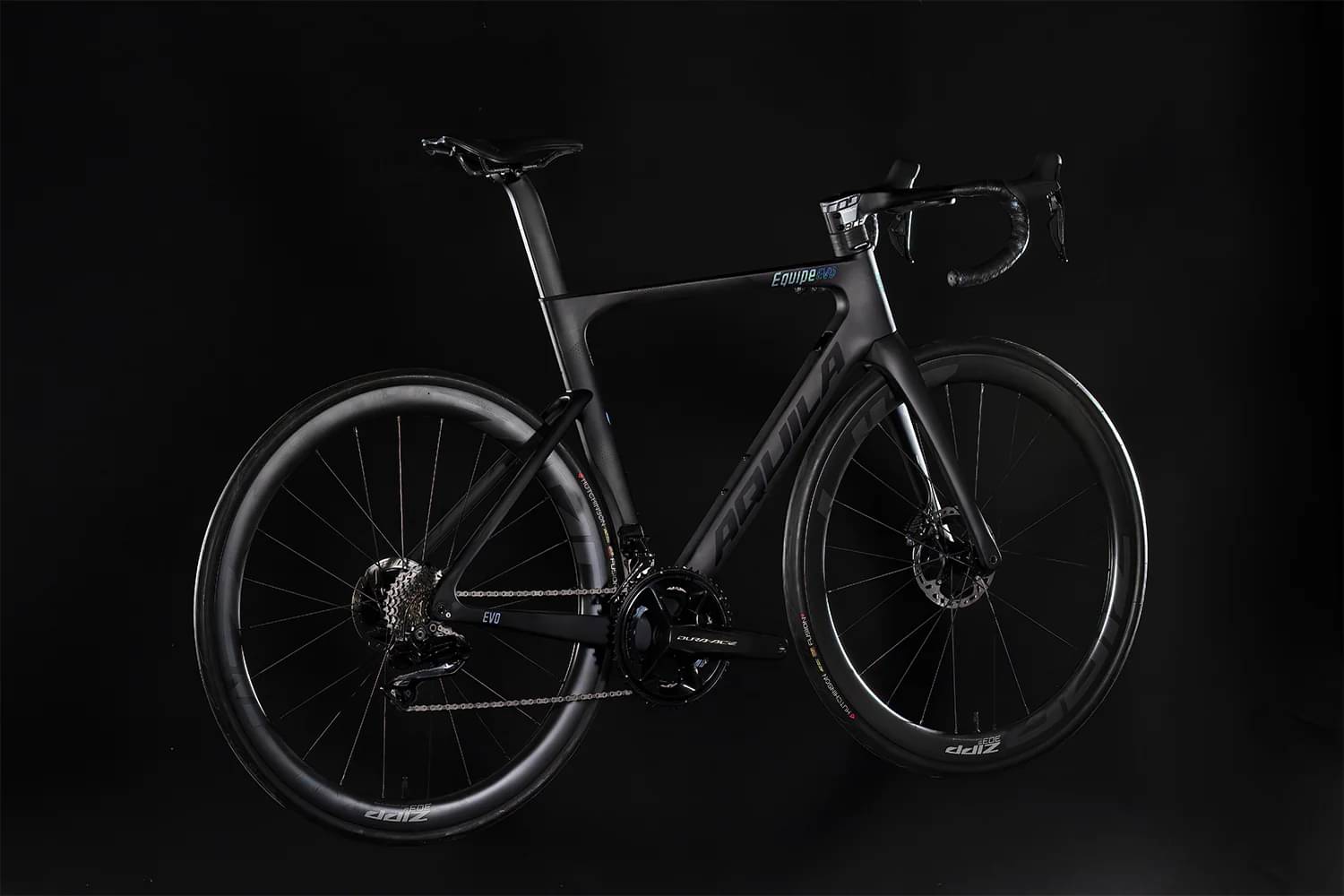

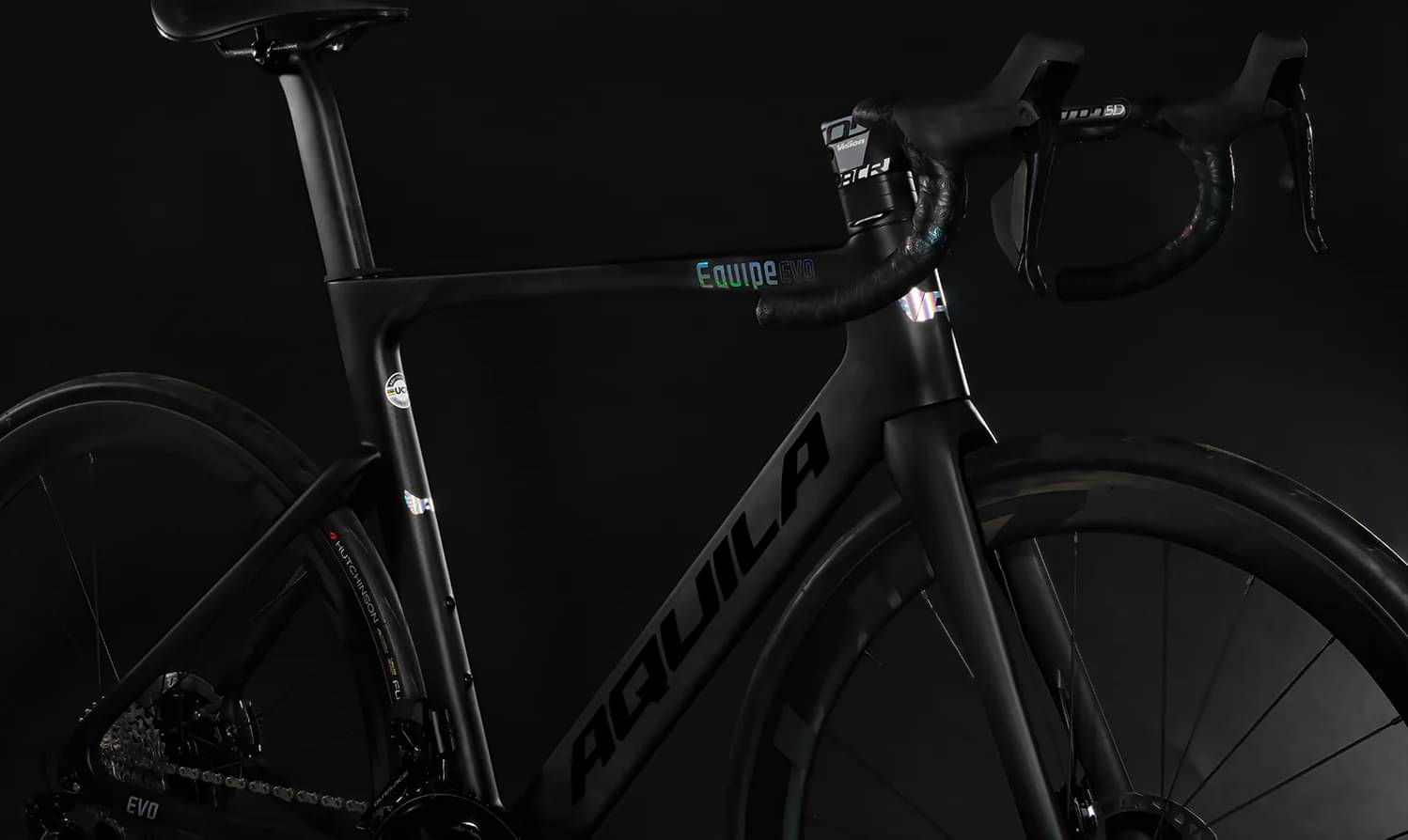

Aquila Equipe EVO – Shimano Dura-ace R9270 Di2 2024
2024 Road
Estimate price |
9,293$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila Equipe EVO, HS, Bar/Stem, Seat post
Drivetrain

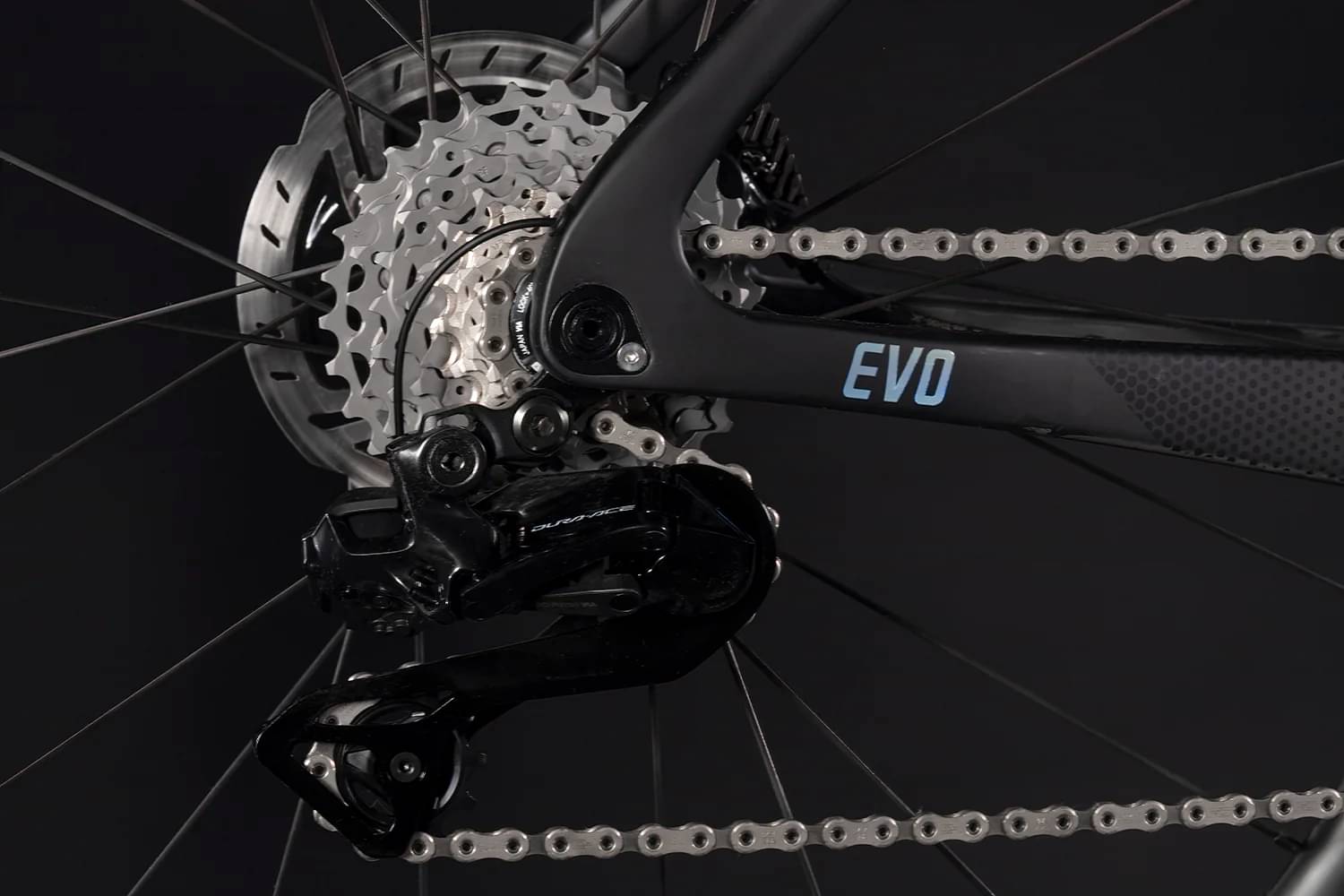

Rear Derailleur
RDR9250F, Duraace Di2 12 Speed
Front Derailleur
FDR9250F, Duraace Di2
Shift Levers
STR9270, Duraace Di2 12 Speed Hydraulic W/Calipers
Cassette
CSR9200, DURAACE 12 Speed

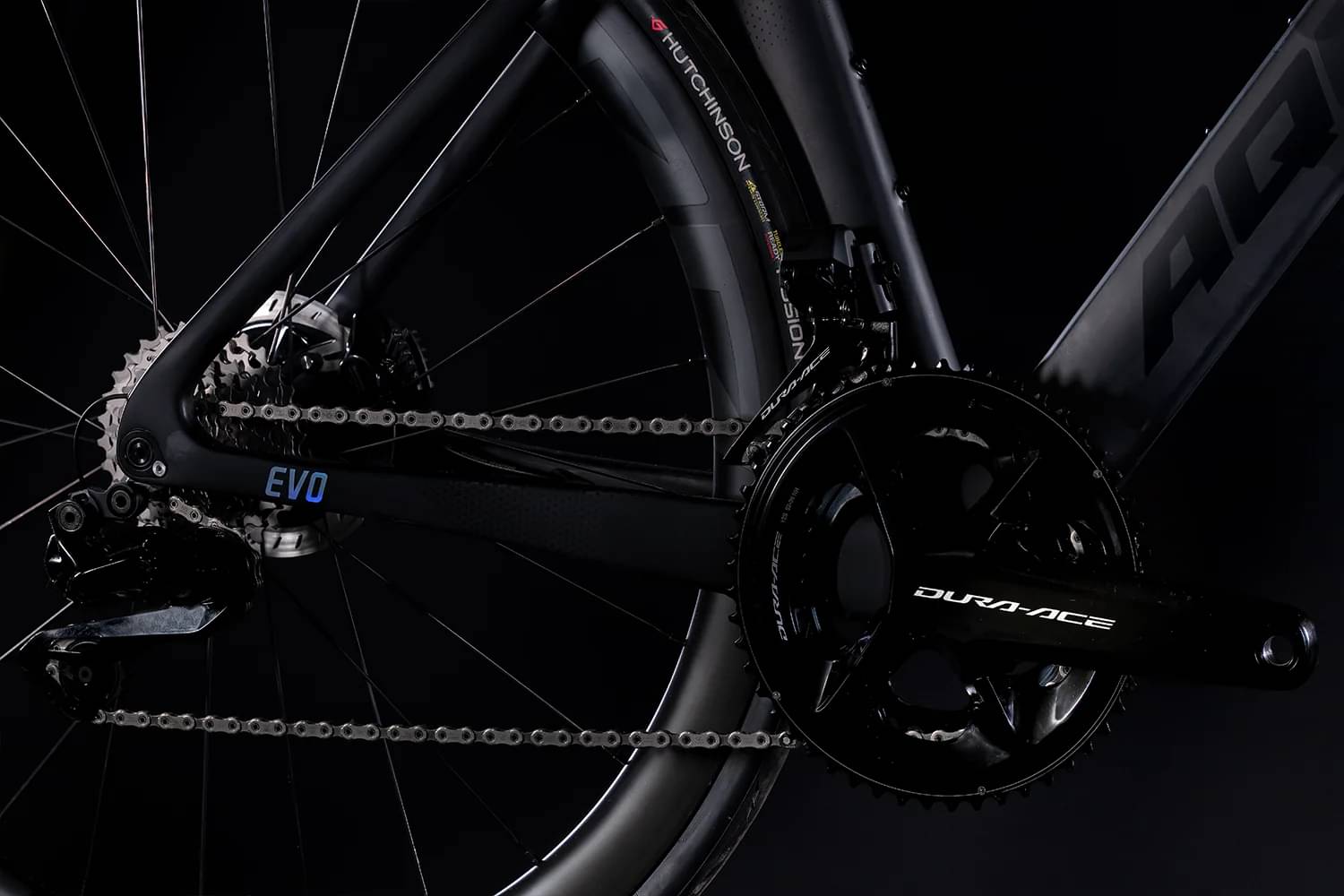

Crank
FCR9200, DURAACE 12 Speed
Bottom Bracket
Cermaicspeed BB86
Chain
CNM910012 Speed
Wheels
Rims
Shimano WHR9270C50TL DURAACE
Tires
Vittoria Corsa N.EXT TLR

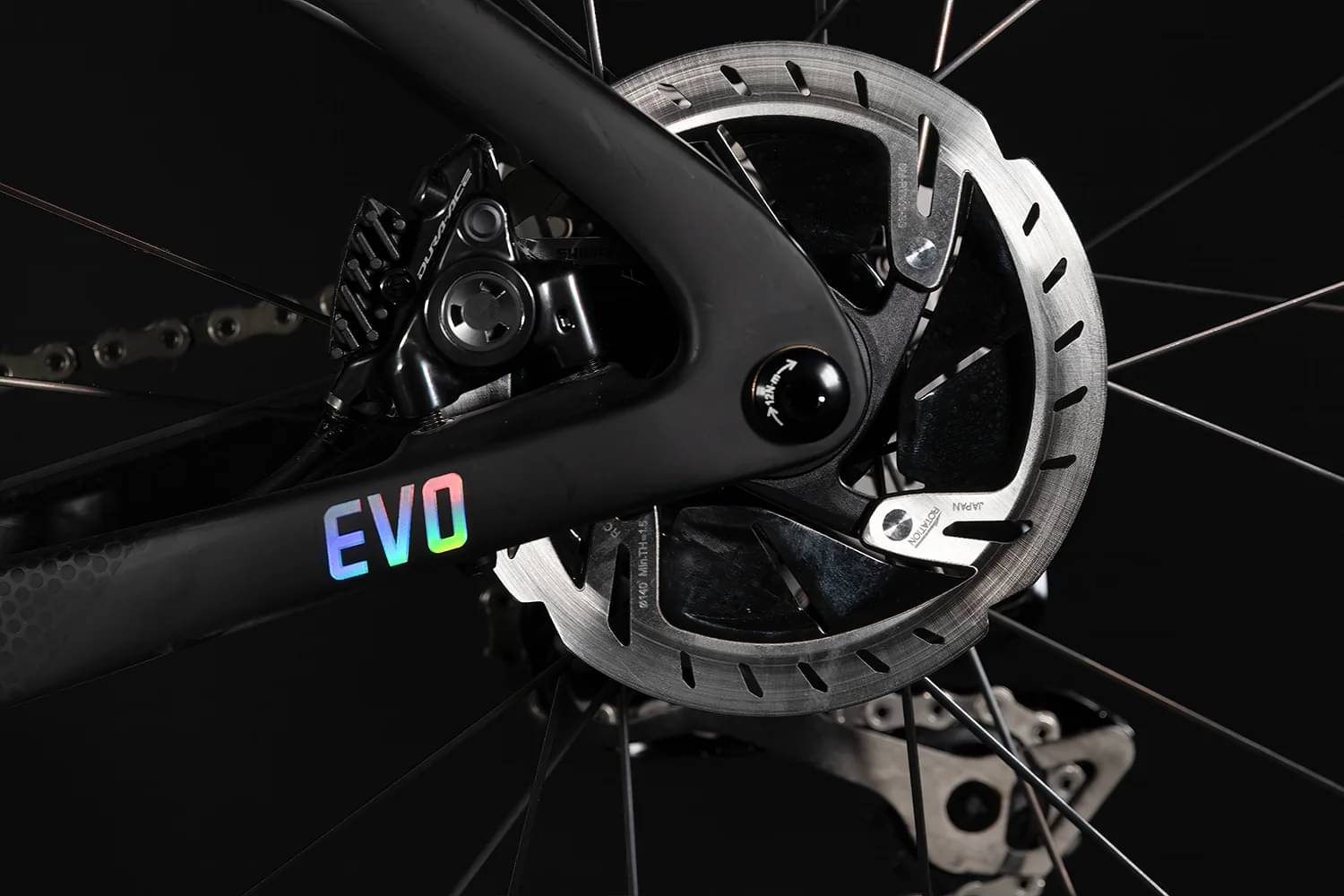

Brakes
Brakes
Hydraulic Disc
Cockpit

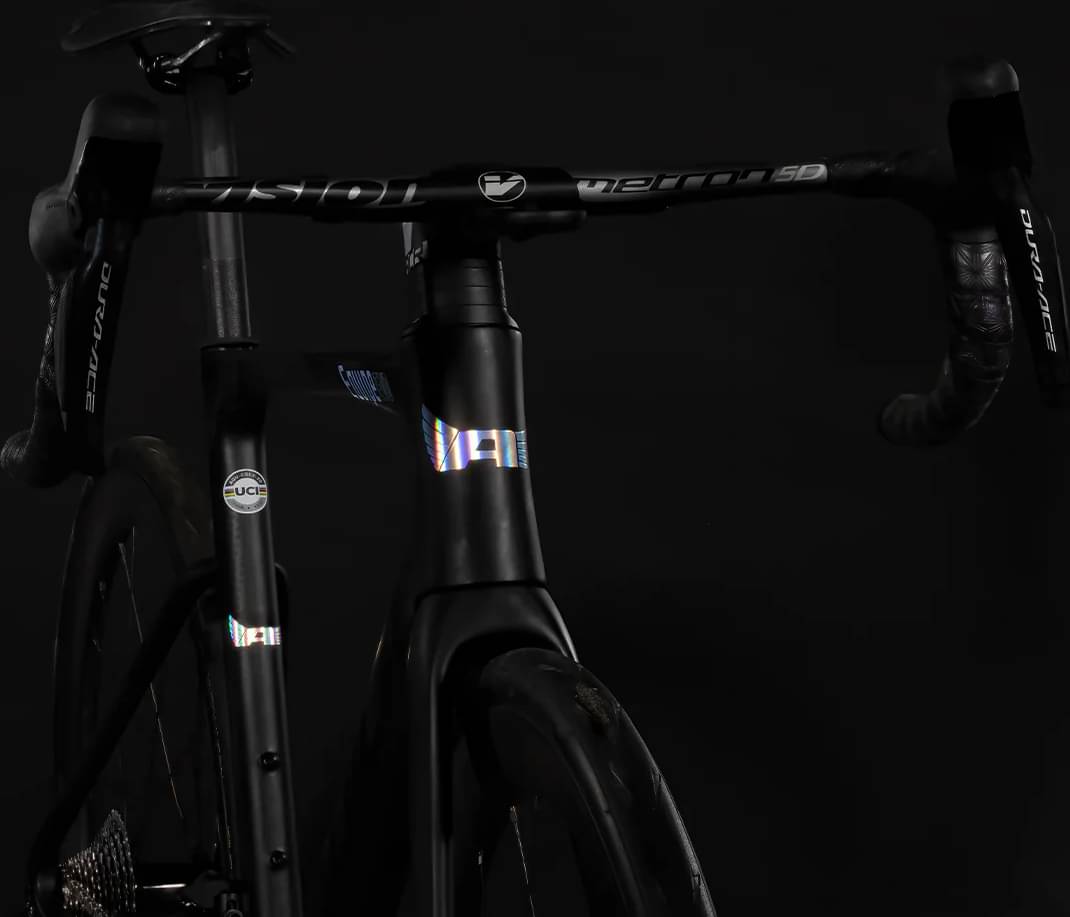

Handlebar
Vision Metron 5D ACR
Headset
FSA ACR
Seat
Saddle
Selle Italia Novus Boost
Seatpost
EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.386 mm | 1.381 mm | 1.387 mm | 1.424 mm | 1.442 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 572 mm | 573 mm | 573 mm | 575 mm | 581 mm | 592 mm |
| Rake | 45 mm | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 69 mm | 65 mm | 59 mm | 56 mm | 53 mm |
| Stack | 500 mm | 506 mm | 515 mm | 527 mm | 547 mm | 568 mm |
| Reach | 364 mm | 365 mm | 373 mm | 380 mm | 384 mm | 394 mm |
| Top Tube Length | 498 mm | 503 mm | 510 mm | 531 mm | 541 mm | 562 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 435 mm | 460 mm | 480 mm | 495 mm | 520 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 967 mm | 968 mm | 968 mm | 970 mm | 976 mm | 987 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
