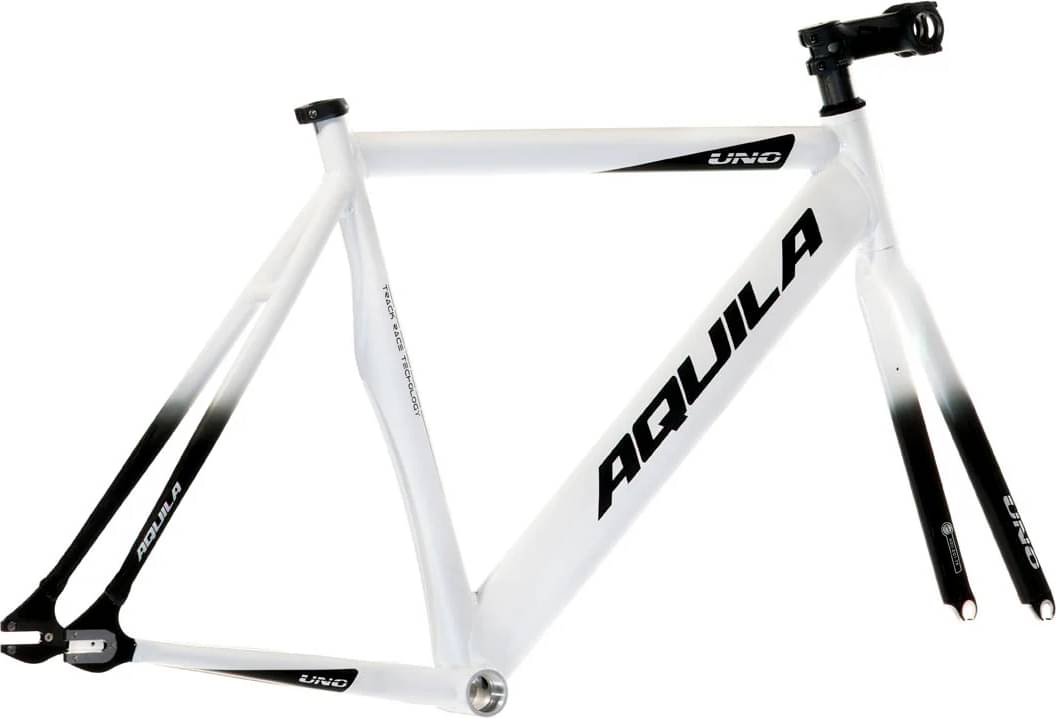

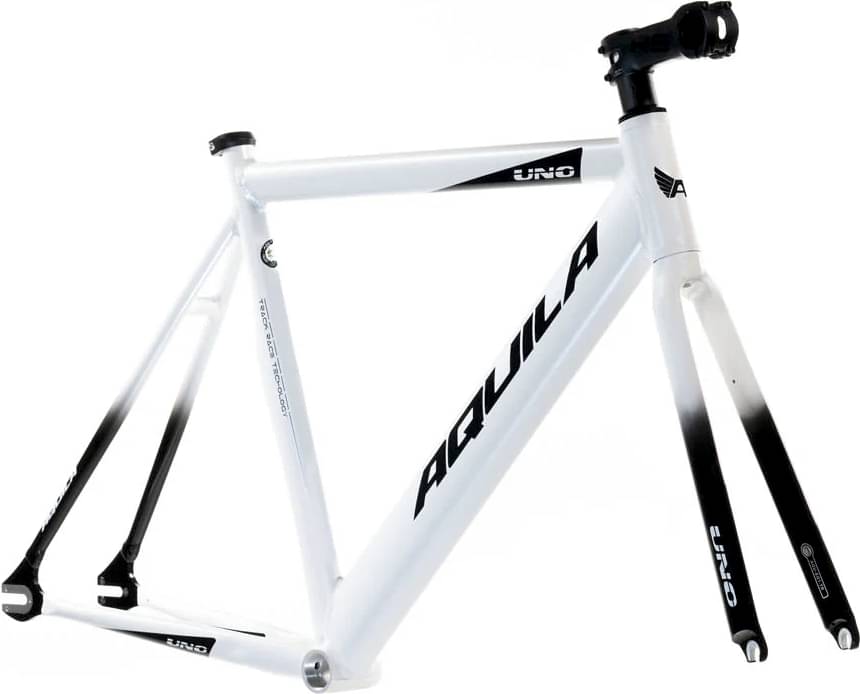

Aquila Equipe UNO Frameset 2024

2024 Road

Estimate price | 643$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Race
Frame Aluminum
Suspension Rigid

Sizing

Recommended size guide.

53cm
165cm - 175cm
55cm
175cm - 185cm
60cm
195cm - 200cm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	49cm	51cm	53cm	55cm	57cm	60cm
Stack Reach Ratio	1.275 mm	1.261 mm	1.285 mm	1.302 mm	1.306 mm	1.339 mm
Bottom Bracket Height	281 mm	281 mm	281 mm	281 mm	281 mm	281 mm
Front Center	572 mm	576 mm	578 mm	586 mm	598 mm	609 mm
Rake	85 mm	58 mm	58 mm	52 mm	50 mm	51 mm
Stack	474 mm	479 mm	502.9 mm	517.2 mm	531.6 mm	551.4 mm
Reach	371.8 mm	379.9 mm	391.3 mm	397.2 mm	406.9 mm	411.7 mm
Top Tube Length	498 mm	515 mm	535 mm	545 mm	560 mm	570 mm
Seat Tube Angle	74 °	74 °	74 °	74 °	74 °	74 °
Seat Tube Length	460 mm	490 mm	510 mm	530 mm	550 mm	570 mm
Head Tube Angle	75.3 °	72.6 °	74.5 °	74 °	74 °	74 °
Head Tube Length	95 mm	100 mm	115 mm	130 mm	144.7 mm	165 mm
Chainstay Length	390 mm	390 mm	390 mm	390 mm	390 mm	390 mm
Wheelbase	955 mm	959 mm	961 mm	969 mm	982 mm	992 mm
Bottom Bracket Drop	55 mm	55 mm	55 mm	55 mm	55 mm	55 mm
Wheels	700	700	700	700	700	700
Rider Max Height	154 cm	cm	175 cm	185 cm	195 cm	200 cm
