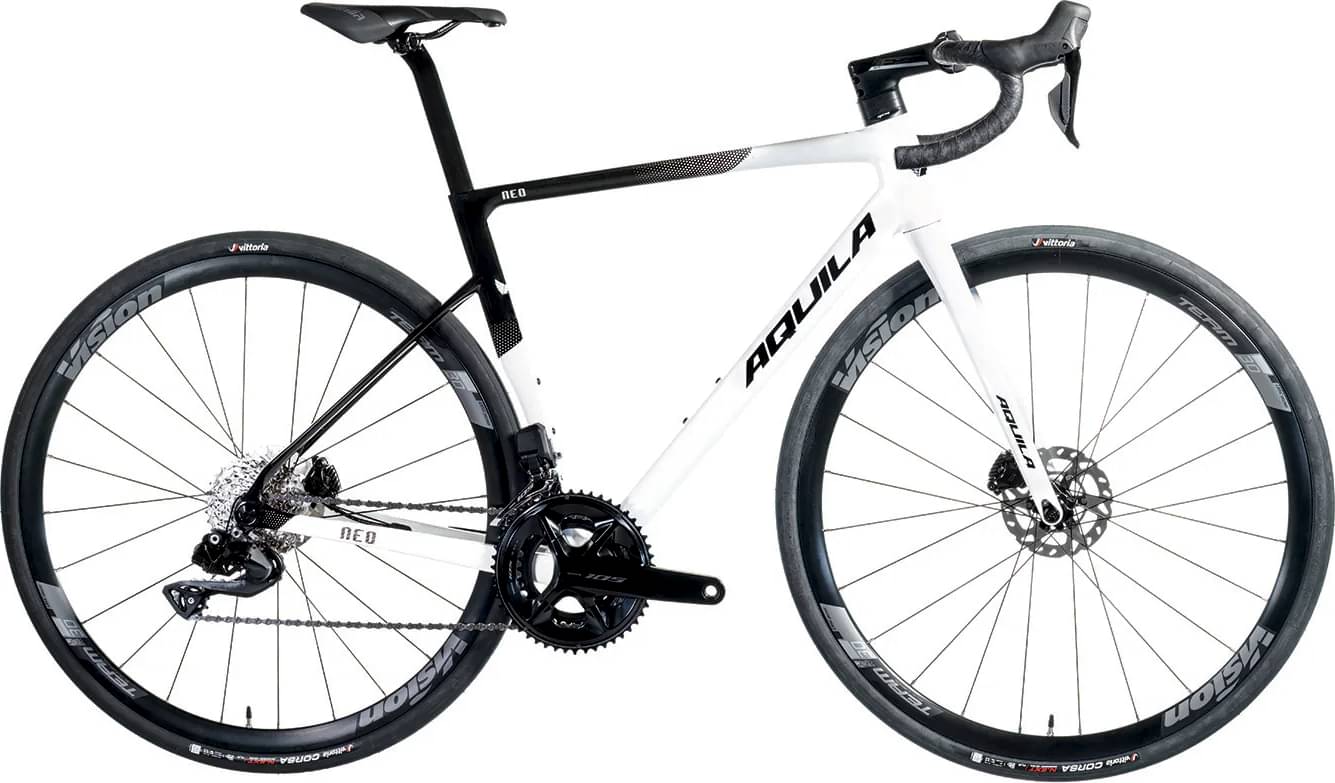

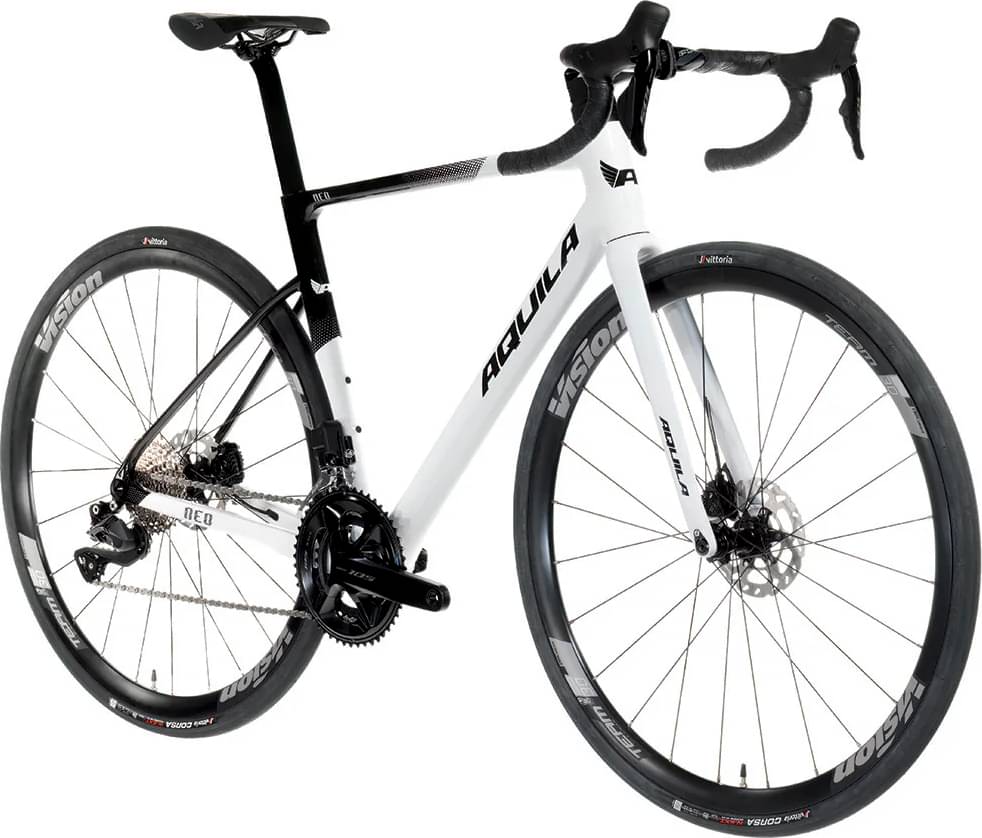

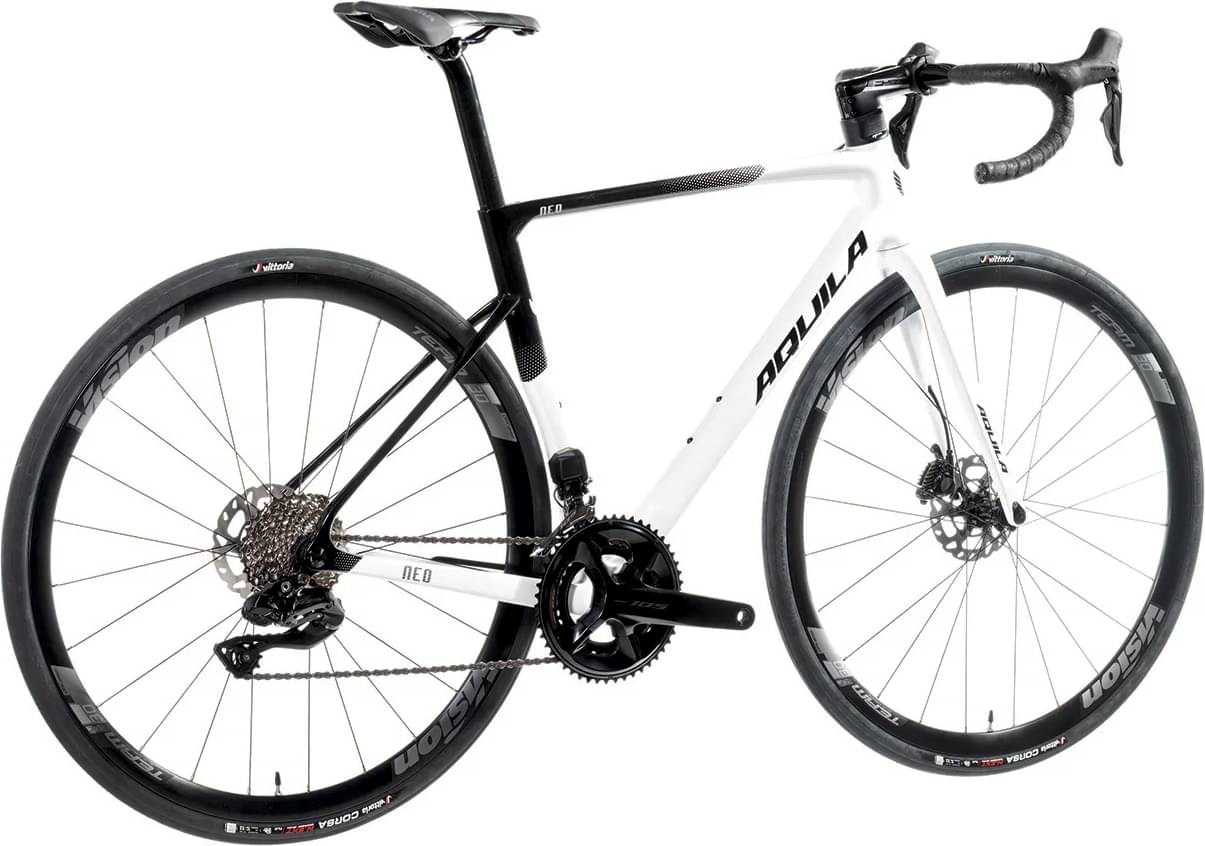

Aquila Neo 2.0 – Shimano 105 R7170 Di2 2024
2024 Road
Estimate price |
3,431$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila Neo 2.0
Drivetrain
Rear Derailleur
RDR7150, 105 Di2
Front Derailleur
FDR7150, 105 Di2
Shift Levers
STR7170, 105 Di2 Hydraulic W/BRR7170Calipers
Cassette
CSR7100, 105 12 Speed
Crank
105FCR7100
Bottom Bracket
Token Ninja BB86
Wheels
Rims
Vision Team 30 Disc
Tires
Hutchinson Fusion 5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
FSA ACR
Handlebar
FSA Energy ACR
Headset
FSA ACR
Seat
Saddle
Selle Italia ModelX
Seatpost
Neo D Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.407 mm | 1.445 mm | 1.455 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 573 mm | 575 mm | 581 mm | 593 mm |
| Rake | 48 mm | 45 mm | 46 mm | 45 mm |
| Trail | 60 mm | 60 mm | 56 mm | 53 mm |
| Stack | 522 mm | 532 mm | 552 mm | 572 mm |
| Reach | 372 mm | 378 mm | 382 mm | 393 mm |
| Top Tube Length | 508 mm | 530 mm | 540 mm | 562 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 465 mm | 485 mm | 505 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 975 mm | 987 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
