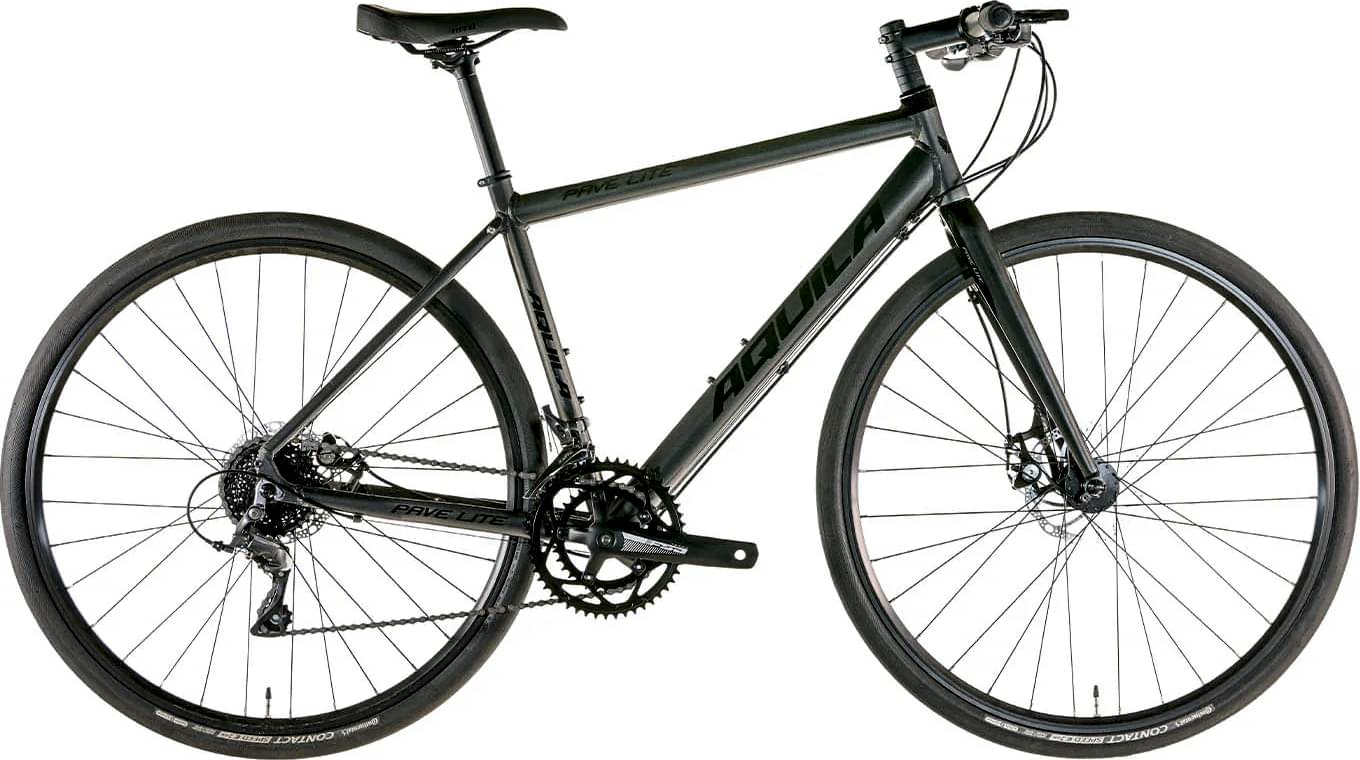

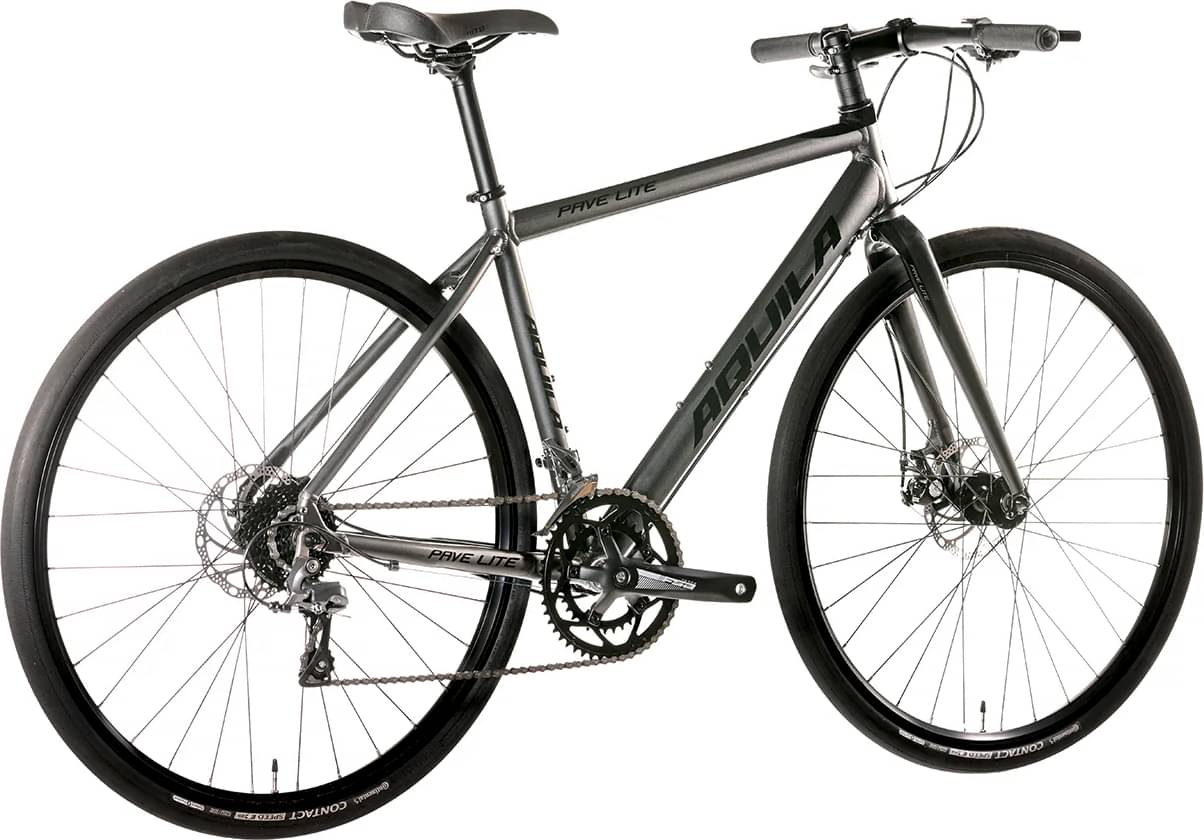

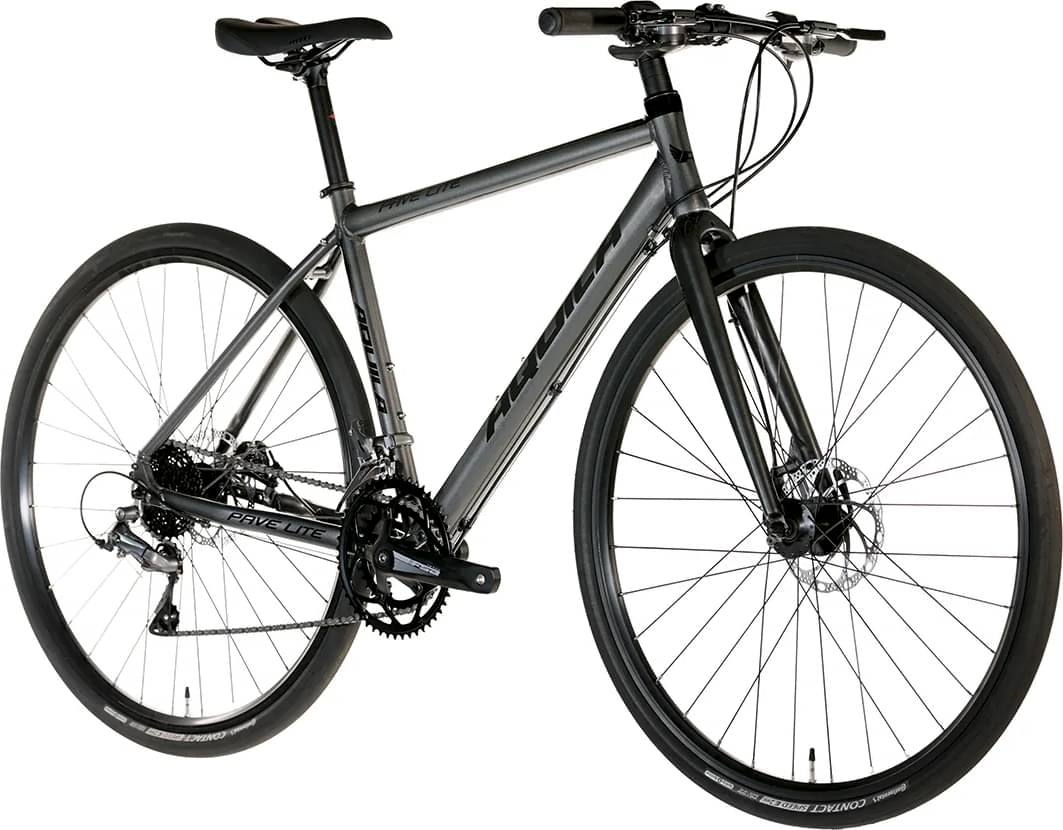

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Brakes Rim
Sizing
Recommended size guide.
MD
163cm - 172cm
LG
170cm - 178cm
XL
176cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila Pave Lite
Drivetrain
Rear Derailleur
Shimano Claris 8 speed
Front Derailleur
Shimano Claris
Shift Levers
/Brake
Cassette
Shimano CSHG31, 8SPEED 1132T
Crank
FSA Tempo
Bottom Bracket
FSA Tempo
Chain
KMC Z8 8 speed
Wheels
Rims
Weinmann ZAC2000 700c
Tires
Continental Contact 700x35
Brakes
Brakes
Rim

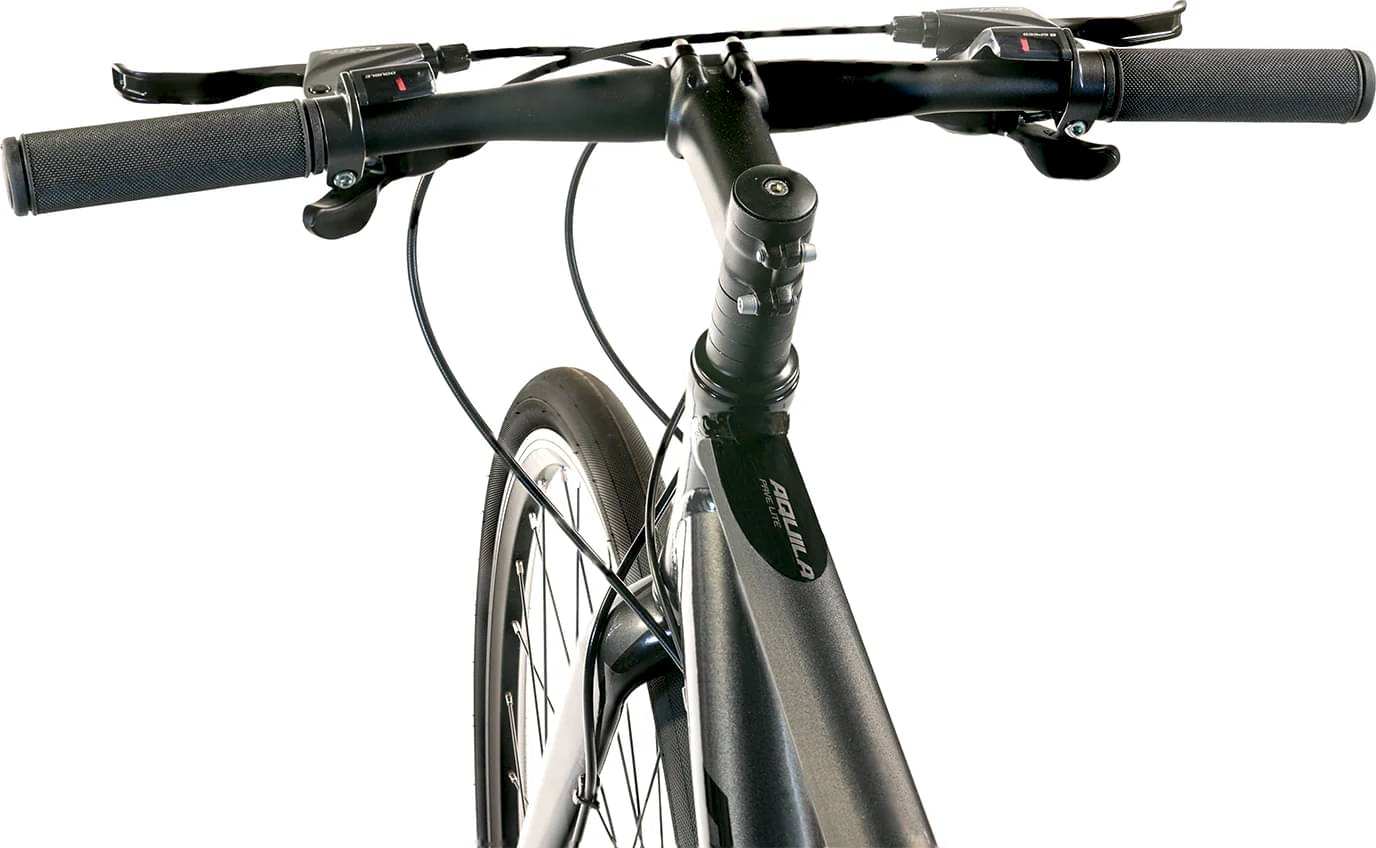

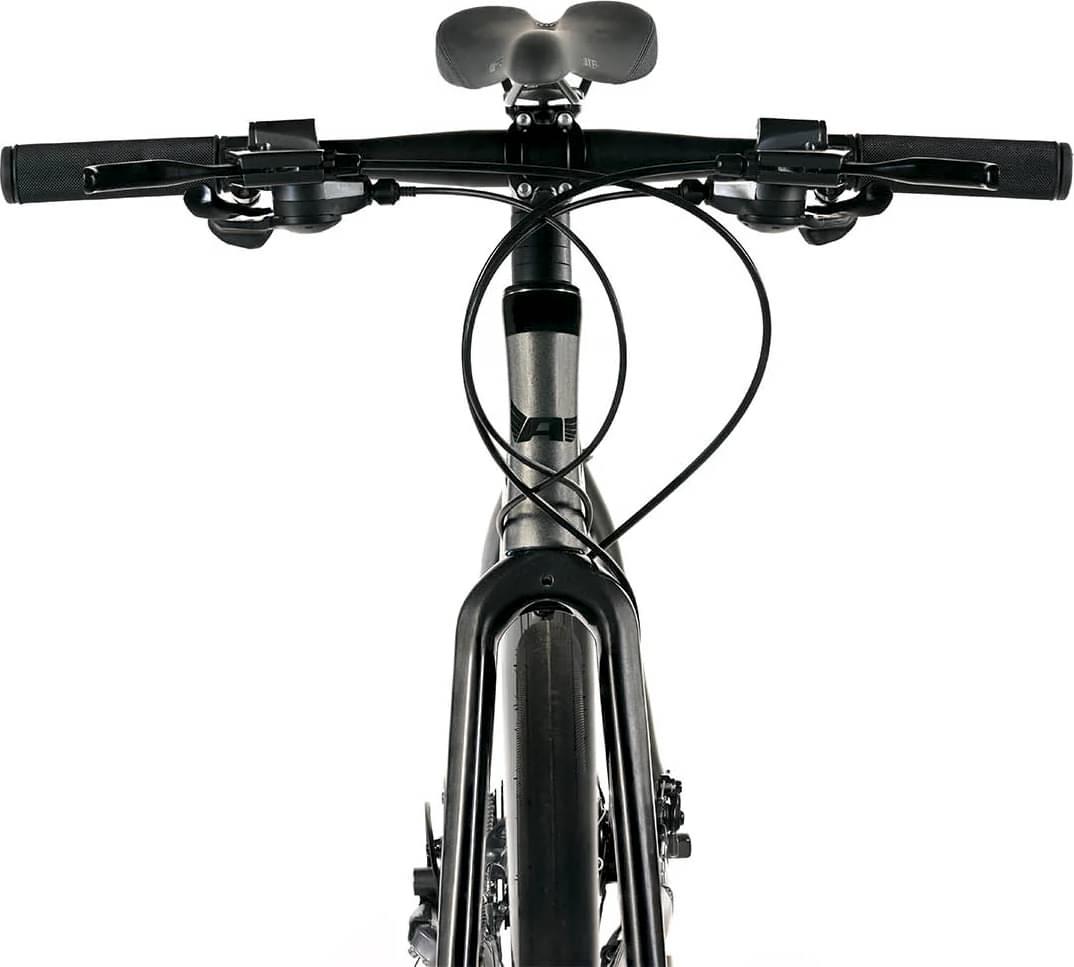

Cockpit
Stem
Realspeed Alloy
Handlebar
Aquila Alloy
Headset
11/8" INTEGRATED
Seat
Saddle
Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 623 mm | 624 mm | 625 mm | 626 mm |
| Top Tube Length | 530 mm | 555 mm | 567 mm | 577 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 135 mm | 145 mm | 155 mm | 175 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1072 mm | 1073 mm | 1074 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 700 | 735 mm | 762 mm | 821 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 165 cm | 172 cm | 178 cm | 185 cm |
