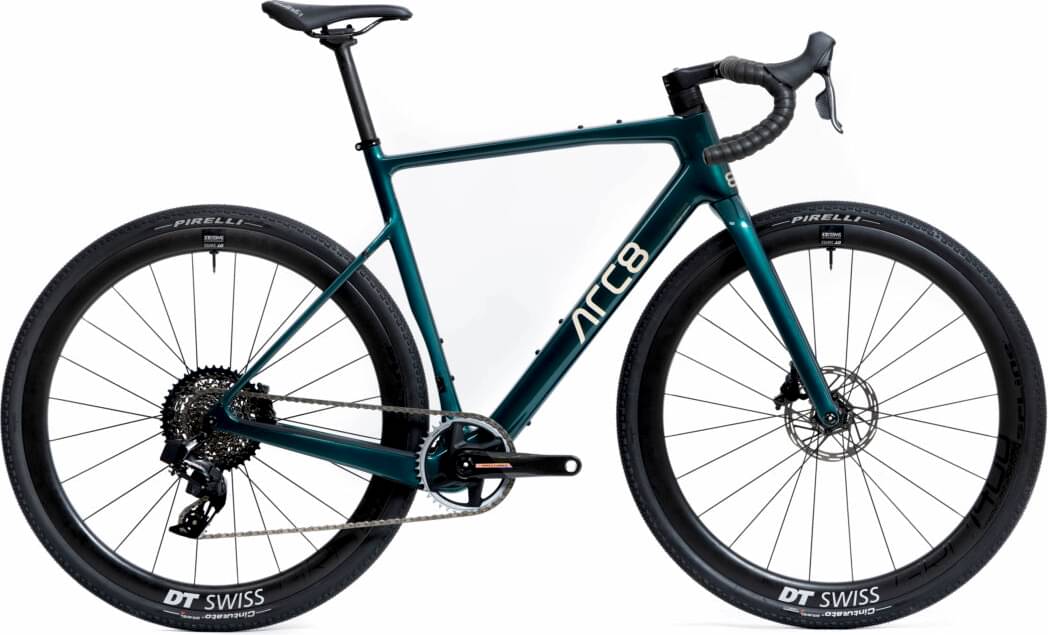

arc8 Eero FORCE WIDE AXS ETAP 1×12 2024
2024 Road
Estimate price |
6,307$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Battery SRAM Powerpack / incl. Charger -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 177cm
MD
174cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Eero Carbon
Suspension Fork
ARC8 Eero Carbon
Drivetrain
Rear Derailleur
SRAM Force Xplor AXS; 12 Speed
Front Derailleur
-
Shift Levers
SRAM Force eTap AXS D2; 12 Speed
Cassette
SRAM XG 1271 10-44T
Crank
SRAM Force 1x Wide 40T
Bottom Bracket
SRAM DUB BSA 68 Road Wide
Chain
SRAM Force Chain
Wheels
Rims
Front: DT SWISS GR 1600 Spline, Rear: DT SWISS GR 1600 Spline
Tires
Front: Pirelli Cinturato Gravel H 40-622, Rear: Pirelli Cinturato Gravel H 40-622
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ICH Stem
Handlebar
Alloy handlebar with flare
Headset
ARC8
Seat
Saddle
Selle Italia Novus Boost
Seatpost
Faserwerk Wuthocker 0mm Offset, 400mm
Motor & Battery
Battery
SRAM Powerpack / incl. Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.497 mm | 1.511 mm | 1.528 mm | 1.545 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 594 mm | 603 mm | 623 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 545 mm | 568 mm | 593 mm | 618 mm |
| Reach | 364 mm | 376 mm | 388 mm | 400 mm |
| Top Tube Length | 525 mm | 545 mm | 564 mm | 583 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 157 mm | 170 mm | 197 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1002 mm | 1012 mm | 1032 mm | 1053 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 774 mm | 809 mm | 830 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 174 cm | 179 cm | 186 cm |
| Rider Max Height | 177 cm | 182 cm | 188 cm | cm |
