arc8 Eero GRX 2×12 2024

2024 Road
Estimate price | 5,160$
Weight | 8.7 kg
Open compare Use advisor

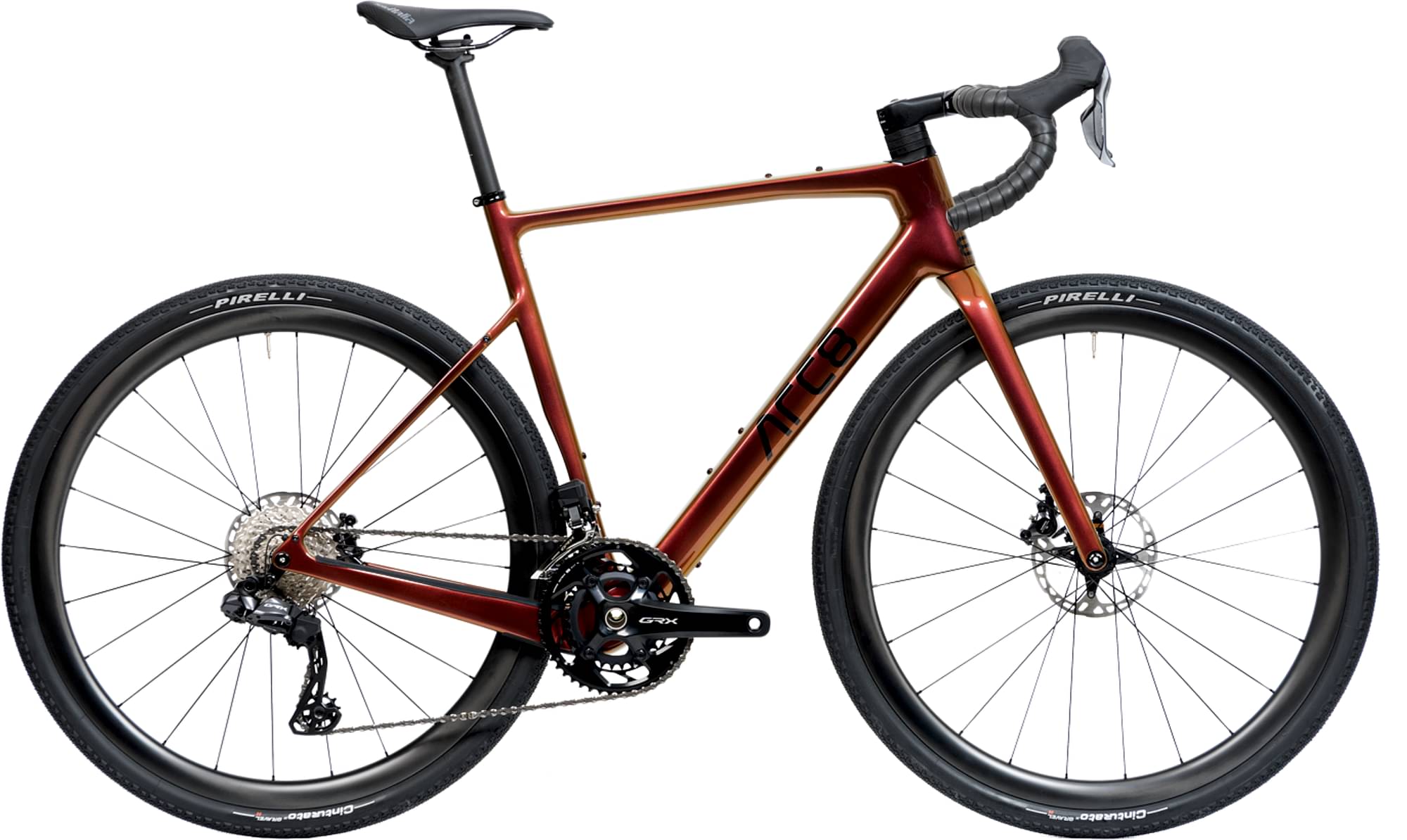

Arc8 Eero Grx 2x12 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset GRX 800
  • Suspension Rigid
  • Drivetrain 2 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    170cm - 177cm

  • MD

    174cm - 182cm

  • LG

    179cm - 188cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

ARC8 Eero Carbon

Suspension Fork

ARC8 Eero Carbon

Drivetrain

Rear Derailleur

Shimano GRX 820 12 Speed

Front Derailleur

Shimano GRX 820 12 Speed

Shift Levers

Shimano GRX 820; 12 Speed

Cassette

Shimano CSR8100 11-34T

Crank

Shimano GRX 810 48/31T

Bottom Bracket

Shimano SMBBR60

Chain

Shimano CNM8100

Wheels

Rims

Front: DT SWISS G 1800 Spline, Rear: DT SWISS G 1800 Spline

Tires

Front: Pirelli Cinturato Gravel H 40-622, Rear: Pirelli Cinturato Gravel H 40-622

Brakes

Brakes

Hydraulic Disc

Cockpit

Stem

ICH Stem

Handlebar

Alloy handlebar with flare

Headset

ARC8

Seat

Saddle

Selle Italia Novus Boost

Seatpost

Faserwerk Wuthocker 0mm Offset, 400mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.497 mm1.511 mm1.528 mm1.545 mm
Bottom Bracket Height
274 mm274 mm274 mm274 mm
Front Center
594 mm603 mm623 mm644 mm
Rake
50 mm50 mm50 mm50 mm
Trail
74 mm67 mm67 mm67 mm
Stack
545 mm568 mm593 mm618 mm
Reach
364 mm376 mm388 mm400 mm
Top Tube Length
525 mm545 mm564 mm583 mm
Seat Tube Angle
73.5 °73.5 °73.5 °73.5 °
Seat Tube Length
510 mm550 mm570 mm600 mm
Head Tube Angle
70 °71 °71 °71 °
Head Tube Length
137 mm157 mm170 mm197 mm
Chainstay Length
420 mm420 mm420 mm420 mm
Wheelbase
1002 mm1012 mm1032 mm1053 mm
Bottom Bracket Drop
75 mm75 mm75 mm75 mm
Standover Height
774 mm809 mm830 mm858 mm
Wheels700700700700
Rider Min Height170 cm174 cm179 cm186 cm
Rider Max Height177 cm182 cm188 cm cm
