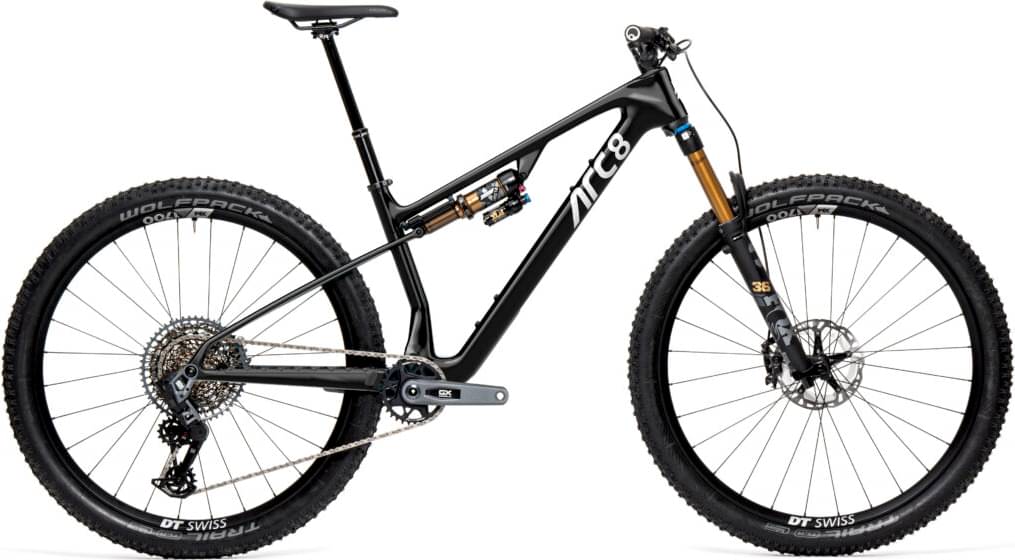

arc8 Essential GX AXS 2024
2024 Mountain
Estimate price |
8,028$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 179cm
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Essential, full carbon
Suspension Fork
Fox 36 Float Factory; Grip2; 150mm
Rear Shock
Fox Float X Factory; 130mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type
Shift Levers
SRAM GX Eagle AXS T-Type
Cassette
SRAM XS 1275 T-Type 10-52
Crank
SRAM GX Eagle AXS T-Type; 32T; 170mm; 55mm
Bottom Bracket
SRAM DUB BSA 73 MTB Wide
Chain
SRAM GX T-Type
Wheels
Rims
Front: DT SWISS XM 1700 Spline, Rear: DT SWISS XM 1700 Spline
Tires
Front: Wolfpack Trail TLR 29x2.4, Rear: Wolfpack Trail TLR 29x2.4
Brakes
Brakes
Front: Shimano XT 8120 4-Piston, Rear: Shimano XT 8100 2-Piston
Cockpit
Stem
Faserwerk Baslerstab 35mm / 50mm
Handlebar
Faserwerk Baslerstab, 800 mm, carbon
Grips
Ergon GA20
Headset
Acros AIF-531
Seat
Saddle
Ergon SMC10
Seatpost
BikeYoke Revive 160mm / 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.323 mm | 1.269 mm |
| Bottom Bracket Height | 334 mm | 334 mm |
| Front Center | 795 mm | 832 mm |
| Rake | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm |
| Stack | 615 mm | 628 mm |
| Reach | 465 mm | 495 mm |
| Top Tube Length | 596 mm | 652 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1222 mm | 1259 mm |
| Bottom Bracket Drop | 40 mm | 40 mm |
| Standover Height | 702 mm | 704 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 177 cm |
| Rider Max Height | 179 cm | 190 cm |
