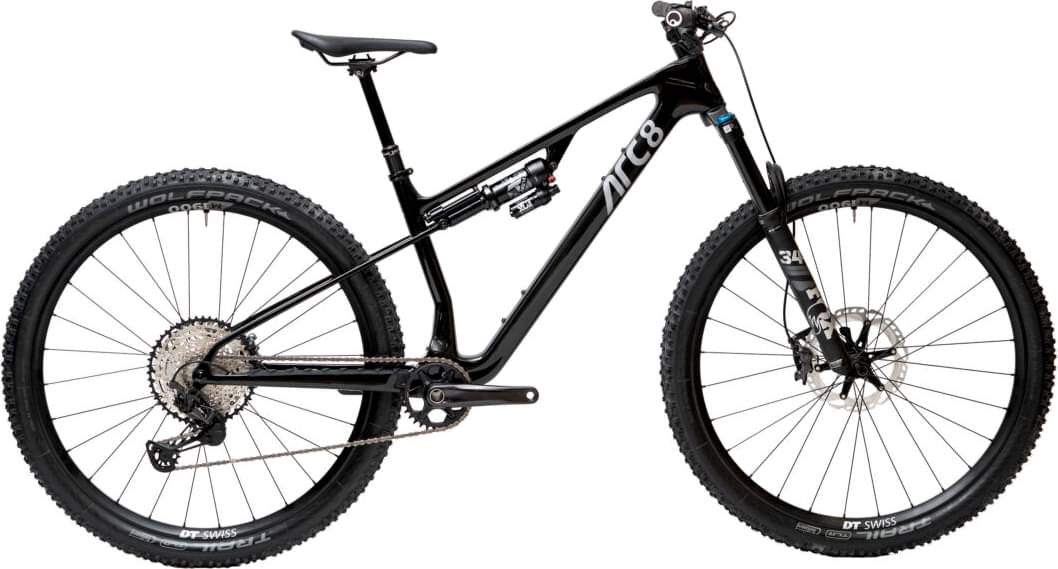

arc8 Essential XT – Fox Performance 2024
2024 Road
Estimate price |
6,651$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Fork Fox Performance Float 36 -
Groupset XT -
Suspension Hardtail -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 179cm
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Essential, full carbon
Suspension Fork
Fox 36 Float Performance; Grip; 150mm
Rear Shock
Fox Float X Performance; 130mm
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100
Cassette
Shimano XT CS-M8100; 10-51T
Crank
Shimano XT FC-M8120; 165mm; 32T
Bottom Bracket
Shimano BB-MT800 / BSA
Chain
Shimano XT M8100
Wheels
Rims
Front: DT SWISS XM 1700 Spline, Rear: DT SWISS XM 1700 Spline
Tires
Front: Wolfpack Trail TLR 29x2.4, Rear: Wolfpack Trail TLR 29x2.4
Brakes
Brakes
Front: Shimano XT M8120 4-Piston, Rear: Shimano XT M8120 2-Piston
Cockpit
Stem
Faserwerk Baslerstab 35 / 50mm
Handlebar
Faserwerk Baslerstab 35 / 50mm
Grips
Ergon GA20
Headset
Acros AIF-531
Seat
Saddle
Ergon SMC10
Seatpost
BikeYoke Revive 160mm / 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.323 mm | 1.269 mm |
| Front Center | 795 mm | 832 mm |
| Rake | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm |
| Stack | 615 mm | 628 mm |
| Reach | 465 mm | 495 mm |
| Top Tube Length | 596 mm | 652 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1222 mm | 1259 mm |
| Bottom Bracket Drop | 40 mm | 40 mm |
| Standover Height | 702 mm | 704 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 177 cm |
| Rider Max Height | 179 cm | 190 cm |
