Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon
Sizing
Recommended size guide.
MD
173cm - 182cm
LG
183cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

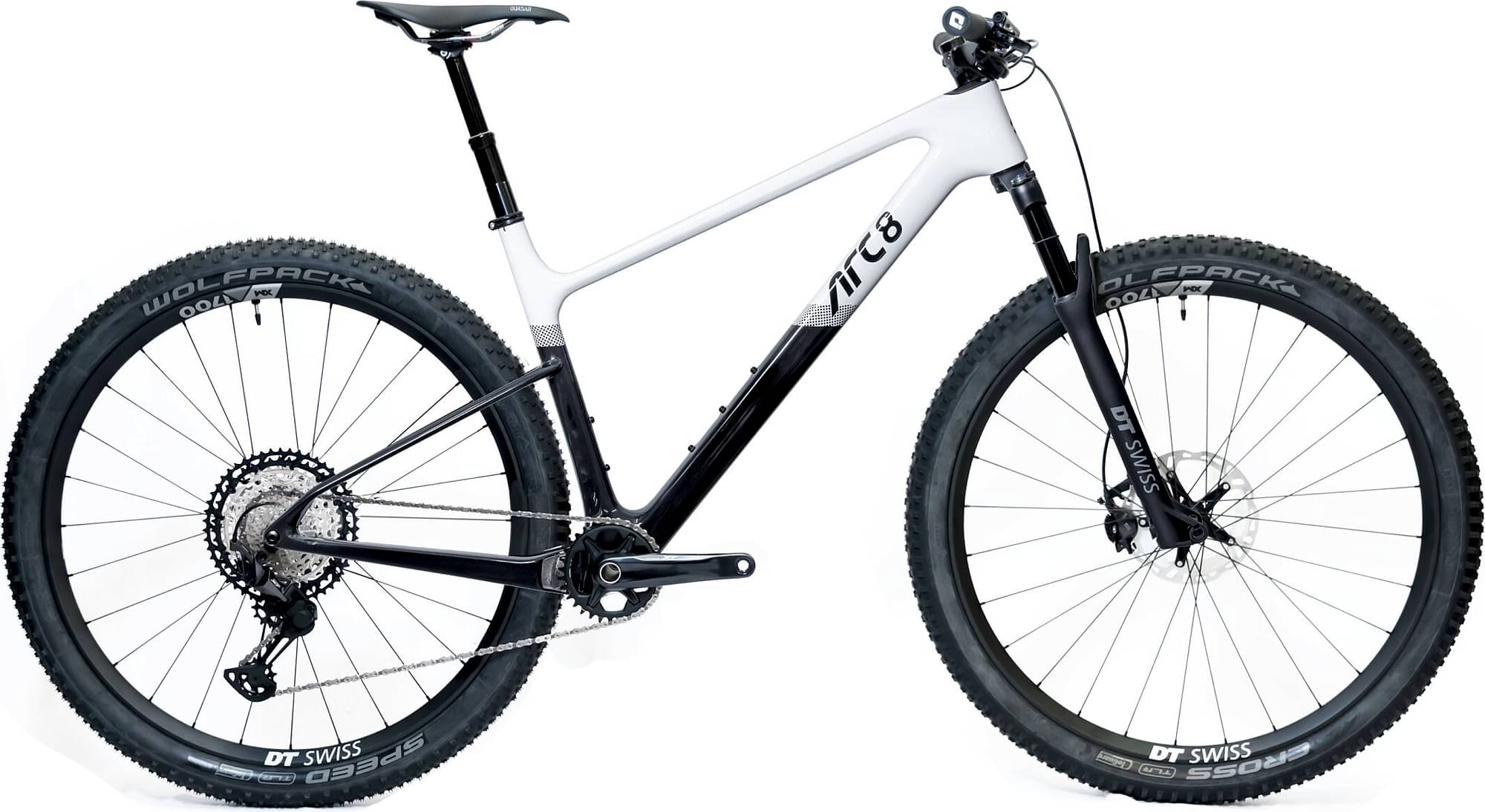

ARC8 Evolve HT, carbon
Rear Shock
-
Cockpit
Headset
Acros AIF-531
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.366 mm | 1.313 mm | 1.275 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 688 mm | 722 mm | 751 mm | 782 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 598 mm | 608 mm | 617 mm | 631 mm |
| Reach | 415 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 587 mm | 620 mm | 647 mm | 676 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1110 mm | 1144 mm | 1173 mm | 1204 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 662 mm | 684 mm | 698 mm | 721 mm |
| Wheels | 29" | 29" | 29" | 29" |
