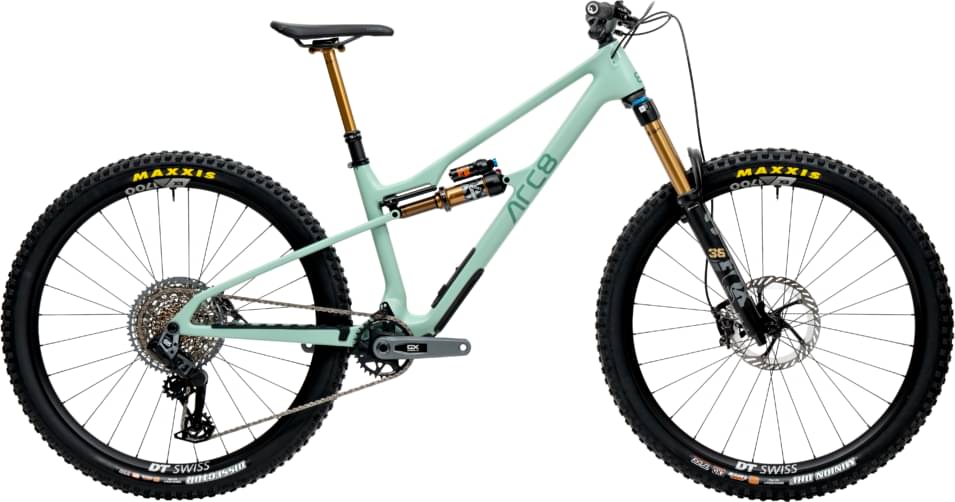

arc8 Extra Air Fox Factory / GX AXS 2024
2024 Mountain
Estimate price |
8,830$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD Low
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Extra Air, full carbon
Suspension Fork
Fox 36 Float Factory; Grip2; 160mm
Rear Shock
Fox Float X Factory; 160mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission
Shift Levers
SRAM GX Eagle AXS T-Type
Cassette
SRAM XS 1275 T-Type 10-52
Crank
SRAM GX Eagle AXS T-Type; 32T; 165mm; 55mm
Bottom Bracket
SRAM DUB BSA 73 MTB Wide
Chain
SRAM GX T-Type
Wheels
Rims
Front: DT Swiss EX 1700 Spline; 29", Rear: DT Swiss EX 1700 Spline; 29"
Tires
Front: Maxxis DHF; Exo Maxx Terra; 29x2.5WT, Rear: Maxxis Dissector; Exo+ Maxx Terra; 29x2.4WT
Brakes
Brakes
Front: Shimano XT 8120 4-Piston, Rear: Shimano XT 8120 4-Piston
Cockpit
Stem
Faserwerk Baslerstab 35mm / 50mm
Handlebar
Faserwerk Baslerstab, 800 mm, carbon
Grips
Ergon GD10
Headset
Acros 320.02.527H-OD46
Seat
Saddle
Ergon SMC10
Seatpost
Fox Transfer Factory; 31,6; 150mm / 175mm / 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low |
|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.347 mm | 1.302 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm |
| Front Center | 794 mm | 831 mm | 869 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 132 mm |
| Stack | 627 mm | 641 mm | 659 mm |
| Reach | 446 mm | 476 mm | 506 mm |
| Top Tube Length | 574 mm | 606 mm | 640 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 442 mm | 445 mm | 448 mm |
| Wheelbase | 1233 mm | 1273 mm | 1314 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm |
| Wheels | 29" | 29" | 29" |
