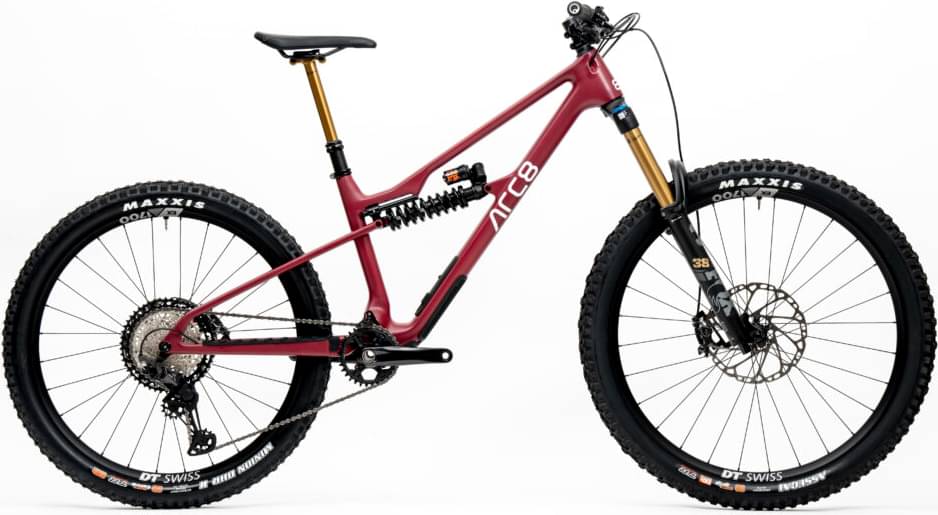

arc8 Extra Coil Fox Factory 2024
2024 Mountain
Estimate price |
8,601$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD High
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Extra, full carbon
Suspension Fork
Fox 38 Float Factory; Grip2; 170mm
Rear Shock
Fox Float DHX2 Factory; 165mm
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100
Cassette
Shimano XT M8100 10-51
Crank
Shimano XT M8120; 32t; 165mm; 55mm
Bottom Bracket
Shimano BBMT800 BSA
Chain
Shimano XT M8100
Wheels
Rims
Front: DT Swiss EX 1700 Spline, Rear: DT Swiss EX 1700 Spline
Tires
Front: Maxxis Assegai; MaxxGrip/Exo+; 29,2.5WT, Rear: Maxxis DHR; MaxxTerra/DD; 27.5x2.4WT
Brakes
Brakes
Front: Shimano XT 8120 4-Piston, Rear: Shimano XT 8110 4-Piston
Cockpit
Stem
RaceFace Turbine R 40mm
Handlebar
RaceFace Turbine R 20x800mm
Grips
Ergon GD10
Headset
Acros 320.02.527H-OD46
Seat
Saddle
Ergon SMC10
Seatpost
Fox Transfer Factory; 31,6; 150mm / 175mm / 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.436 mm | 1.374 mm | 1.374 mm | 1.328 mm | 1.328 mm |
| Front Center | 794 mm | 794 mm | 831 mm | 830 mm | 858 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 140 mm | 140 mm | 141 mm | 141 mm | 153 mm | 143 mm |
| Stack | 632 mm | 632 mm | 646 mm | 646 mm | 664 mm | 664 mm |
| Reach | 440 mm | 440 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Top Tube Length | 575 mm | 575 mm | 607 mm | 607 mm | 641 mm | 641 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 440 mm | 440 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm |
| Chainstay Length | 430 mm | 442 mm | 433 mm | 445 mm | 436 mm | 448 mm |
| Wheelbase | 1221 mm | 1233 mm | 1261 mm | 1273 mm | 1291 mm | 1314 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
