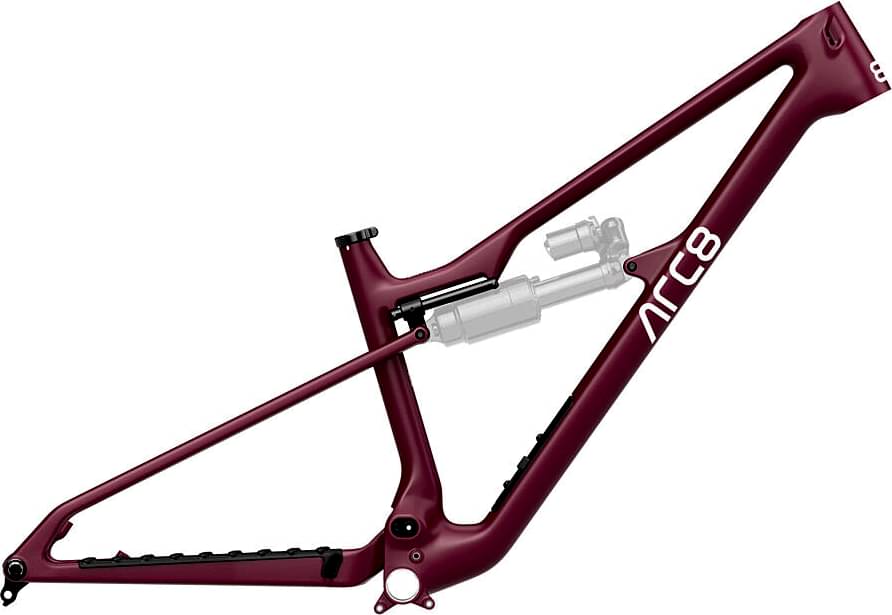

arc8 Extra Coil Frame Kit 2024

2024 Mountain

Estimate price | 3,898$

Weight | 2.03 kg

Open compare Use advisor

Arc8 Extra Coil Frame Kit 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Mountain
- |
- Enduro
Frame Carbon
Wheels 27.5"
Suspension Hardtail

Sizing

Recommended size guide.

MD High
174cm - 183cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

ARC8 Extra, full carbon

Rear Shock

-

Cockpit

Headset

Acros 320.02.527H-OD46

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM High	SM Low	MD High	MD Low	LG High	LG Low
Stack Reach Ratio	1.436 mm	1.436 mm	1.374 mm	1.374 mm	1.328 mm	1.328 mm
Bottom Bracket Height	317 mm	317 mm	317 mm	317 mm	317 mm	317 mm
Front Center	794 mm	794 mm	831 mm	830 mm	858 mm	868 mm
Rake	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Trail	131 mm	131 mm	132 mm	132 mm	143 mm	133 mm
Stack	632 mm	632 mm	646 mm	646 mm	664 mm	664 mm
Reach	440 mm	440 mm	470 mm	470 mm	500 mm	500 mm
Top Tube Length	575 mm	575 mm	607 mm	607 mm	641 mm	641 mm
Seat Tube Angle	78 °	78 °	78 °	78 °	78 °	78 °
Seat Tube Length	380 mm	380 mm	400 mm	400 mm	440 mm	440 mm
Head Tube Angle	63 °	63 °	63 °	63 °	63 °	63 °
Head Tube Length	100 mm	100 mm	115 mm	115 mm	135 mm	135 mm
Chainstay Length	430 mm	442 mm	433 mm	445 mm	436 mm	448 mm
Wheelbase	1221 mm	1233 mm	1261 mm	1273 mm	1291 mm	1314 mm
Bottom Bracket Drop	38 mm	38 mm	38 mm	38 mm	38 mm	38 mm
Wheels	27"	27"	27"	27"	27"	27"
