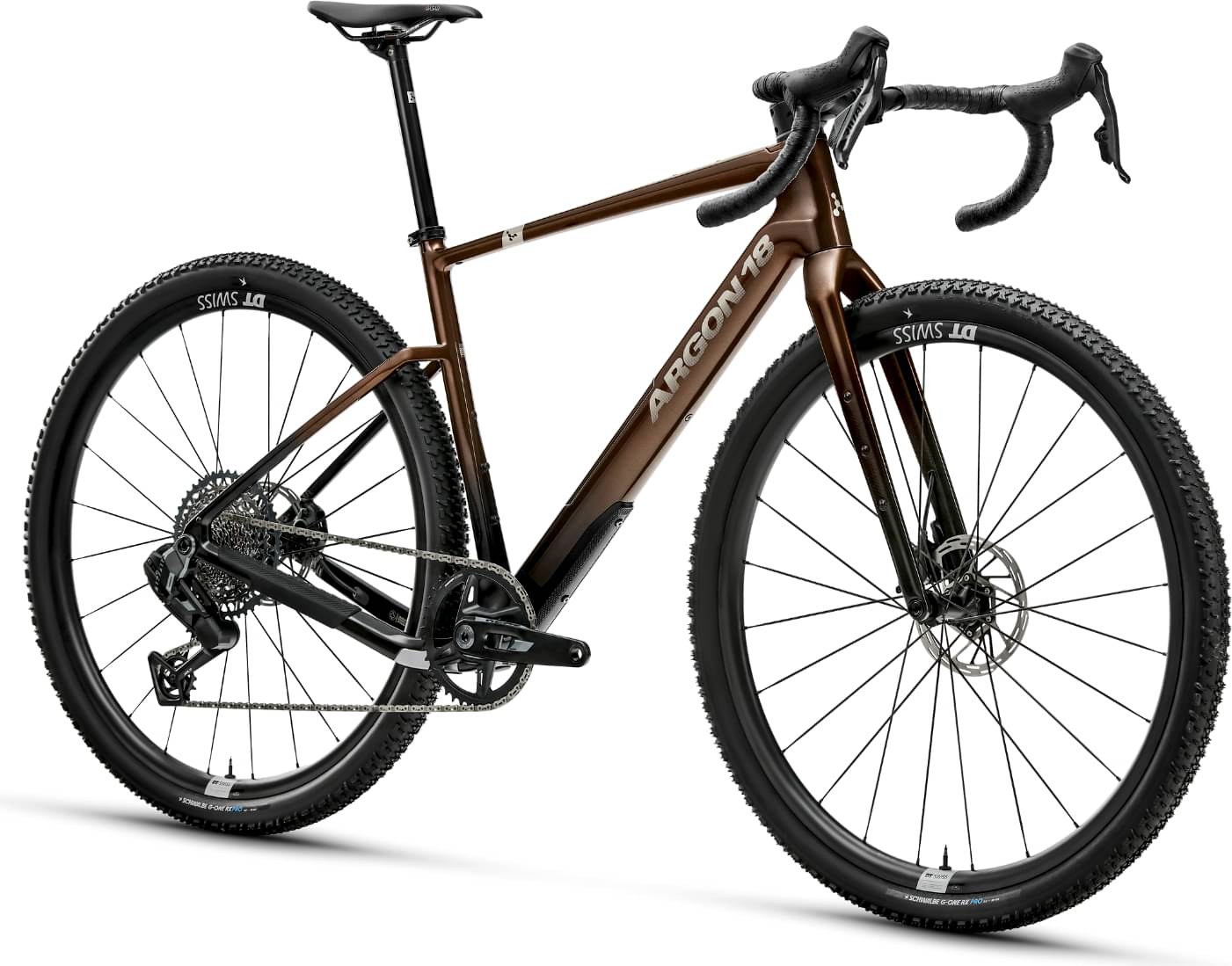

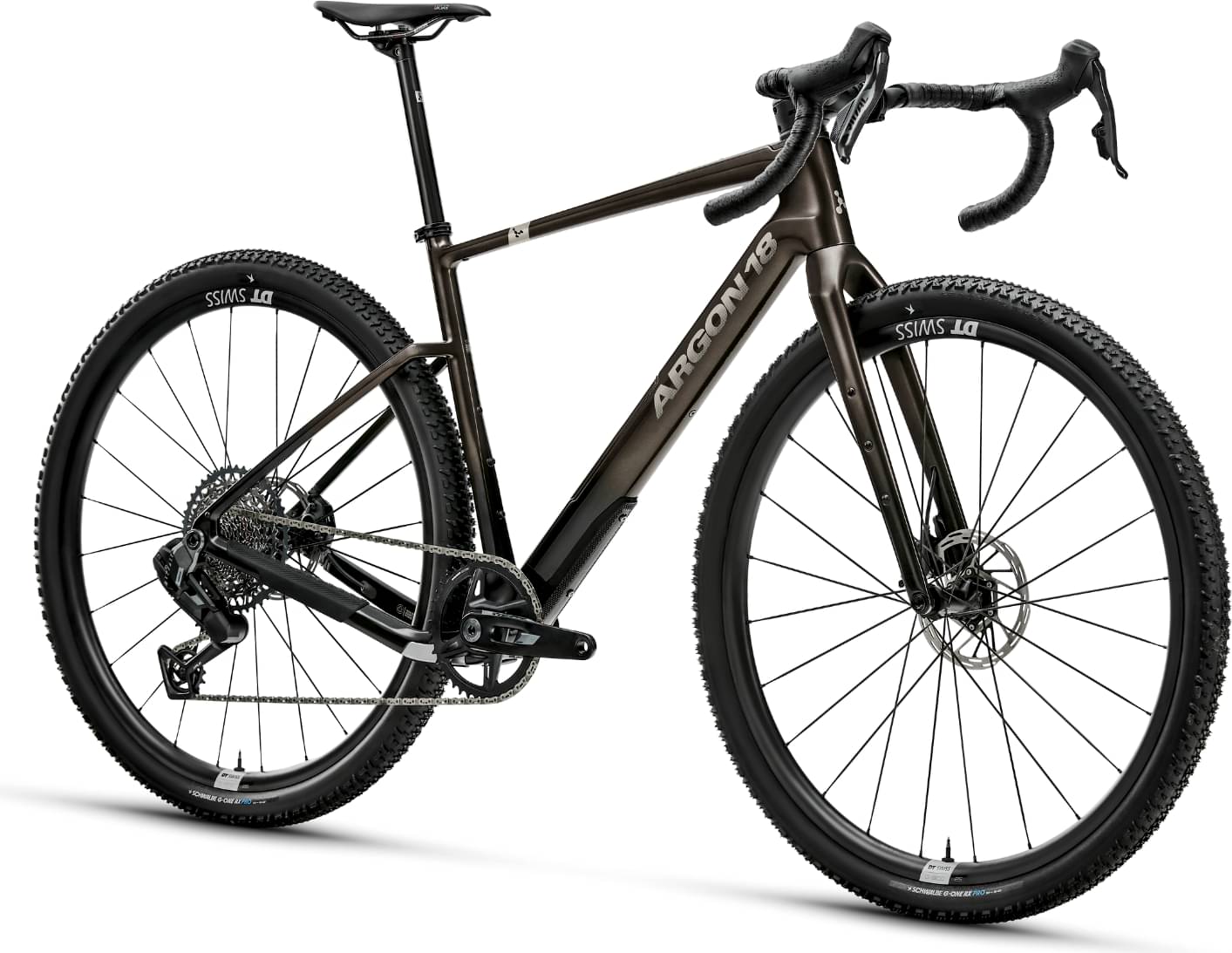

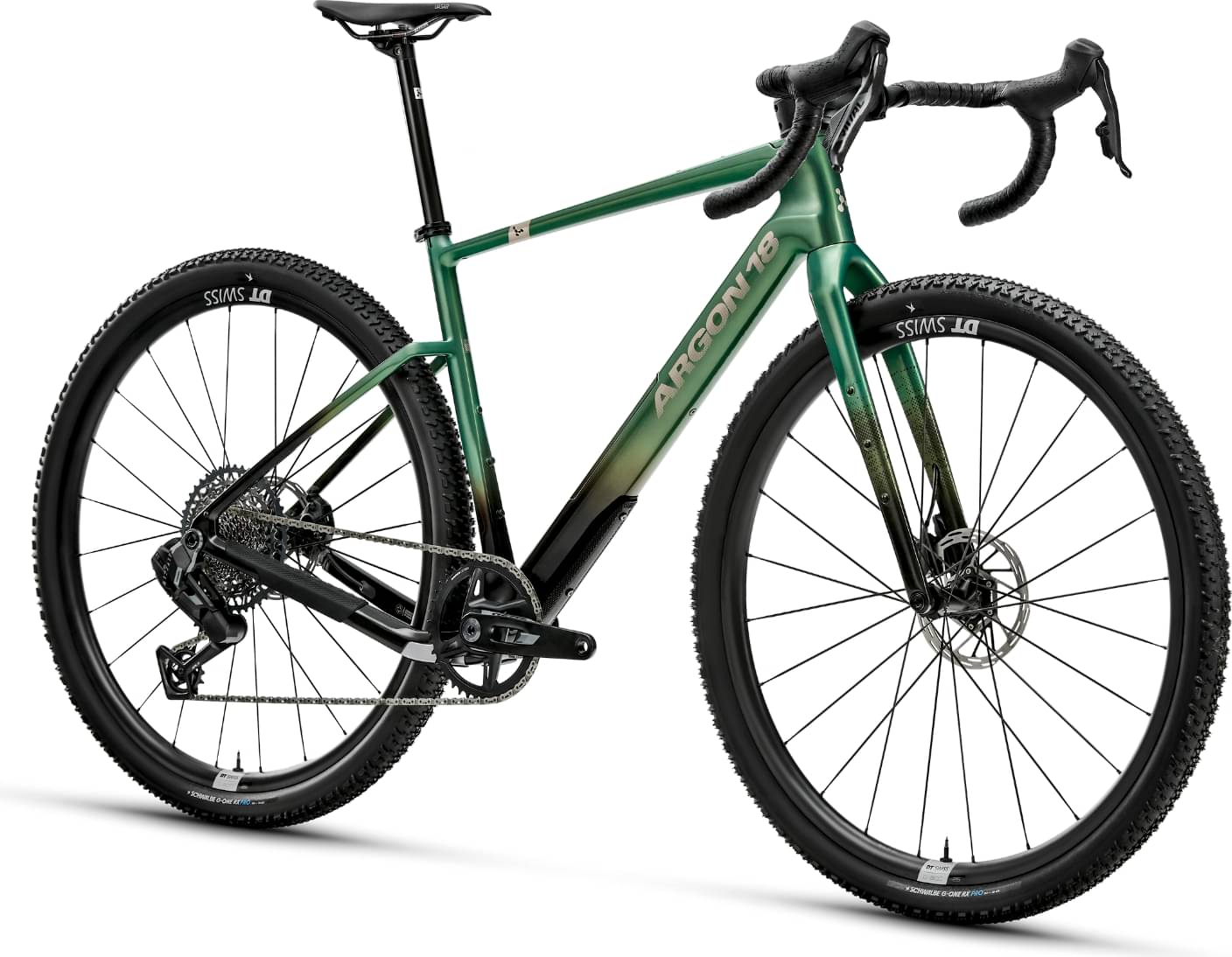

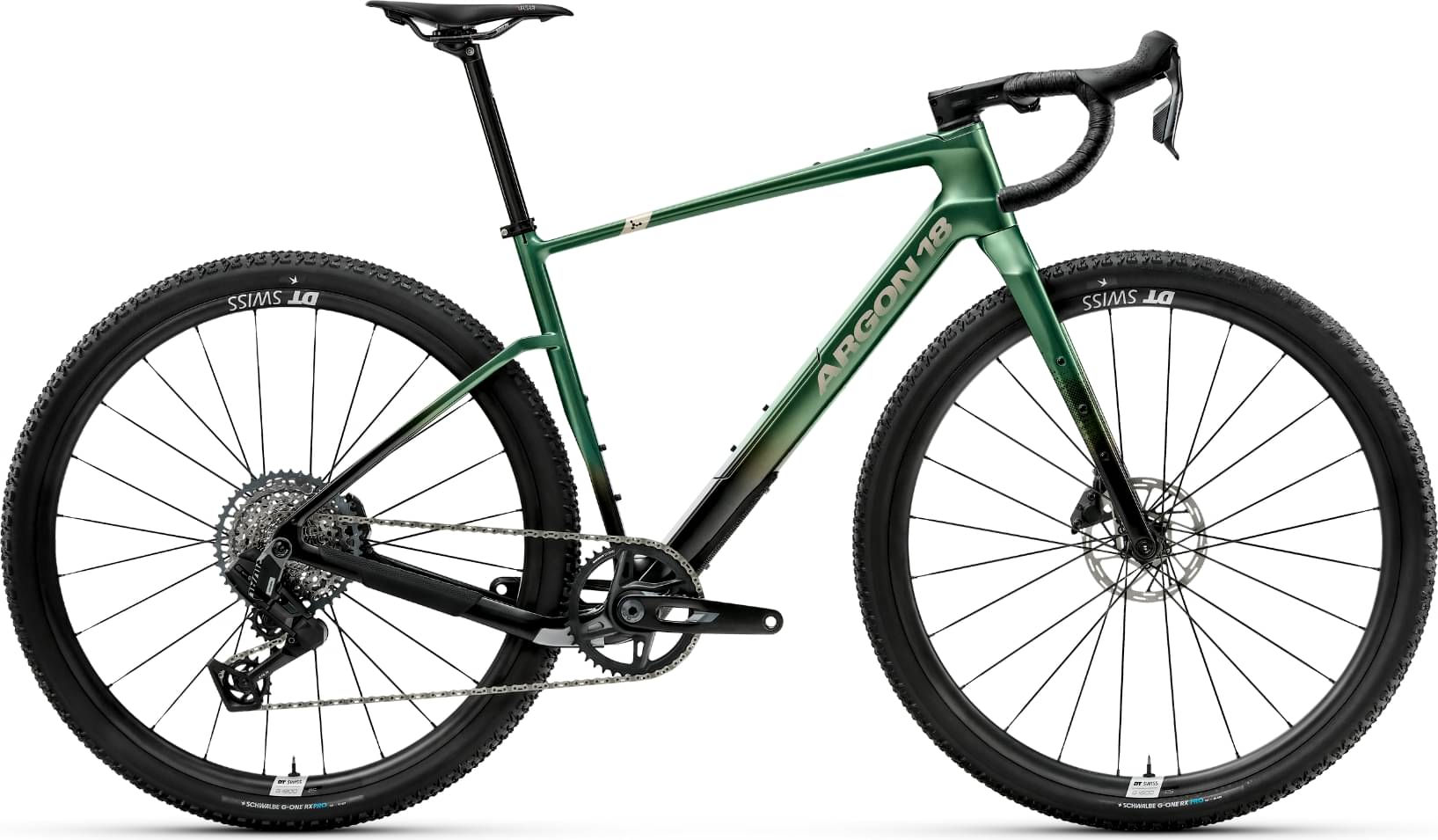

Argon 18 Dark Matter SRAM Rival XPLR AXS 2025
2025 Road
Estimate price |
5,927$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

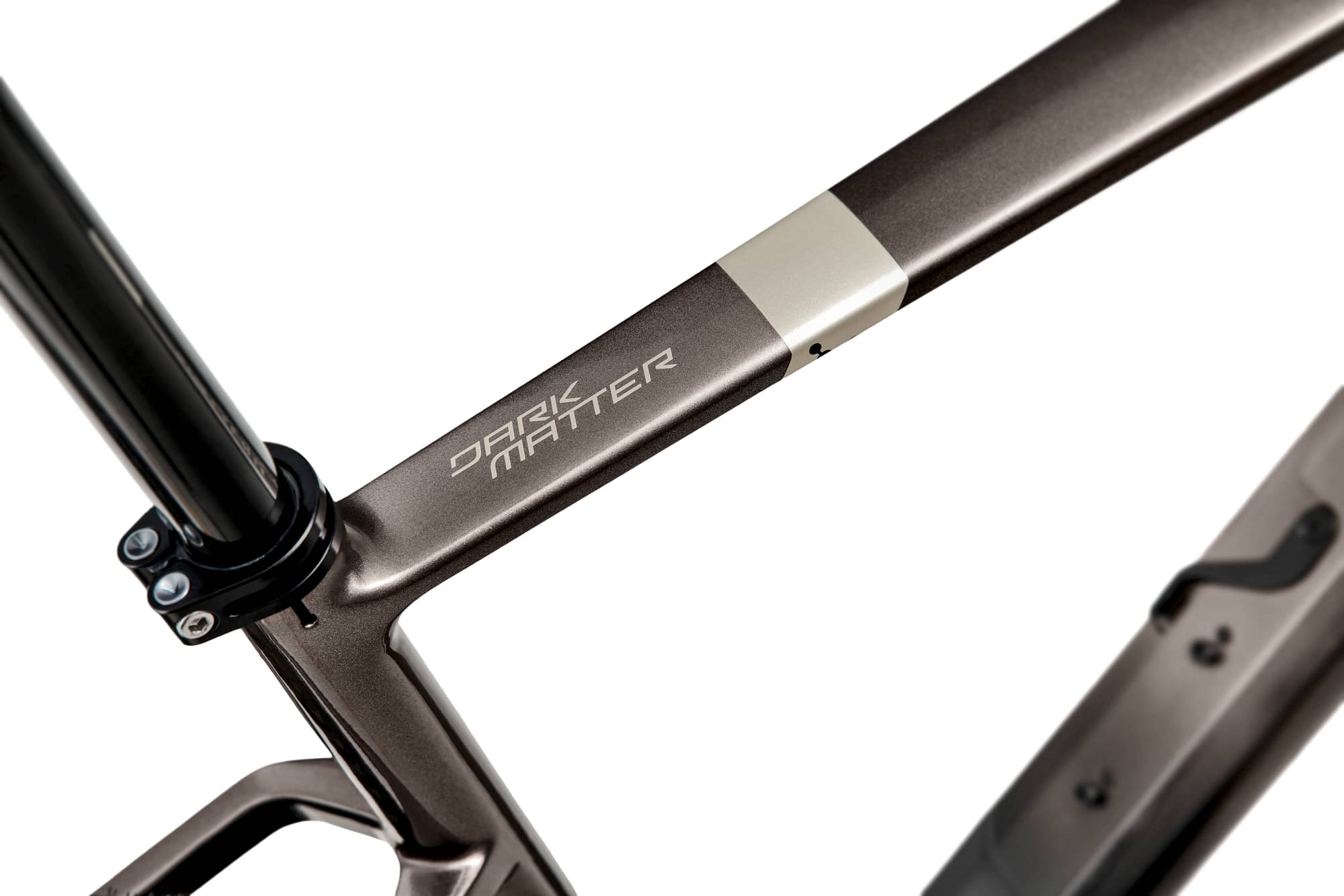

Frame
Frame
Dark Matter
Suspension Fork
Dark Matter
Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS E1
Front Derailleur
N/A
Shift Levers
SRAM Rival AXS E1
Cassette
SRAM Rival XPLR XG-1351, 10-46T
Crank
SRAM Rival XPLR, 40T
Bottom Bracket
SRAM BB DUB T47 Wide
Chain
SRAM Rival Chain E1
Wheels
Rims
DT Swiss G1800 XDR
Tires
Schwalbe G-One RX PRO, TLR 700x50c
Brakes
Brakes
SRAM Rival AXS E1

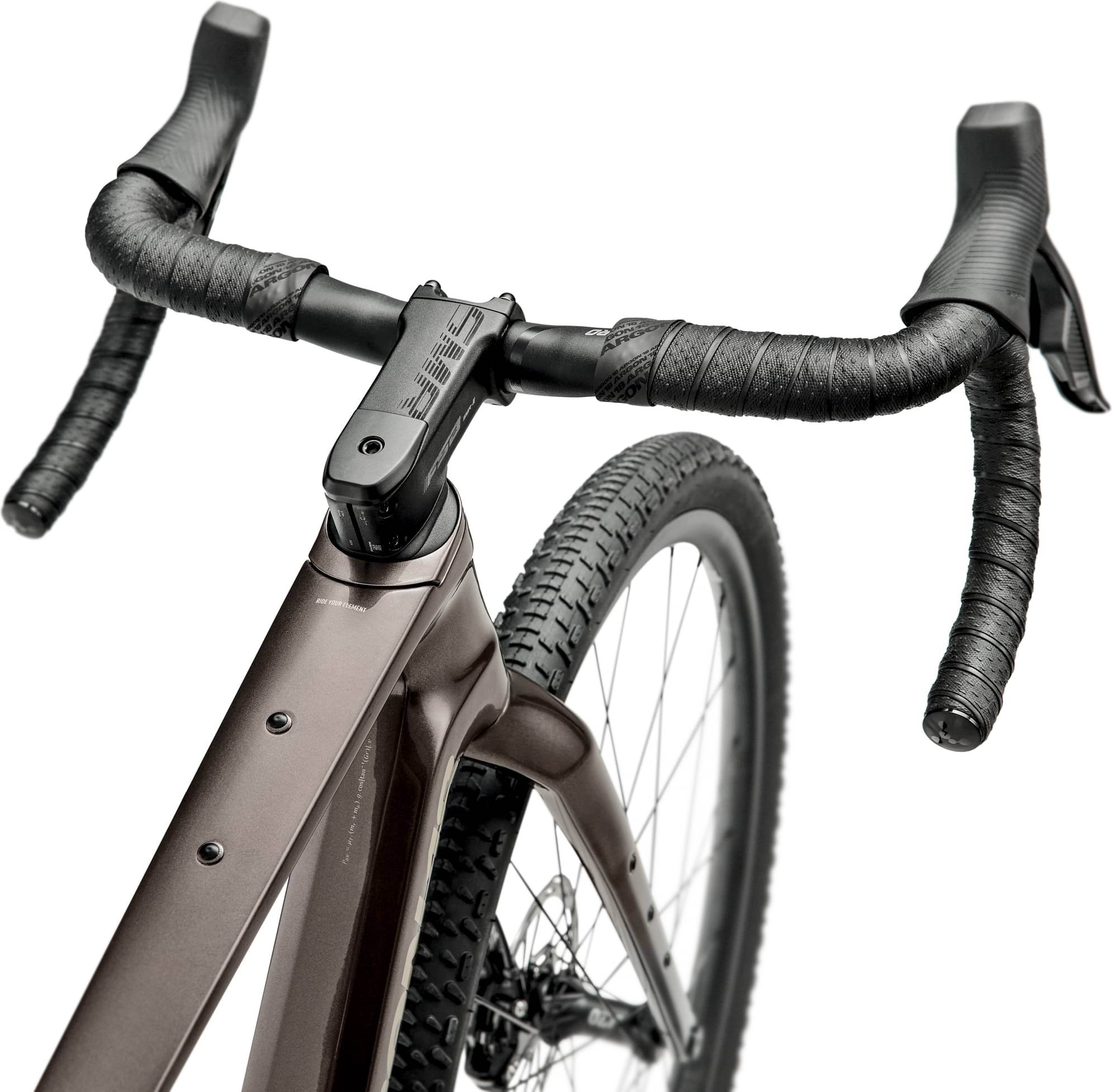

Cockpit

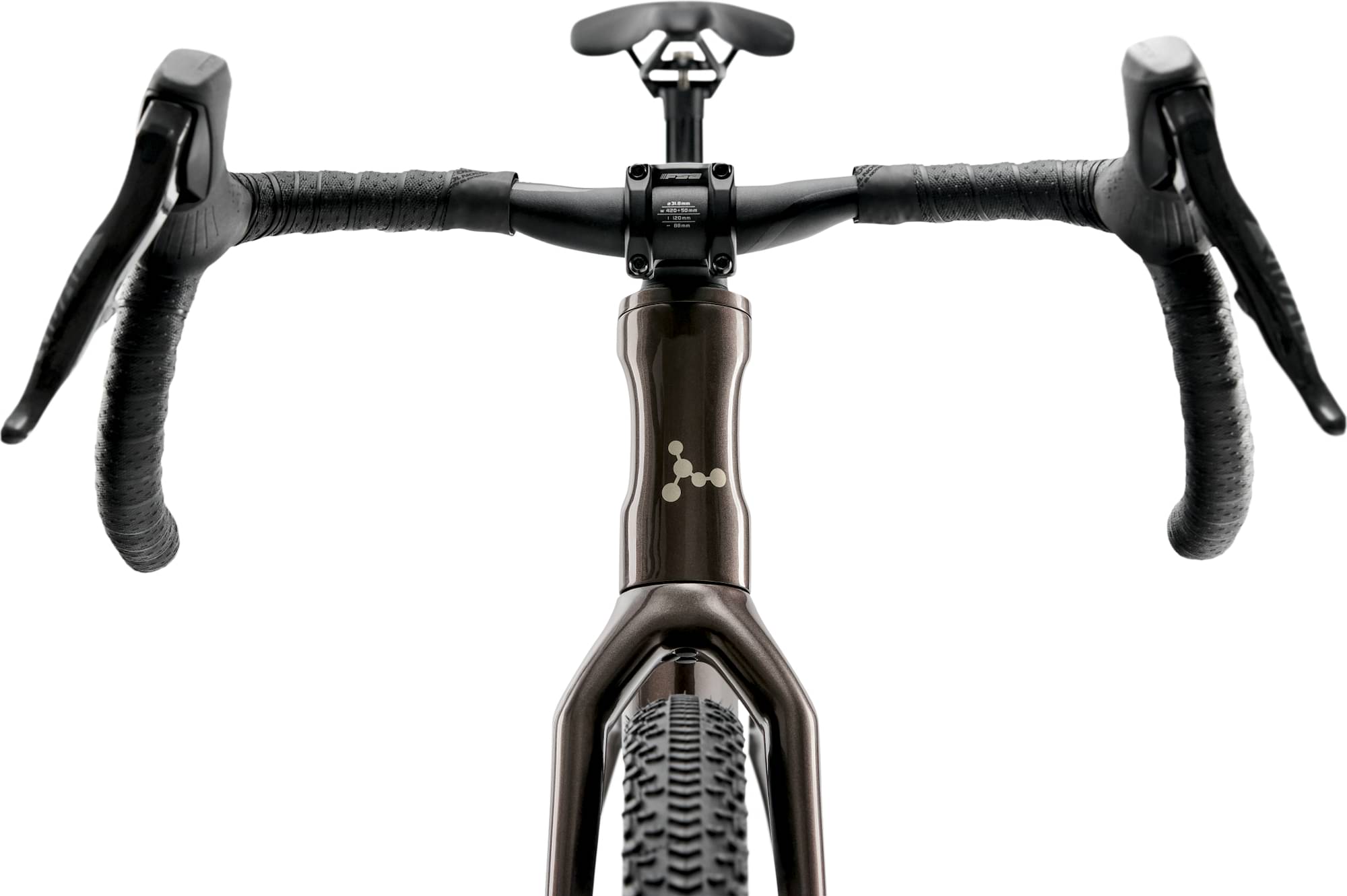

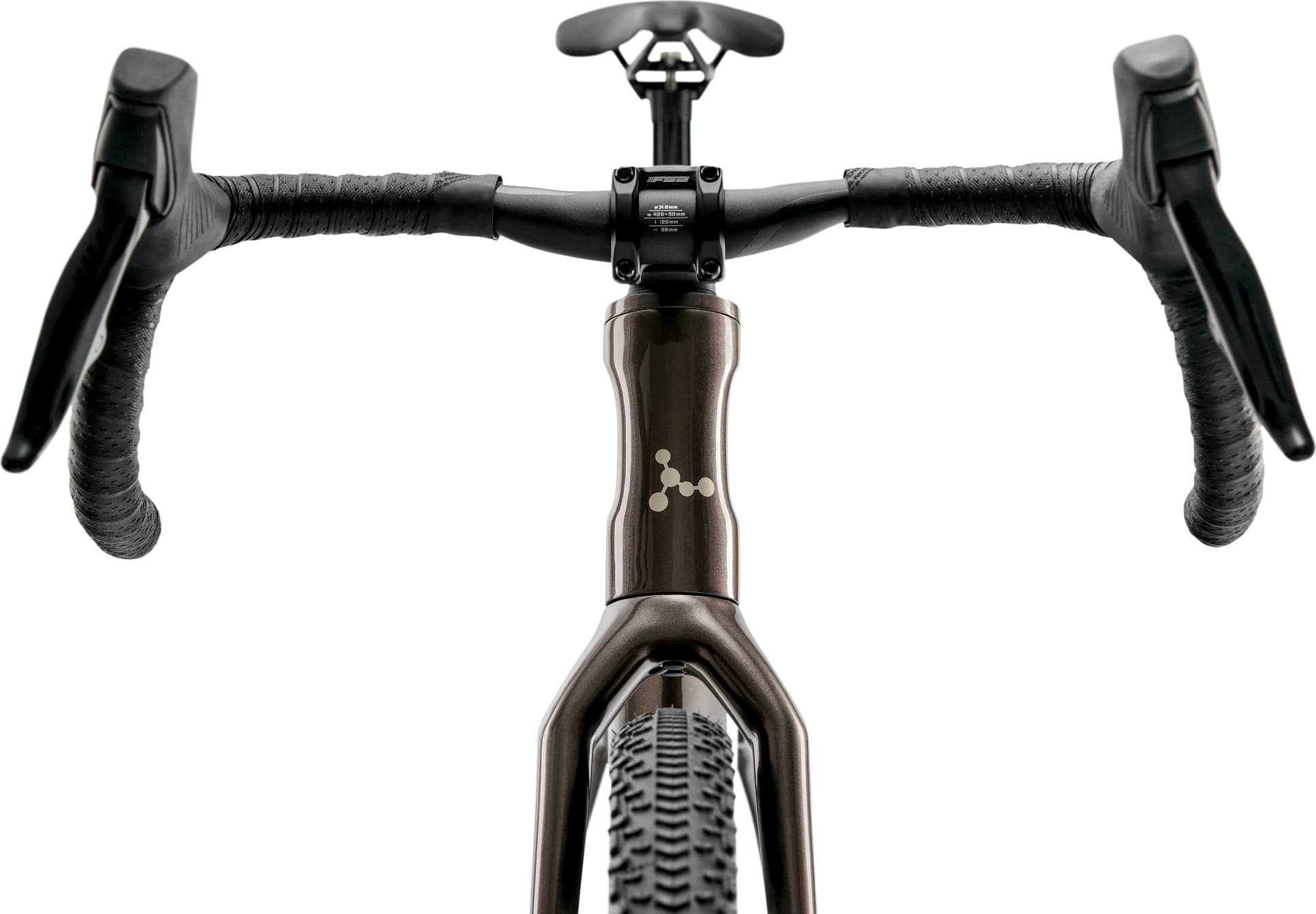

Handlebar
Ciclovation Grind Touch
Seat
Saddle
Repente Quasar S 2.0
Seatpost
Argon 18 TDS-C
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.414 mm | 1.424 mm | 1.433 mm | 1.443 mm | 1.463 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 607 mm | 613 mm | 621 mm | 635 mm | 655 mm | 676 mm |
| Rake | 54 mm | 54 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 86 mm | 76 mm | 79 mm | 75 mm | 75 mm | 75 mm |
| Stack | 520 mm | 540 mm | 561 mm | 582 mm | 603 mm | 629 mm |
| Reach | 370 mm | 382 mm | 394 mm | 406 mm | 418 mm | 430 mm |
| Top Tube Length | 507 mm | 530 mm | 553 mm | 577 mm | 602 mm | 629 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 435 mm | 460 mm | 495 mm | 540 mm | 585 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 72 mm | 87 mm | 106 mm | 126 mm | 151 mm | 178 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1030 mm | 1036 mm | 1045 mm | 1059 mm | 1080 mm | 1101 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 76 mm | 76 mm |
| Standover Height | 713 mm | 729 mm | 755 mm | 786 mm | 825 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
