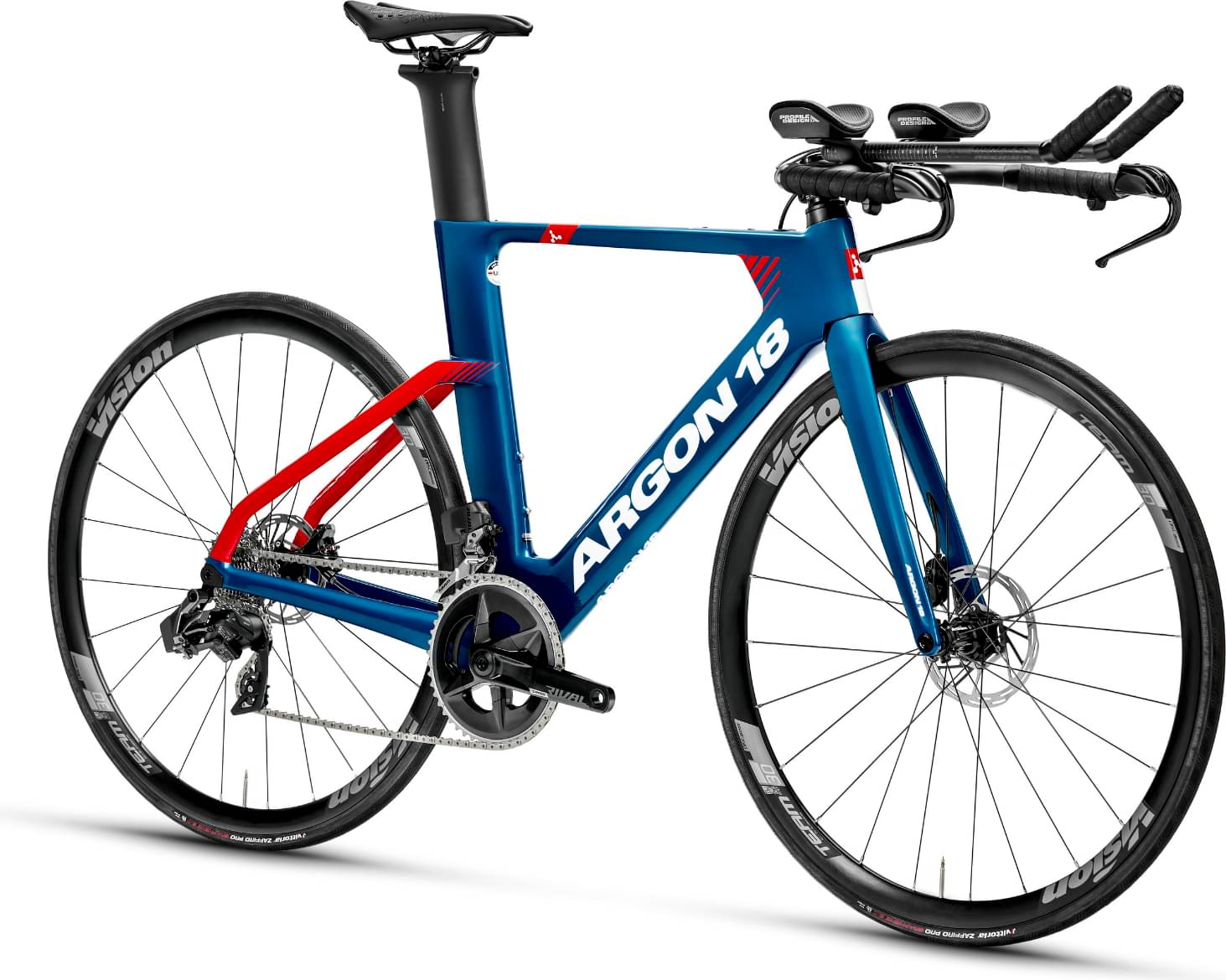

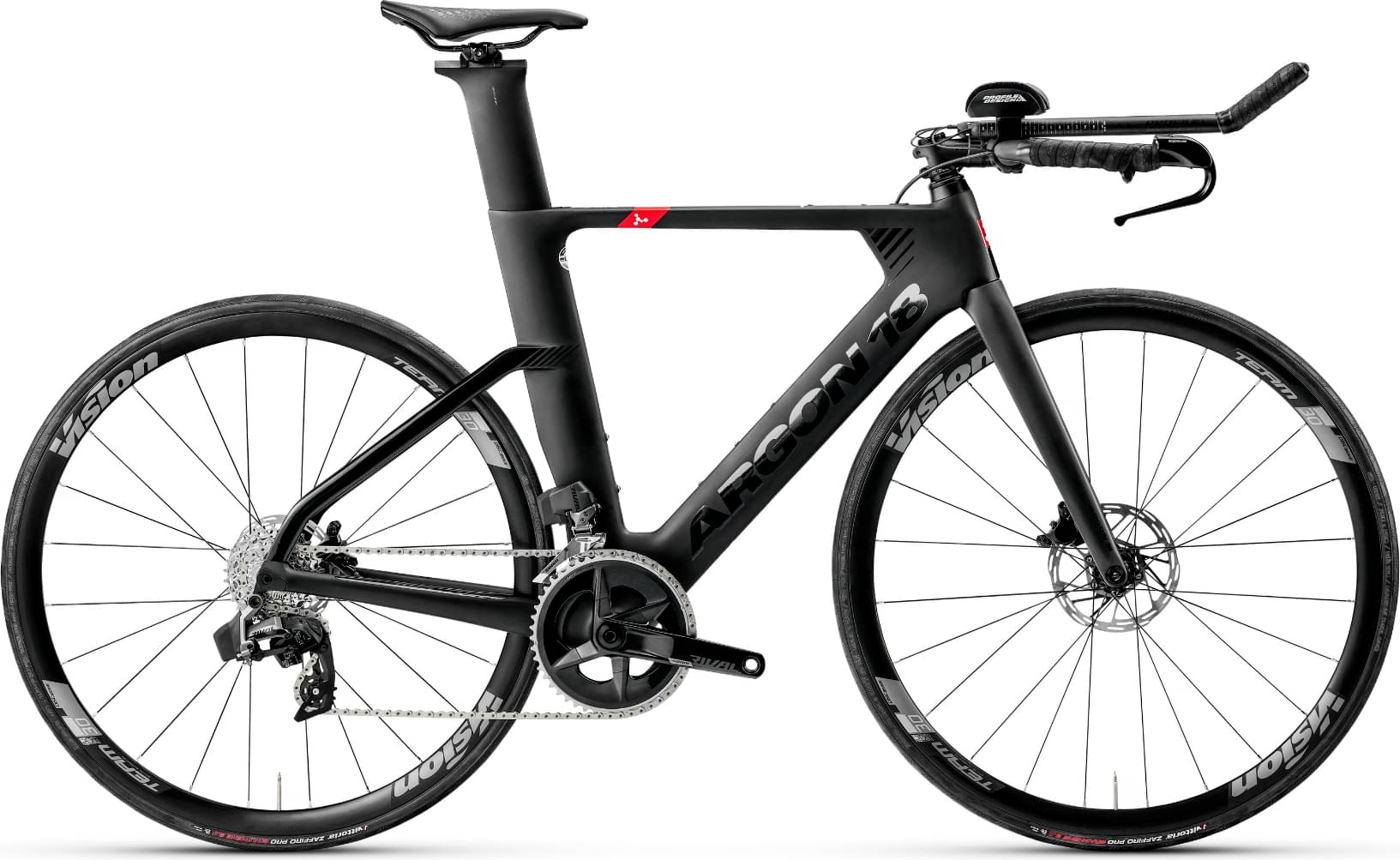

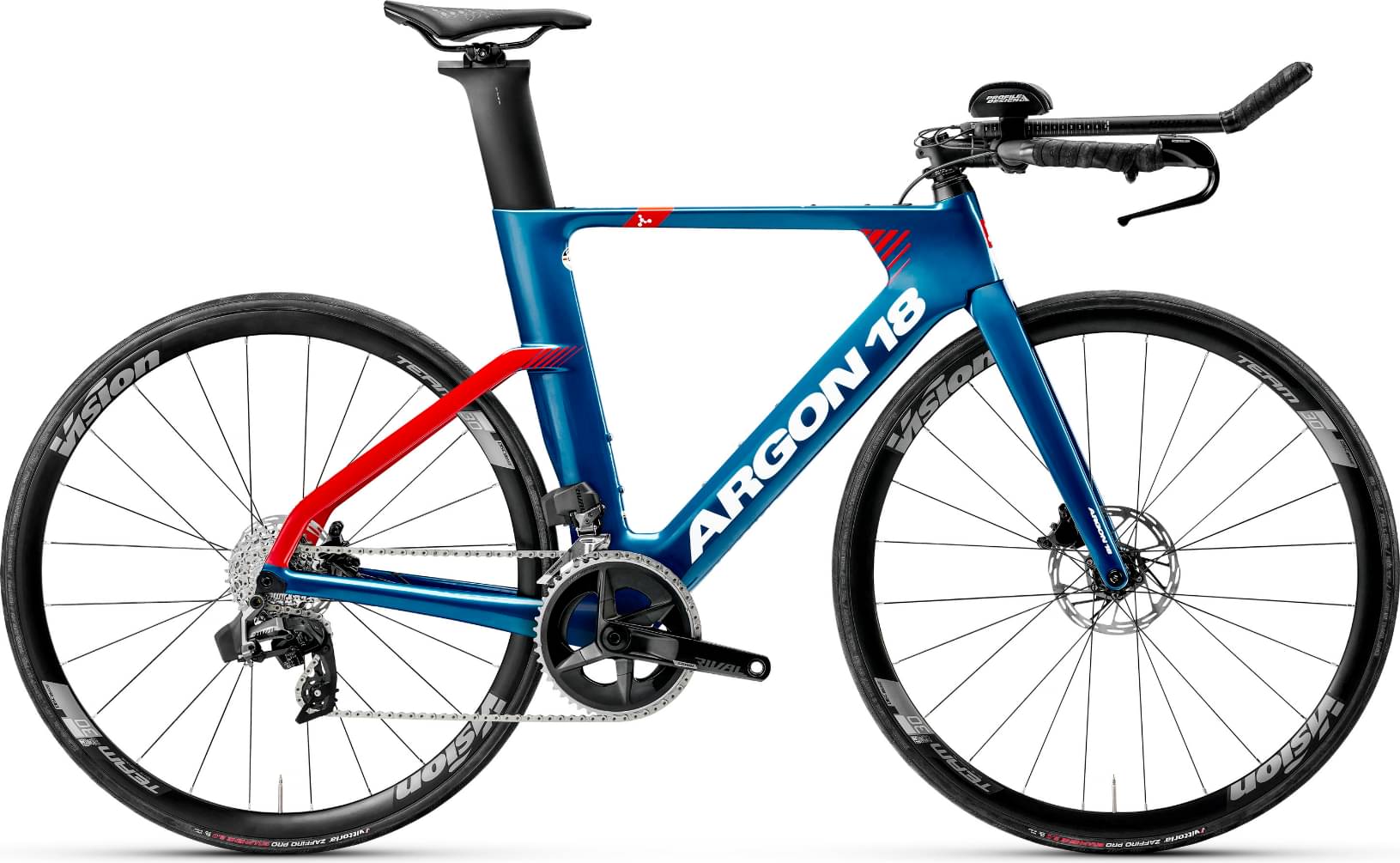

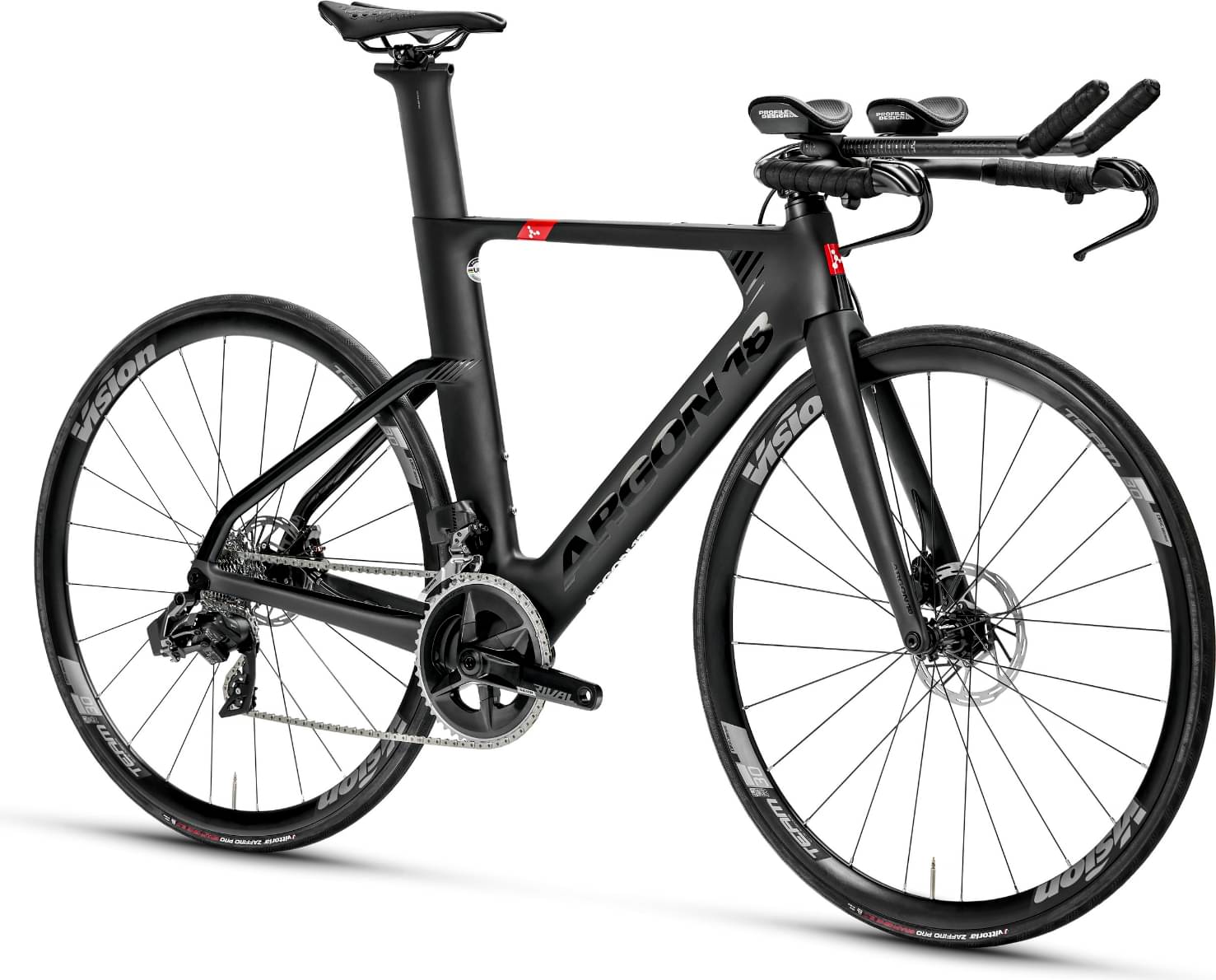

Argon 18 E-117 Tri Disc SRAM Rival AXS 2024
2024 Road
Estimate price |
6,049$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS, RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-117 Tri Disc
Suspension Fork
E-117 Tri Disc specific
Drivetrain
Rear Derailleur
SRAM Rival eTAP AXS (MAX 36T)
Front Derailleur
SRAM Rival eTAP AXS
Shift Levers
SRAM eTap Clics
Crank
SRAM Rival AXS DUB 48/35
Bottom Bracket
SRAM DUB PF 86.5 Road
Chain
SRAM Rival 12S 114L
Wheels
Rims
Vision Team 30 Clincher Centerlock XDR wheelset
Tires
Zaffiro Pro 700x25c

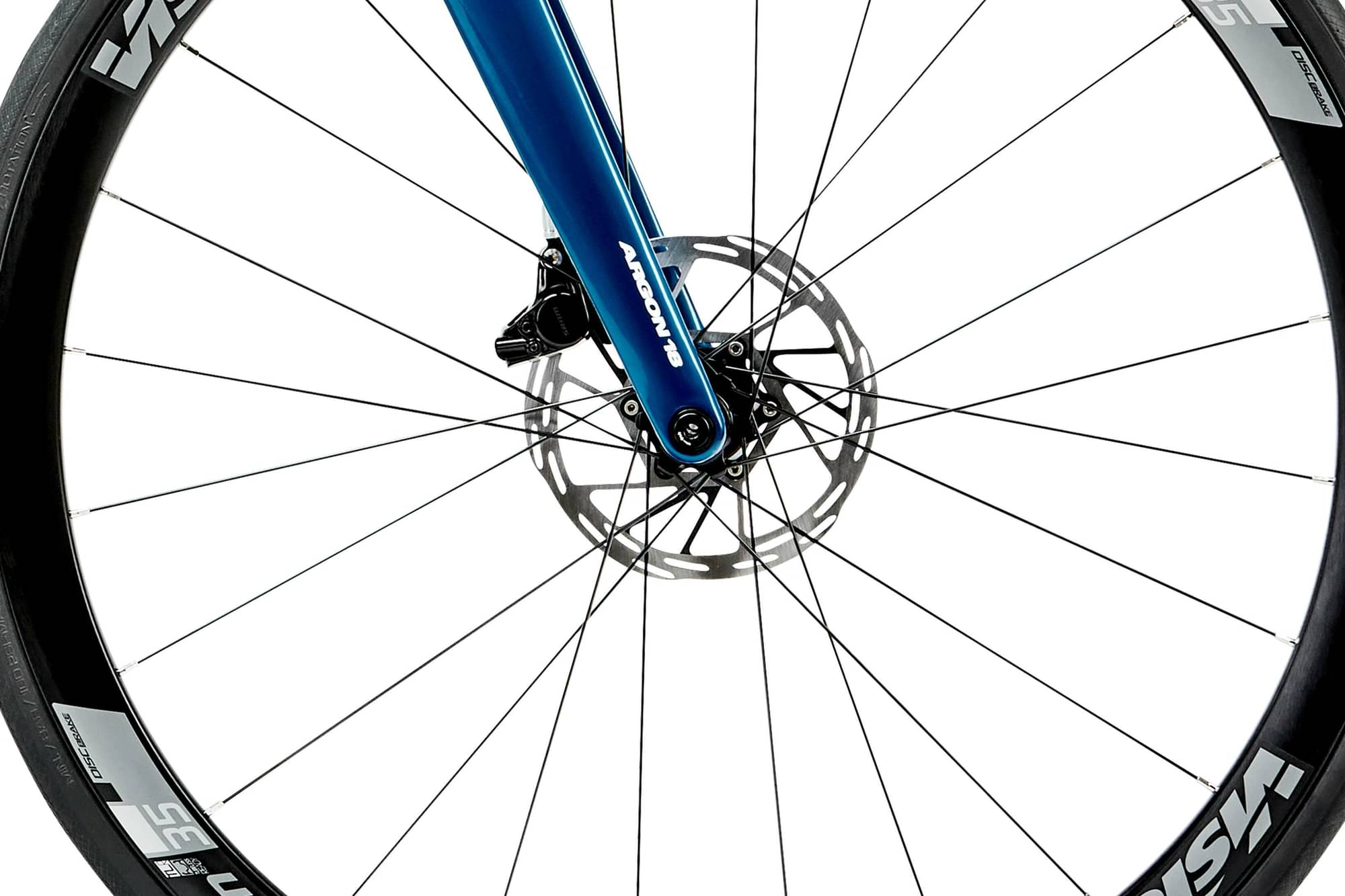

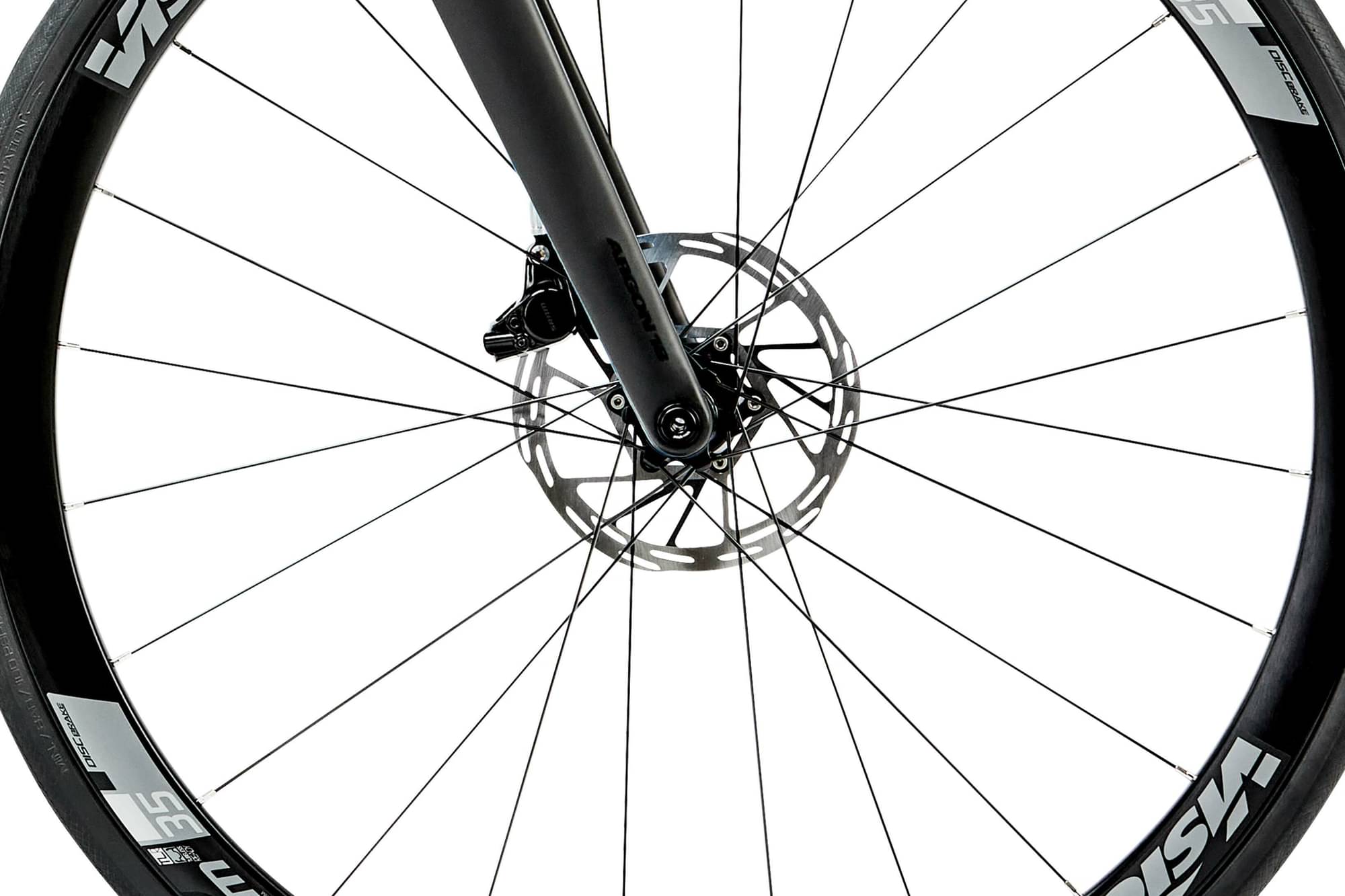

Brakes
Brakes
RideRever TRIVA

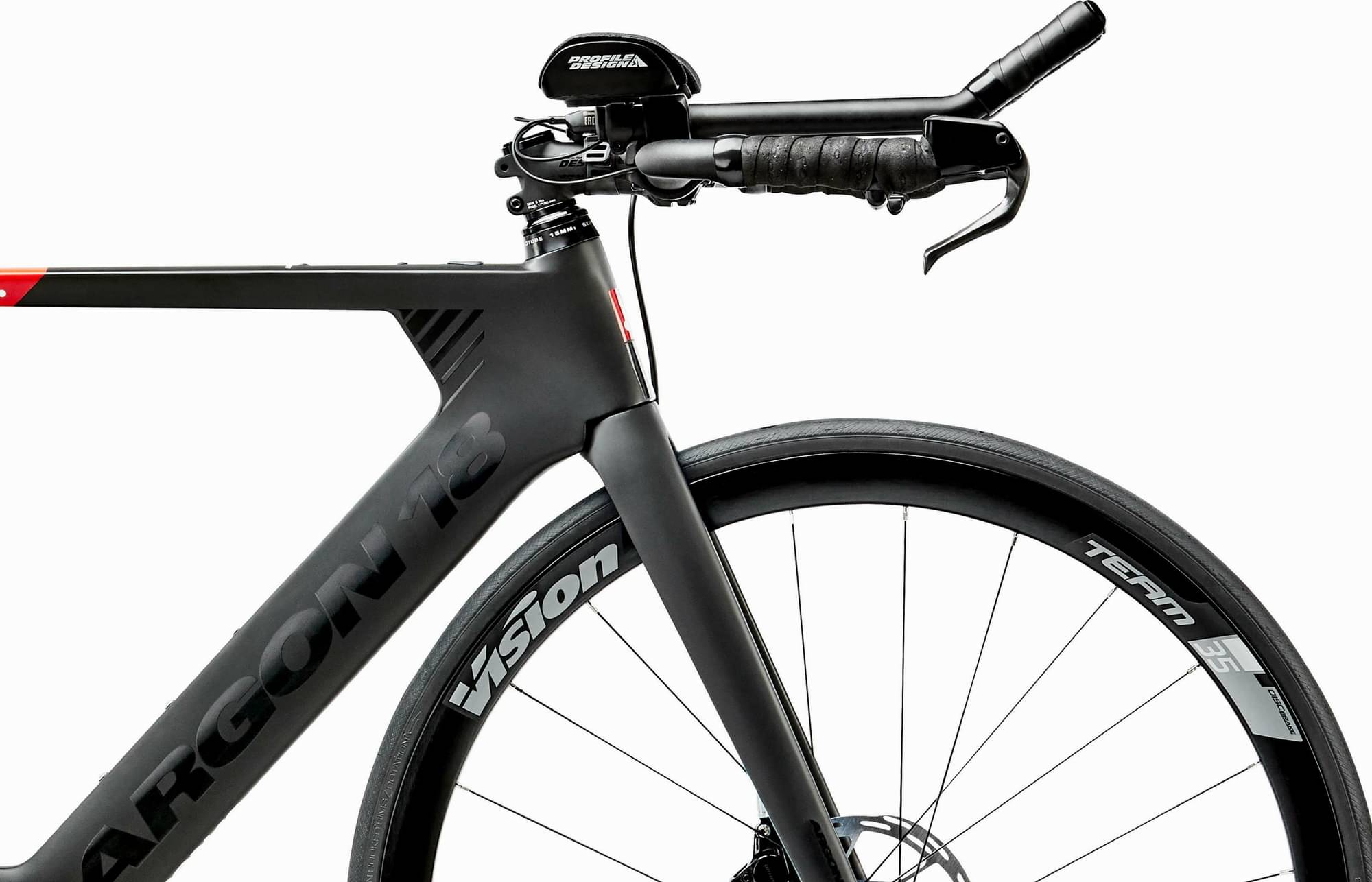

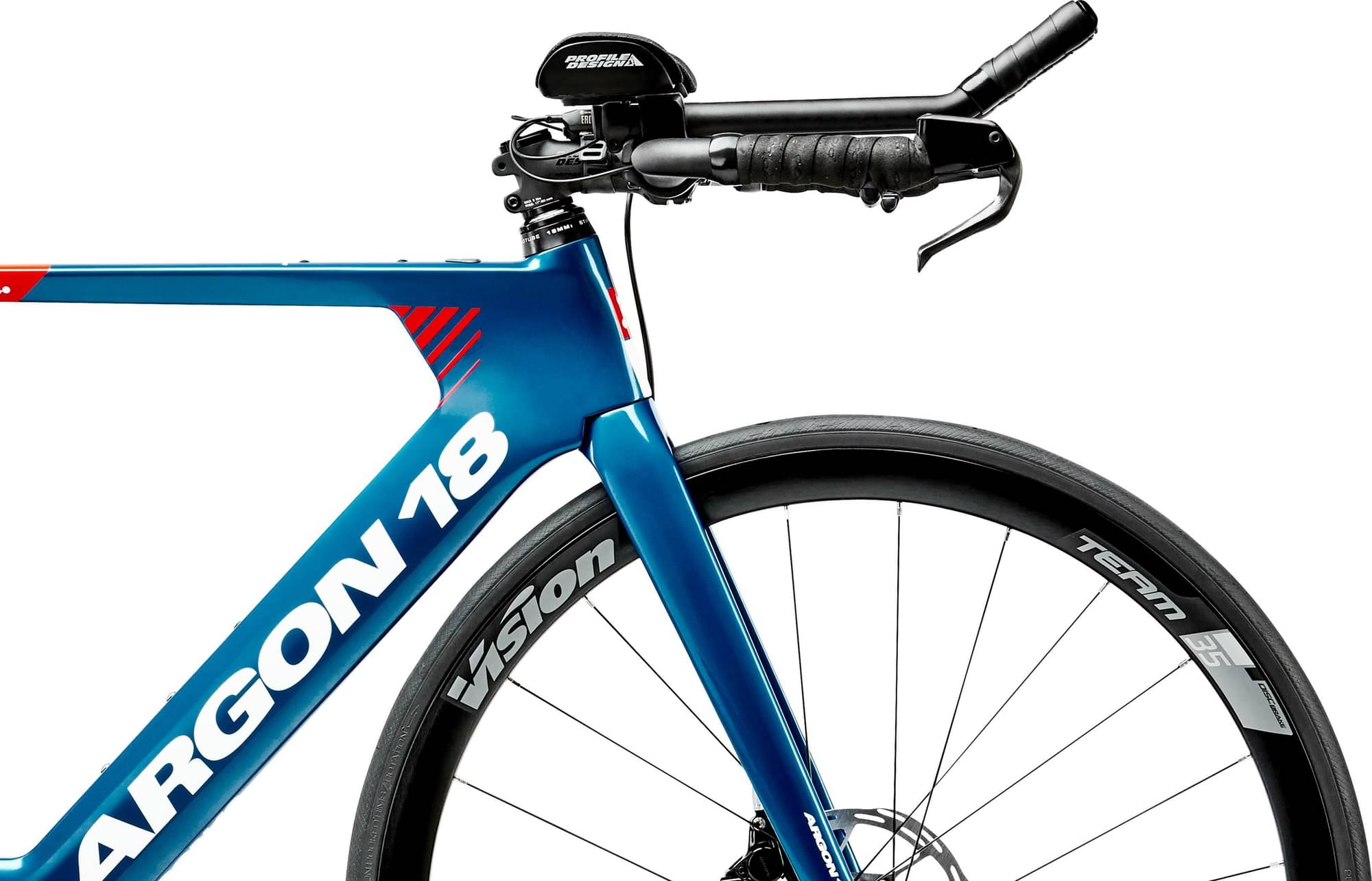

Cockpit

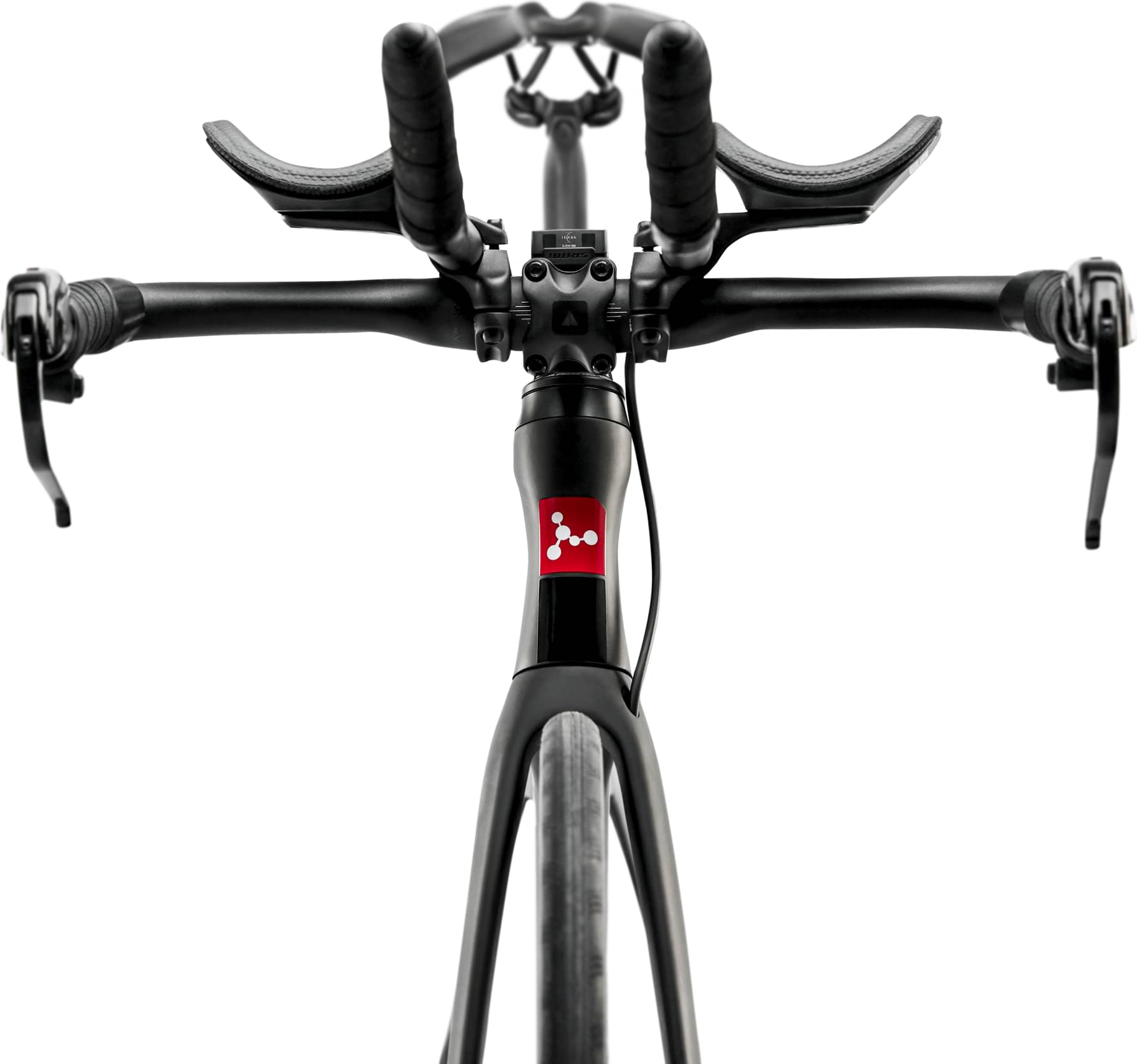

Handlebar
Prologo Plaintouch black
Headset
37E-A with 3D with TH-881-1
Seat
Saddle
Prologo Dimension Tri
Seatpost
E-117T Disc
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.275 mm | 1.268 mm | 1.274 mm | 1.328 mm | 1.346 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 587 mm | 601 mm | 615 mm | 635 mm |
| Rake | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 62 mm | 61 mm | 62 mm | 61 mm | 62 mm |
| Stack | 491 mm | 501 mm | 516 mm | 543 mm | 568 mm |
| Reach | 385 mm | 395 mm | 405 mm | 409 mm | 422 mm |
| Top Tube Length | 492 mm | 504 mm | 517 mm | 527 mm | 545 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 461 mm | 500 mm | 516 mm | 546 mm | 573 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 84 mm | 95 mm | 111 mm | 139 mm | 166 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 976 mm | 990 mm | 1004 mm | 1018 mm | 1038 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 762 mm | 777 mm | 805 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
