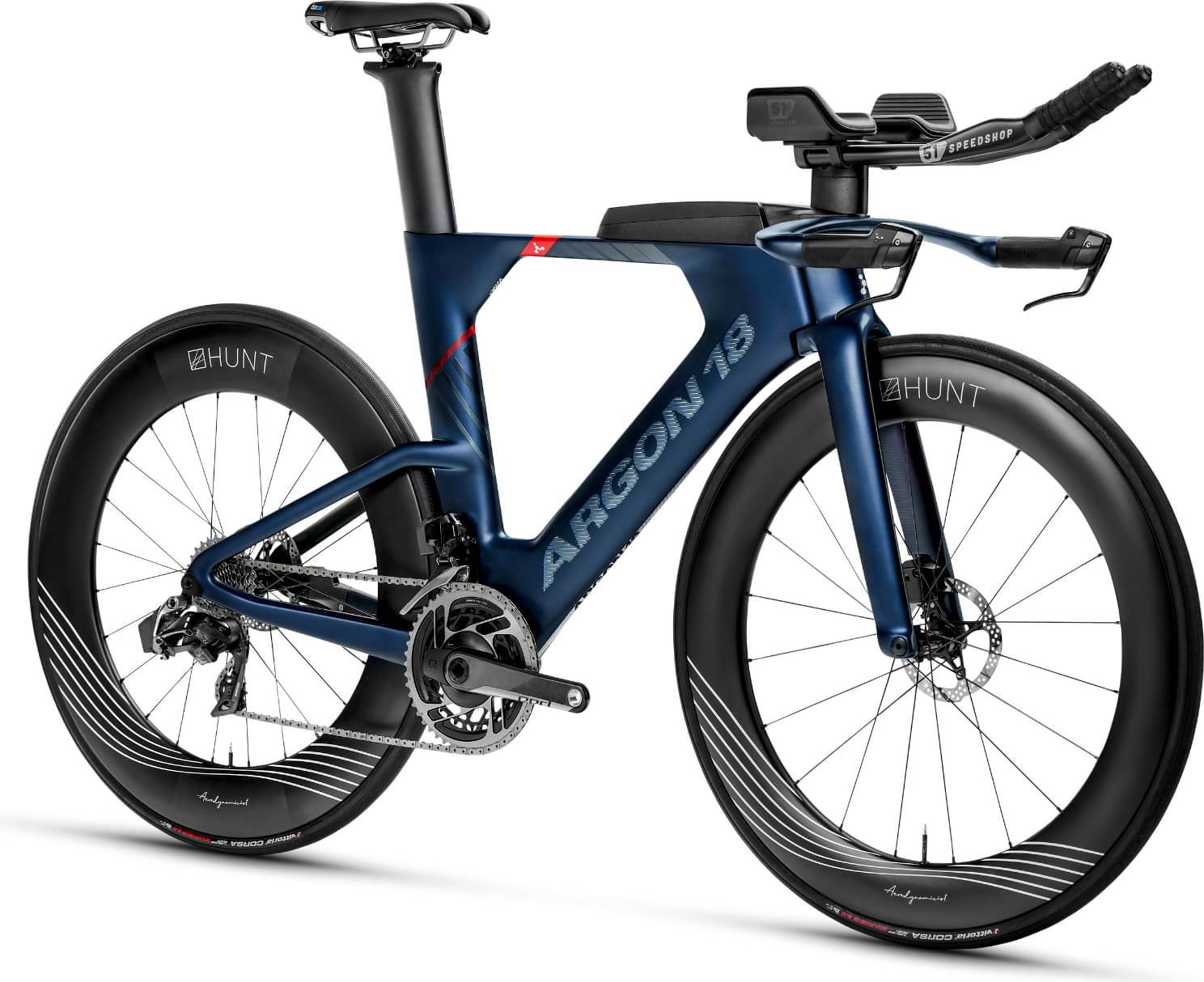

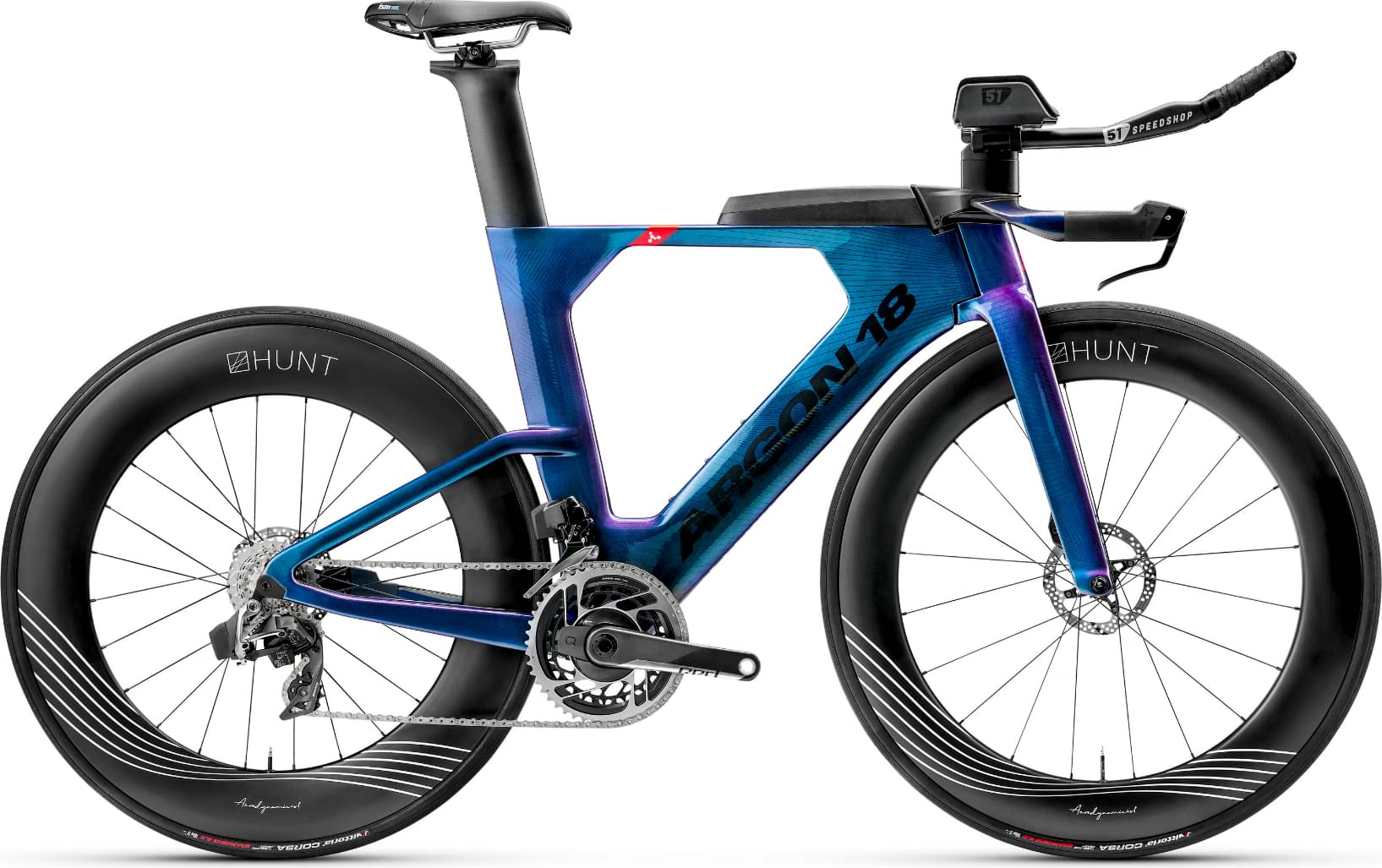

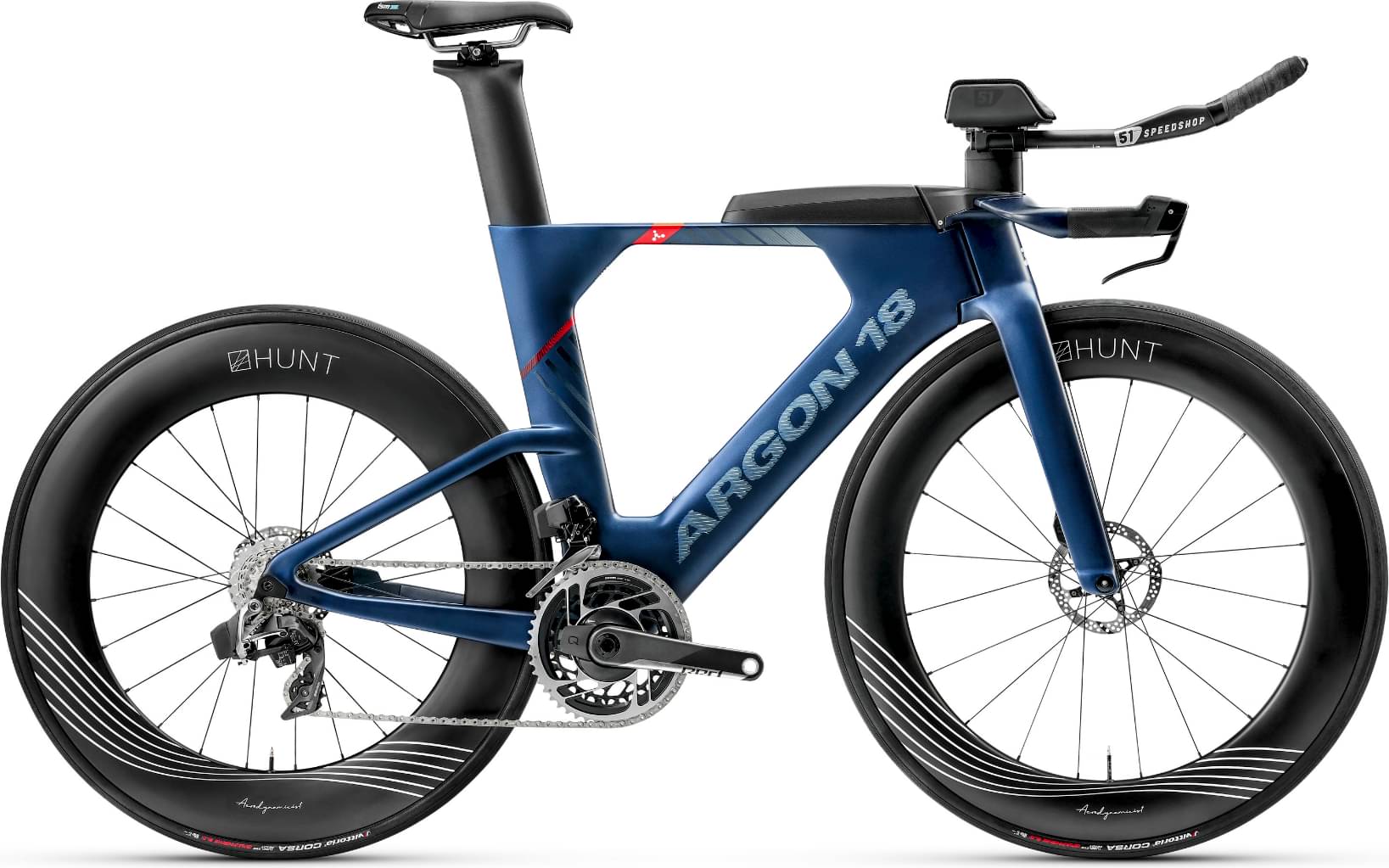

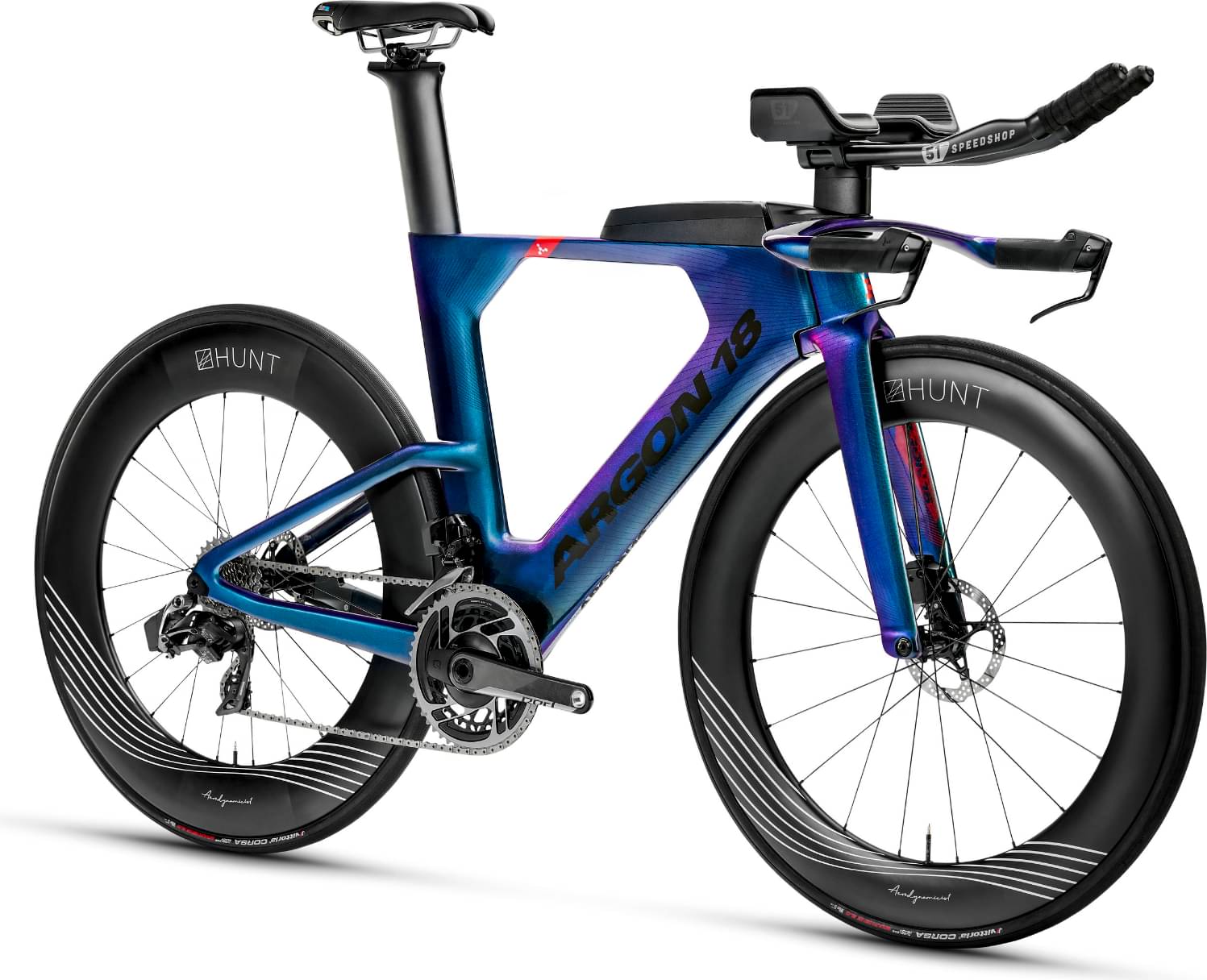

Argon 18 E-119 Tri+ Disc SRAM RED AXS 2024
2024 Road
Estimate price |
12,797$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-119 Tri+ Disc
Suspension Fork
E-119 Tri+ Disc specific
Drivetrain
Rear Derailleur
SRAM RED eTap AXS (MAX 33T)
Front Derailleur
SRAM RED eTap AXS
Shift Levers
SRAM eTap Clics
Crank
SRAM RED Power Meter DUB 48/35
Bottom Bracket
SRAM DUB PF 86.5 Road
Chain
SRAM RED 12S 114L
Wheels
Rims
HUNT Kona 73-87 Aerodynamicist XDR
Tires
Vittoria Corsa TLR G+ 700x25c

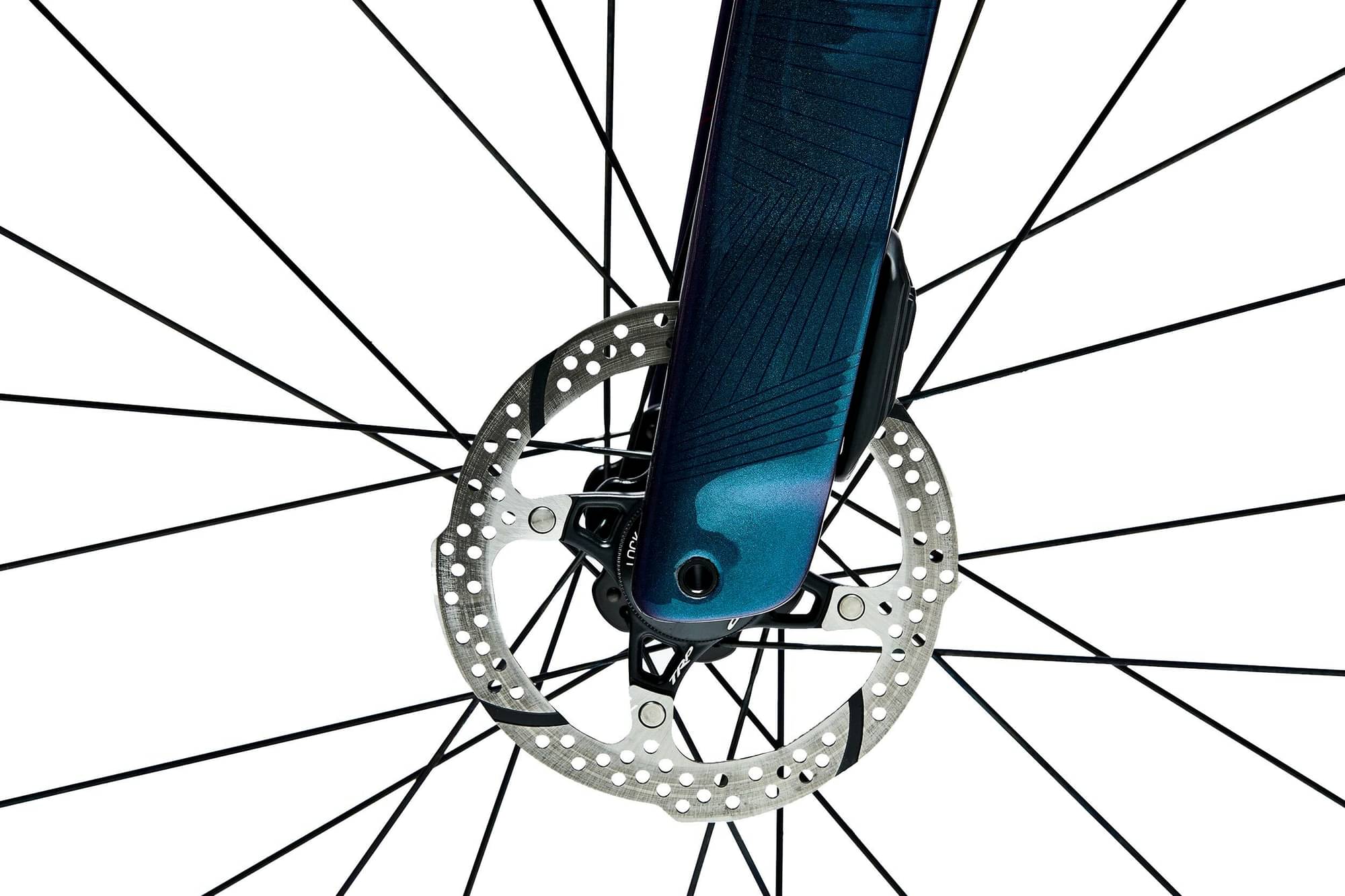

Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System

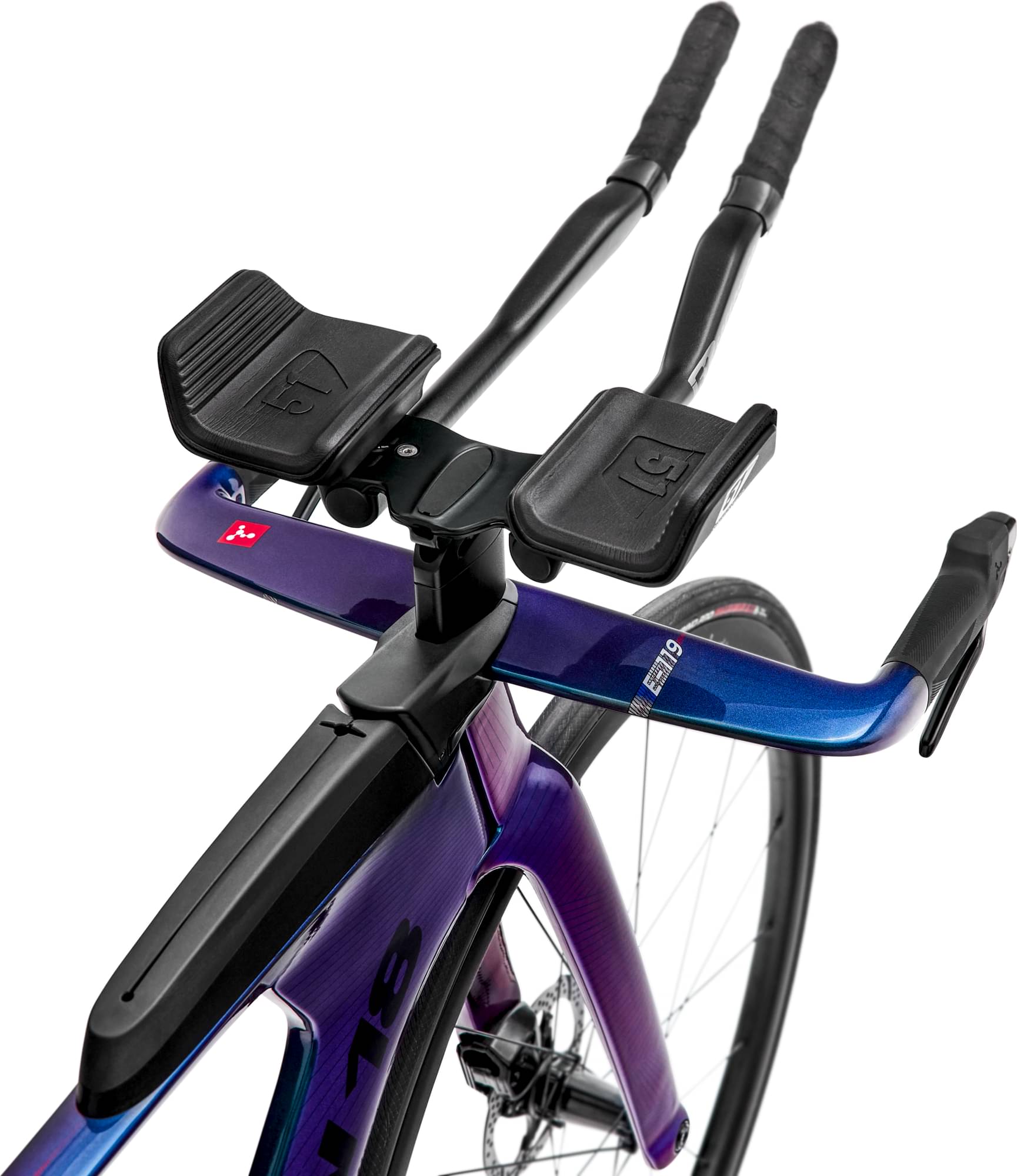

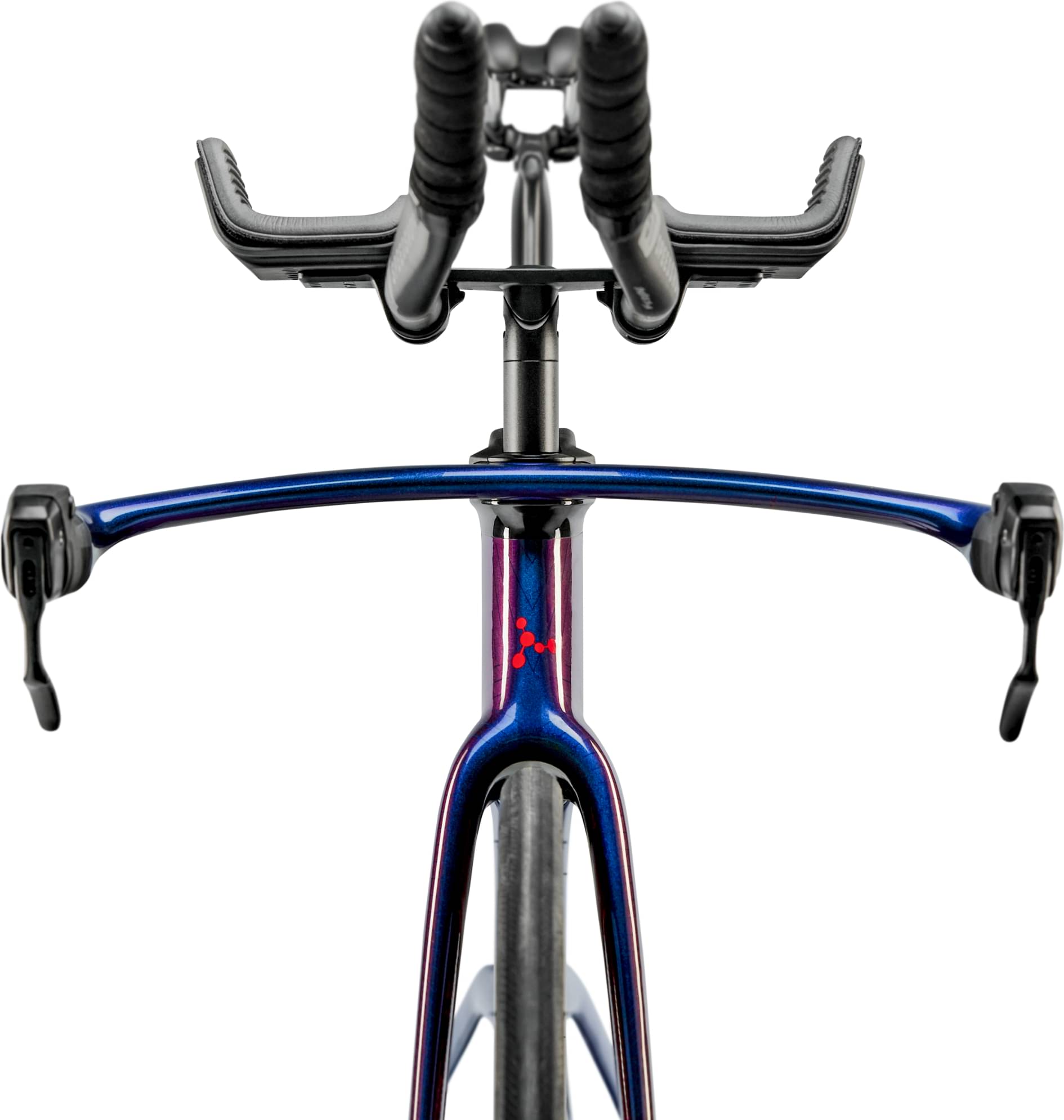

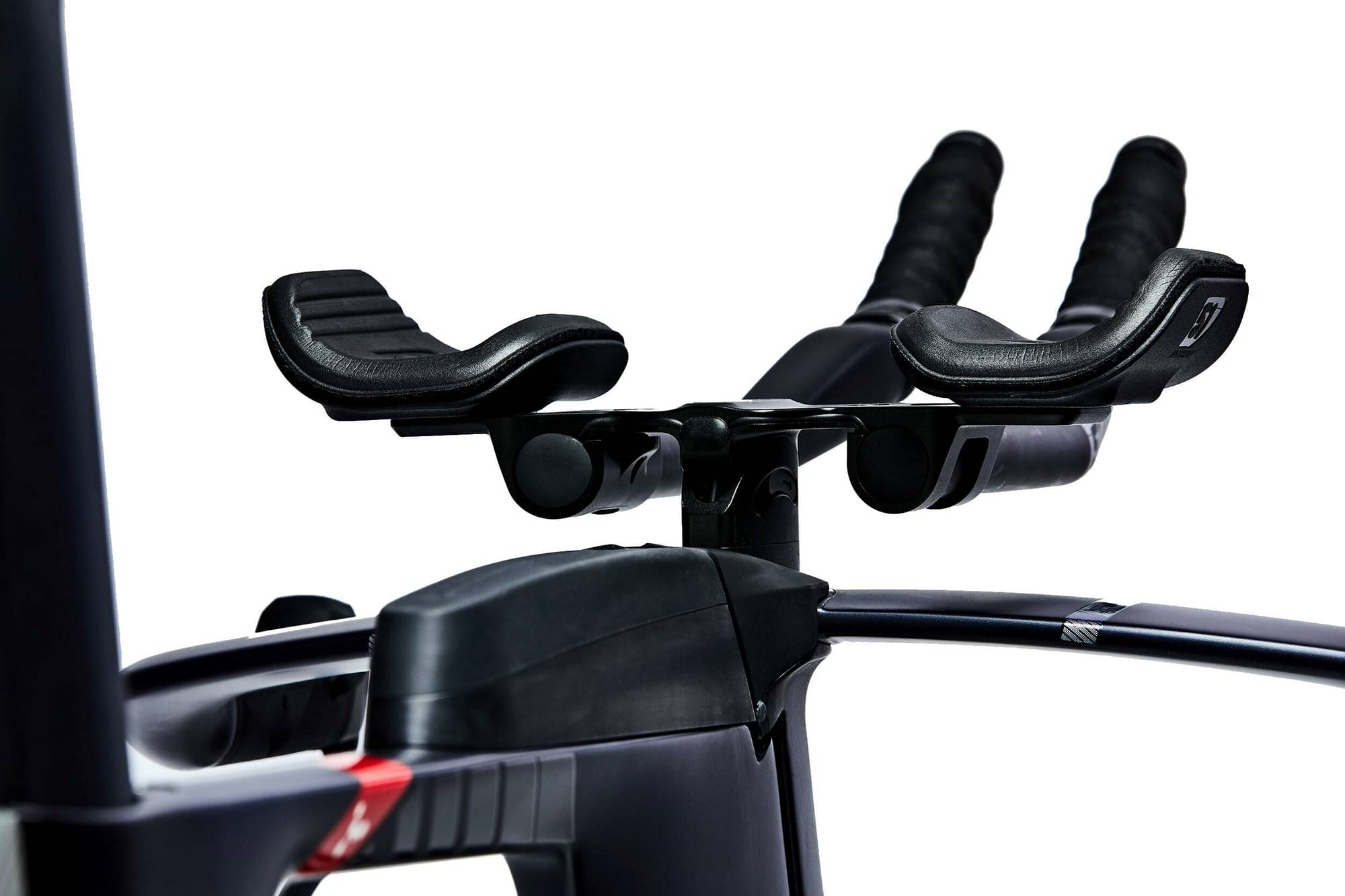

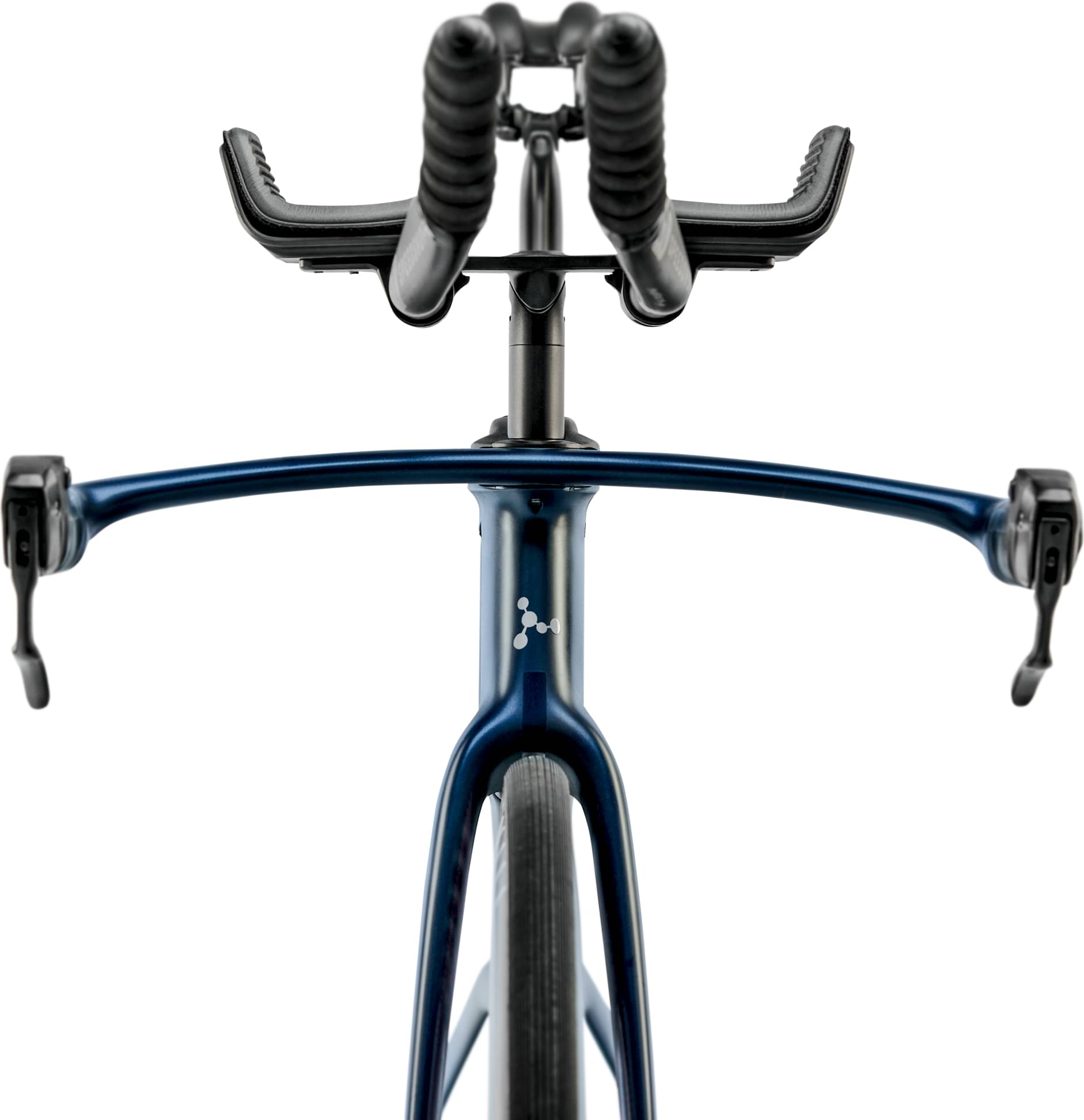

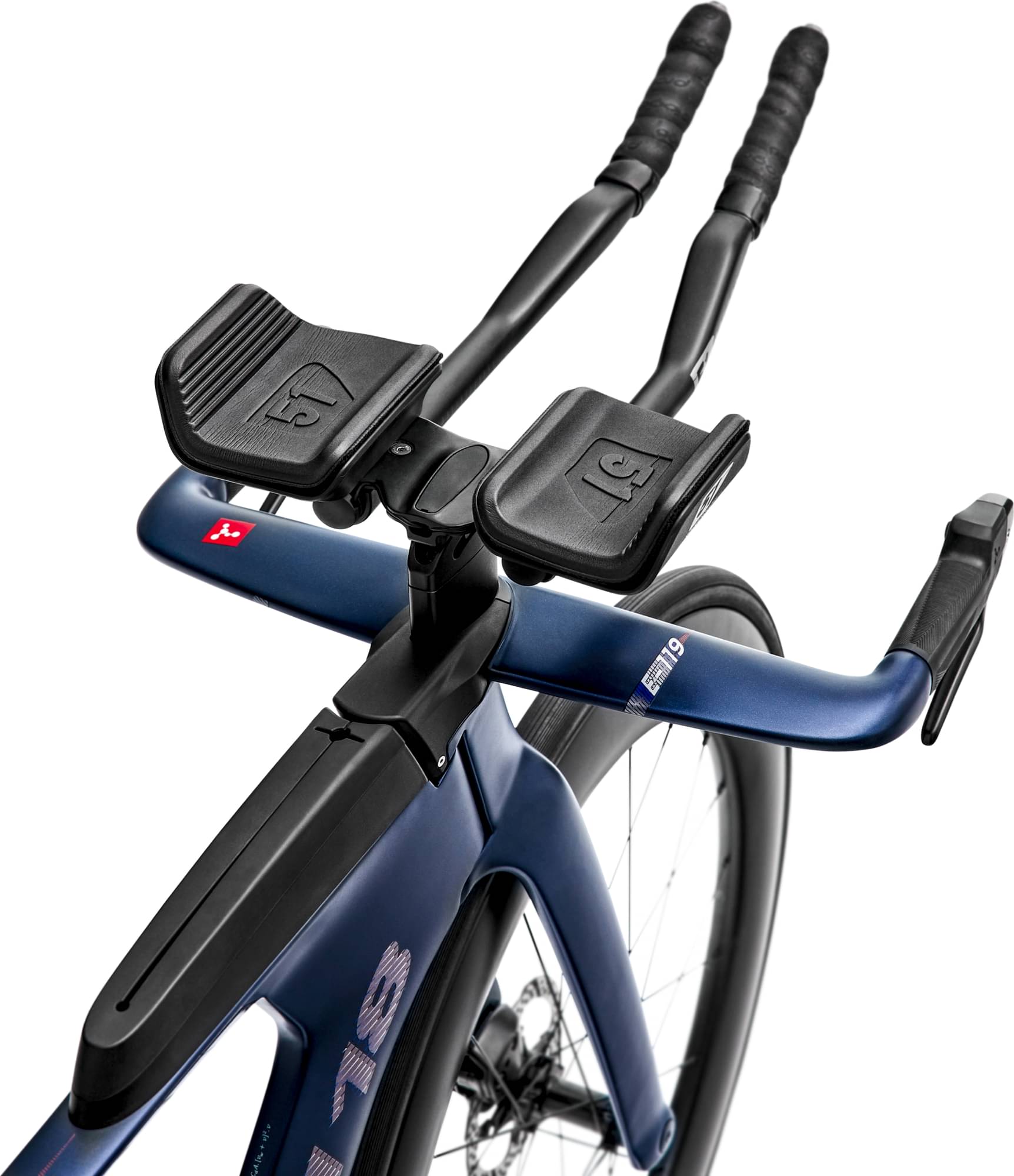

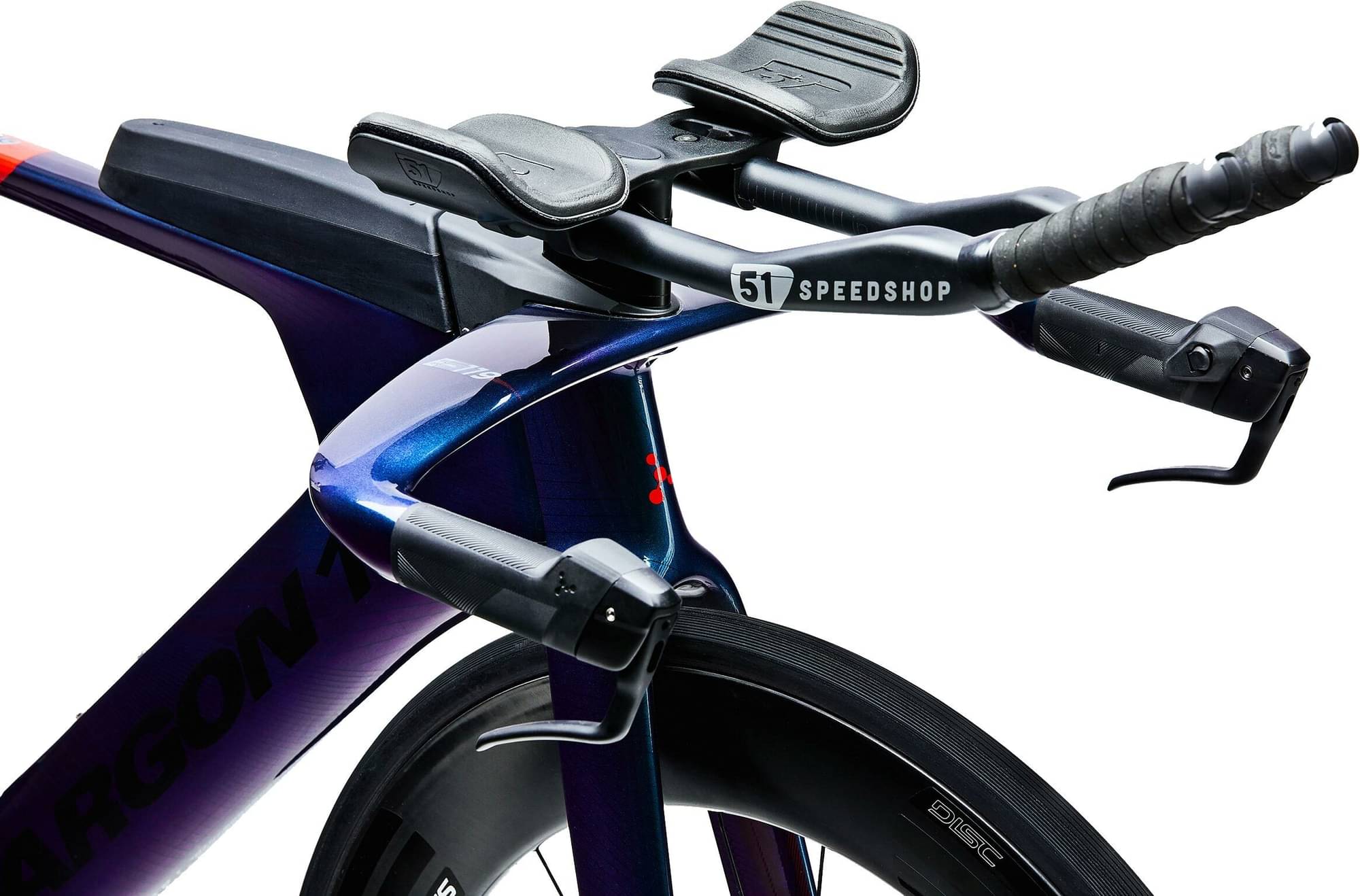

Cockpit
Stem
Argon 18 Integrated Cockpit
Handlebar
Argon 18 Integrated Cockpit
Headset
E-119T+ Disc (included with frameset)
Seat
Saddle
ISM PN3.1
Seatpost
E-119T+ Disc (included with frameset)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.375 mm | 1.378 mm | 1.403 mm | 1.438 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 572 mm | 586 mm | 601 mm | 619 mm | 639 mm |
| Rake | -9 mm | -8 mm | -8 mm | -8 mm | -8 mm |
| Trail | 119 mm | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 573 mm | 583 mm | 598 mm | 623 mm | 653 mm |
| Reach | 414 mm | 424 mm | 434 mm | 444 mm | 454 mm |
| Top Tube Length | 491 mm | 505 mm | 518 mm | 533 mm | 549 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 455 mm | 502 mm | 517 mm | 542 mm | 573 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 60 mm | 70 mm | 86 mm | 113 mm | 144 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 974 mm | 988 mm | 1003 mm | 1021 mm | 1041 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 726 mm | 765 mm | 780 mm | 805 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
