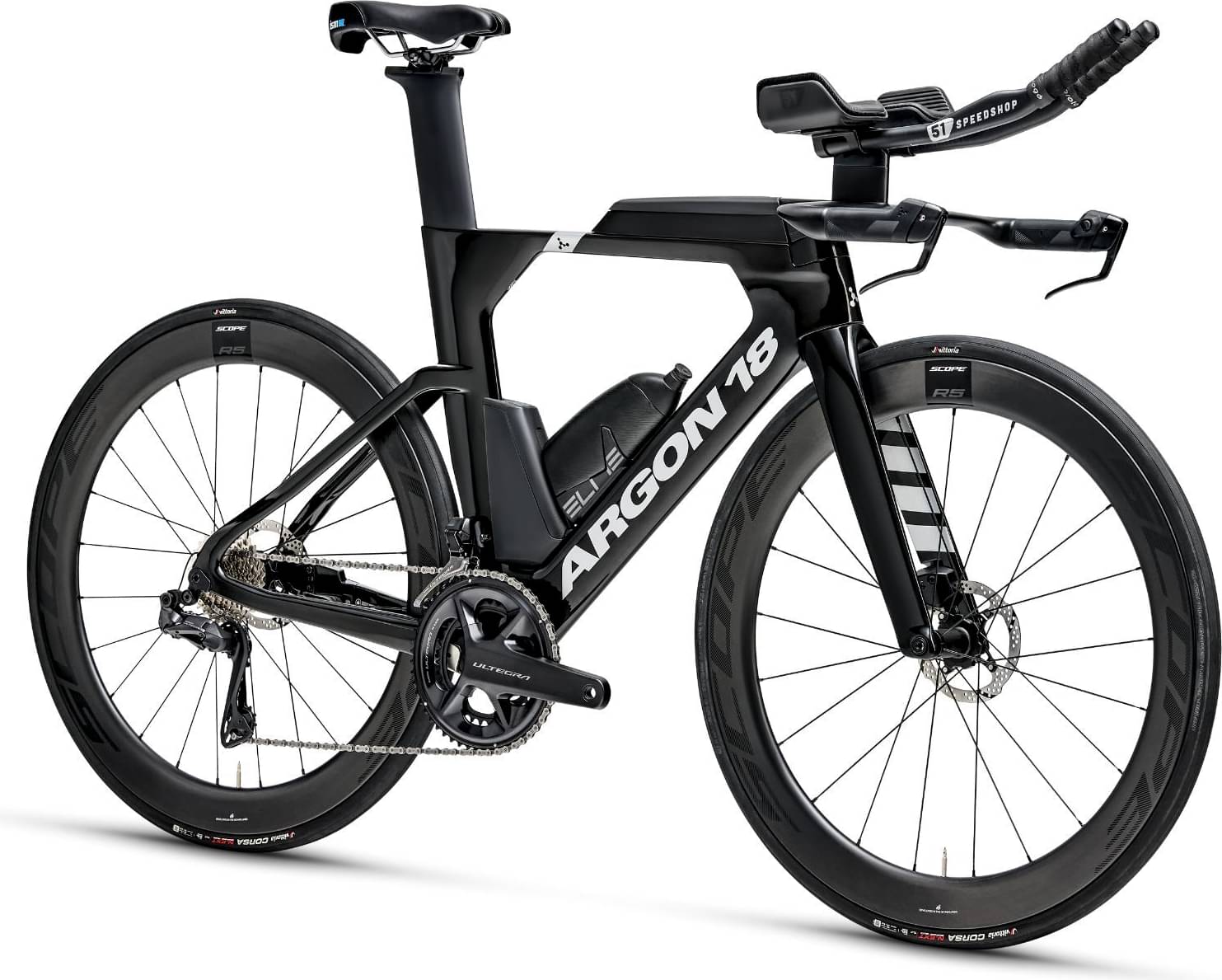

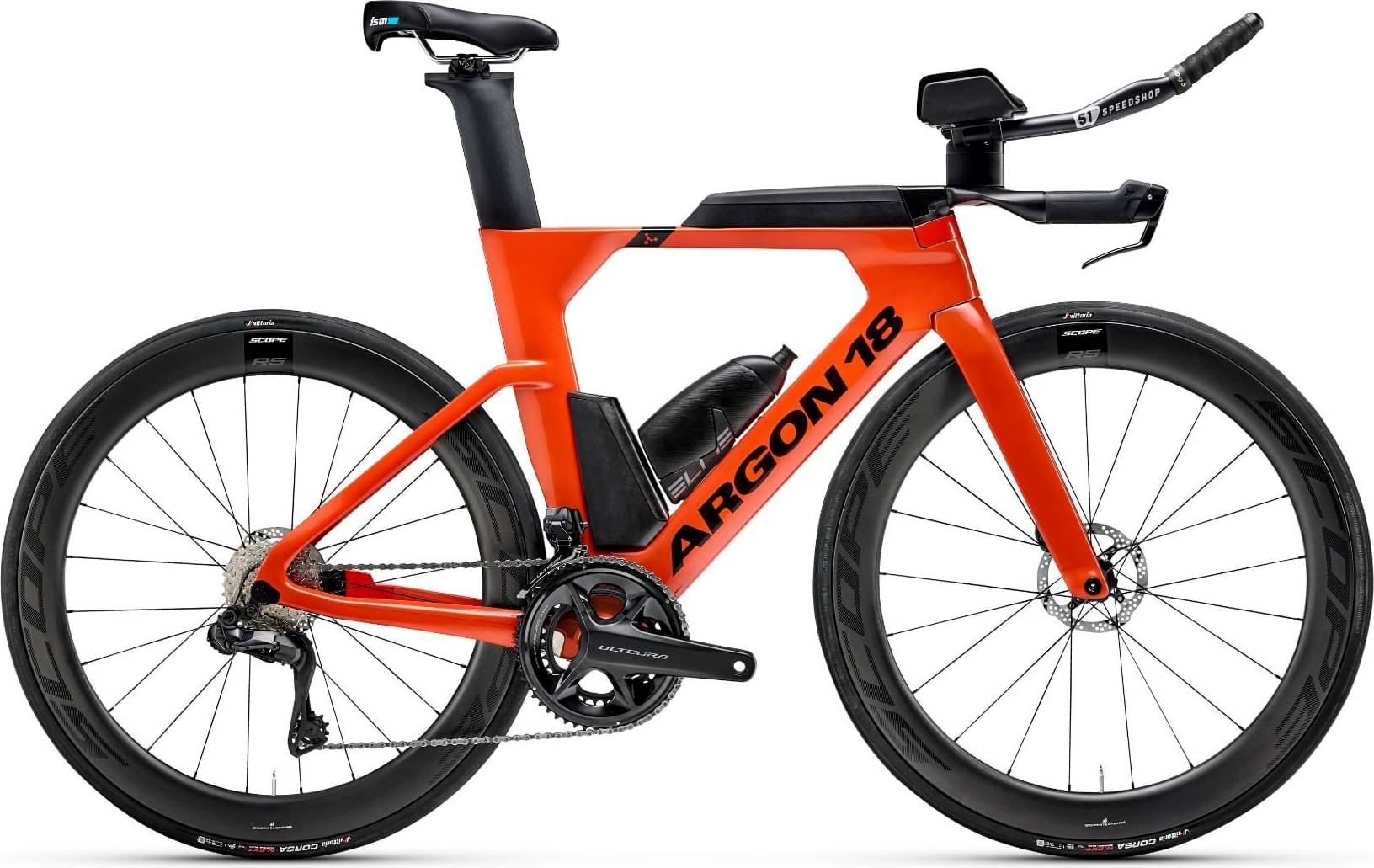

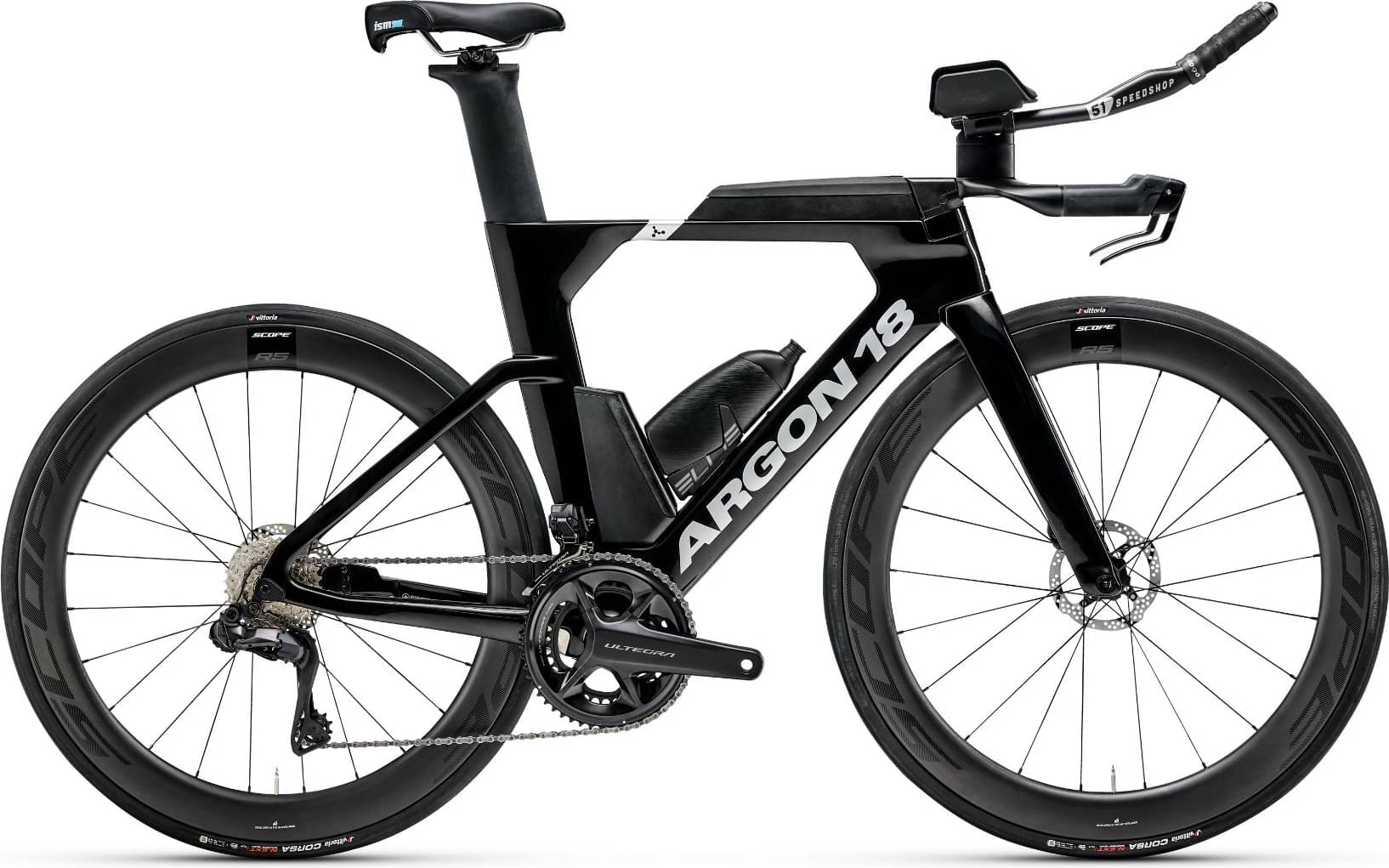

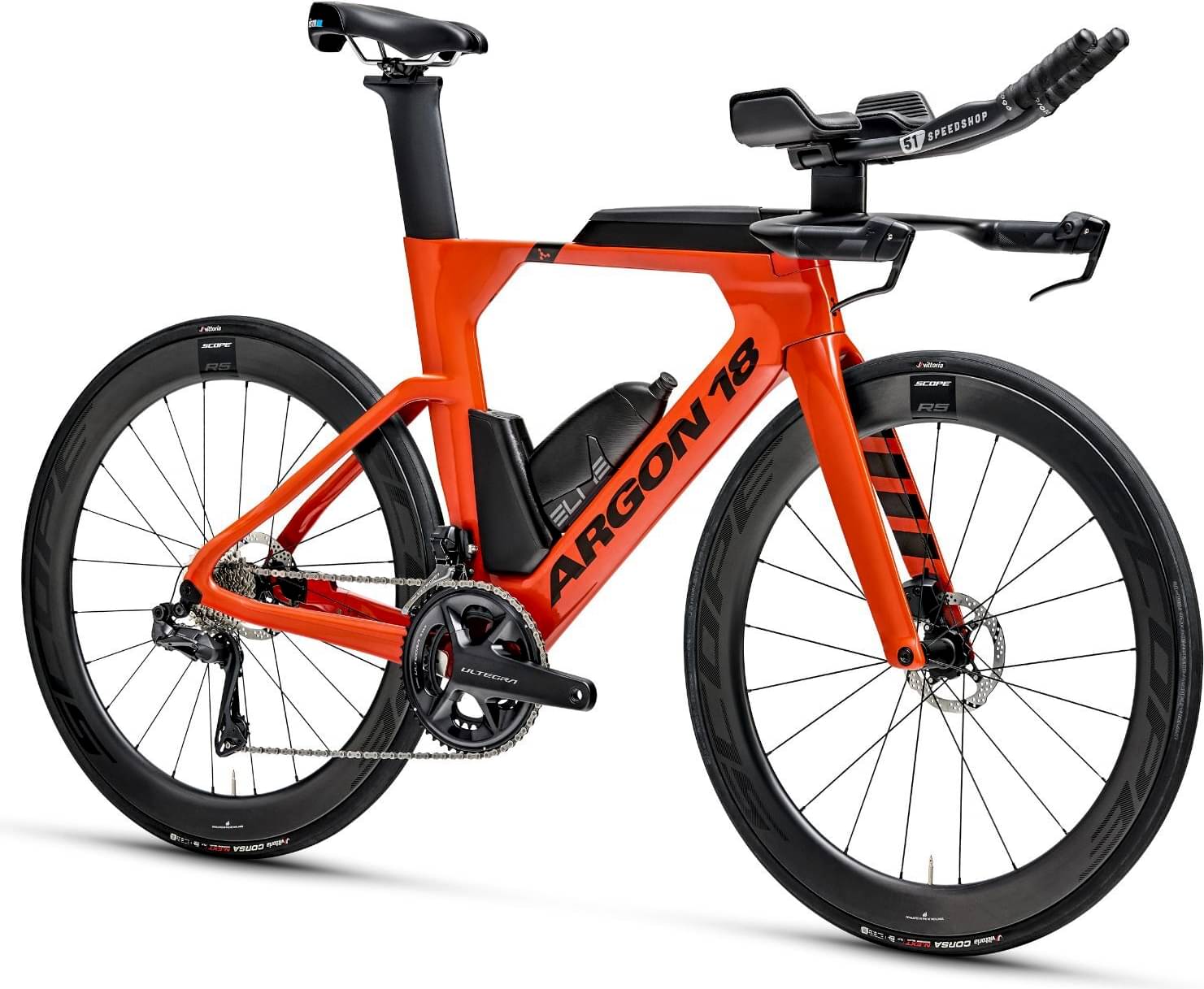

Argon 18 E117 Shimano Ultegra Di2 2025
2025 Road
Estimate price |
8,725$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2, Ultegra -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

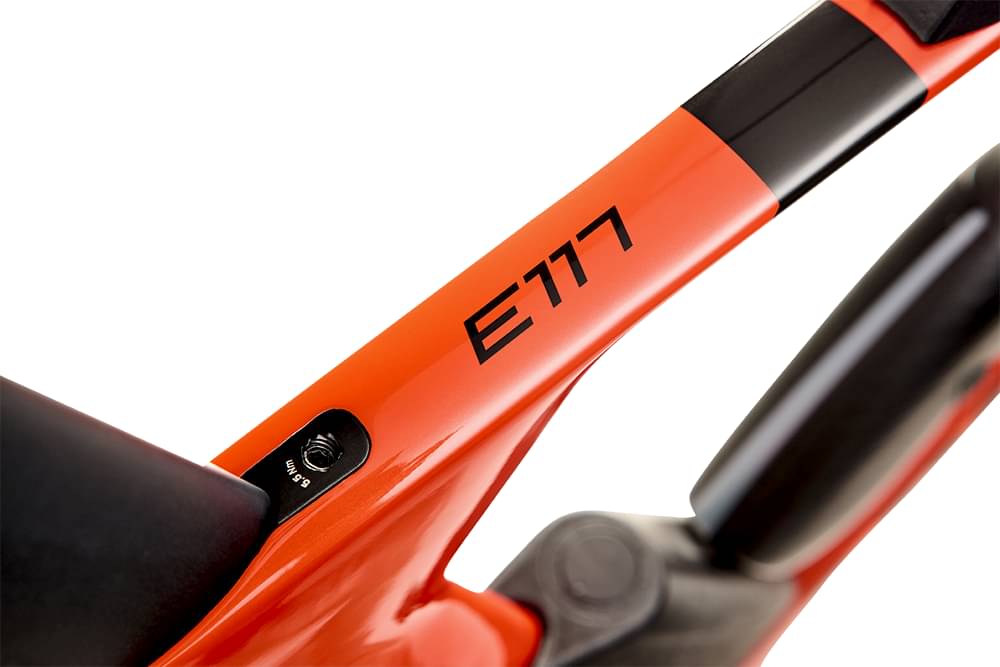

Frame

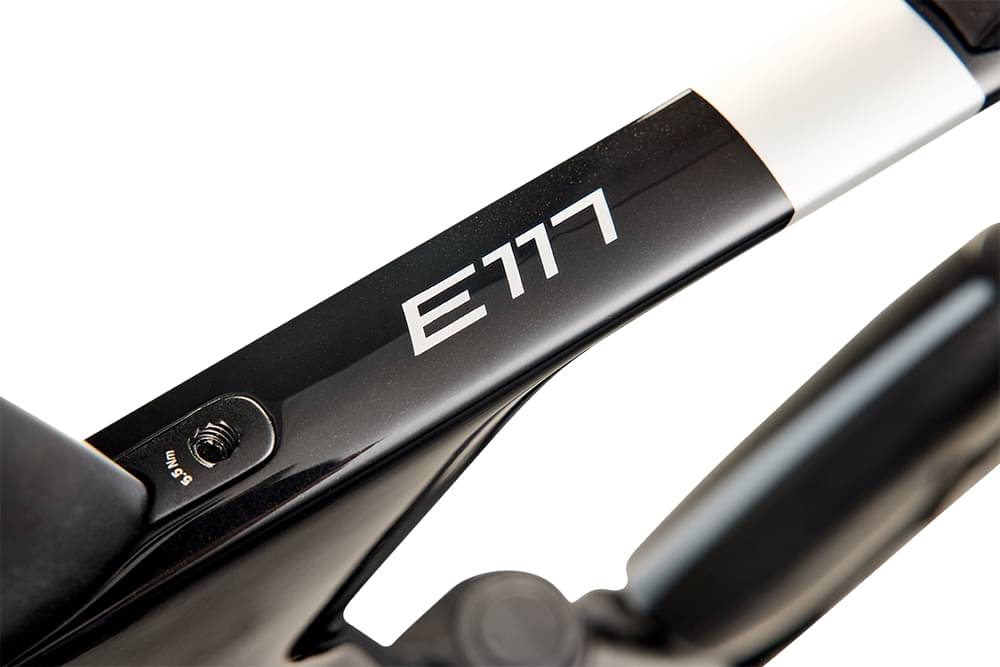

Frame
E117
Suspension Fork
E117
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shift Levers
Shimano SW-R9150 Sprint/Bar Shifters
Cassette
Shimano Ultegra CS-R8100 11-30
Crank
Shimano Ultegra R8100 52/36
Bottom Bracket
Shimano SM-BB72
Chain
Shimano Ultegra CN-M8100 12S
Wheels
Rims
Scope R5 Wheelset
Tires
Vittoria Corsa N.EXT TLR 28mm
Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System

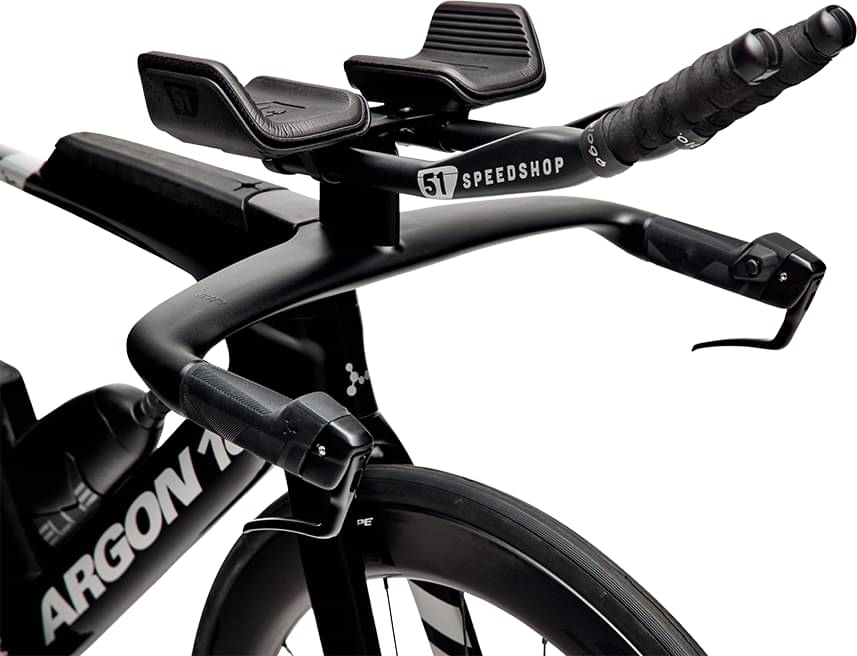

Cockpit

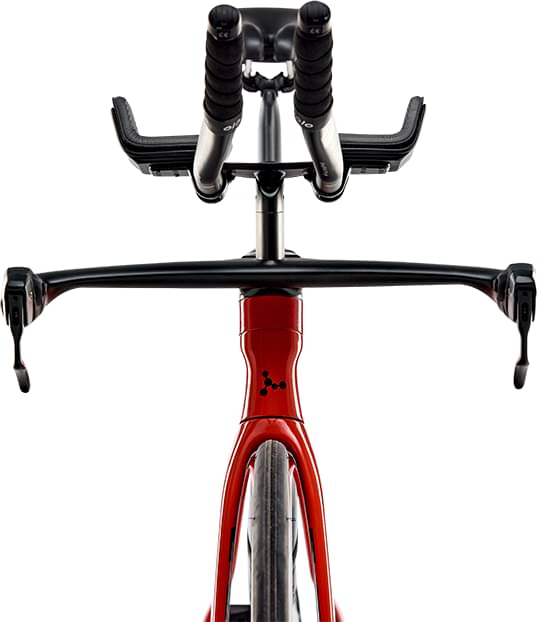

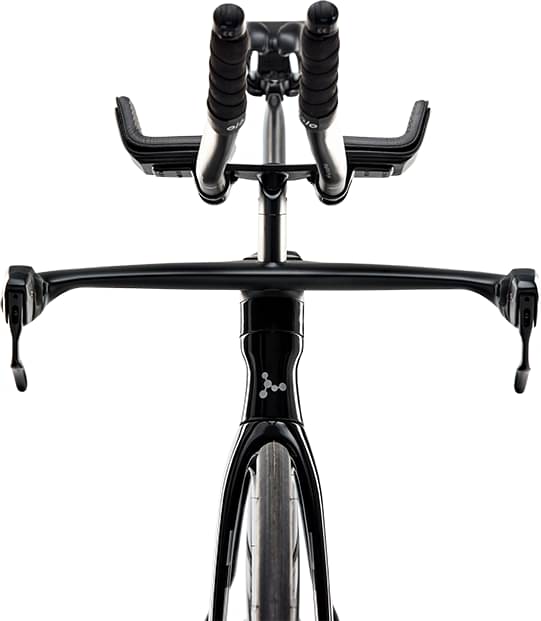

Handlebar
Prologo Plaintouch black
Headset
E117
Seat
Saddle
ISM PR1.0
Seatpost
E-117T Disc
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.358 mm | 1.349 mm | 1.355 mm | 1.4 mm | 1.421 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 586 mm | 601 mm | 614 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 101 mm | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 550 mm | 560 mm | 576 mm | 602 mm | 628 mm |
| Reach | 405 mm | 415 mm | 425 mm | 430 mm | 442 mm |
| Top Tube Length | 492 mm | 504 mm | 517 mm | 527 mm | 545 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 455 mm | 500 mm | 516 mm | 542 mm | 568 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 49 mm | 60 mm | 77 mm | 104 mm | 131 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 976 mm | 989 mm | 1004 mm | 1017 mm | 1038 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 729 mm | 767 mm | 782 mm | 808 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
