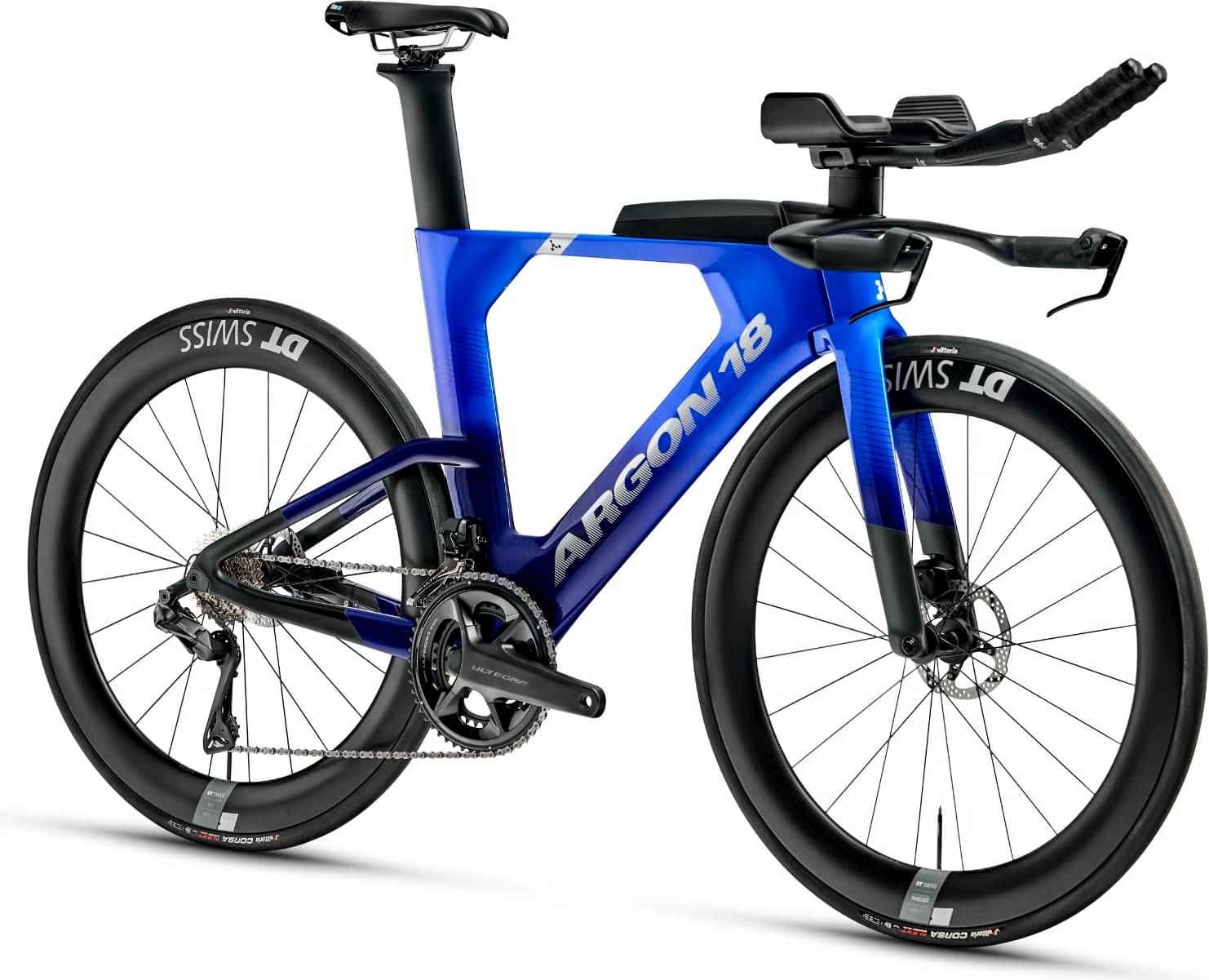

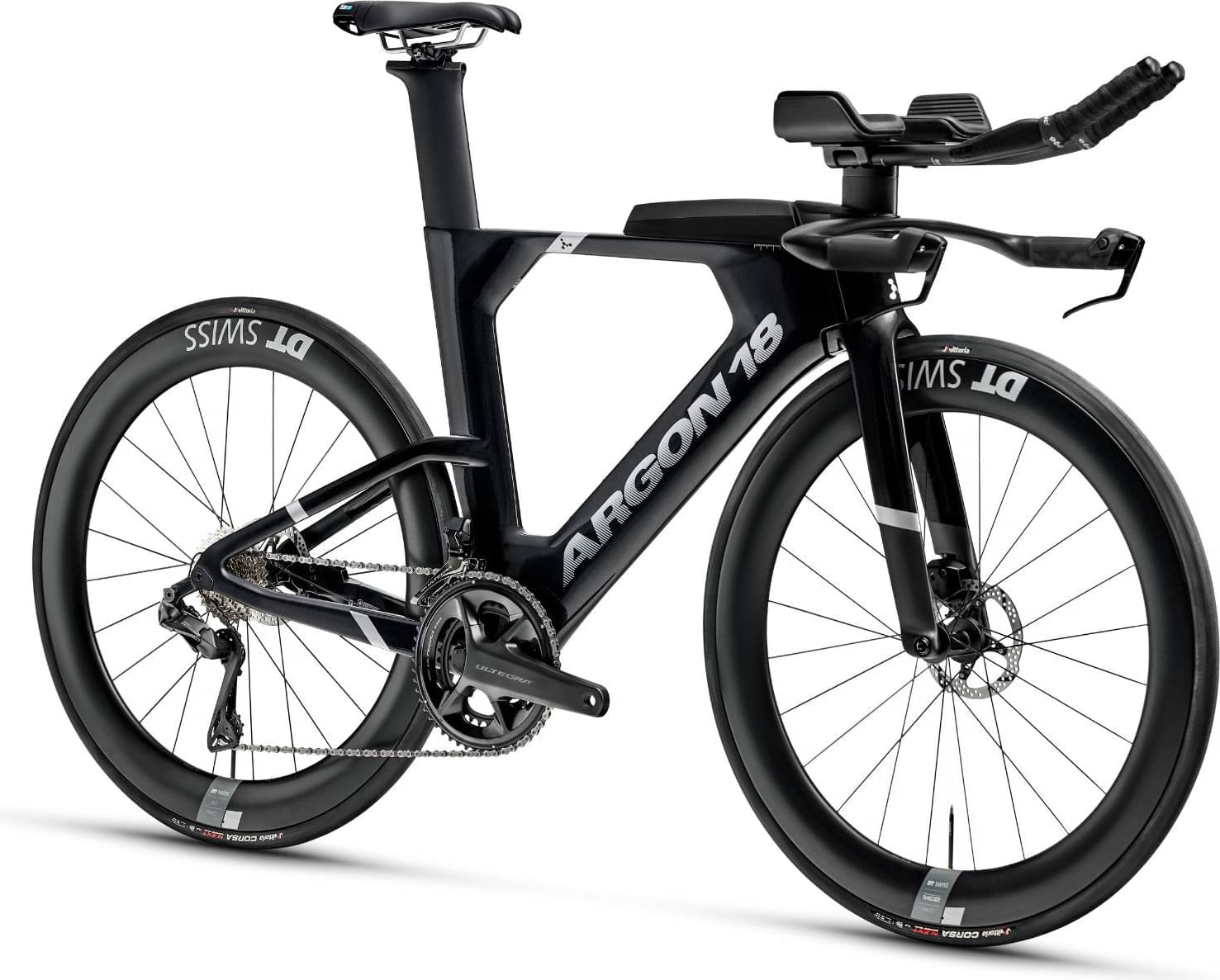

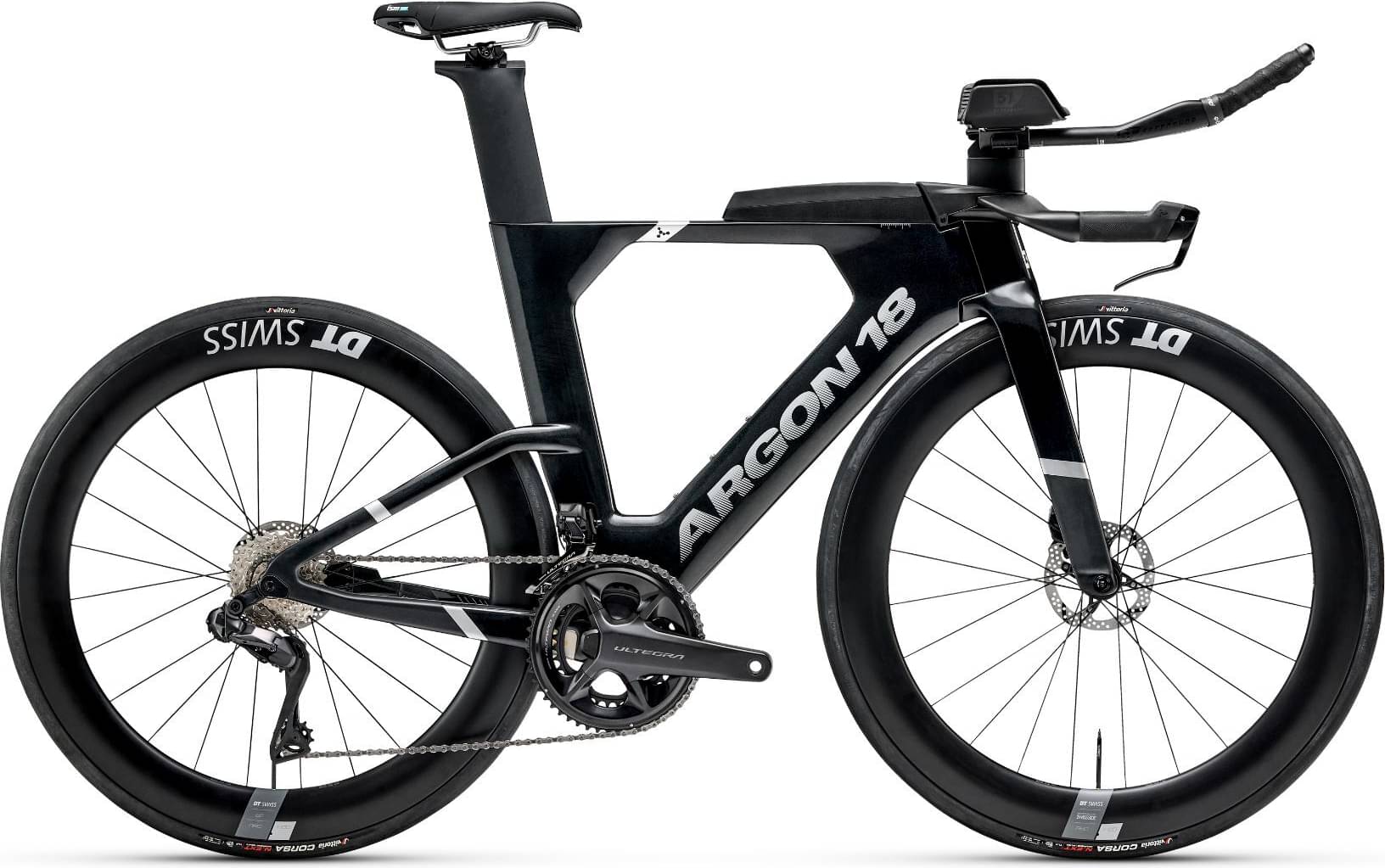

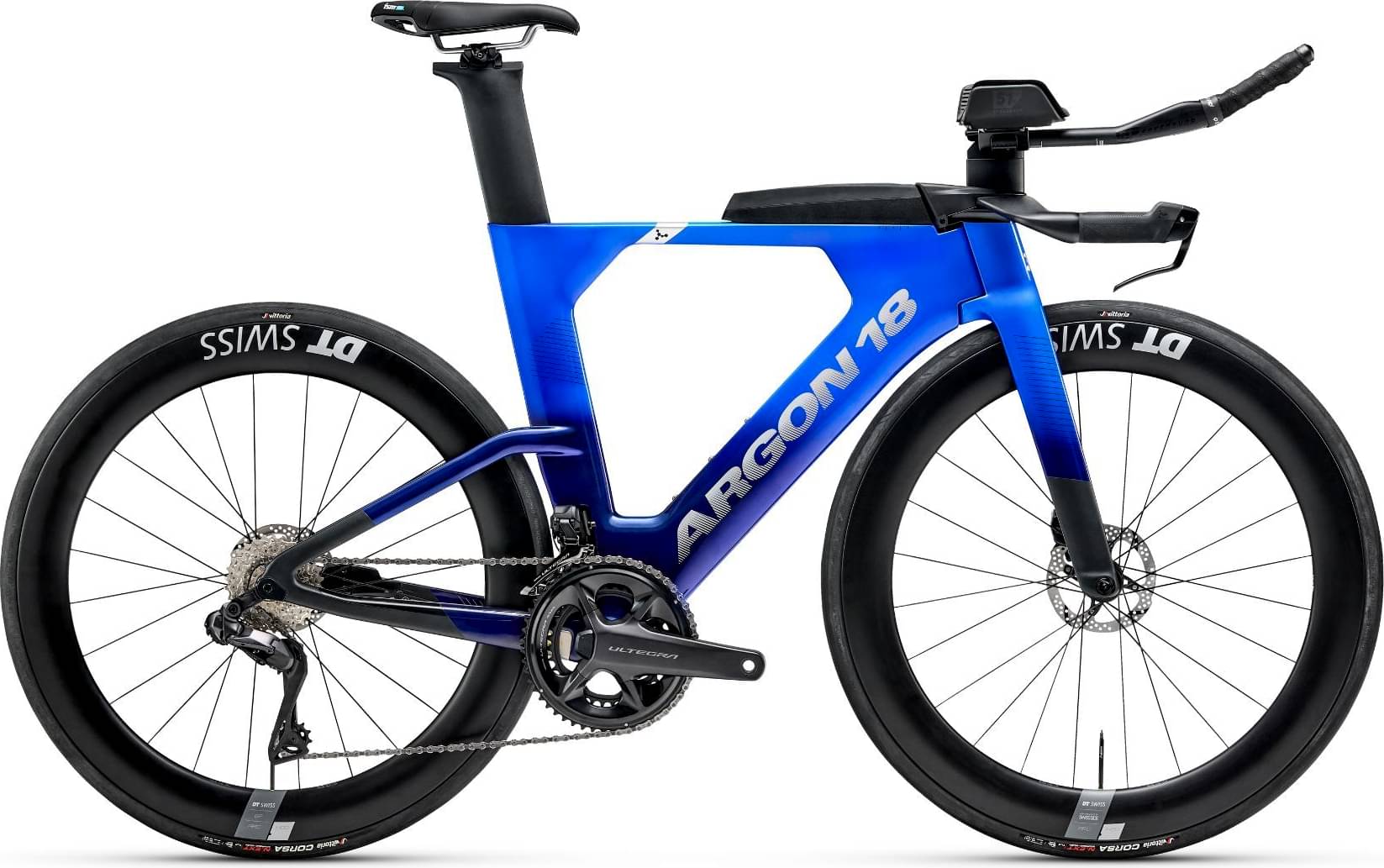

Argon 18 E119 Shimano Ultegra Di2 2025
2025 Road
Estimate price |
12,797$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2, Ultegra -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-119 Tri+ Disc
Suspension Fork
E-119 Tri+ Disc specific
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shift Levers
Shimano SW-R9150 Sprint/Bar Shifters
Cassette
Shimano Ultegra CS-R8100 11-30
Crank
Shimano Ultegra R8100 52/36
Bottom Bracket
CeramicSpeed BB86 Shimano Coated
Chain
Shimano Ultegra CN-M8100 12S
Wheels
Rims
DT Swiss ARC1400 Dicut Wheelset
Tires
Vittoria Corsa N.EXT TLR 28mm
Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System
Cockpit
Stem
Argon 18 Integrated Cockpit
Handlebar
Argon 18 Integrated Cockpit
Headset
E-119T+ Disc (included with frameset)
Seat
Saddle
ISM PN3.1
Seatpost
E-119T+ Disc (included with frameset)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.375 mm | 1.378 mm | 1.403 mm | 1.438 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 572 mm | 586 mm | 601 mm | 619 mm | 639 mm |
| Trail | 119 mm | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 573 mm | 583 mm | 598 mm | 623 mm | 653 mm |
| Reach | 414 mm | 424 mm | 434 mm | 444 mm | 454 mm |
| Top Tube Length | 491 mm | 505 mm | 518 mm | 533 mm | 549 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 455 mm | 502 mm | 517 mm | 542 mm | 573 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 60 mm | 70 mm | 86 mm | 113 mm | 144 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 974 mm | 988 mm | 1003 mm | 1021 mm | 1041 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 726 mm | 765 mm | 780 mm | 805 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
