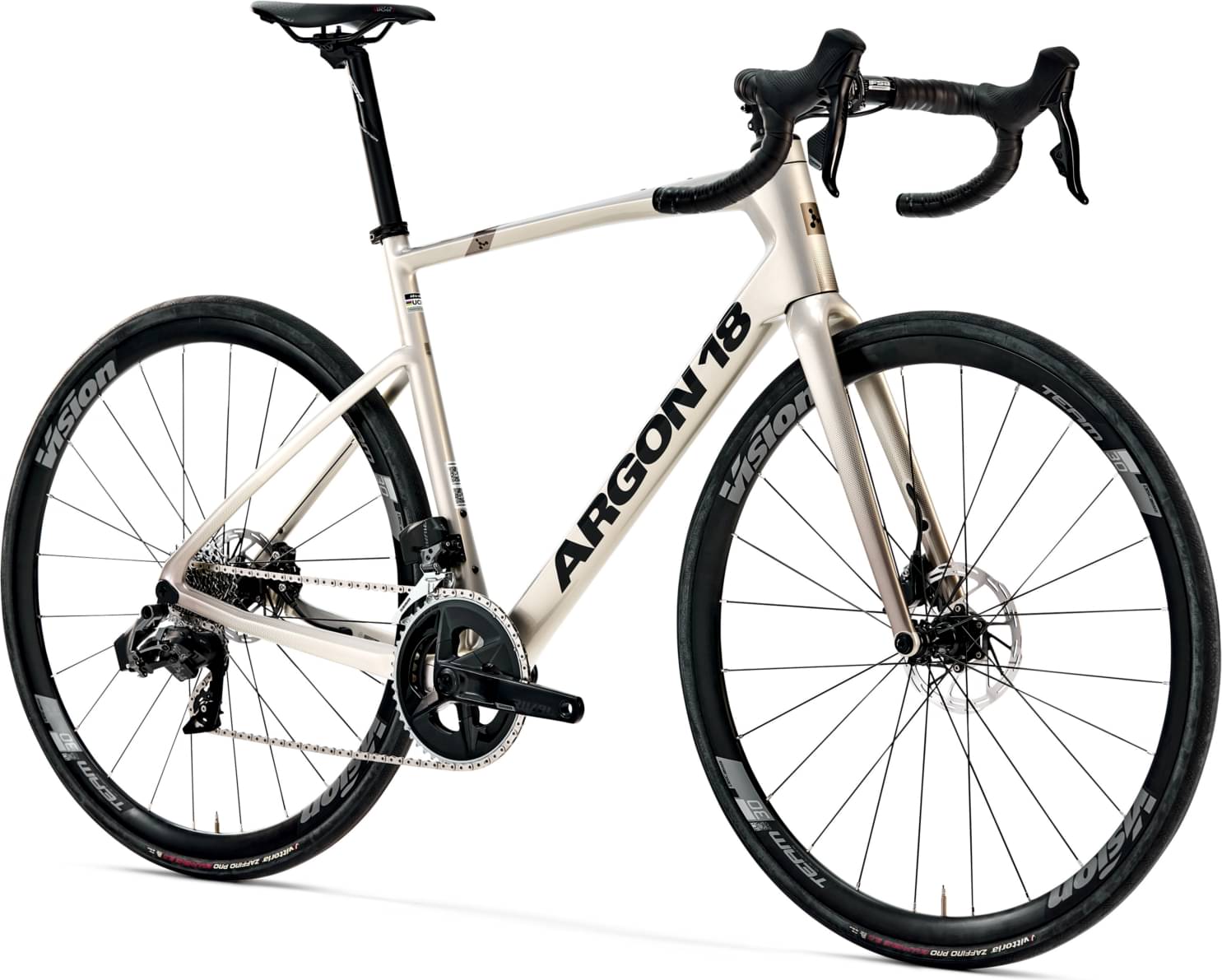

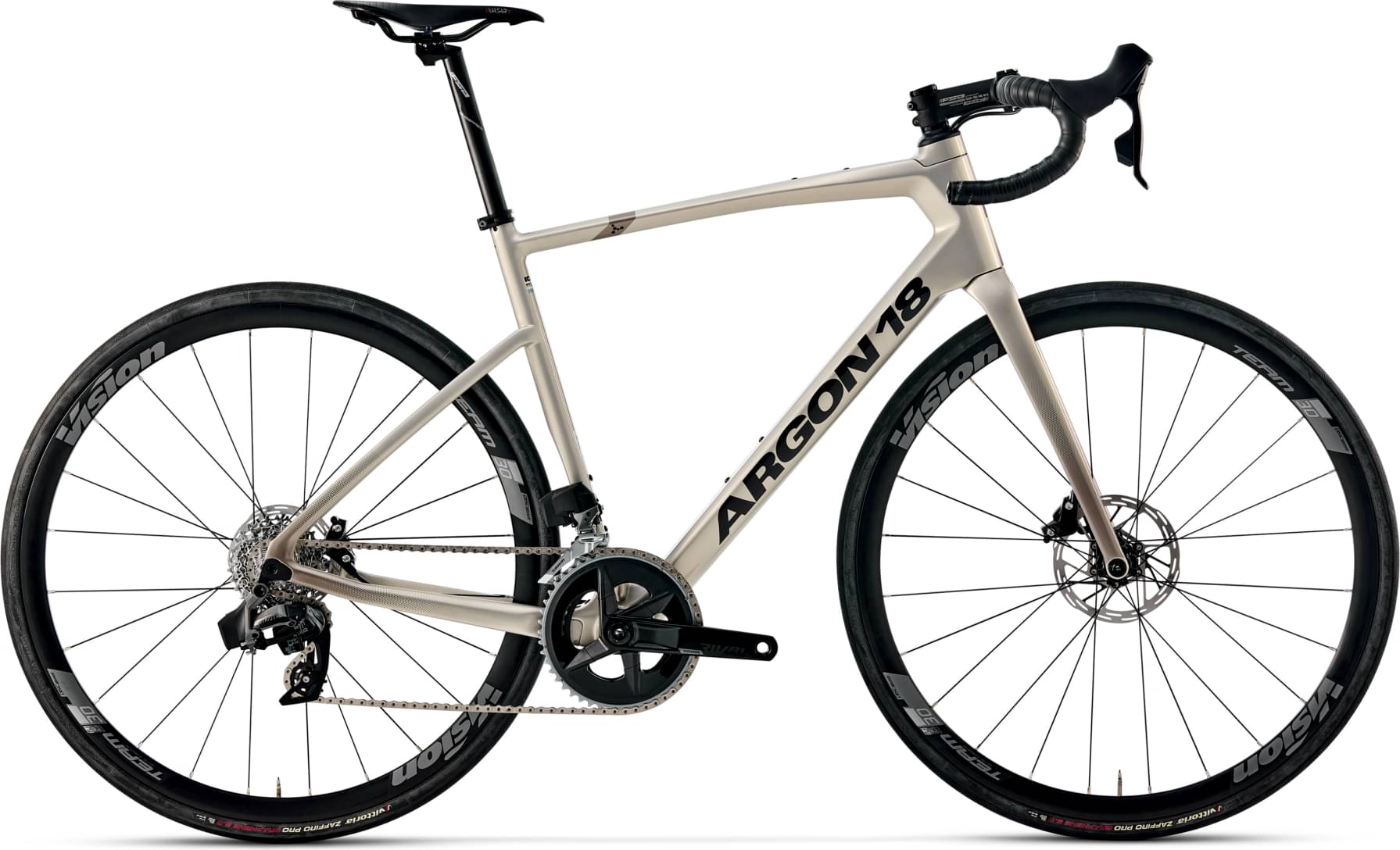

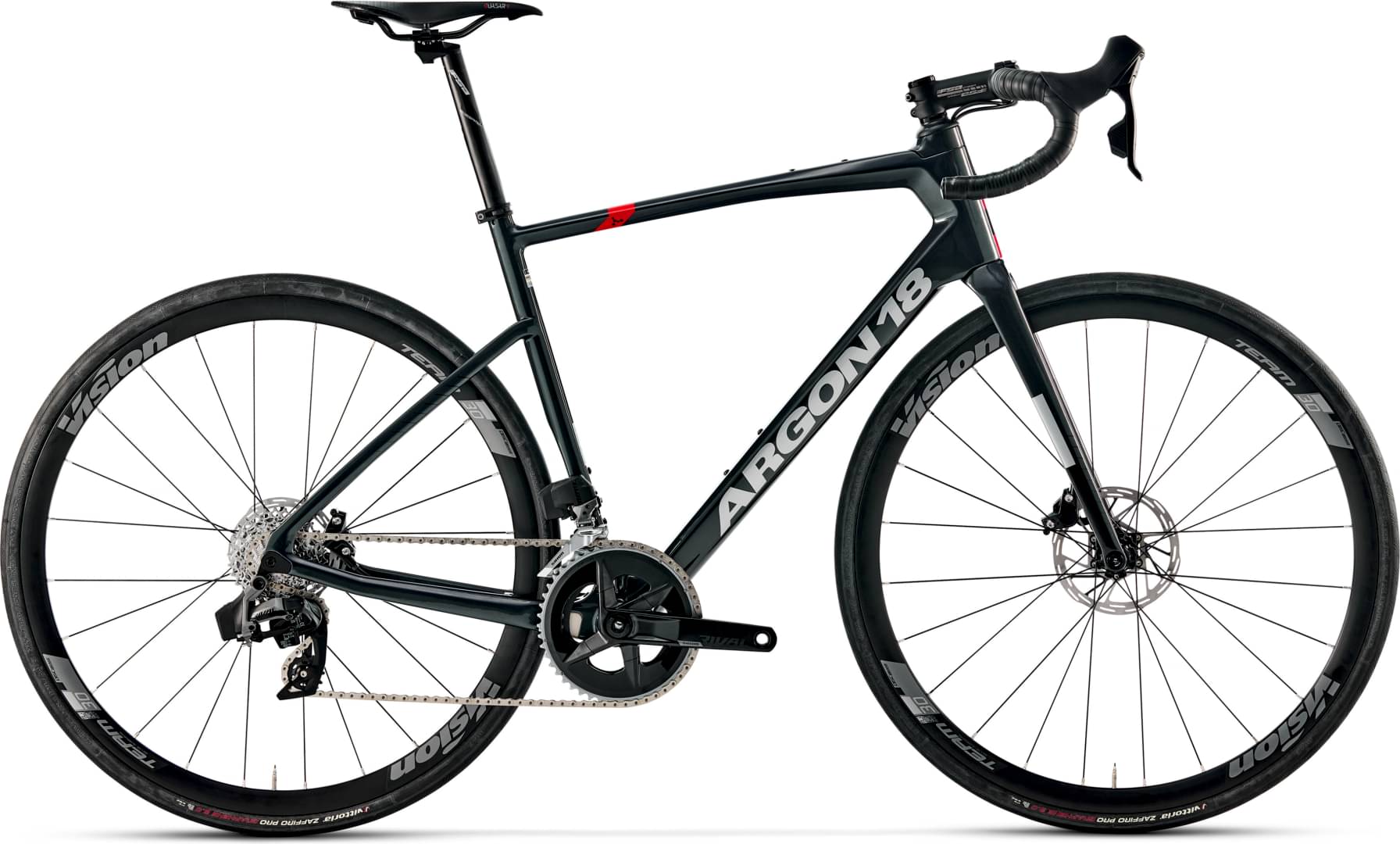

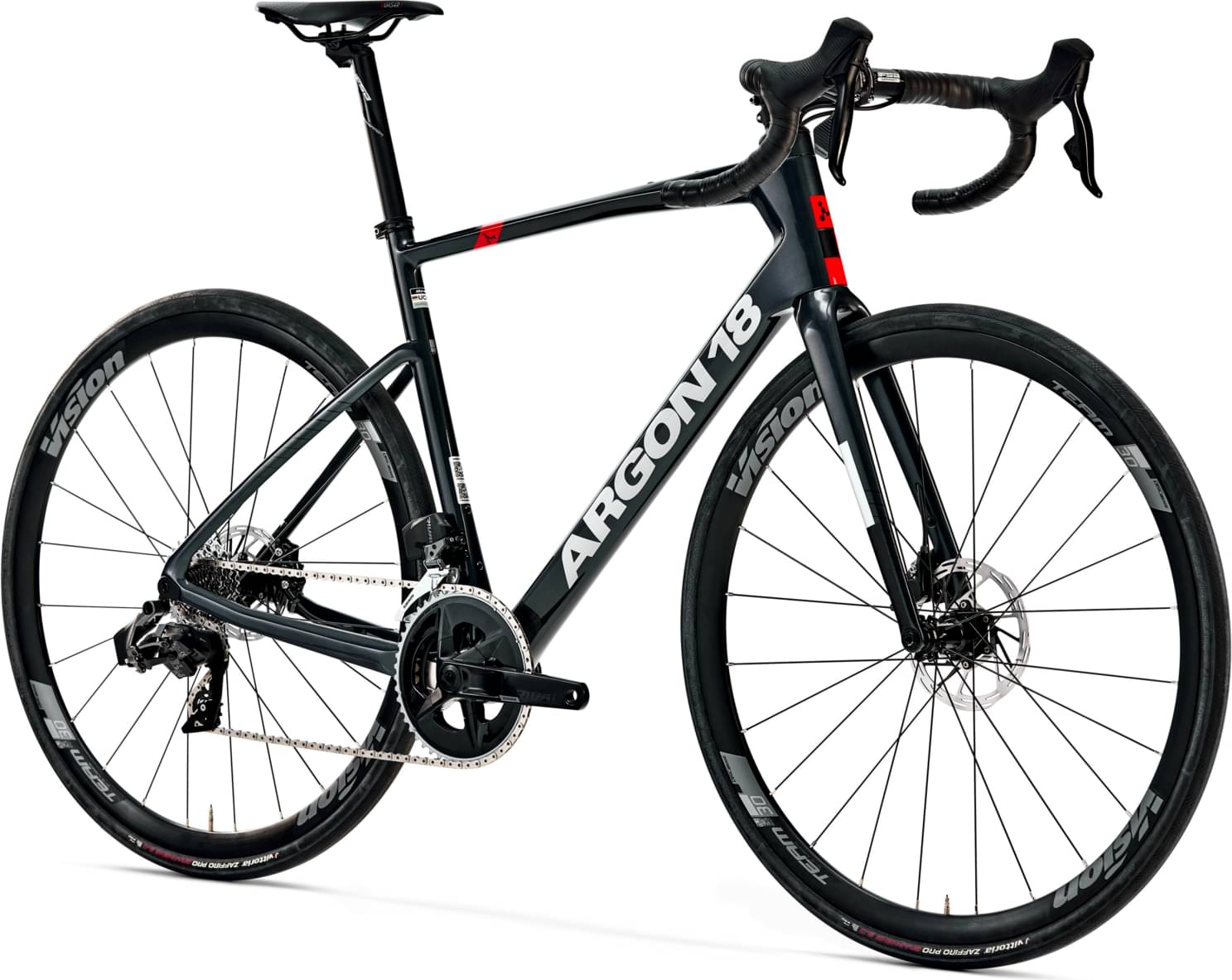

Argon 18 Equation Sram Rival AXS 2024
2024 Road
Estimate price |
4,421$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

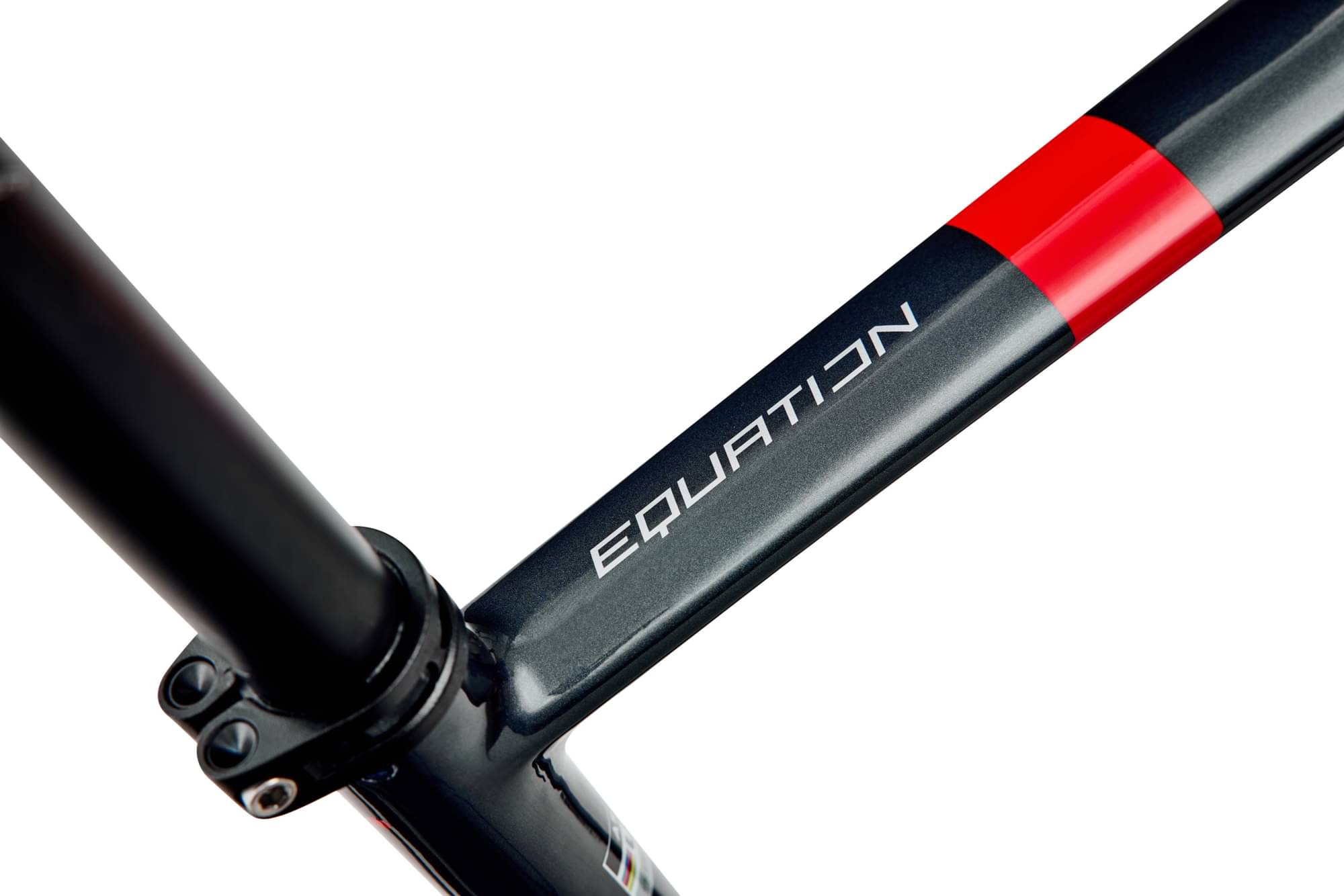

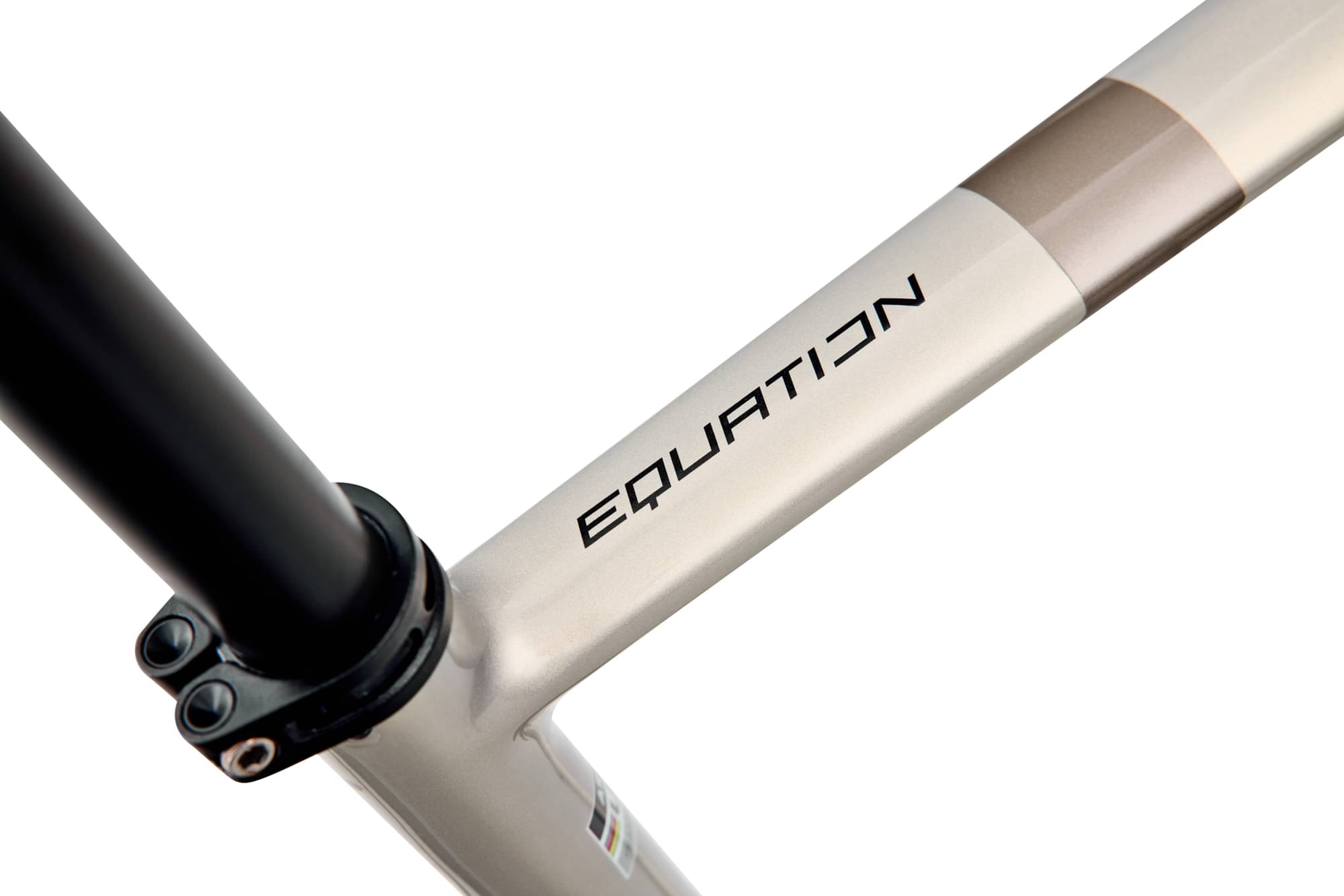

Frame
Frame
Equation
Suspension Fork
Equation
Drivetrain
Rear Derailleur
SRAM Rival AXS
Front Derailleur
SRAM Rival AXS
Cassette
SRAM XG 1250 10-30 XDR
Crank
SRAM Rival AXS DUB 48/35
Bottom Bracket
SRAM DUB PF 86.5
Chain
SRAM Rival 12S 114L
Wheels
Rims
Vision Team 30 Clincher
Tires
Vittoria Zaffiro 700x28c
Brakes
Brakes
SRAM RIVAL AXS Shifter/Caliper Set

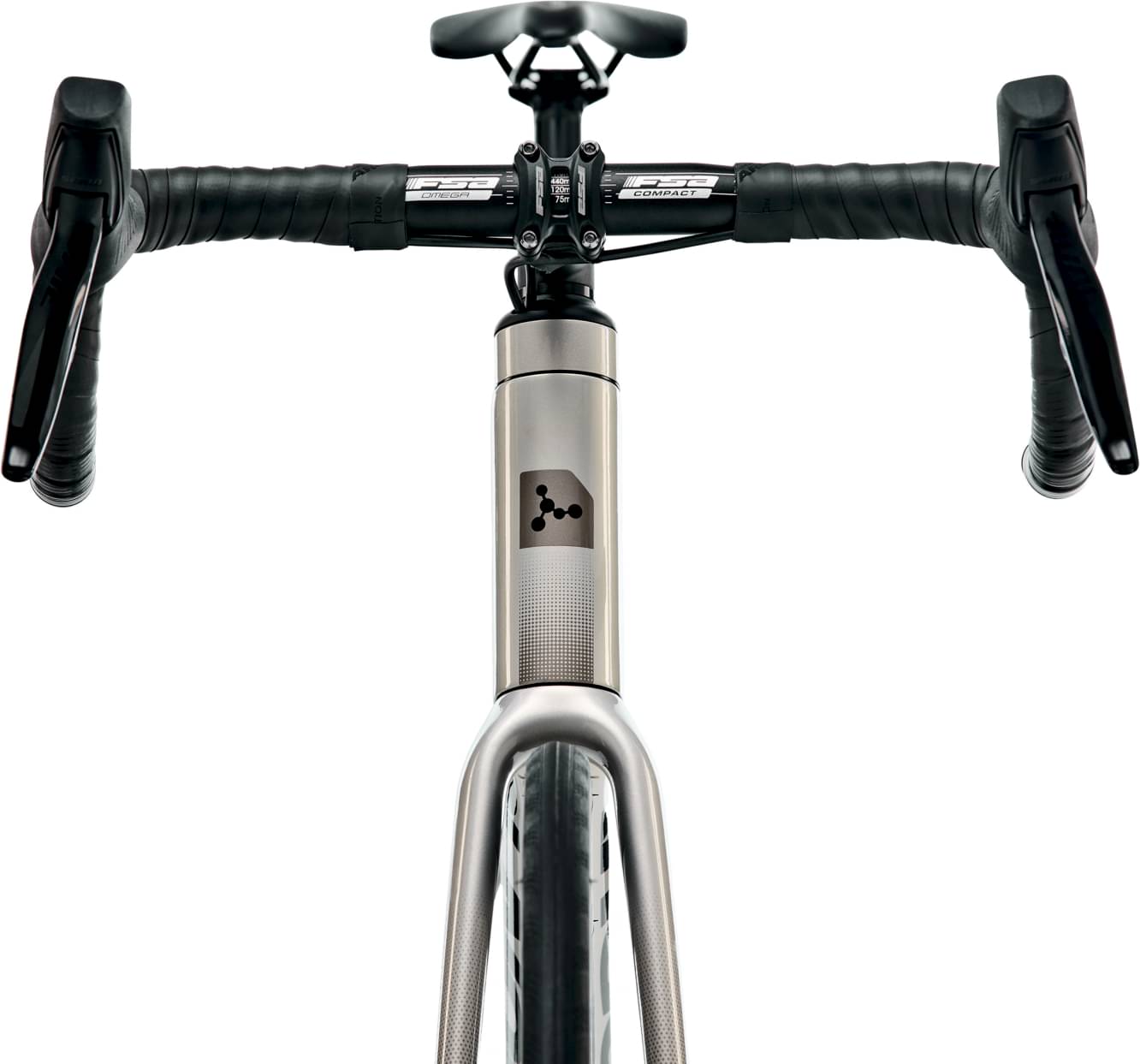

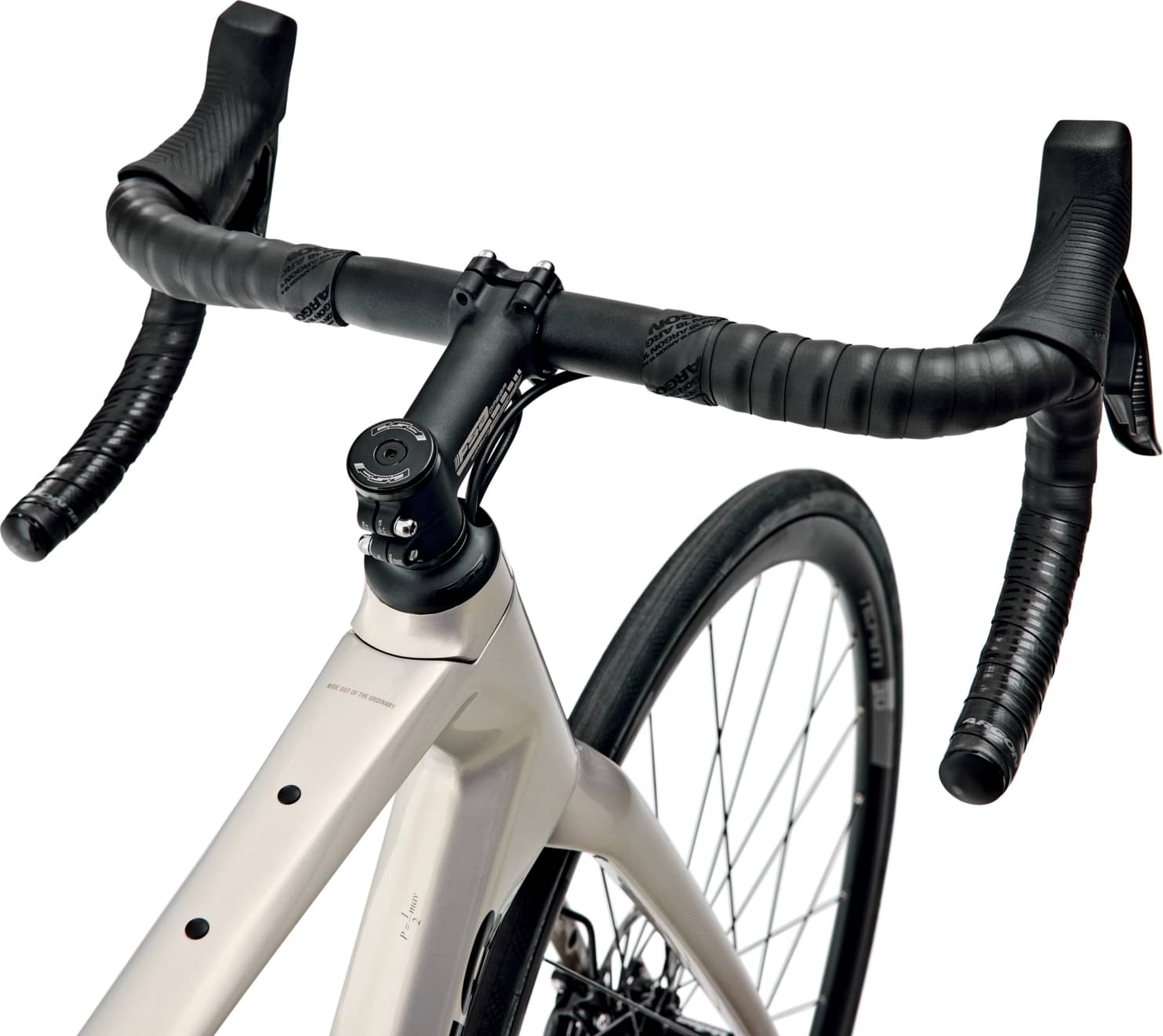

Cockpit
Handlebar
Ciclovation Leather Touch Tornado Gloss
Headset
FSA NO.69 SRS System
Seat
Saddle
Repente Quasar
Seatpost
FSA Gossamer SB20 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.488 mm | 1.5 mm | 1.517 mm | 1.538 mm | 1.558 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 577 mm | 585 mm | 589 mm | 605 mm | 621 mm | 634 mm |
| Rake | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 68 mm | 61 mm | 62 mm | 62 mm | 62 mm | 59 mm |
| Stack | 518 mm | 537 mm | 558 mm | 578 mm | 600 mm | 623 mm |
| Reach | 351 mm | 361 mm | 372 mm | 381 mm | 390 mm | 400 mm |
| Top Tube Length | 496 mm | 516 mm | 537 mm | 558 mm | 580 mm | 604 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 84 mm | 101 mm | 120 mm | 141 mm | 166 mm | 189 mm |
| Chainstay Length | 417 mm | 417 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 981 mm | 989 mm | 997 mm | 1013 mm | 1030 mm | 1043 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 673 mm | 700 | 734 mm | 764 mm | 797 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
