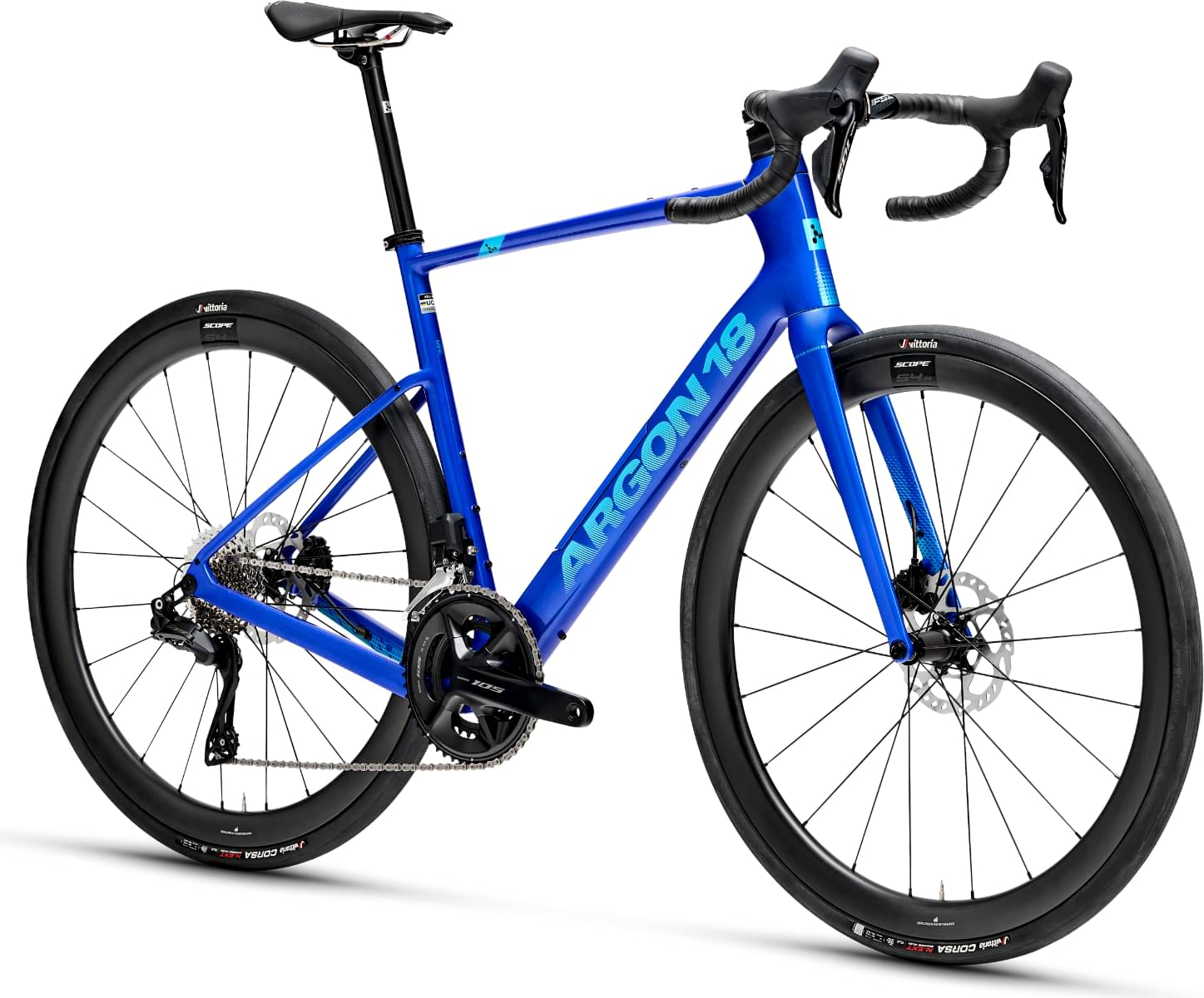

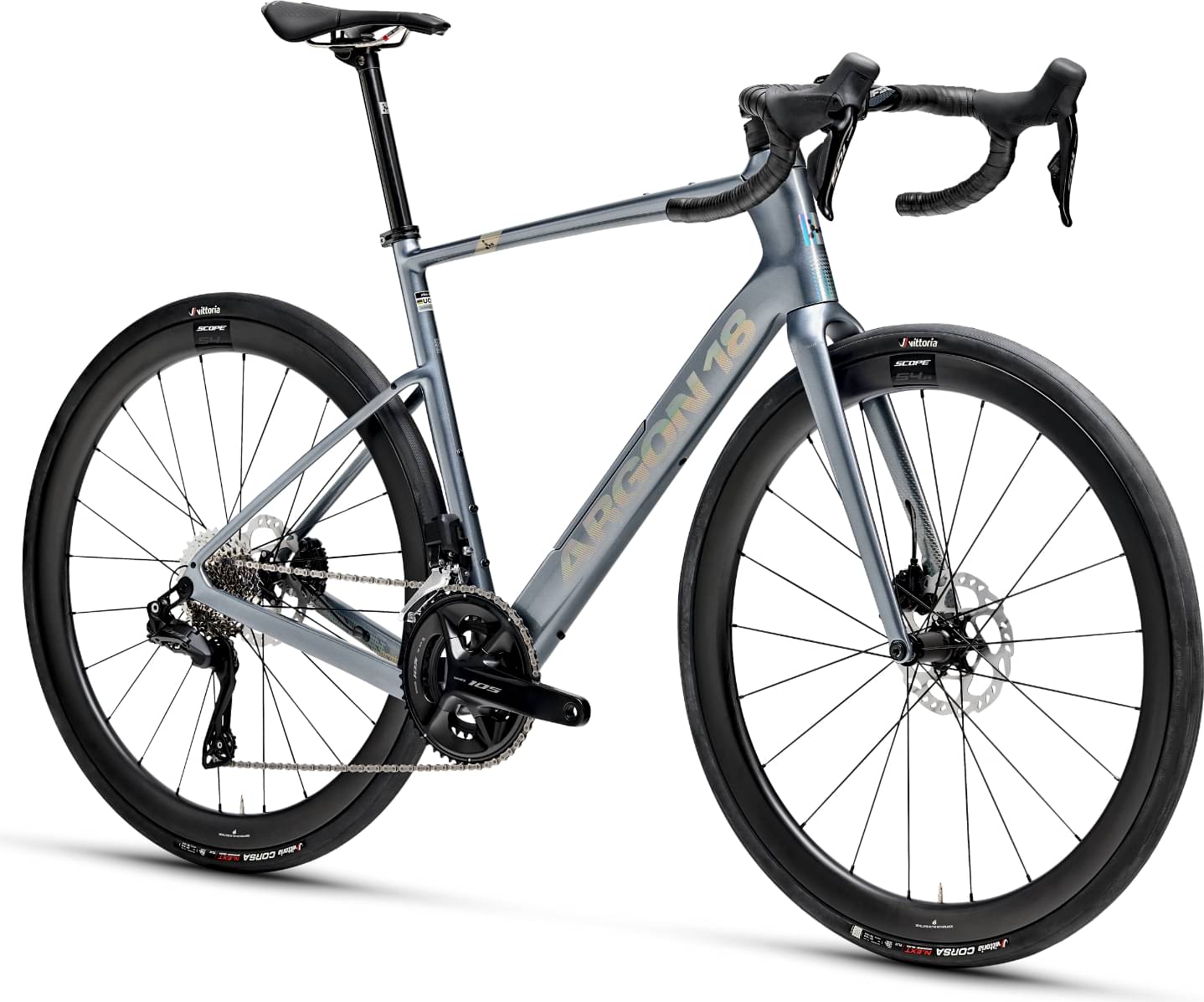

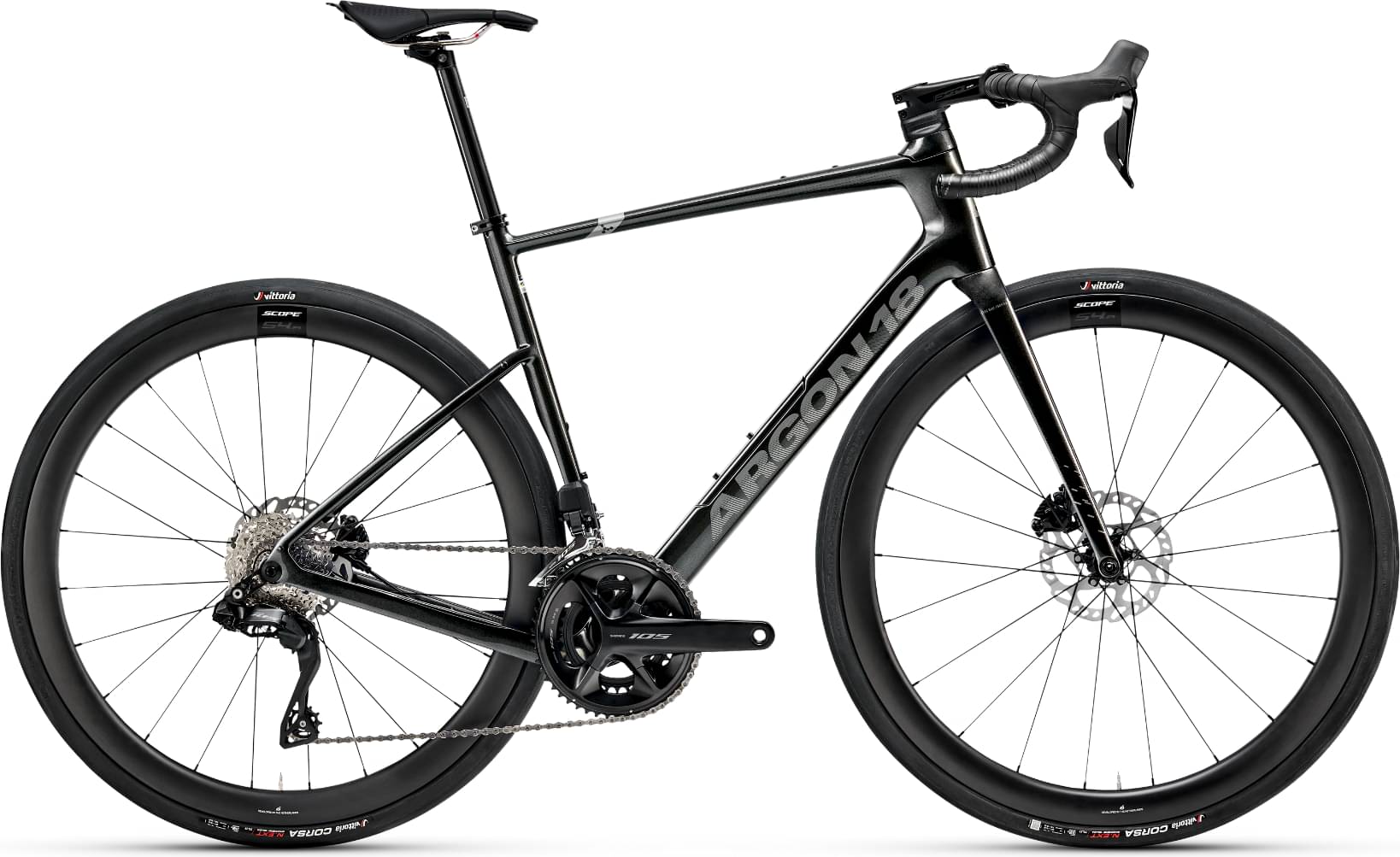

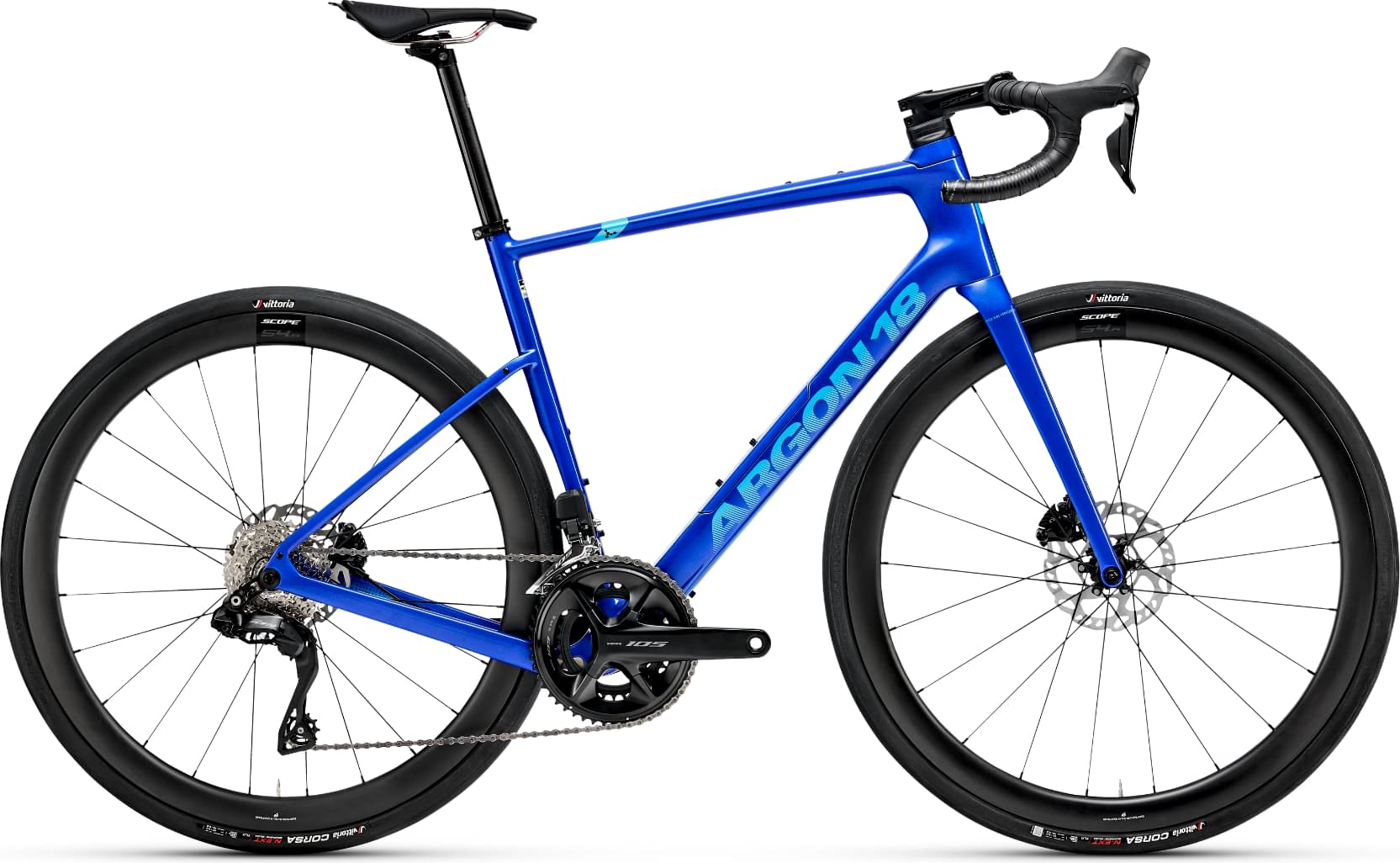

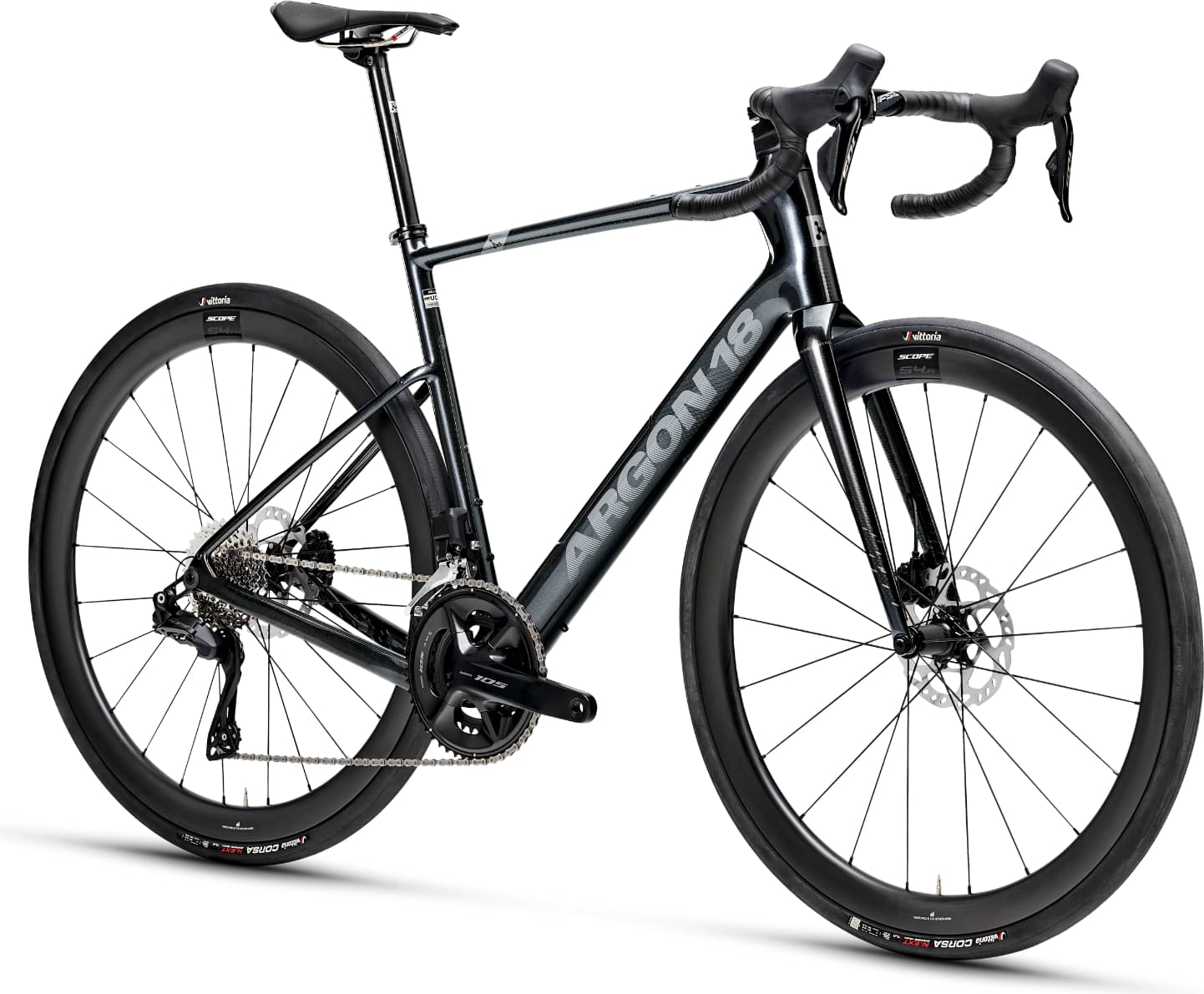

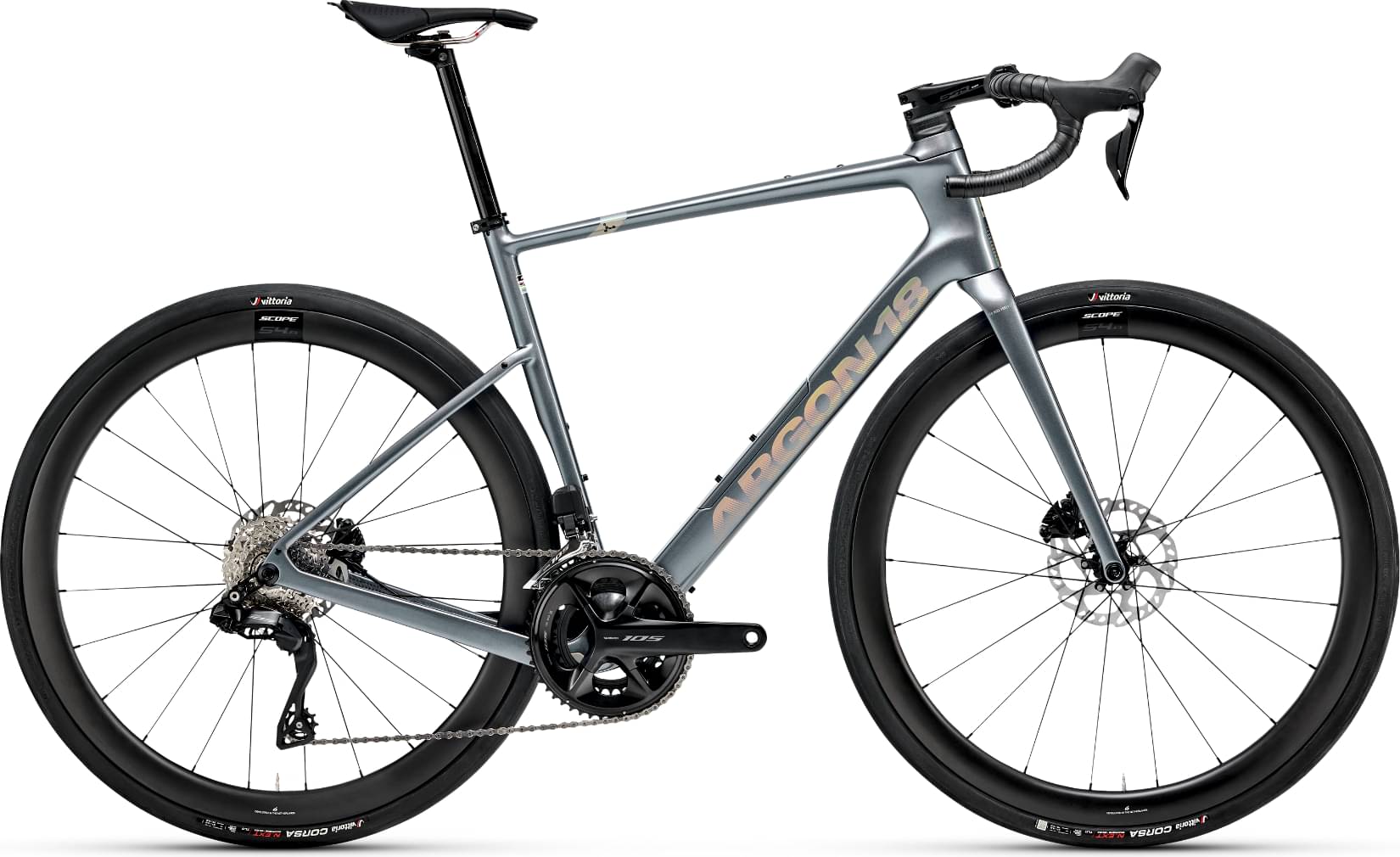

Argon 18 Krypton Shimano 105 Di2 2025
2025 Road
Estimate price |
6,393$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Krypton
Suspension Fork
Krypton
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150
Front Derailleur
Shimano 105 Di2 R7150
Cassette
Shimano 105 CS-R7100 11-34
Crank
Shimano 105 FC-R7100 50/34
Bottom Bracket
TOKEN T47 24mm
Chain
Shimano 105 CN-M7100
Wheels
Rims
Scope S4.A
Tires
Vittoria Corsa N.EXT 32-622 TLR, black G2.0
Brakes
Brakes
Shimano 105 Di2 R7170
Brake Levers
Shimano 105 Di2 R7170
Cockpit
Handlebar
Ciclovation LEATHER TOUCH Tornado Gloss
Headset
FSA Headset NO.55R 1.5'' + 3D
Seat
Saddle
Prologo Scratch M5 Tirox
Seatpost
Argon 18 TDS-C
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.48 mm | 1.493 mm | 1.513 mm | 1.532 mm | 1.547 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 573 mm | 582 mm | 587 mm | 602 mm | 617 mm | 630 mm |
| Rake | 52 mm | 52 mm | 47 mm | 48 mm | 47 mm | 47 mm |
| Trail | 64 mm | 59 mm | 59 mm | 58 mm | 59 mm | 56 mm |
| Stack | 523 mm | 543 mm | 563 mm | 584 mm | 605 mm | 628 mm |
| Reach | 357 mm | 367 mm | 377 mm | 386 mm | 395 mm | 406 mm |
| Top Tube Length | 496 mm | 516 mm | 537 mm | 558 mm | 580 mm | 604 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 70.6 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.8 ° |
| Head Tube Length | 106 mm | 123 mm | 142 mm | 164 mm | 186 mm | 208 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 975 mm | 984 mm | 989 mm | 1005 mm | 1020 mm | 1033 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 675 mm | 704 mm | 738 mm | 770 mm | 801 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
