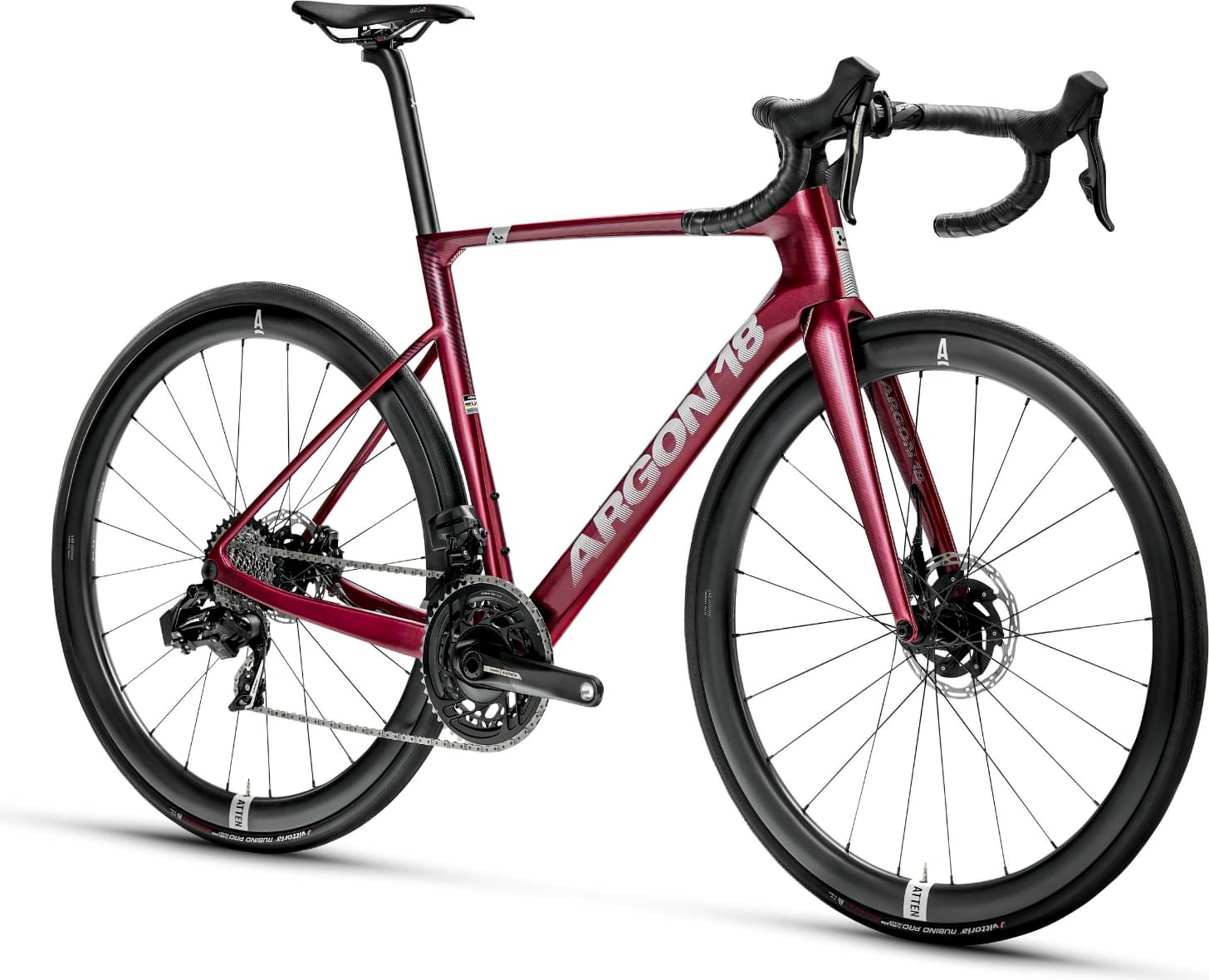

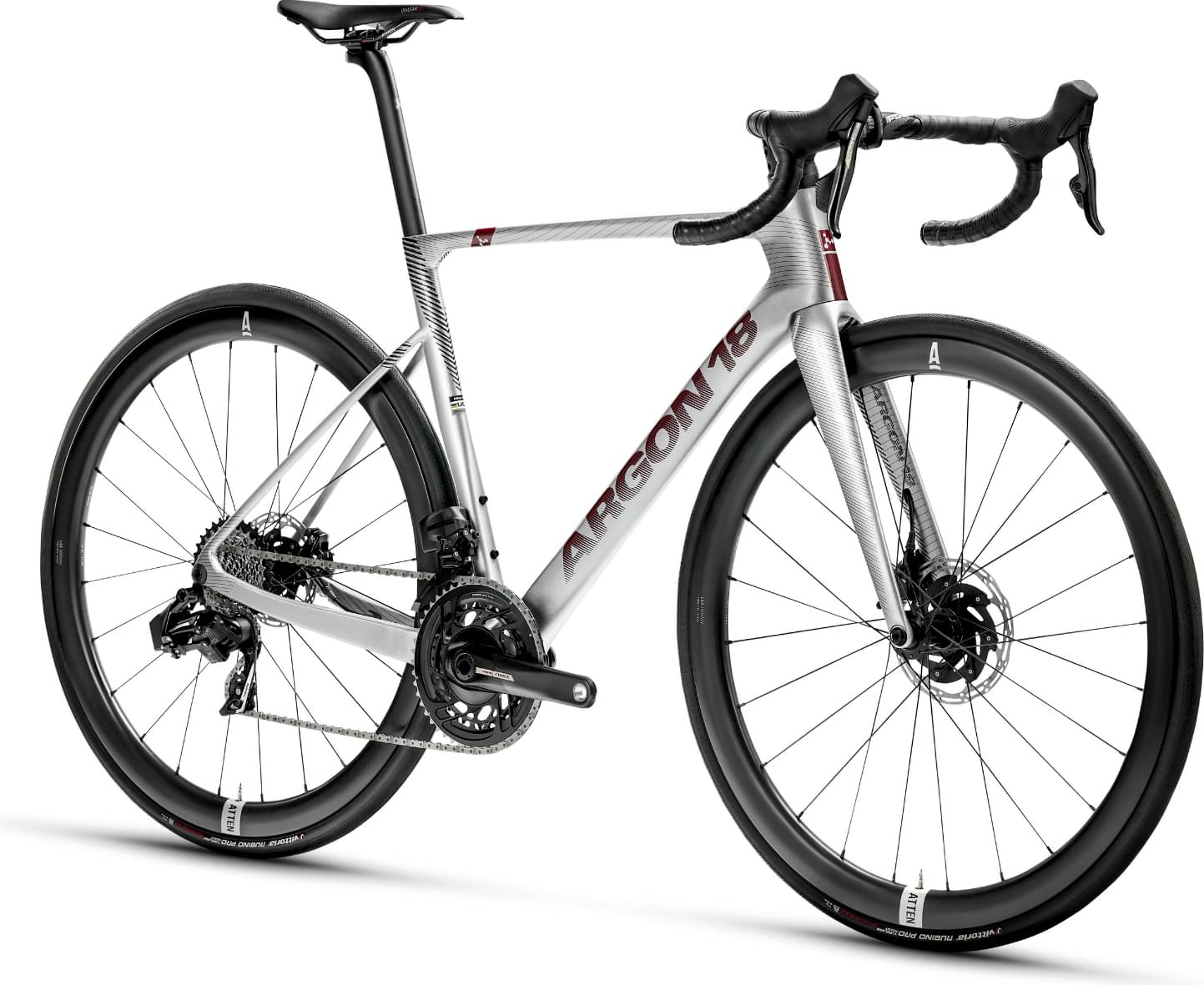

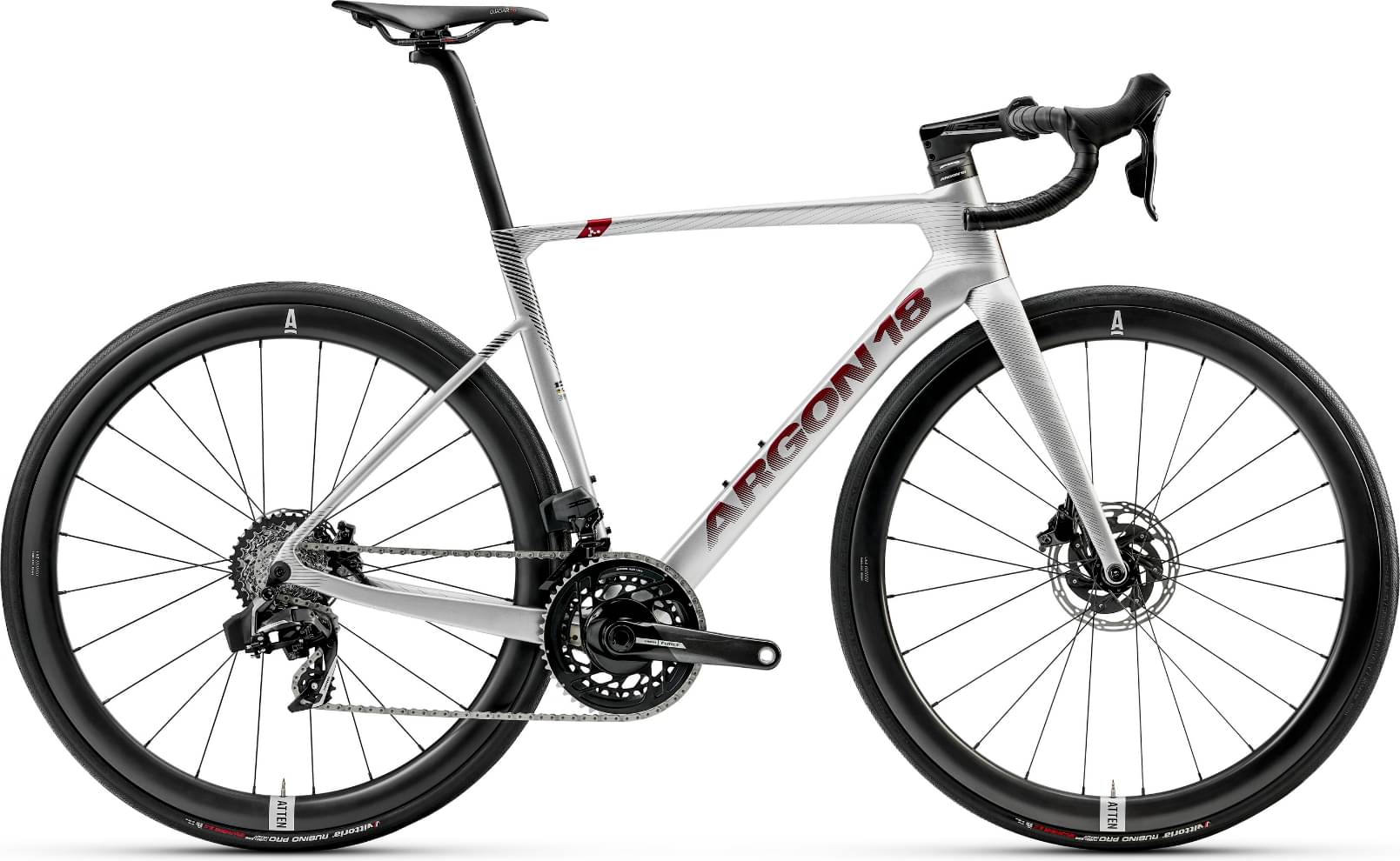

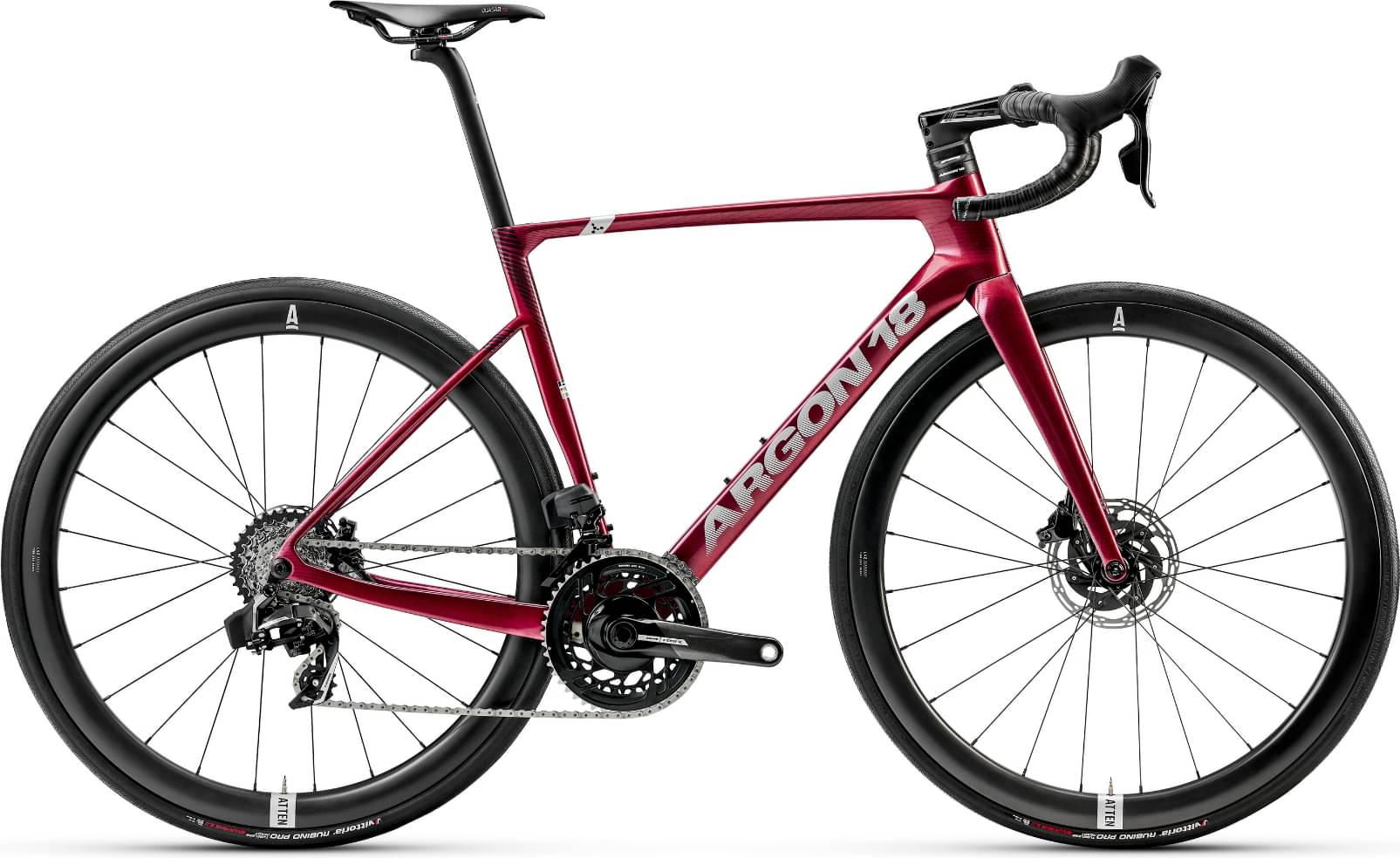

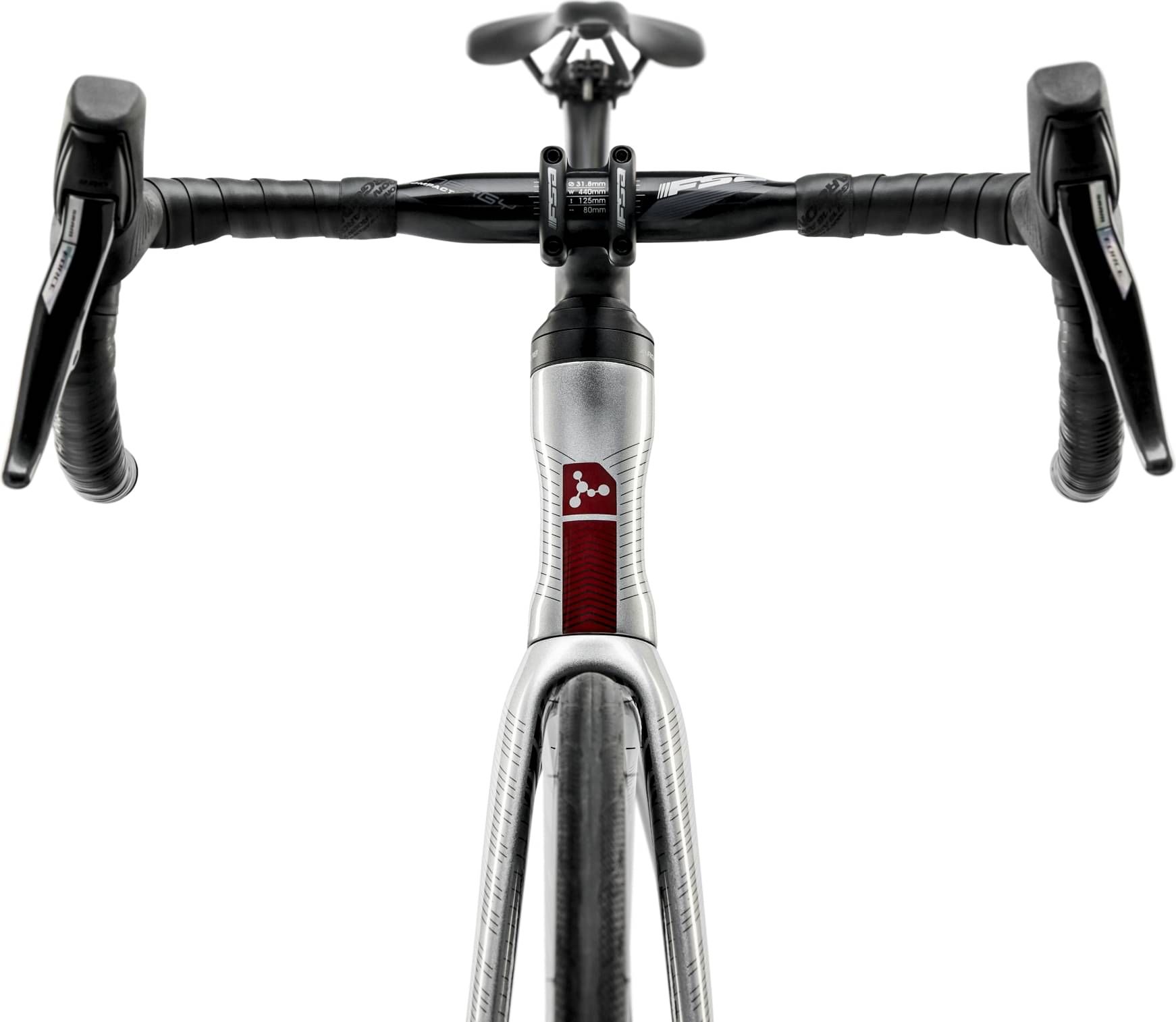

Argon 18 Sum SRAM Force eTap AXS 2023
2023 Road
Estimate price |
6,255$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

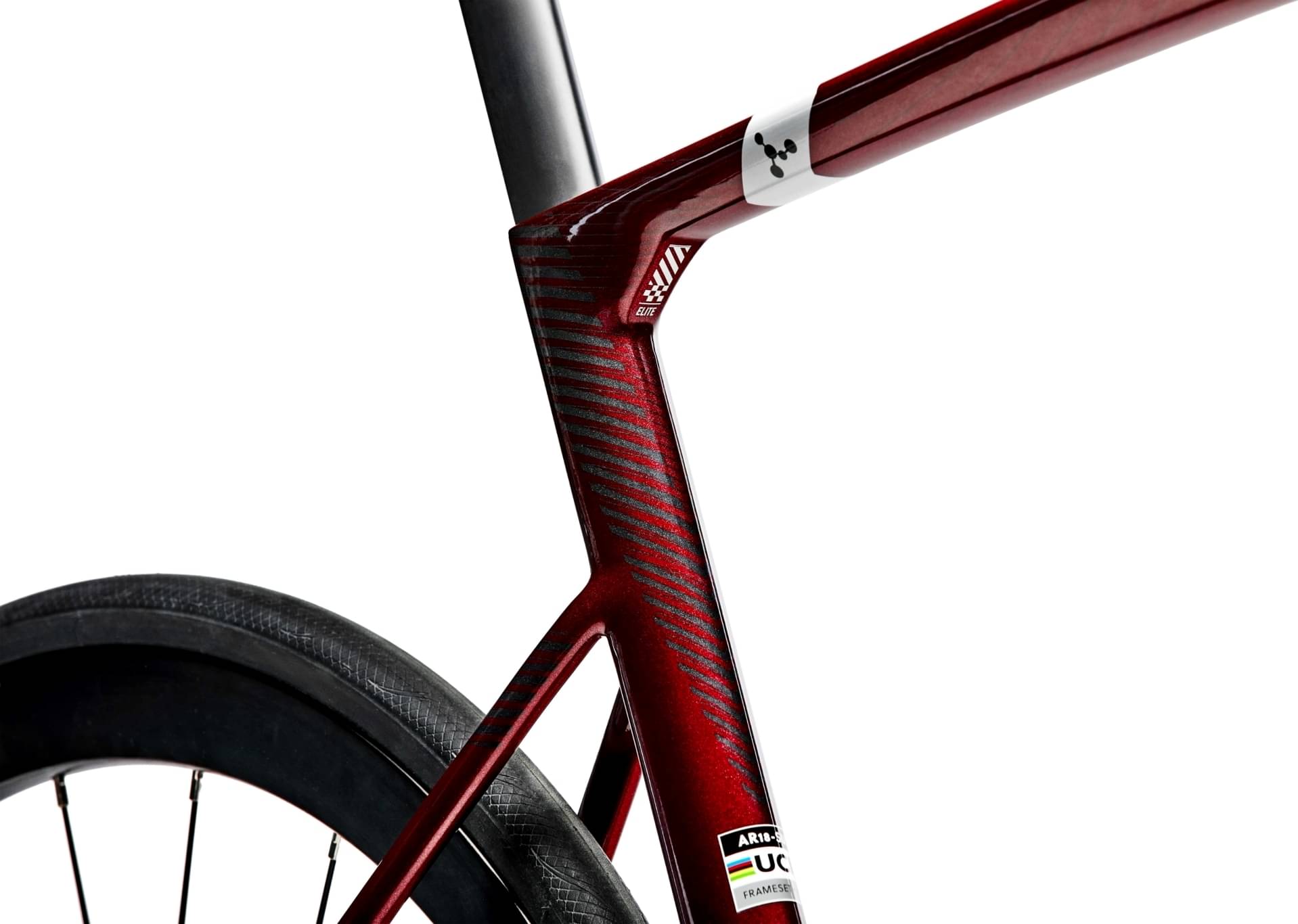

Frame
Frame
SUM

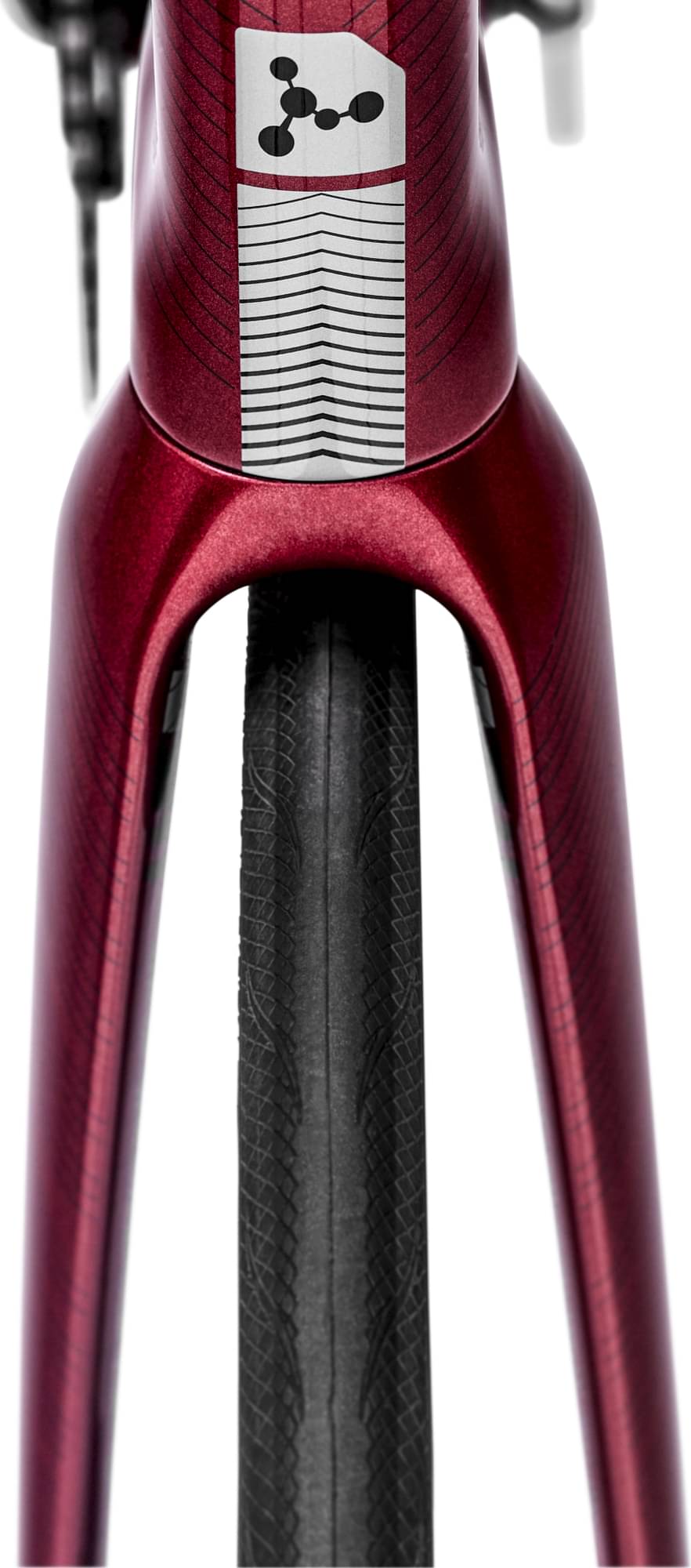

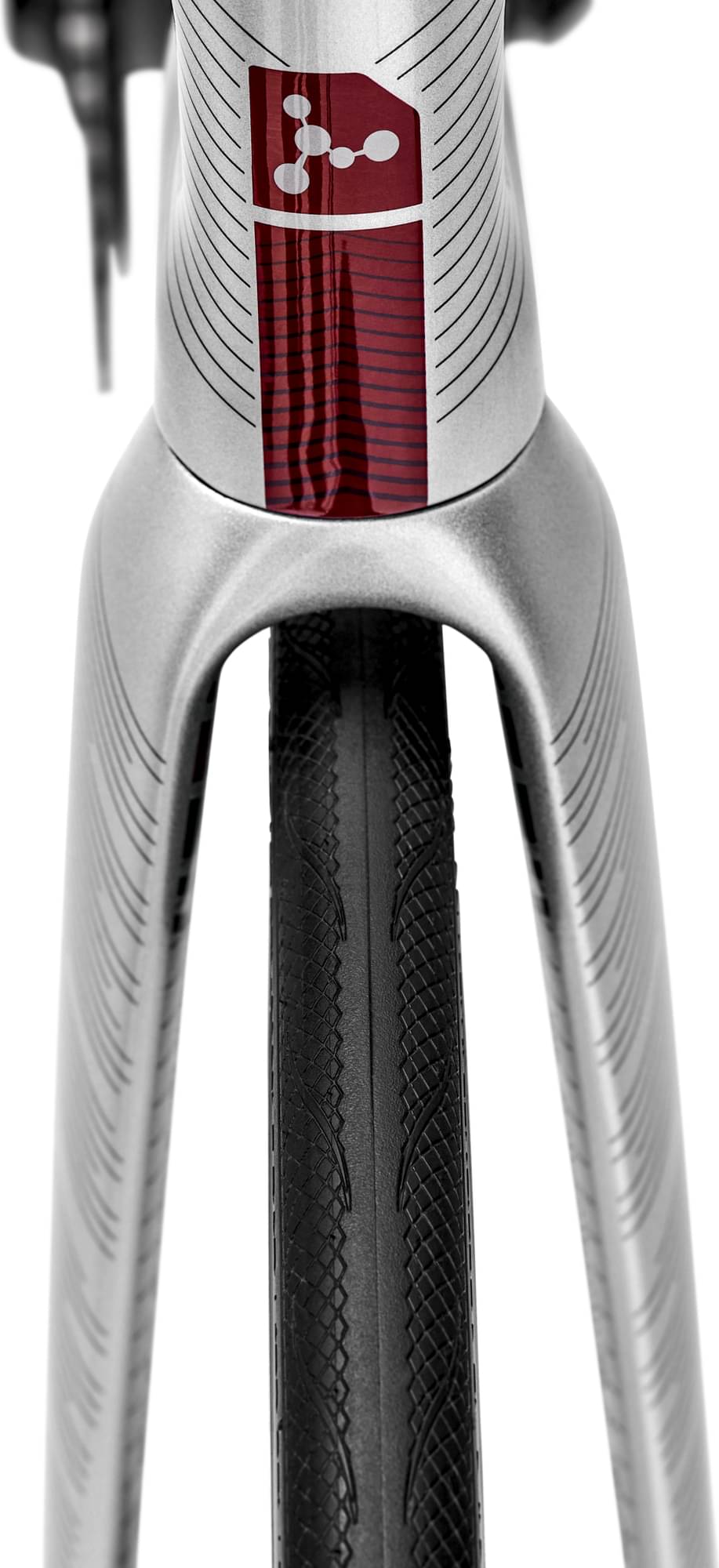

Suspension Fork
SUM specific
Drivetrain
Rear Derailleur
SRAM Force eTAP AXS (MAX 33T)
Front Derailleur
SRAM Force eTap AXS
Shift Levers
SRAM Force AXS
Crank
SRAM Force DUB 48/35
Bottom Bracket
SRAM DUB PF 86.5
Chain
SRAM Force 12S 114L
Wheels
Rims
Team 30 Clincher Centerlock XDR
Tires
Rubino Pro TLR G+ 700x25c
Brakes
Brakes
SRAM Force
Brake Levers
SRAM Force AXS
Cockpit

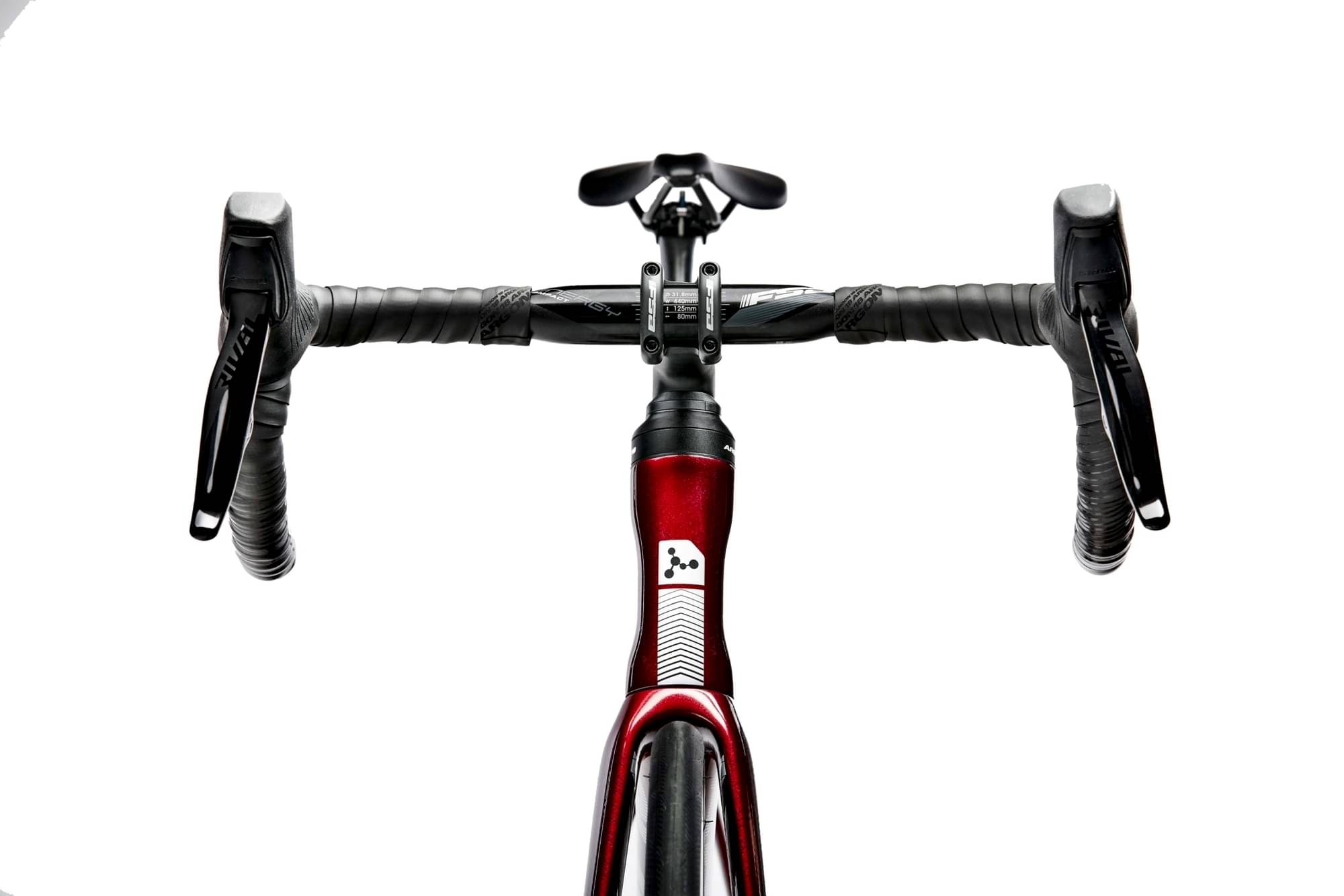

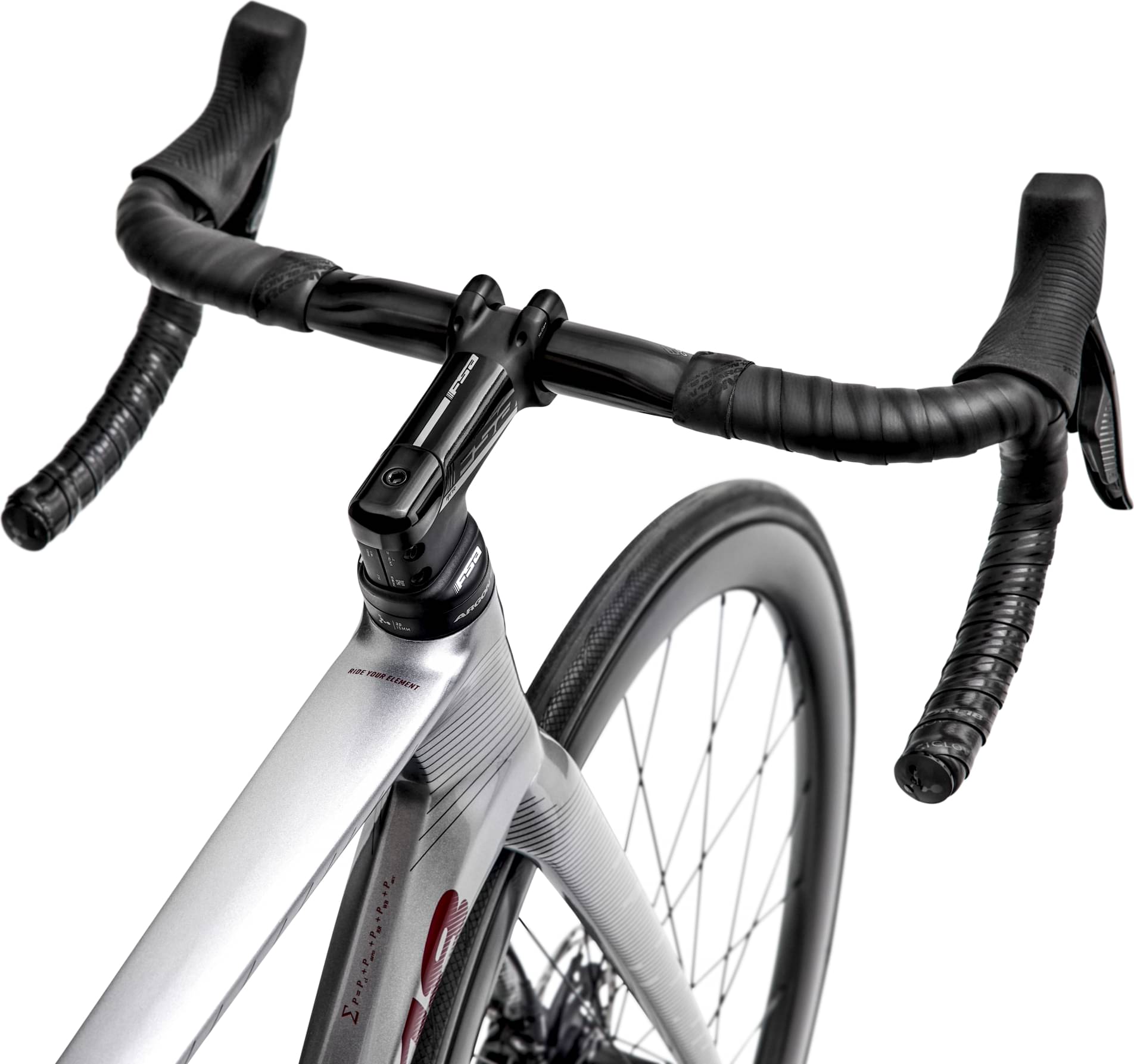

Handlebar
Ciclovation Leather Touch Tornado Gloss
Headset
FSA ACR NO.55R 1.5''
Seat
Saddle
Repente Quasar
Seatpost
SUM specific
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.256 mm | 1.291 mm | 1.326 mm | 1.36 mm | 1.395 mm | 1.43 mm |
| Bottom Bracket Height | 267 mm | 263 mm | 259 mm | 259 mm | 259 mm | 259 mm |
| Front Center | 567 mm | 573 mm | 577 mm | 592 mm | 608 mm | 622 mm |
| Rake | 48 mm | 48 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 64 mm | 58 mm | 59 mm | 59 mm | 59 mm | 57 mm |
| Stack | 471 mm | 493 mm | 516 mm | 540 mm | 565 mm | 592 mm |
| Reach | 375 mm | 382 mm | 389 mm | 397 mm | 405 mm | 414 mm |
| Top Tube Length | 503 mm | 520 mm | 538 mm | 557 mm | 578 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 395 mm | 425 mm | 460 mm | 505 mm | 550 mm | 595 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.7 ° | 72.7 ° | 72.7 ° | 73 ° |
| Head Tube Length | 69 mm | 85 mm | 101 mm | 126 mm | 152 mm | 180 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 967 mm | 972 mm | 975 mm | 990 mm | 1006 mm | 1020 mm |
| Bottom Bracket Drop | 69 mm | 73 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 676 mm | 700 | 727 mm | 766 mm | 804 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
