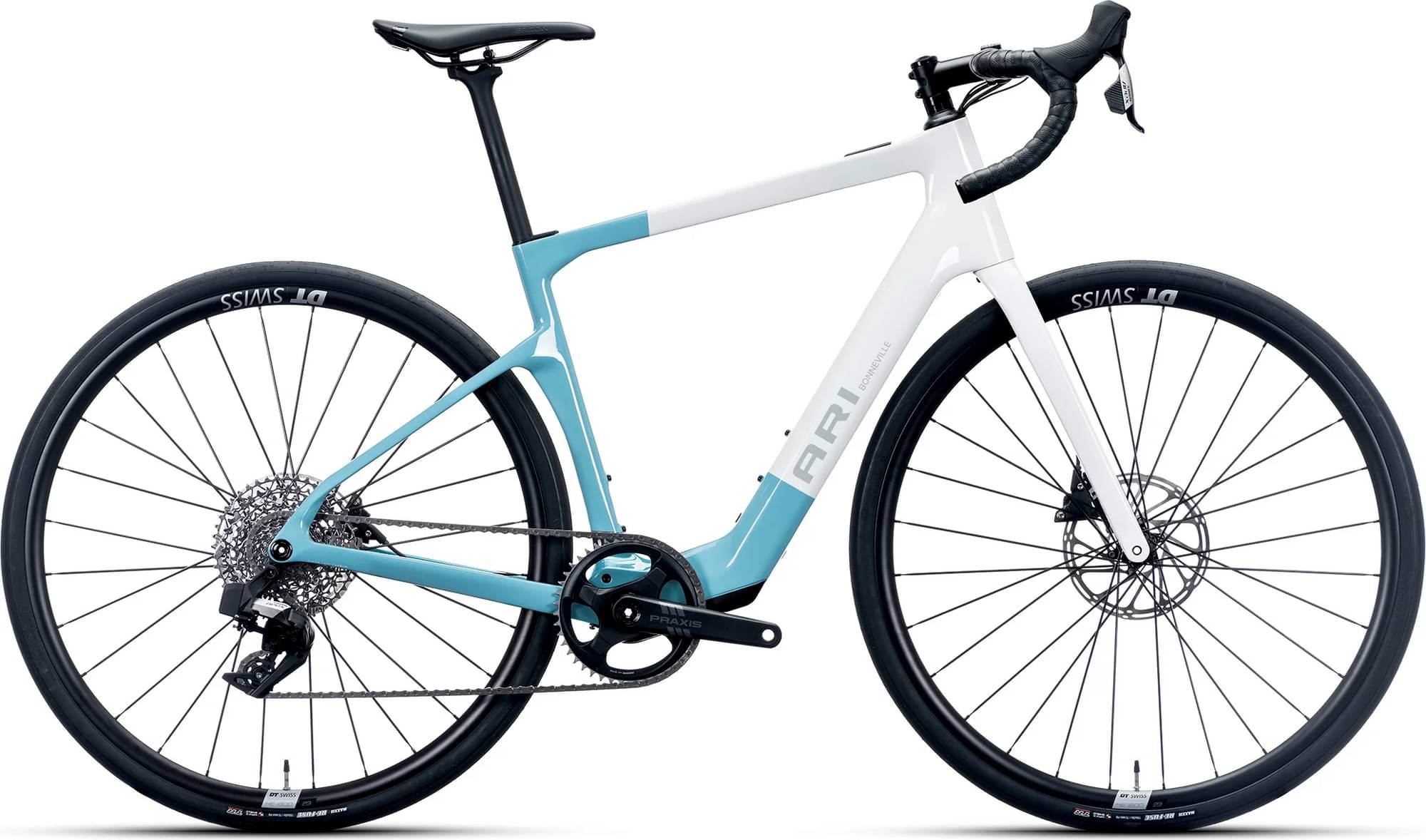

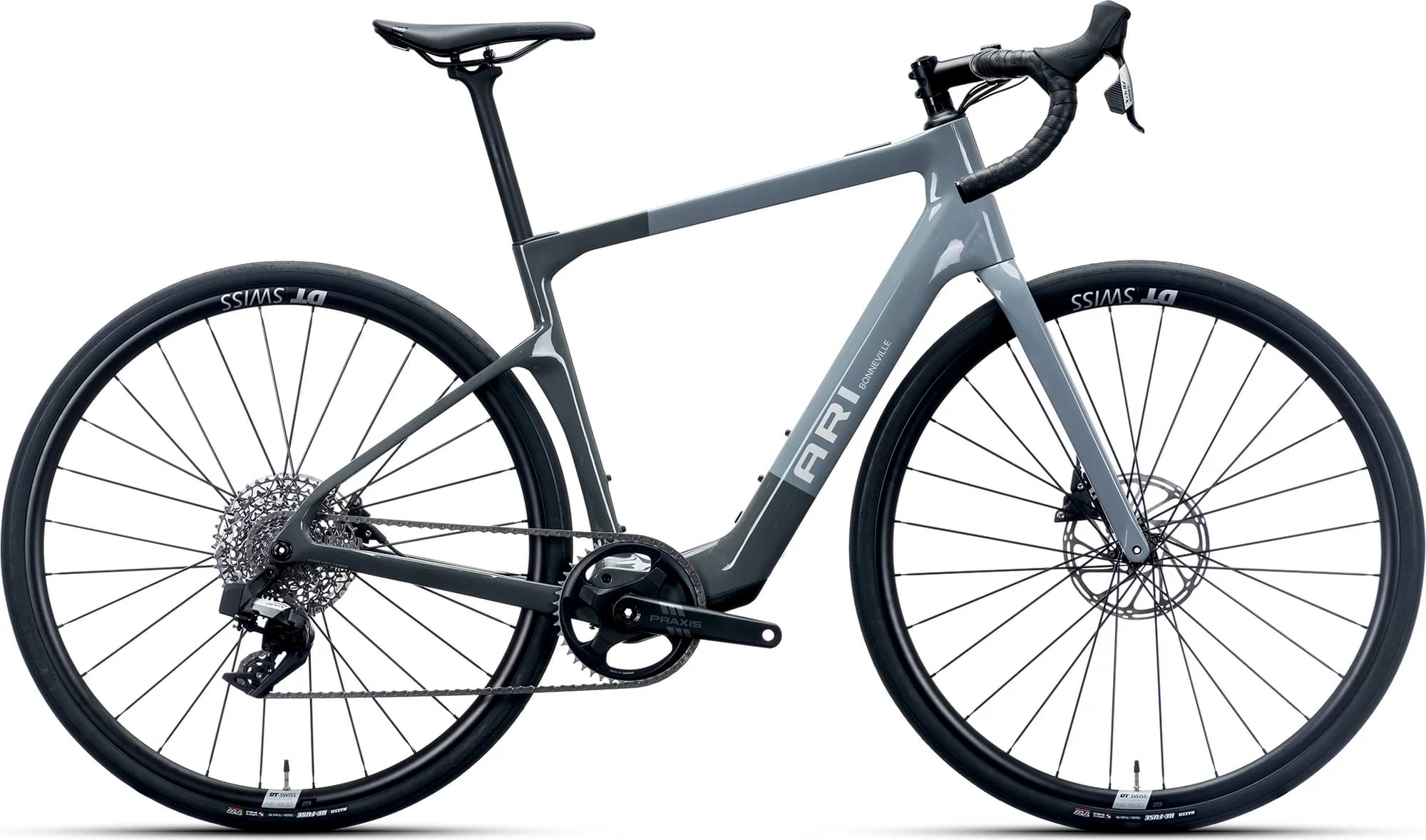

ari Bonneville Comp 2024
2024 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex XPLR AXS, Apex AXS -
Suspension Rigid -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430Wh Fixed -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ari Bonneville Frameset - CleanCast™ Carbon, 12x142 rear. UDH compatible. Max tire clearance 45c*
Suspension Fork
Ari Racing Design Bonneville Monoform™ CleanCast™, tapered, 12x100 thru axle, Internal Brake Routing
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Apex AXS XPLR 1x12
Front Derailleur
N/A
Shift Levers
SRAM Apex eTap AXS 1x12 Hydraulic
Cassette
SRAM PG-1231 XPLR, 11-44t, 12-Speed
Crank
Praxis ECRANK TYPE6 ETOR Alloy
Chain
SRAM Apex Flat top 12-Speed
Pedals
Available Separately
Wheels
Front Hub
DT Swiss 370 Ratchet LN 18
Rear Hub
DT Swiss 370 Ratchet LN 18
Rims
DT Swiss HE 1800, Tubeless Ready
Spokes
DT new aero® hybrid straightp
Tires
Maxxis Re-Fuse 700x32c, tubeless ready
Brakes
Brakes
SRAM Apex Hydraulic Road Disc, 180/180mm rotors
Cockpit
Stem
Ari Alloy, 31.8mm
Handlebar
Ari Road Compact Alloy
Headset
FSA SRS 1.5/1.5
Seat
Saddle
Ergon SR10
Seatpost
Ari Carbon Dual Bolt, 27.2
Motor & Battery
Motor
Fazua Ride 60, 60Nm
Battery
Fazua Energy 430Wh Fixed
