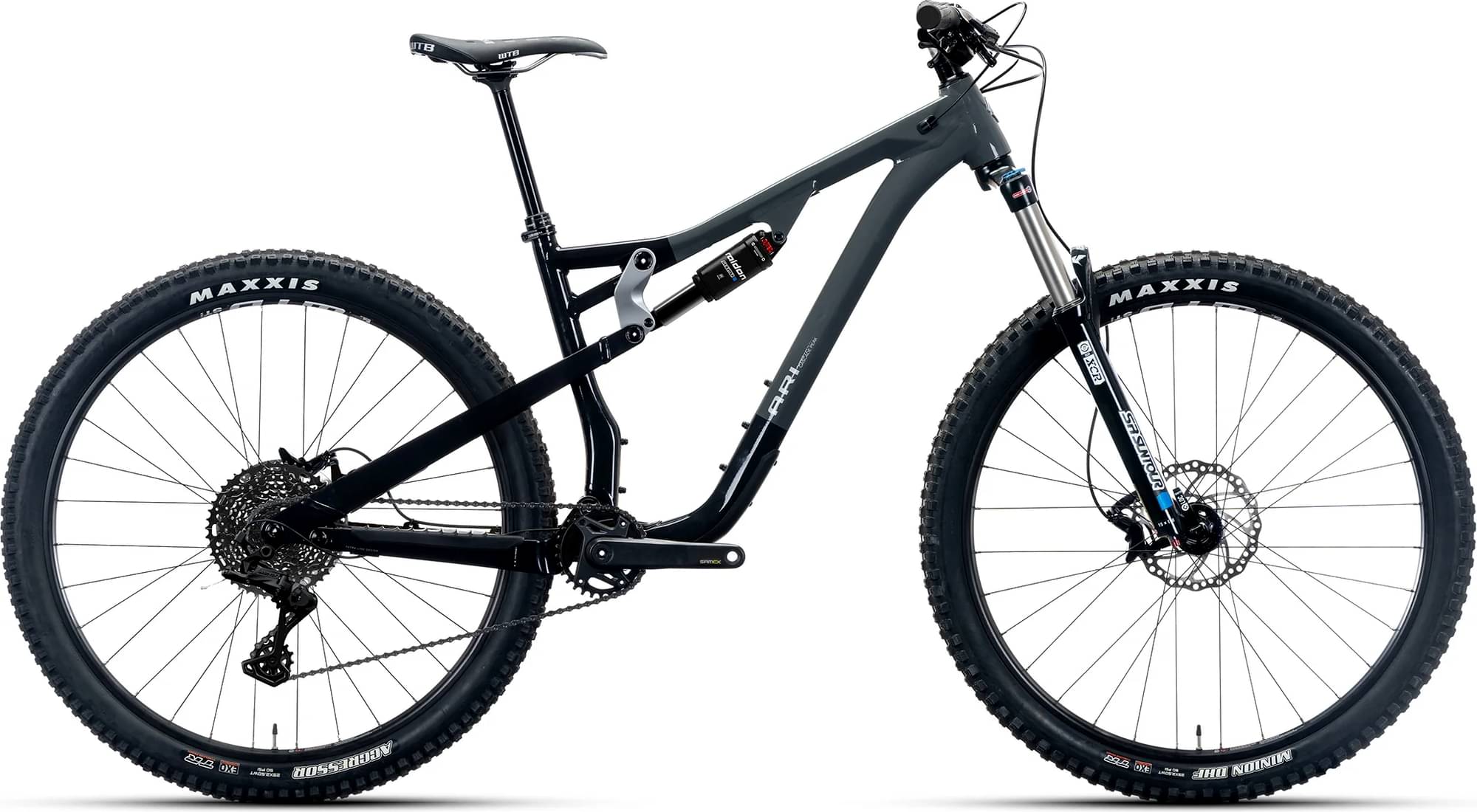

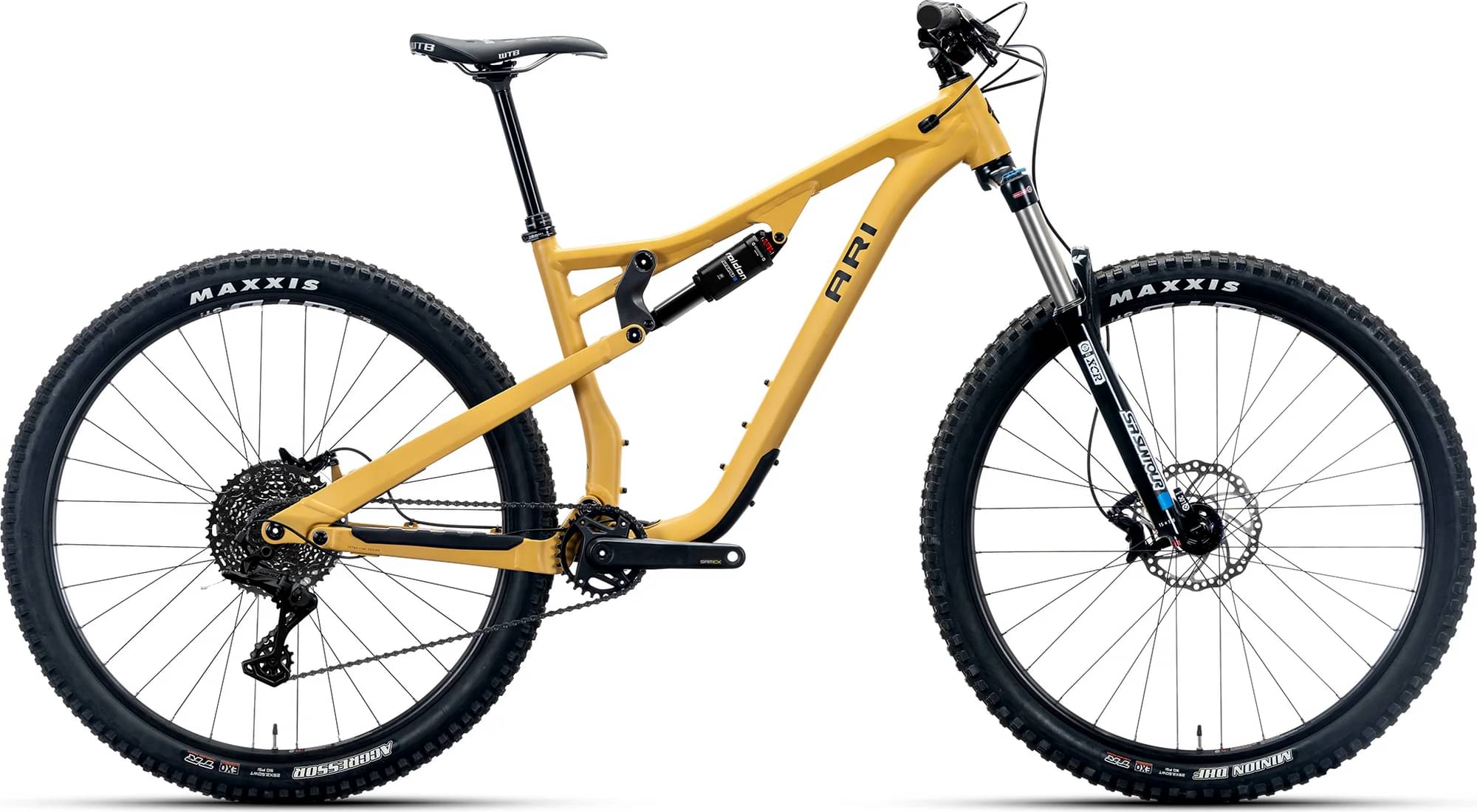

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 135mm -
Fork Suntour XCR
-
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ari Cascade Peak Full Suspension, Alloy, 135mm travel. UDH derailleur hanger. ISCG-05 mounts.
Suspension Fork
Suntour XCR 34, 29, 140mm travel, Boost 15x110, tapered steerer
Rear Shock
Suntour Raidon R, 210x50, Custom Tuned
Drivetrain
Rear Derailleur
Microshift Advent X, 10-Speed
Front Derailleur
N/A
Shift Levers
Microshift Advent X, 10-Speed
Cassette
Microshift CS-H104, 11-48T, 10-Speed
Crank
Samox M3s, Square Taper, 170mm
Bottom Bracket
Neco B920HAL, Square Taper
Chain
KMC X10, 10-Speed
Pedals
Available Separately
Wheels
Front Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rear Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rims
WTB i30, 29, TCS Tubeless Ready, 32h
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
Brakes
Brakes
Tektro TKD-147, 4-Piston, 180/180mm F/R rotors
Cockpit
Stem
Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through 23-Point Custom Setup)
Handlebar
Ari Trail mid-rise bar, 25mm rise, 31.8mm diameter, 780mm width, double butted 6061 alloy, black
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
Selle Italia X3 Boost
Seatpost
X-Fusion Manic Dropper Post, 31.6, 125-170mm Travel (Customized through our 23-Point Custom Setup)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.327 mm | 1.296 mm | 1.272 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 748 mm | 773 mm | 807 mm | 833 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 126 mm |
| Stack | 604 mm | 603.9 mm | 622 mm | 636 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1180 mm | 1205 mm | 1239 mm | 1265 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
