Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

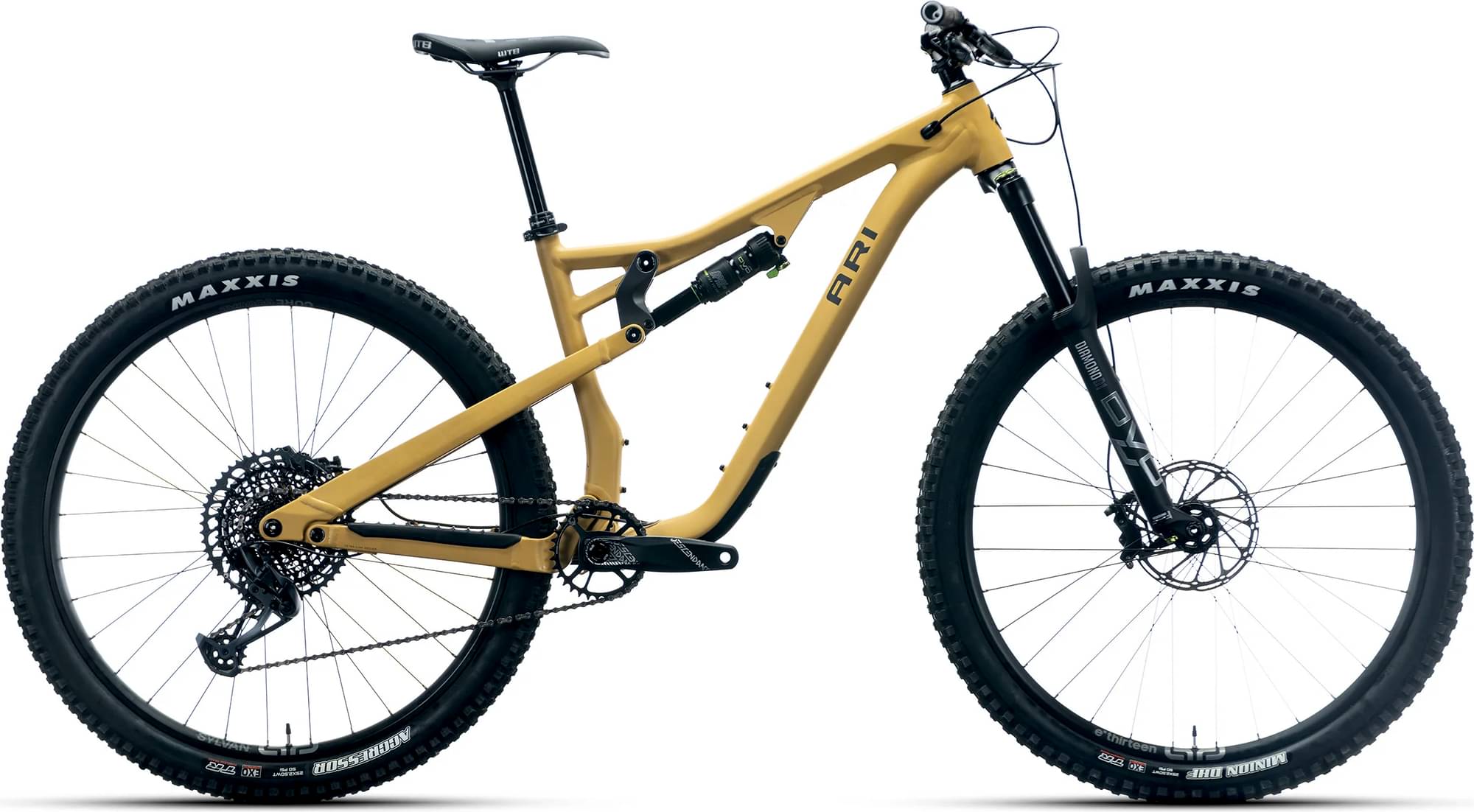

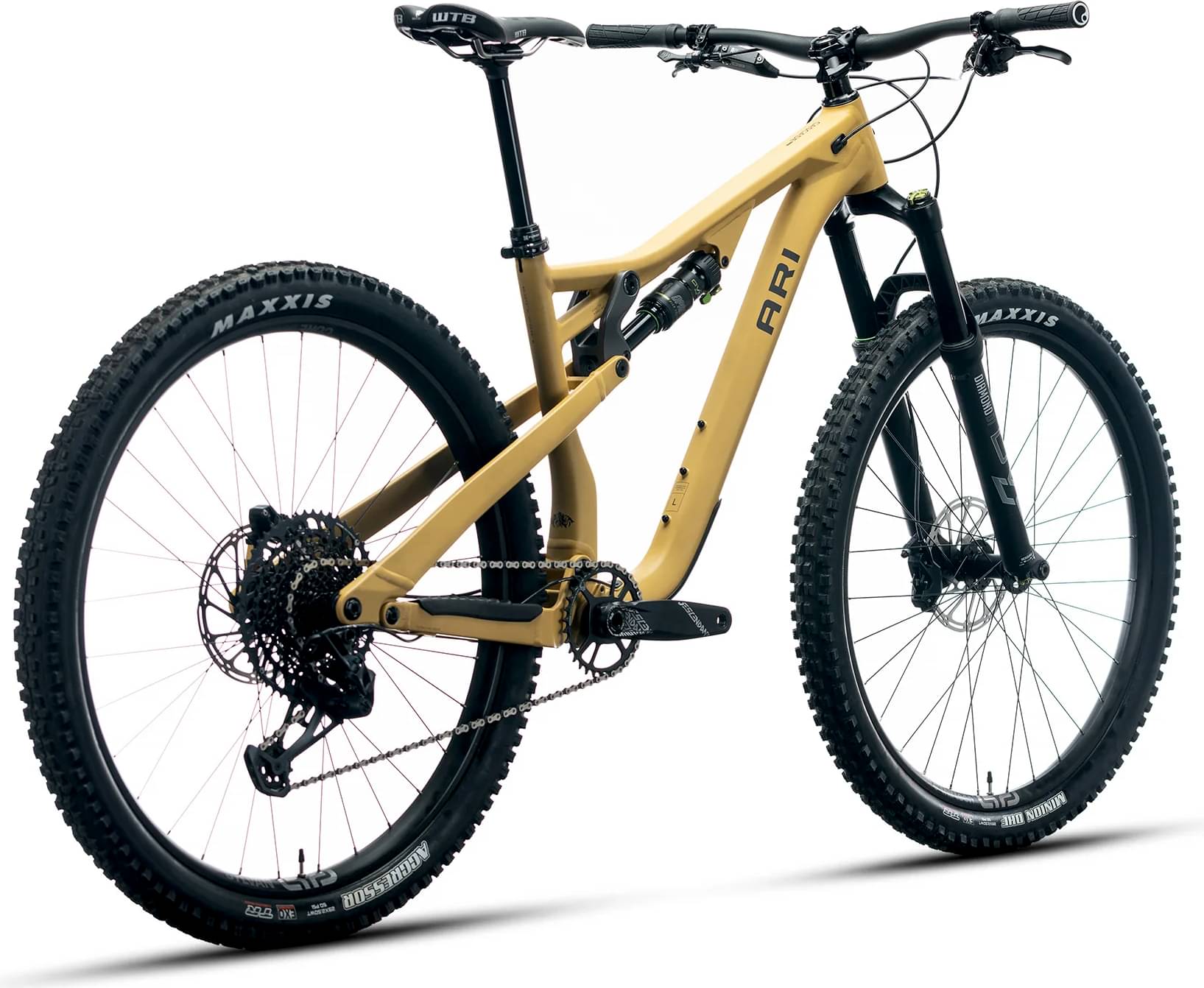

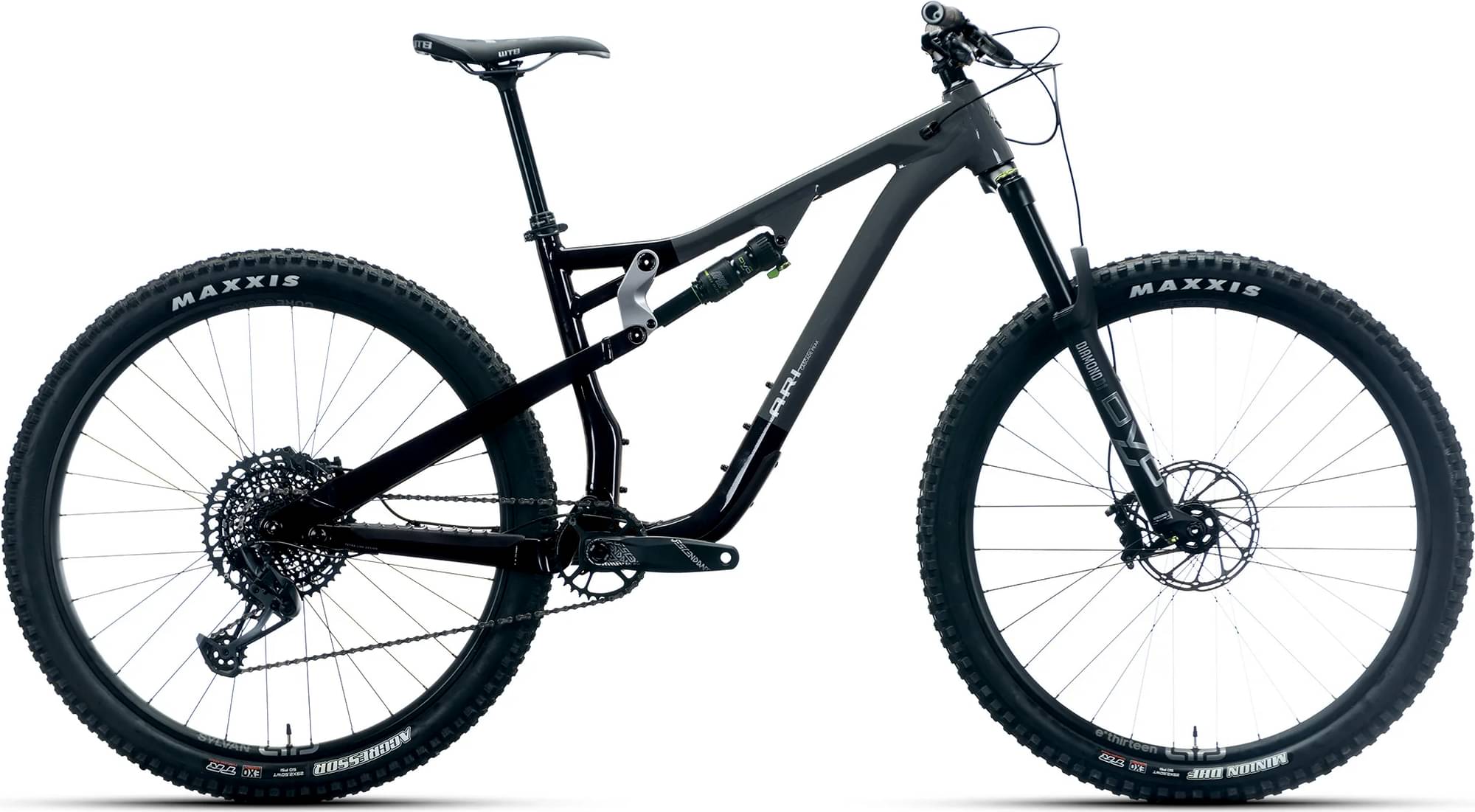

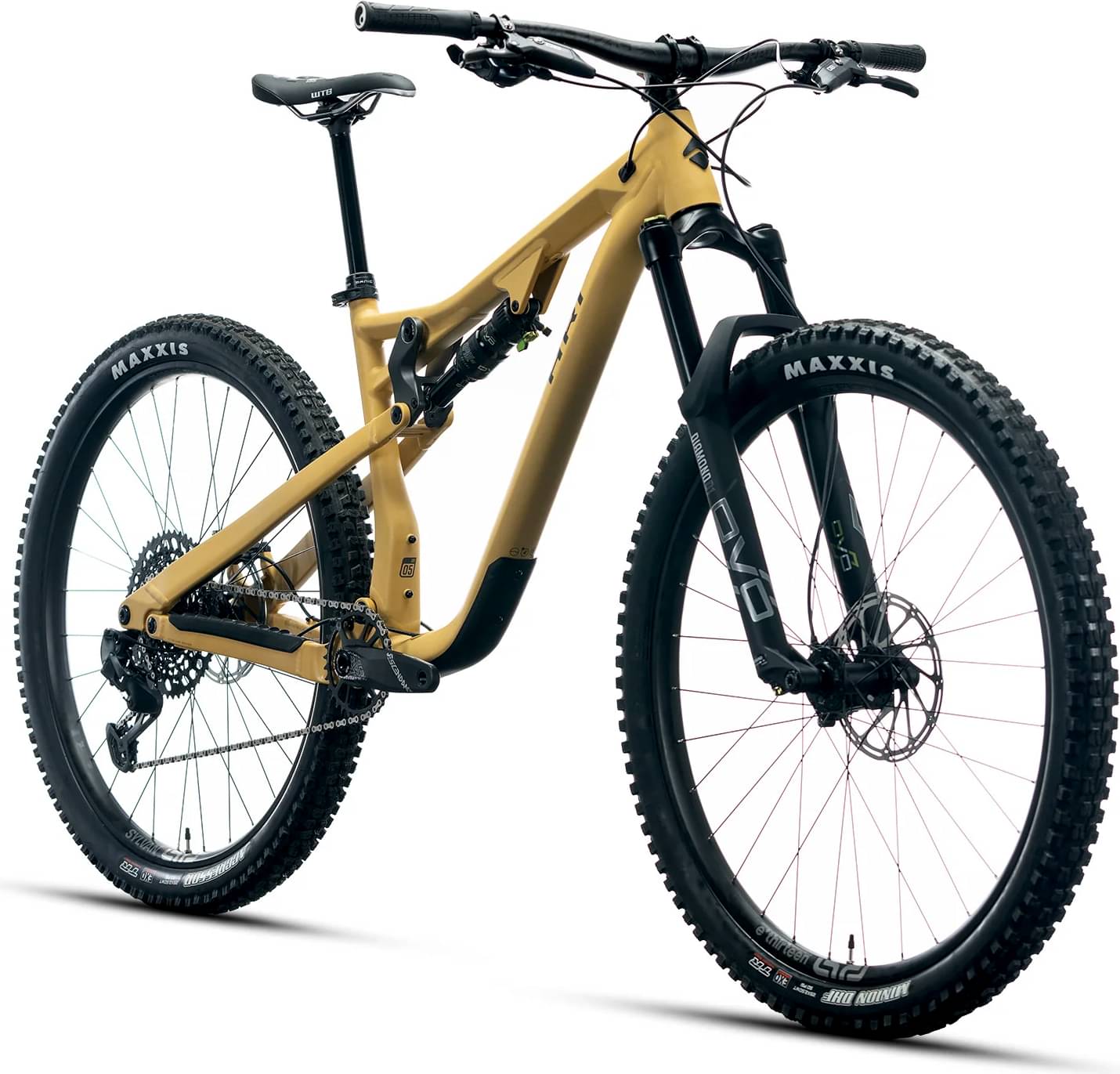

Ari Cascade Peak Full Suspension, Alloy, 135mm travel. UDH derailleur hanger. ISCG-05 mounts.
Suspension Fork
DVO Diamond D1, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black
Rear Shock
DVO Opal T2, 210x50, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-Speed
Cassette
SRAM XG-1275 GX Eagle, 10-52t, 12-speed
Crank
Truvativ Descendant DUB 6K Aluminum Eagle Crankset, 12-Speed, 170mm
Bottom Bracket
SRAM DUB, English Thread
Chain
SRAM GX Eagle 12-Speed
Pedals
Available Separately
Wheels
Front Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rear Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rims
E*thirteen Sylvan Core, Tubeless Ready, 32h
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
Brakes
Brakes
SRAM DB8, Centerline 180/180mm F/R rotors
Cockpit
Stem
Ari FRD Charger 35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Ari FRD Charger 35, alloy, 35mm clamp, 780mm wide, 25mm riser, 9 degree back-sweep, 5 degree upsweep
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
Selle Italia X3 Boost
Seatpost
TransX JD-YSI05J, 150-200mm, w/ 30mm Travel Adj. Dropper- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.327 mm | 1.296 mm | 1.272 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 748 mm | 773 mm | 807 mm | 833 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 126 mm |
| Stack | 604 mm | 603.9 mm | 622 mm | 636 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1180 mm | 1205 mm | 1239 mm | 1265 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
