Bike details
Overview
Key information split into simple groups.

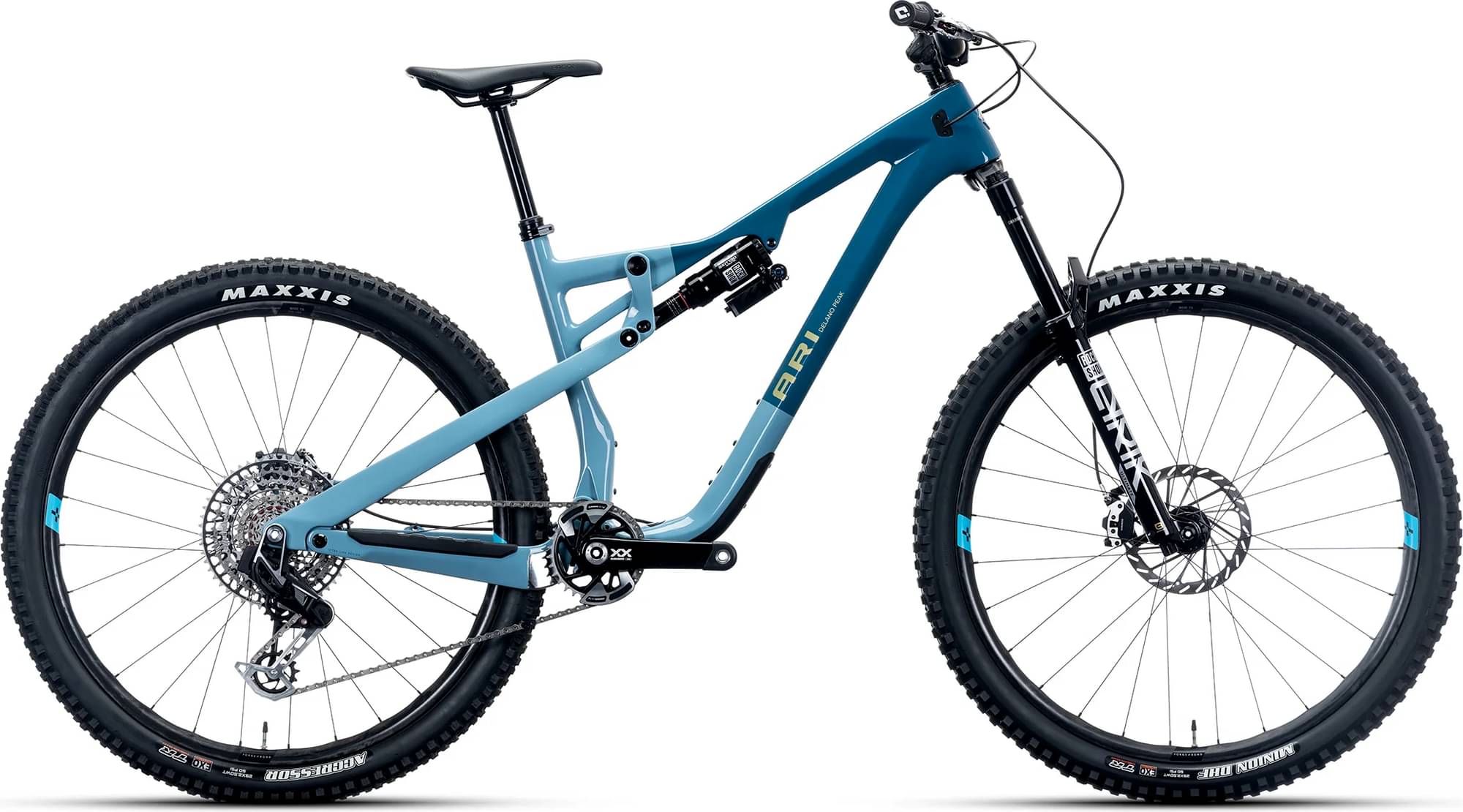

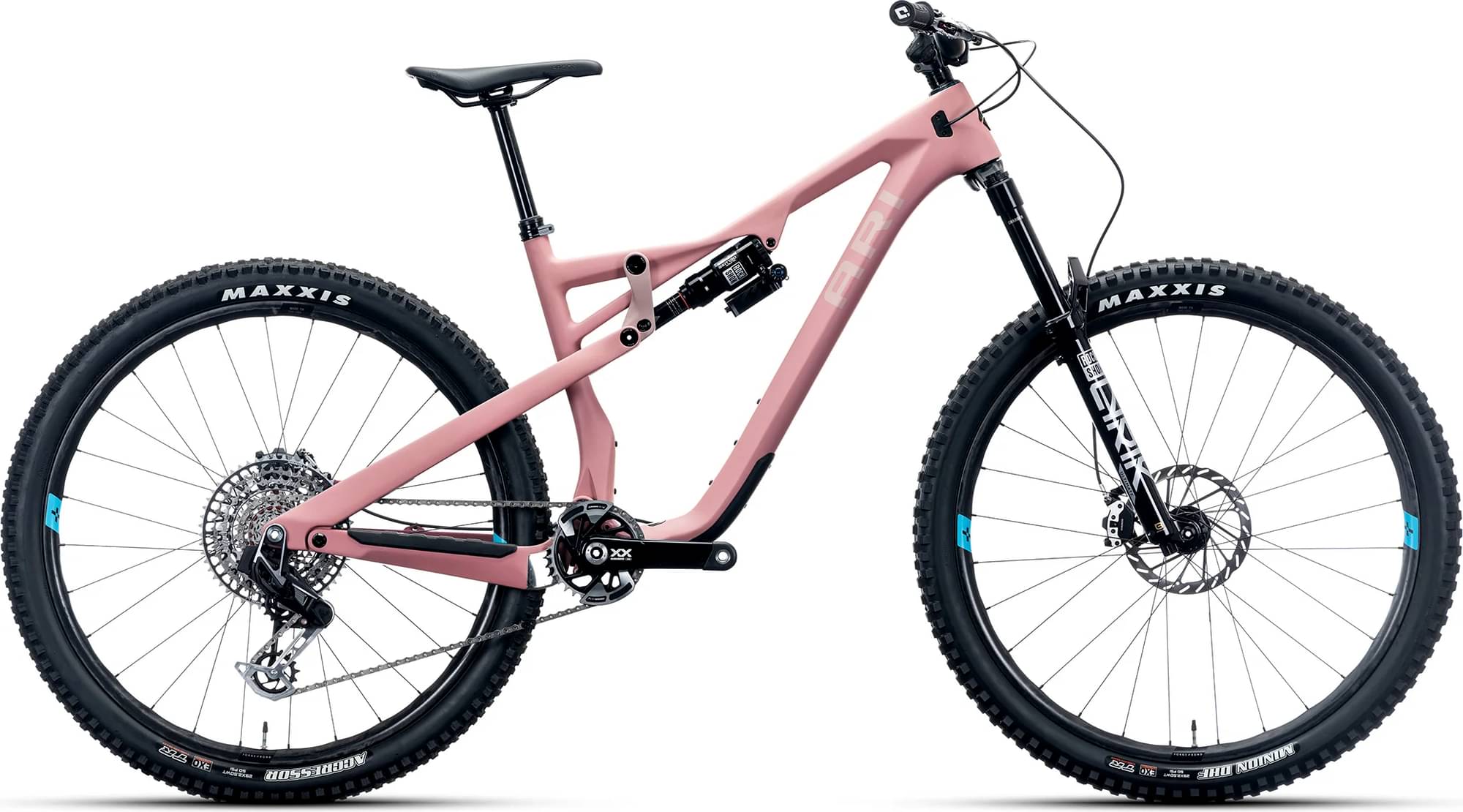

Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 142mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
Rockshox Lyrik Ultimate, Charger 3.1, Buttercups, 29 150mm
Rear Shock
Rockshox Super Deluxe Ultimate, RC2T Hydraulic Bottom Out C2, 210x55, 25x8mm/30x8mm, Custom Tuned
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD 12-Speed
Cassette
SRAM XS-1297 T-Type XX Eagle, 10-52t, 12-speed
Crank
SRAM XX Eagle Dual Guard, DUB Wide-customized sizing through Ari Custom Setup
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XX Eagle T-Type 12-speed
Pedals
Available Separately
Wheels
Front Hub
F: Industry Nine 1/1 Disc, 28H 15x110 Thru Axle, R: Industry Nine 1/1 Disc, 32H, 148x12mm thru axle, XD
Rear Hub
F: Industry Nine 1/1 Disc, 28H 15x110 Thru Axle, R: Industry Nine 1/1 Disc, 32H, 148x12mm thru axle, XD
Rims
Forge and Bond EM 30 Carbon, 29, 30mm, F: 28 Hole, R: 32 Hole, Disc, Tubeless Ready
Spokes
Sapim D-Light J Bend
Tires
Maxxis Minion DHF 29x2.5WT, EXO, Tubeless Ready. Aggressor 29x2.5WT, EXO, Tubeless Ready
Brakes
Brakes
SRAM CODE Ultimate Stealth, HS2 200/200mm F/R rotors
Cockpit
Stem
Raceface Turbine Stem
Handlebar
Raceface ERA 35mm, bar-customized sizing through Ari Custom Setup™
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Ergon SM10
Seatpost
Fox Transfer Performance Elite Dropper- customized sizing through Ari Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
