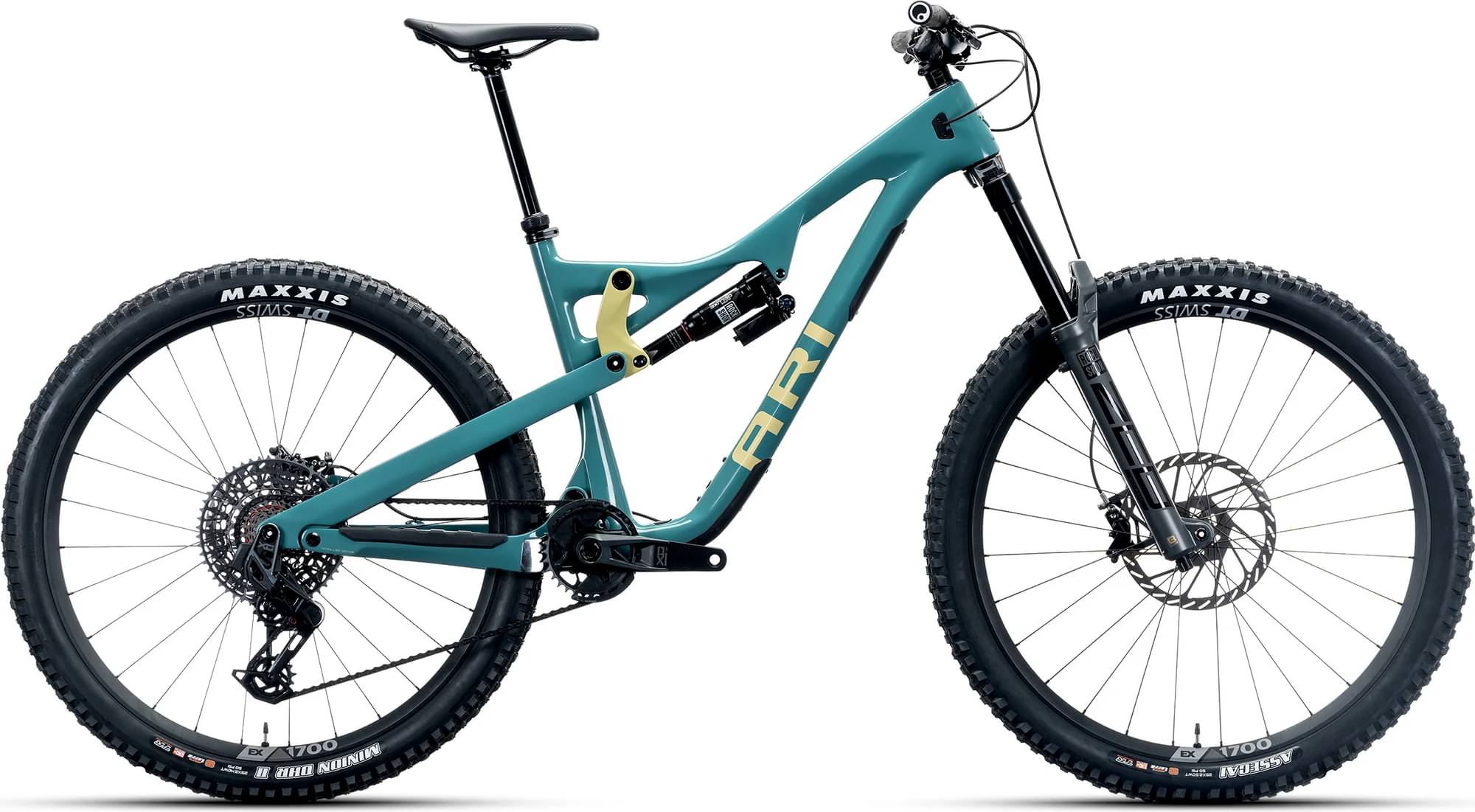

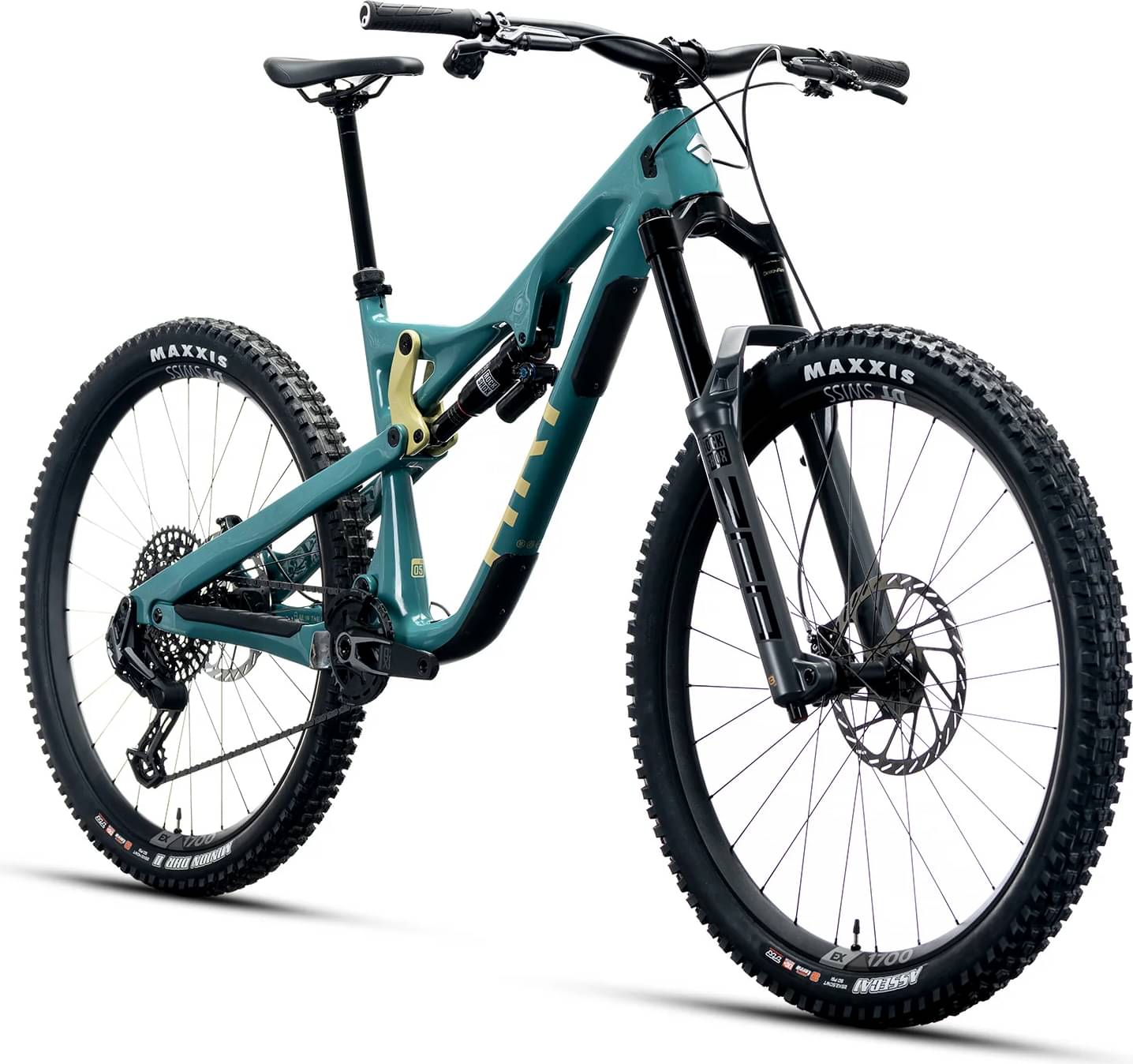

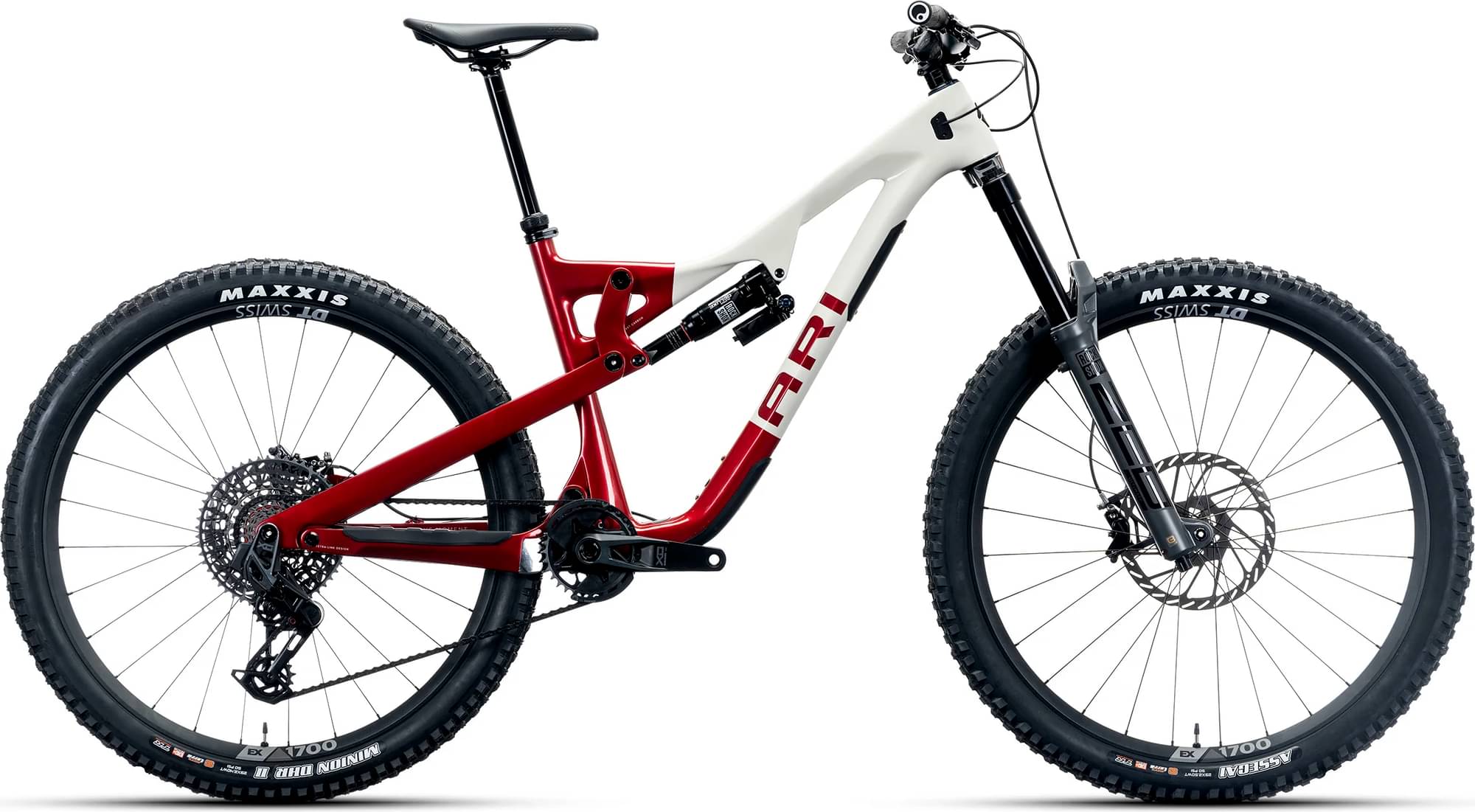

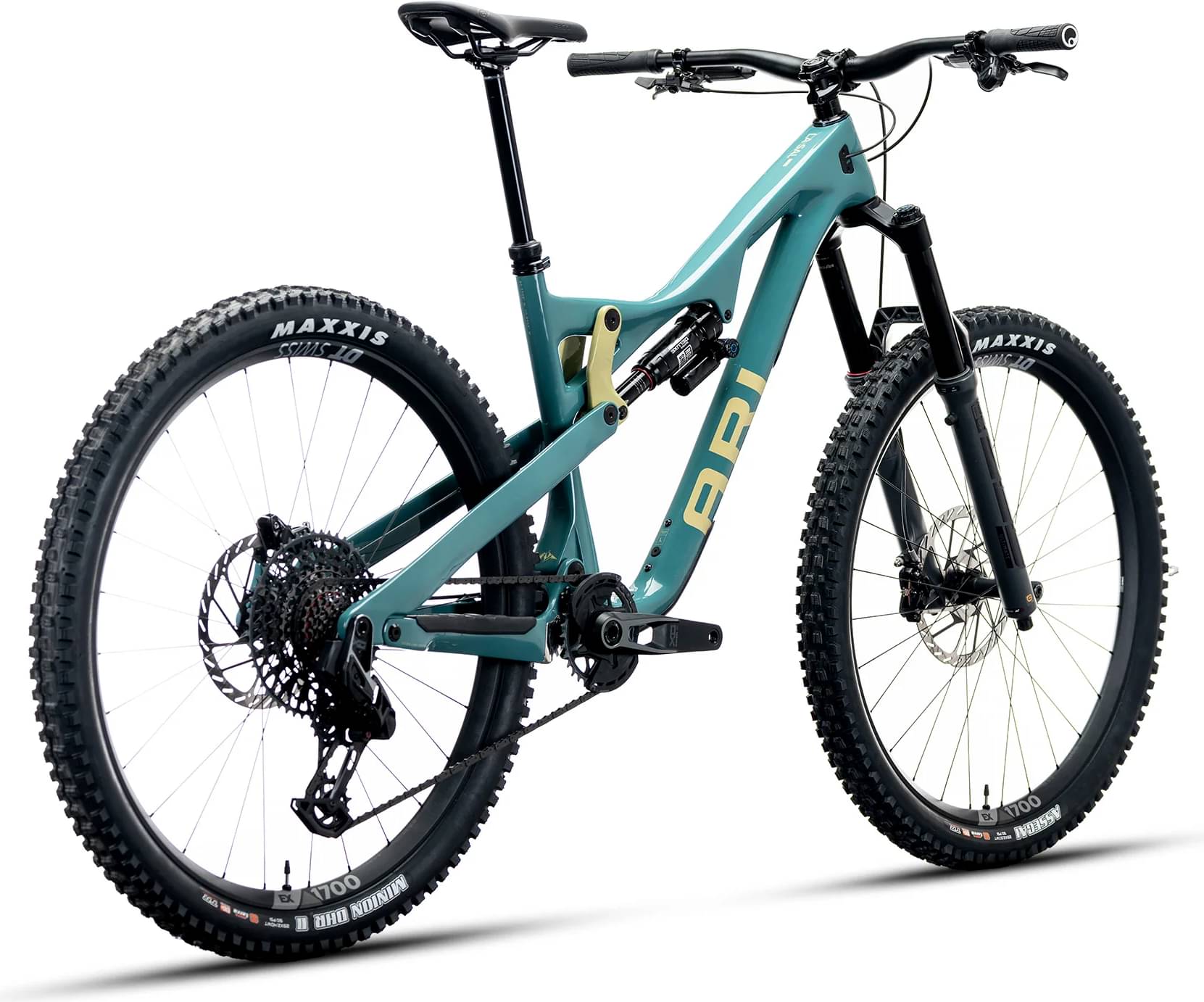

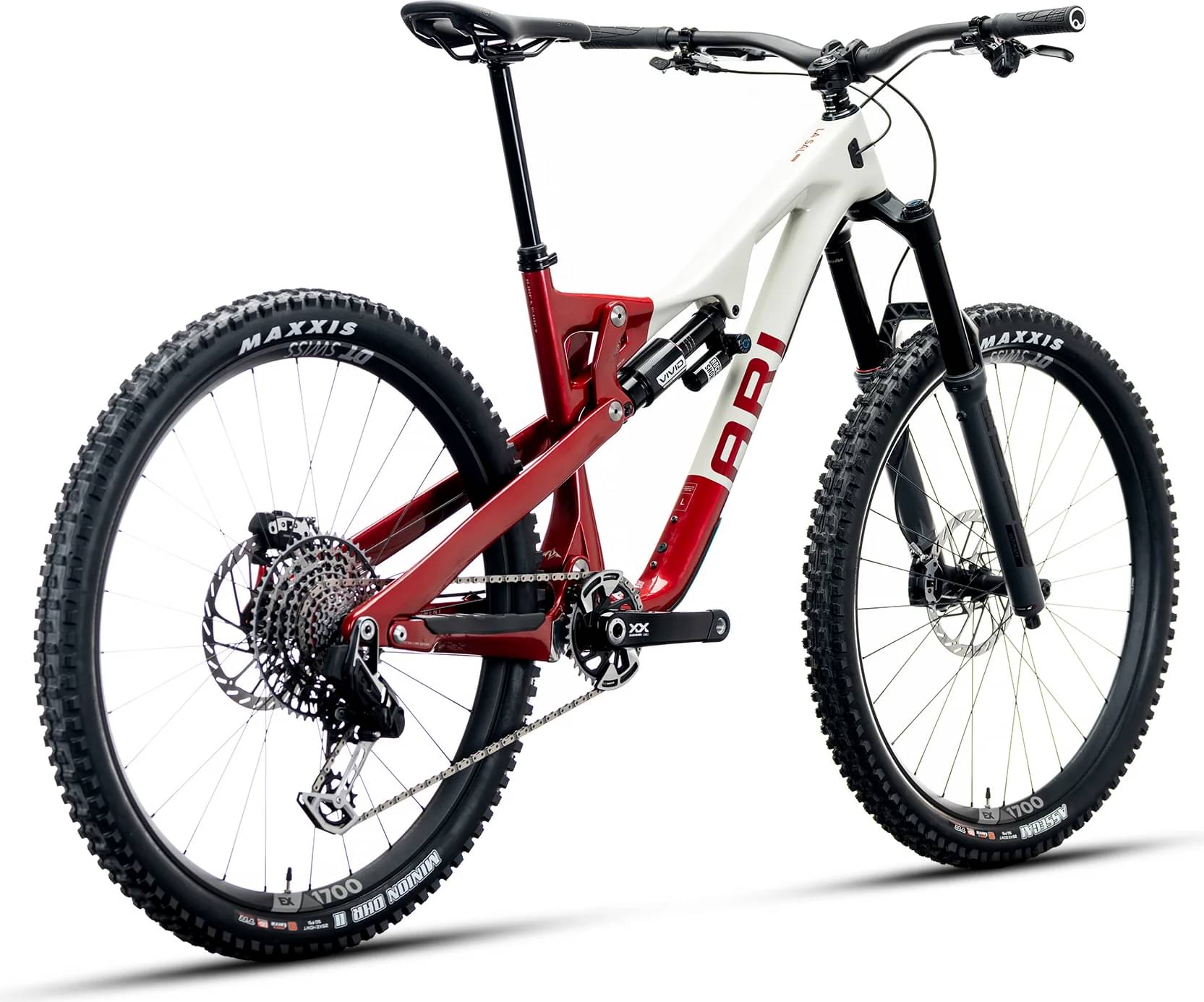

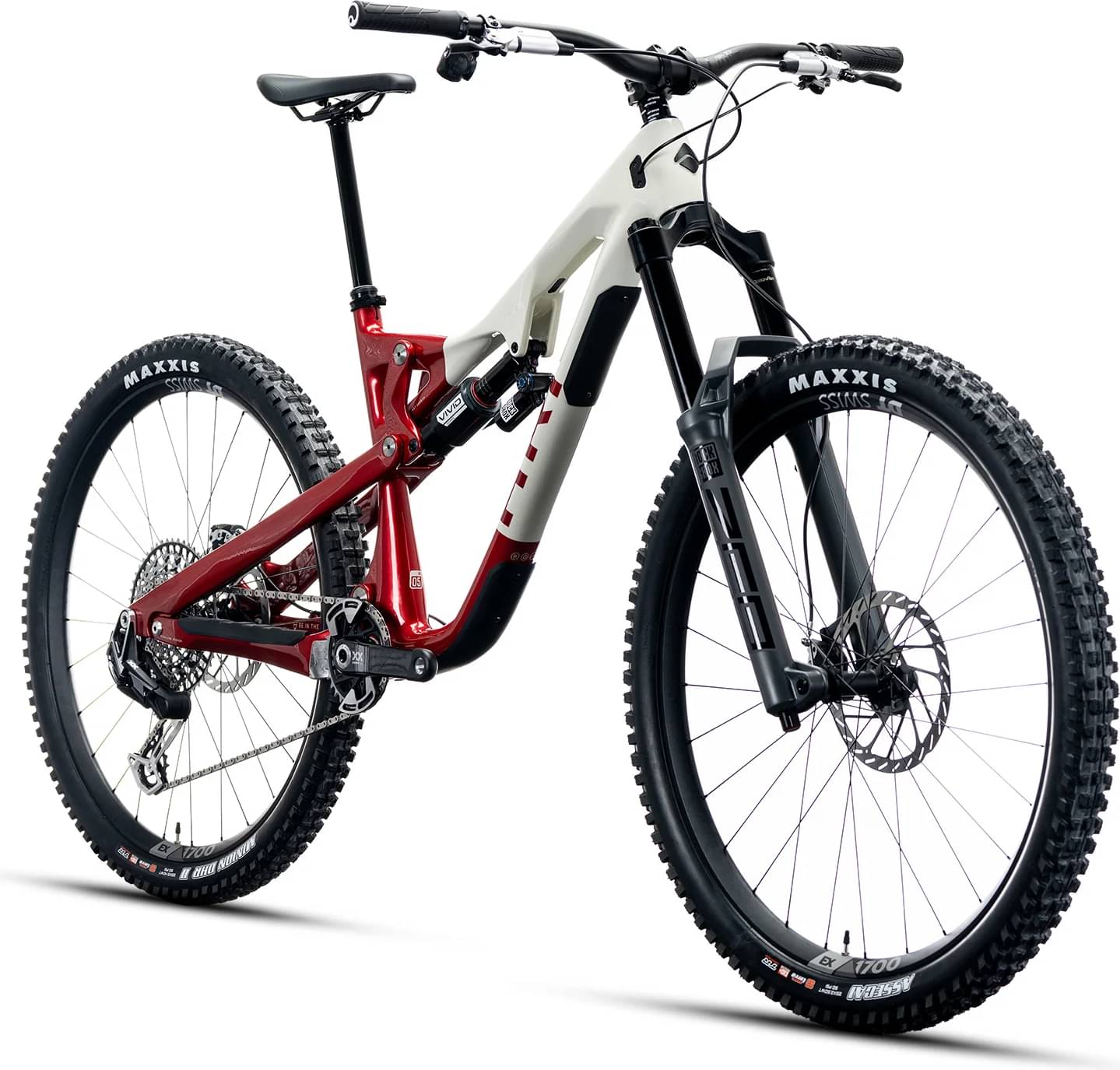

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ari La Sal Peak 2.0 CleanCast™ Carbon TetraLink™ Full Suspension, 170mm travel. Internal Full Tube-Tube cable routing for rear brake, rear shifter, and dropper post. CleanCatch™ rattle-proof cable guides. UDH derailleur hanger. ISCG-05 mounts. (all frame sizes)
Suspension Fork
Rockshox ZEB Ultimate RC2, Charger 3 Buttercups, 170mm travel, 15x110 Axle, 42mm offset, tapered steerer
Rear Shock
RockShox Super Deluxe Ultimate RC2T, 230x65, Bearing Mount Hardware, Custom Tuned
Drivetrain
Rear Derailleur
SRAM XO Eagle Transmission 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD 12-Speed
Cassette
SRAM XS-1295 XO Eagle, 10-52t, 12-speed
Crank
SRAM XO Eagle Daul Guard, DUB Wide-customized sizing through 23-Point Custom Setup
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XO Eagle Transmission Flattop 12-speed
Pedals
Available Separately
Wheels
Front Hub
DT Swiss EX 1700 Spline, Ratchet System 36 SL
Rear Hub
DT Swiss EX 1700 Spline, Ratchet System 36 SL
Rims
DT Swiss EX 1700 Spline, 29, Tubeless Ready
Spokes
DT Swiss EX 1700 Spline
Tires
Maxxis Assegai 29x2.5WT, EXO+, 3C, TR Protection, Tubeless Ready. DH-R 29x2.4WT, EXO+, 3C, TR Protection, Tubeless Ready
Brakes
Brakes
SRAM CODE Silver Stealth, HS2 220/200mm F/R rotors
Cockpit
Stem
Ari Charger CNC 35 stem
Handlebar
Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Ergon SM10
Seatpost
PNW Loam Dropper- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.366 mm | 1.3 mm | 1.254 mm |
| Bottom Bracket Height | 347.6 mm | 347.6 mm | 347.6 mm | 347.6 mm |
| Front Center | 770 mm | 795 mm | 829 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 144 mm | 144 mm | 144 mm | 144 mm |
| Stack | 612.6 mm | 621.6 mm | 630.6 mm | 639.5 mm |
| Reach | 435 mm | 455 mm | 485 mm | 510 mm |
| Top Tube Length | 568.1 mm | 584.9 mm | 613.1 mm | 637.2 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1206 mm | 1230 mm | 1264 mm | 1294 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 739 mm | 741 mm | 742 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
