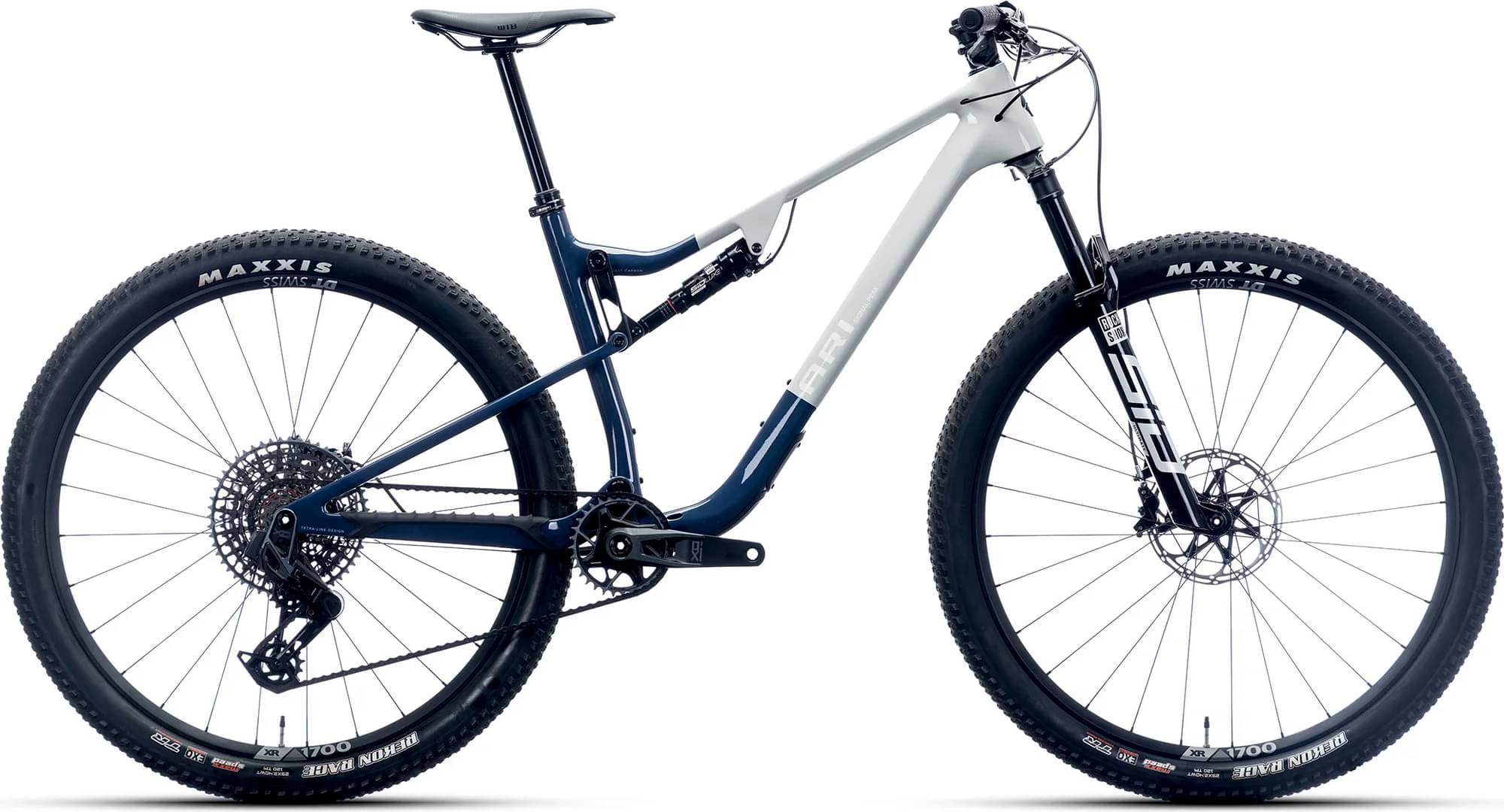

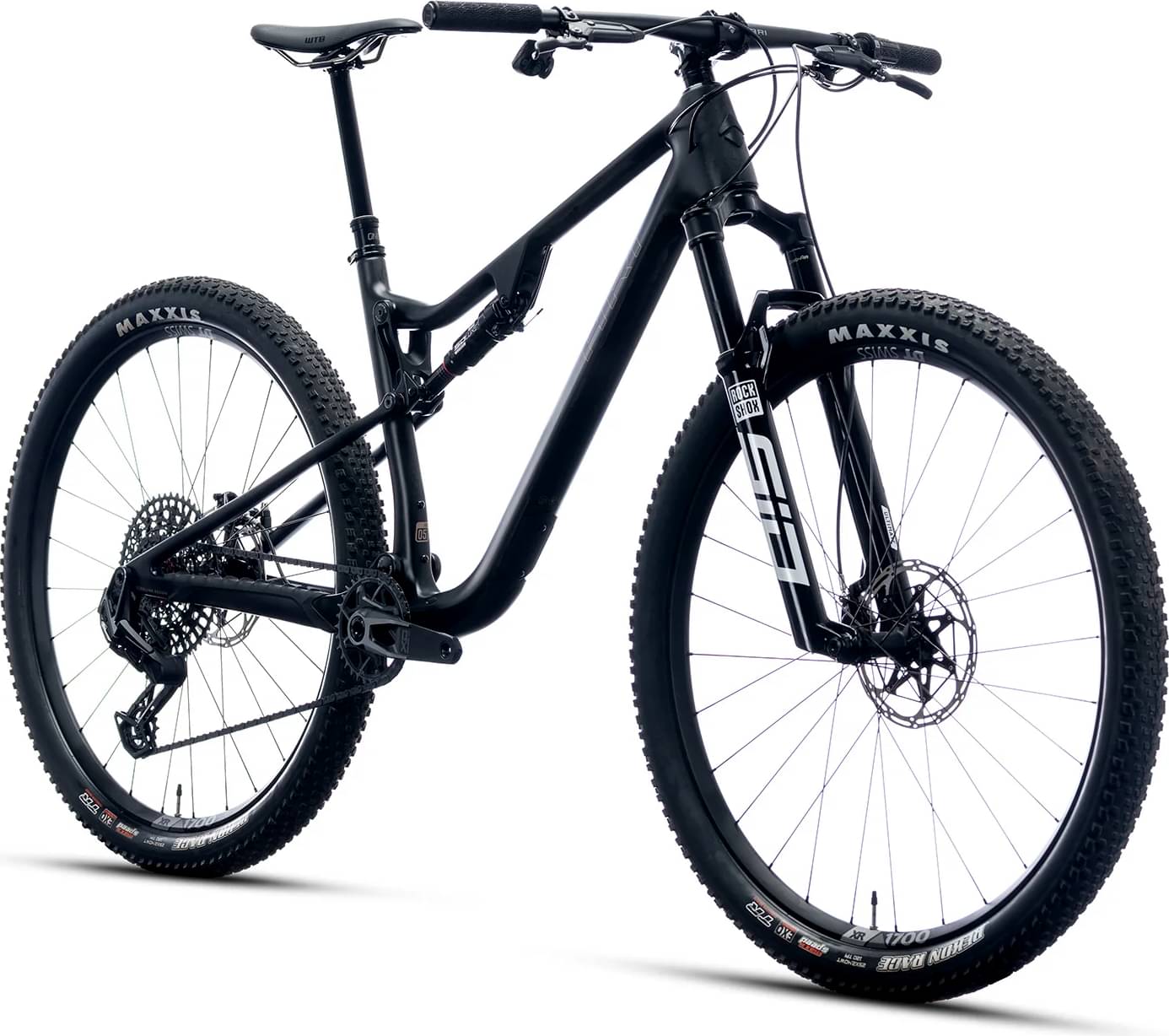

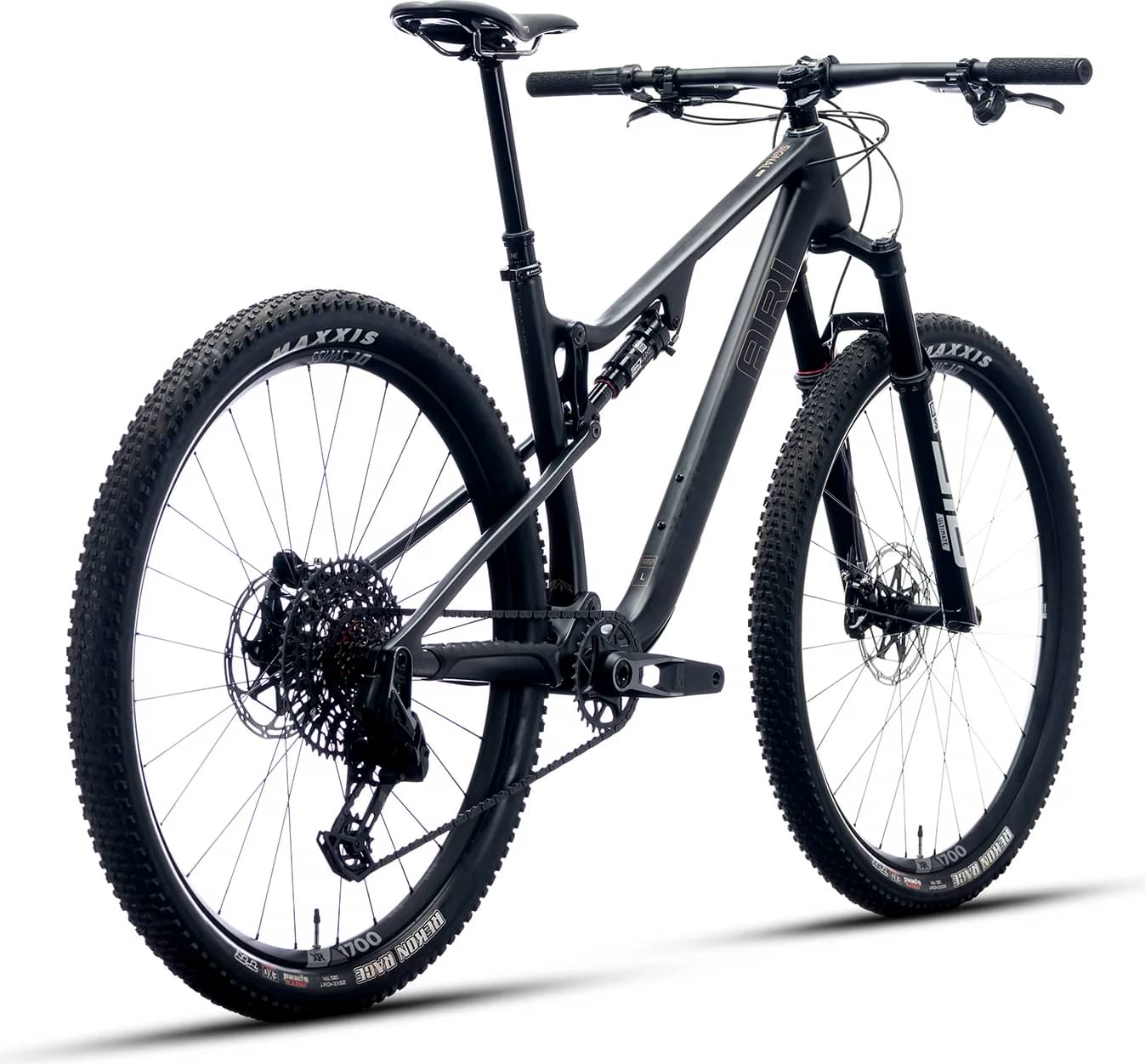

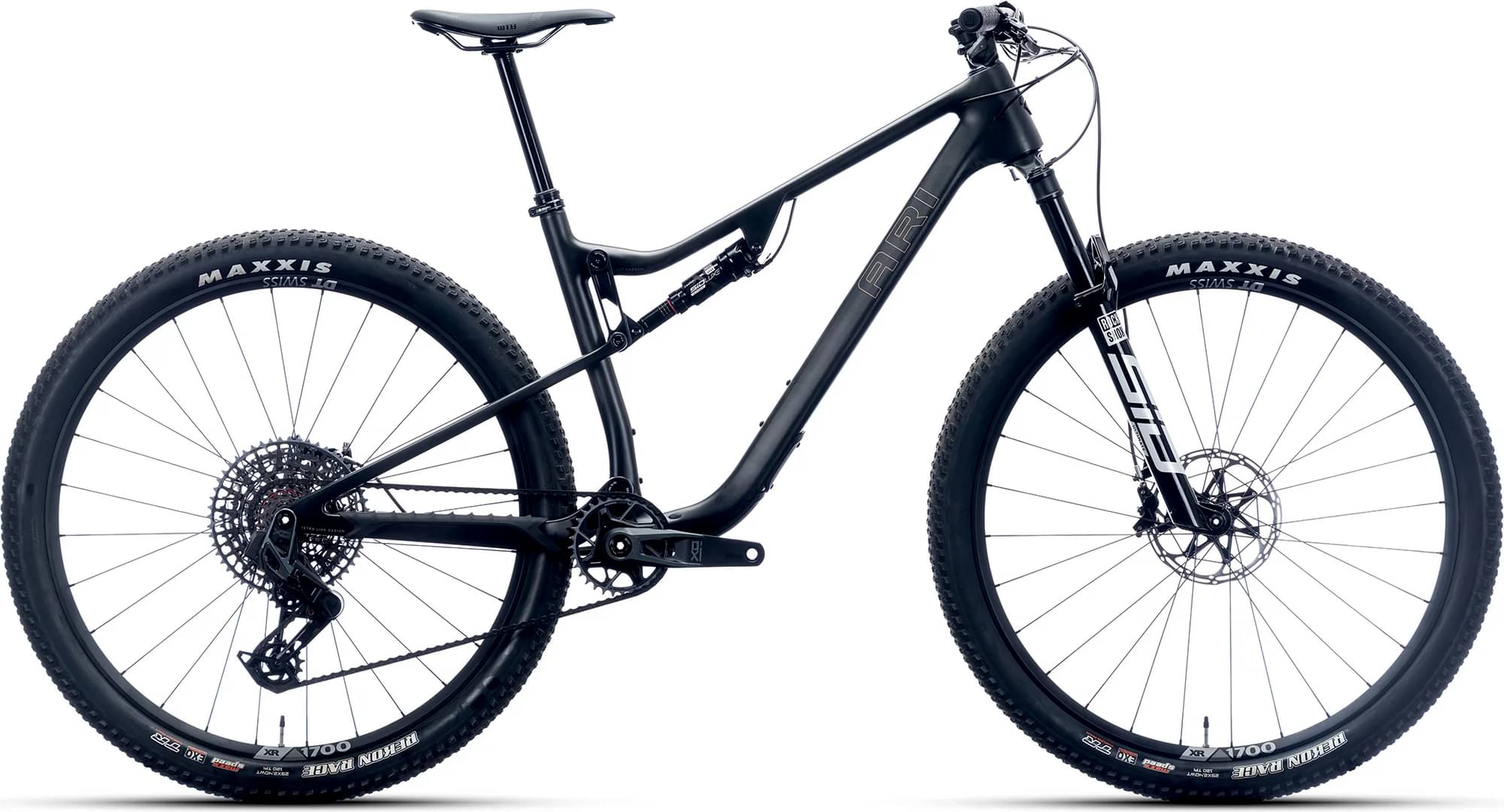

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox SID Ultimate
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ari Signal Peak 3.0 Clean Cast™ Carbon, 110mm of Tetra-Link™ Race Lite suspension travel, internal tube-in-tube cable routing, 12x148mm Full-Mount UDH dropout, threaded BB, 2 bottle cage mounts (all frame sizes)
Suspension Fork
Rockshox SID Ultimate, 3 Position Remote, Charger Race Day 2, DebonAir+ 120mm travel, 15x110 Axle, tapered steerer
Rear Shock
Rockshox SIDLuxe Ultimate, 3 Position Remote, 190x45mm, Custom Tuned
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission, 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD
Cassette
SRAM XS-1295 X0 Eagle Transmission, 10-52t, 12-Speed
Crank
SRAM X0 Eagle, DUB Wide -customized sizing through Ari Custom Setup
Bottom Bracket
SRAM DUB BSA MTB73
Chain
SRAM X0 Eagle Transmission Flattop, 12-Speed
Pedals
Available Separately
Wheels
Front Hub
F: DT Swiss 350, Disc, 15x110 thru axle, R: DT Swiss 350 Ratchet System 36 SL, Disc, 12x148 thru axle, XD
Rear Hub
F: DT Swiss 350, Disc, 15x110 thru axle, R: DT Swiss 350 Ratchet System 36 SL, Disc, 12x148 thru axle, XD
Rims
DT Swiss XR 1700, 29, 28 hole, disc specific, tubeless ready
Spokes
DT Swiss Competition Straightpull
Tires
Maxxis Rekon Race 29x2.4WT, Maxxspeed, EXO, Tubeless Ready
Brakes
Brakes
SRAM Motive Silver Disc Brake 4-Pistion, Centerline X 180/180 F/R rotors
Cockpit
Stem
Ari CNC 31.8 stem
Handlebar
Ari XC 31.8, width 760mm, 0mm rise, 9° back sweep, 0° Up sweep, bar-customized sizing through Ari Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
WTB Silverado 265 Medium Stainless Fusion Form
Seatpost
OneUp V3 Dropper- customized sizing through Ari Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.364 mm | 1.311 mm | 1.248 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 719 mm | 742 mm | 773 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 114 mm | 115 mm |
| Stack | 597.9 mm | 607.1 mm | 616.3 mm | 630.1 mm |
| Reach | 425 mm | 445 mm | 470 mm | 505 mm |
| Top Tube Length | 574.1 mm | 596.3 mm | 623.6 mm | 662.1 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1146 mm | 1170 mm | 1200 mm | 1240 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 748 mm | 748 mm | 748 mm | 758 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
