Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

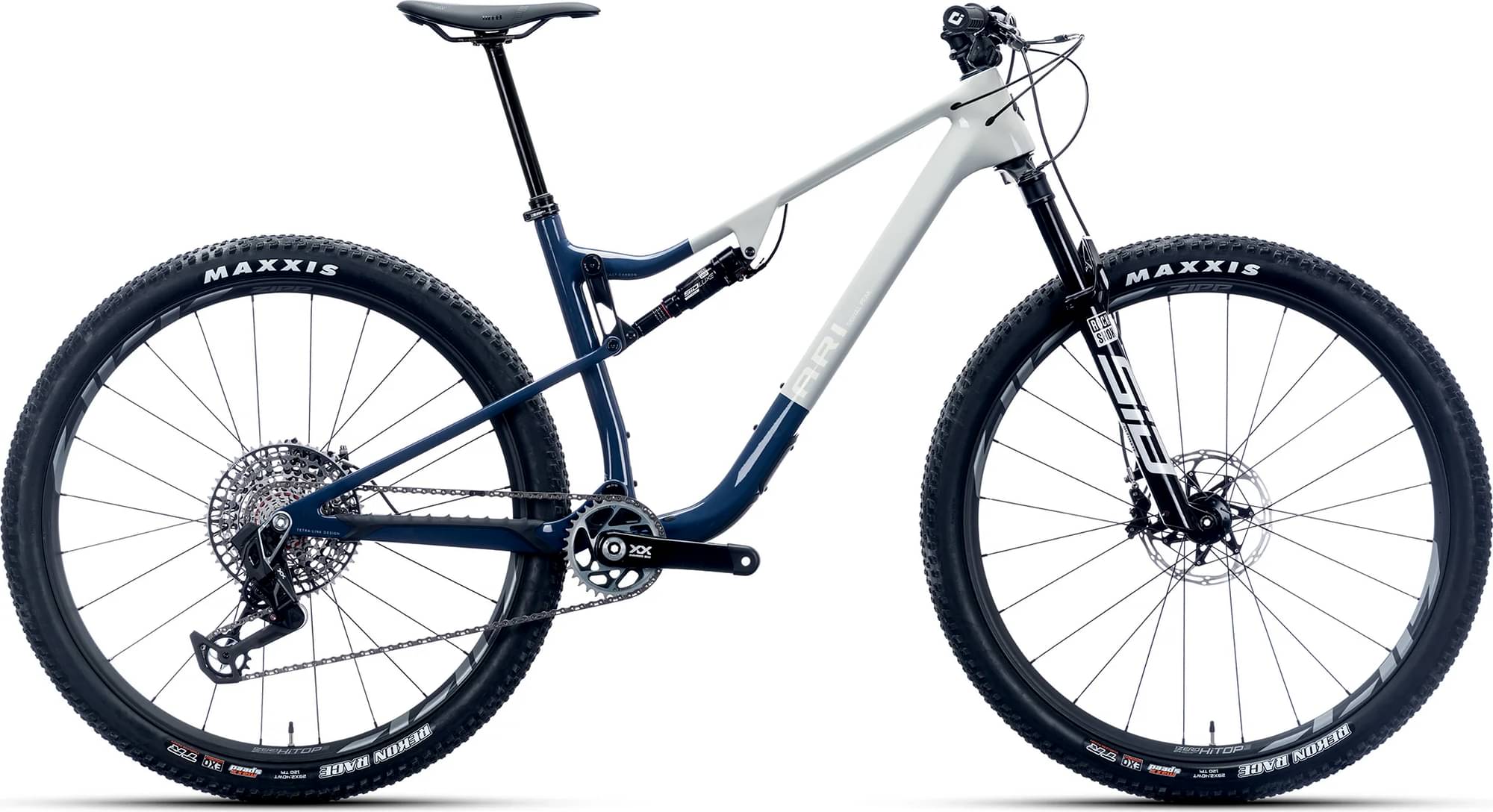

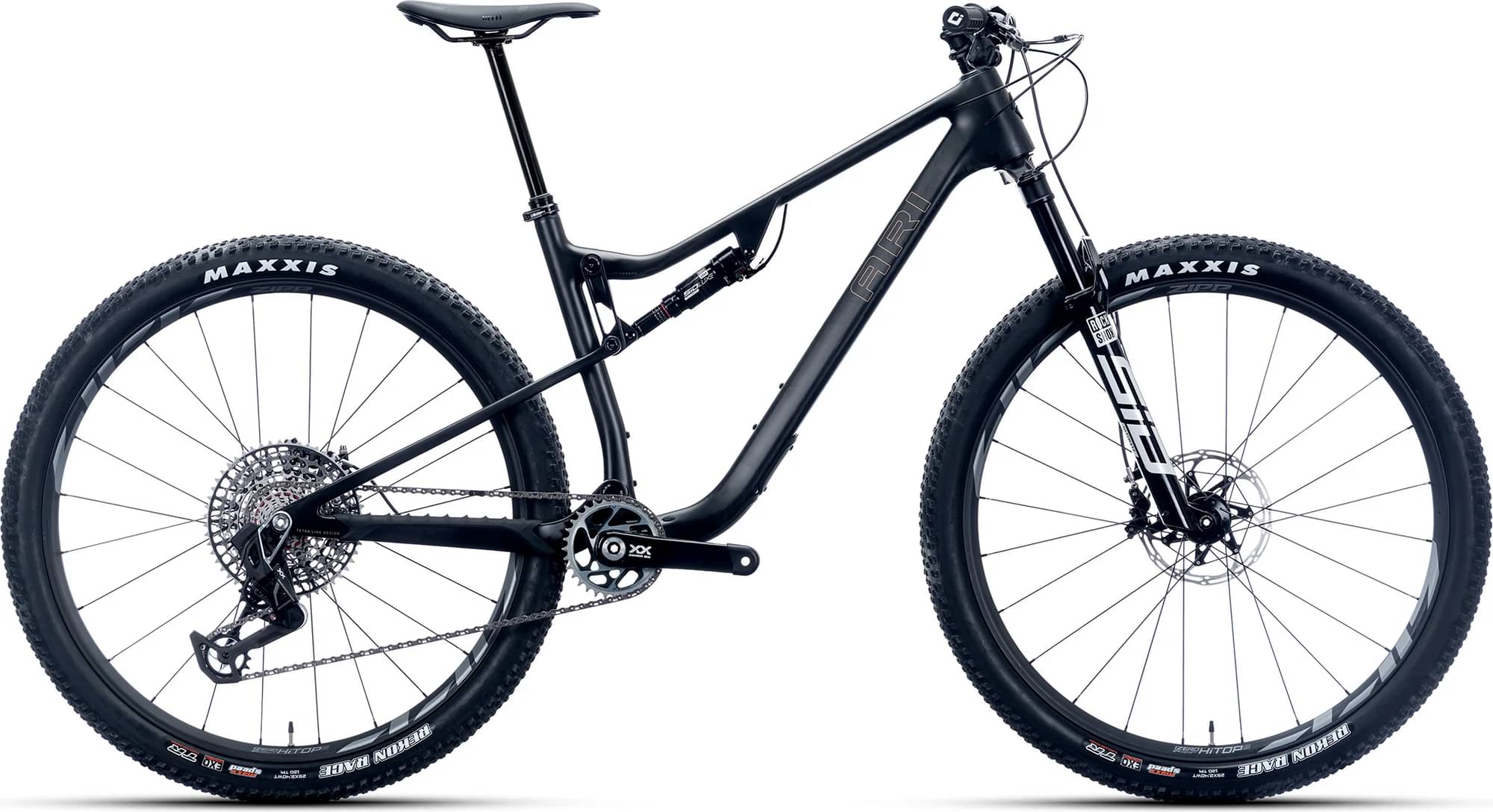

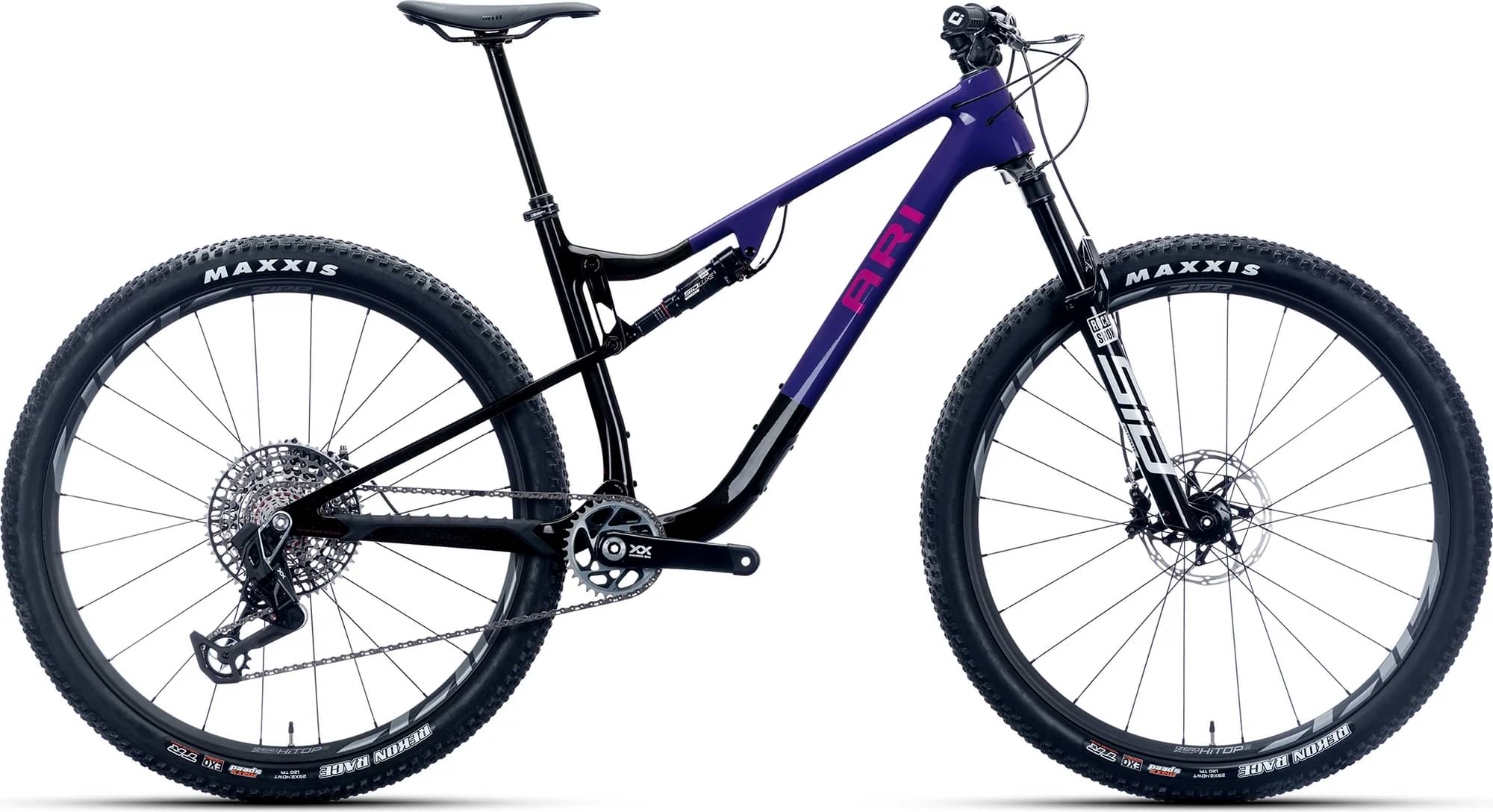

Ari Signal Peak 3.0 Clean Cast™ Carbon, 110mm of Tetra-Link™ Race Lite suspension travel, internal tube-in-tube cable routing, 12x148mm Full-Mount UDH dropout, threaded BB, 2 bottle cage mounts (all frame sizes)
Suspension Fork
Rockshox SID Ultimate, 3 Position Remote, Charger Race Day 2, DebonAir+ 120mm travel, 15x110 Axle, tapered steerer, Flight Attendant Available at checkout
Rear Shock
Rockshox SIDLuxe Ultimate, 3 Position Remote, 190x45mm, Custom Tuned, Flight Attendant Available at checkout
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission, 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD
Cassette
SRAM XS-1299 XX SL Eagle Transmission, 10-52t, 12-Speed
Crank
SRAM XX SL Eagle, DUB Wide -customized sizing through Ari Custom Setup
Bottom Bracket
SRAM DUB BSA MTB73
Chain
SRAM XX SL Eagle Transmission Flattop, 12-Speed
Pedals
Available Separately
Wheels
Front Hub
F: ZIPP ZM900, Disc, 15x110 thru axle, R: ZIPP ZM900, Disc, 12x148 thru axle, XD
Rear Hub
F: ZIPP ZM900, Disc, 15x110 thru axle, R: ZIPP ZM900, Disc, 12x148 thru axle, XD
Rims
Zipp 1Zero Hitop S Carbon 29 Tubeless Ready
Spokes
Sapim CX-Sprint J-Bend
Tires
Maxxis Rekon Race 29x2.4WT, Maxxspeed, EXO, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate Stealth 4-Piston, 180/180mm F/R Rotors
Cockpit
Stem
Raceface Turbine SL, 35mm
Handlebar
Raceface Era 35 Handlebar - 760mm Wide, 35mm Clamp, 10mm Rise, bar-customized sizing through Ari Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
WTB Silverado 265 Medium Titanium Fusion Form
Seatpost
Fox Transfer Performance Elite Dropper- customized sizing through Ari Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.364 mm | 1.311 mm | 1.248 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 719 mm | 742 mm | 773 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 114 mm | 115 mm |
| Stack | 597.9 mm | 607.1 mm | 616.3 mm | 630.1 mm |
| Reach | 425 mm | 445 mm | 470 mm | 505 mm |
| Top Tube Length | 574.1 mm | 596.3 mm | 623.6 mm | 662.1 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1146 mm | 1170 mm | 1200 mm | 1240 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 748 mm | 748 mm | 748 mm | 758 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
