Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

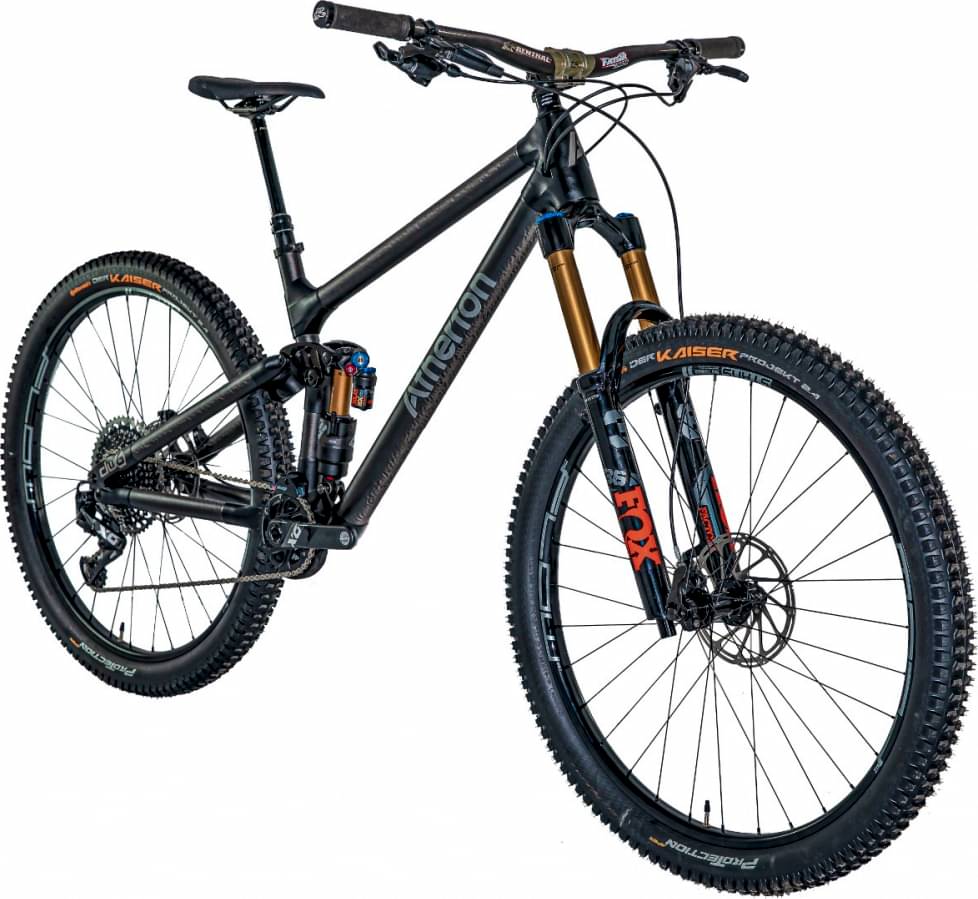

Atherton A.150
Suspension Fork
Fox 36 Factory, 29", Grip2. 160mm, Boost, 44mm, 29”
Rear Shock
Fox Float X2, 2 Position Lever. Trunnion, 205x60mm
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM X01 EAGLE TRIGGER - 12 SPEED
Cassette
SRAM XG-1295 - 10-52t
Crank
X01 EAGLE BOOST 148 DUB 32T X-SYNC
Bottom Bracket
SRAM DUB BSA - 73MM
Chain
SRAM X01 EAGLE Hollowpin
Wheels
Rims
Stans MK4 Flow 29" 110X15 148X12
Tires
Continental Kryptotal
Brakes
Brakes
SRAM Centreline
Cockpit
Stem
Renthal Apex 40mm
Handlebar
Renthal V2 Carbon Fatbar
Grips
Renthal Traction Ultratacky
Headset
FSA S
Seat
Saddle
ProLogo Proxim 450
Seatpost
Fox Transfer Factory
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm - Low | 42cm - Low | 43cm - Low | 44cm - Low | 45cm - Low | 45cm | 46cm - Low | 46cm | 47cm - Low | 47cm | 48cm - Low | 48cm | 49cm | 49cm - Tall | 50cm | 51cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.474 mm | 1.44 mm | 1.407 mm | 1.396 mm | 1.424 mm | 1.365 mm | 1.393 mm | 1.336 mm | 1.364 mm | 1.308 mm | 1.335 mm | 1.308 mm | 1.308 mm | 1.282 mm | 1.257 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 736 mm | 746 mm | 756 mm | 766 mm | 780 mm | 780 mm | 790 mm | 790 mm | 800 mm | 800 mm | 810 mm | 810 mm | 827 mm | 827 mm | 837 mm | 847 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 40 mm | 45 mm | 40 mm | 45 mm | 40 mm | 45 mm | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 124 mm | 124 mm | 124 mm | 124 mm | 125 mm | 130 mm | 125 mm | 130 mm | 125 mm | 130 mm | 125 mm | 130 mm | 124 mm | 124 mm | 124 mm | 124 mm |
| Stack | 619 mm | 619 mm | 619 mm | 619 mm | 628 mm | 641 mm | 628 mm | 641 mm | 628 mm | 641 mm | 628 mm | 641 mm | 641 mm | 641 mm | 641 mm | 641 mm |
| Reach | 410 mm | 420 mm | 430 mm | 440 mm | 450 mm | 450 mm | 460 mm | 460 mm | 470 mm | 470 mm | 480 mm | 480 mm | 490 mm | 490 mm | 500 mm | 510 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm | 415 mm | 395 mm | 415 mm | 395 mm | 415 mm | 395 mm | 415 mm | 415 mm | 440 mm | 415 mm | 415 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 125 mm | 110 mm | 125 mm | 110 mm | 125 mm | 110 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1167 mm | 1177 mm | 1187 mm | 1197 mm | 1216 mm | 1216 mm | 1226 mm | 1226 mm | 1236 mm | 1236 mm | 1246 mm | 1246 mm | 1268 mm | 1268 mm | 1278 mm | 1288 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 725 mm | 705 mm | 725 mm | 705 mm | 725 mm | 705 mm | 725 mm | 725 mm | 745 mm | 725 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
