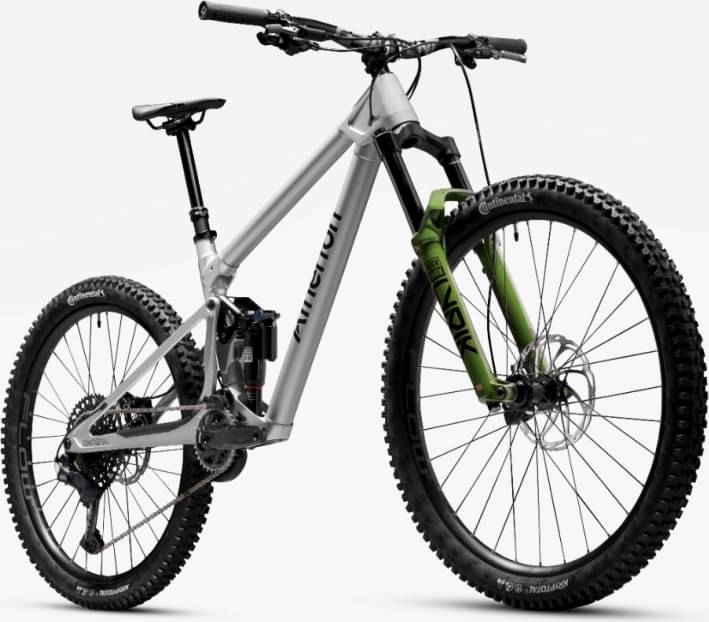

Atherton S.150.2 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Mountain
- |
- Enduro
Frame Aluminum
Travel Front 160mm
Travel Rear 150mm
Fork RockShox Lyrik Ultimate
Groupset GX Eagle
Suspension Full
Drivetrain 1 × 12
Brakes Hayes Dominion A4 Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Atherton S.150

Suspension Fork

RockShox Lyrik Ultimate 160mm

Drivetrain

Rear Derailleur

SRAM GX Eagle

Shift Levers

SRAM GX Eagle

Cassette

SRAM GX Eagle 10-50

Crank

SRAM GX Eagle 165mm 32t

Bottom Bracket

SRAM DUB 73mm Threaded

Chain

SRAM GX Eagle

Wheels

Rims

Stans Flow S2 29", 27.5" e-Sync

Tires

Continental Krypototal Enduro 2.4

Brakes

Hayes Dominion A4

Cockpit

Stem

FSA Gradient 35x35

Grips

ODI Flow

Headset

FSA Trail

Seat

Saddle

SHOCK, Prologo Nembo 145mm Cromo, RockShox Super Deluxe Ultimate

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SIZE 01	SIZE 02	SIZE 03	SIZE 04	SIZE 05	SIZE 06	SIZE 07	SIZE 08	SIZE 09	10"	11"	12"
Stack Reach Ratio	1.489 mm	1.454 mm	1.421 mm	1.389 mm	1.398 mm	1.368 mm	1.339 mm	1.311 mm	1.311 mm	1.285 mm	1.26 mm	1.236 mm
Bottom Bracket Height	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm
Front Center	741 mm	751 mm	761 mm	771 mm	785 mm	795 mm	805 mm	815 mm	826 mm	836 mm	846 mm	856 mm
Rake	35 mm	35 mm	35 mm	35 mm	31 mm	31 mm	31 mm	31 mm	27 mm	27 mm	27 mm	27 mm
Trail	131 mm	131 mm	131 mm	131 mm	135 mm	135 mm	135 mm	135 mm	140 mm	140 mm	140 mm	140 mm
Stack	618 mm	618 mm	618 mm	618 mm	636 mm	636 mm	636 mm	636 mm	649 mm	649 mm	649 mm	649 mm
Reach	415 mm	425 mm	435 mm	445 mm	455 mm	465 mm	475 mm	485 mm	495 mm	505 mm	515 mm	525 mm
Seat Tube Angle	77.5 °	77.5 °	77.5 °	77.5 °	78.5 °	78.5 °	78.5 °	78.5 °	79.5 °	79.5 °	79.5 °	79.5 °
Seat Tube Length	395 mm	395 mm	395 mm	395 mm	420 mm	420 mm	420 mm	440 mm	440 mm	460 mm	460 mm	480 mm
Head Tube Angle	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °	64.5 °
Head Tube Length	90 mm	90 mm	90 mm	90 mm	100 mm	100 mm	100 mm	100 mm	125 mm	125 mm	125 mm	125 mm
Chainstay Length	430 mm	430 mm	430 mm	430 mm	435 mm	435 mm	435 mm	435 mm	440 mm	440 mm	440 mm	440 mm
Wheelbase	1171 mm	1181 mm	1191 mm	1201 mm	1220 mm	1230 mm	1240 mm	1250 mm	1266 mm	1276 mm	1286 mm	1296 mm
Bottom Bracket Drop	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm
Standover Height	713 mm	713 mm	713 mm	713 mm	725 mm	725 mm	725 mm	725 mm	725 mm	740 mm	740 mm	740 mm
Wheels	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"
