Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
167cm - 177cm
19"
175cm - 186cm
21"
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR karbon Toray T700 / T800 / M40 monocoque MTB 29 FSX
Suspension Fork
FOX 32 Float SC 29 100 Remote air, lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT (12)
Cassette
SHIMANO CS-M7100, 10-51 (12)
Crank
SHIMANO XT, 34 teeth, 170 / 175 mm cranks
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO M7100
Wheels
Front Hub
AUTHOR Flyer Carbon 29 TR wheel set, 28 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle
Rear Hub
AUTHOR Flyer Carbon 29 TR wheel set, 28 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle
Rims
AUTHOR Flyer Carbon 29 TR wheel set, 28 holes
Spokes
SAPIM
Tires
VITTORIA Barzo TLR aramid 29" × 2.10" tubeless ready
Brakes
Brakes
SHIMANO XT, disc hydraulic (7" rotors)
Cockpit
Stem
RITCHEY WCS C220
Handlebar
RITCHEY MTN WCS 2 × 9, 9°, 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
PROLOGO X Zero II Tirox
Seatpost
RITCHEY WCS Carbon (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.388 mm | 1.323 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm |
| Front Center | 684 mm | 705 mm | 736 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 92 mm |
| Stack | 591 mm | 601 mm | 610 mm |
| Reach | 416 mm | 433 mm | 461 mm |
| Top Tube Length | 580 mm | 600 mm | 630 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1120 mm | 1141 mm | 1172 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 167 cm | 175 cm | 184 cm |
| Rider Max Height | 177 cm | 186 cm | 198 cm |
Model Overview

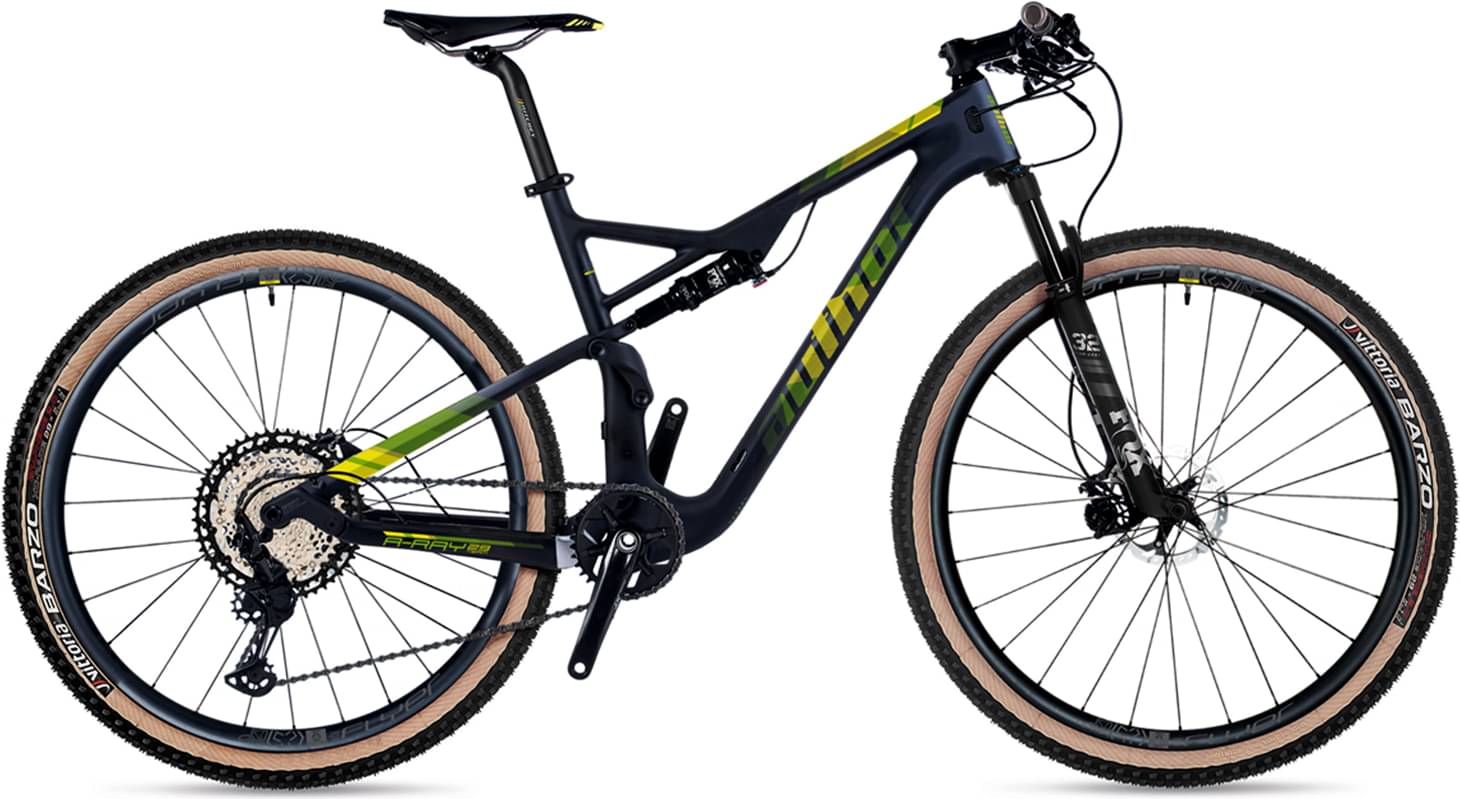

A-Ray 29 Team belongs to the Author A Ray model. Author released 5 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, A-Ray 29 Team has a weight of 10.5 kg (23.15 lbs). In conclusion, the average Crosscountry bike weighs 18.1% more than A-Ray 29 Team.
Overview of components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The A-Ray 29 Team 2024 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The A-Ray 29 Team comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
A-Ray 29 Team comes in 3 sizes, that range from 167 cm – 198 cm (5.48 ft – 6.5 ft). In short, you can easily find one that suits you.
