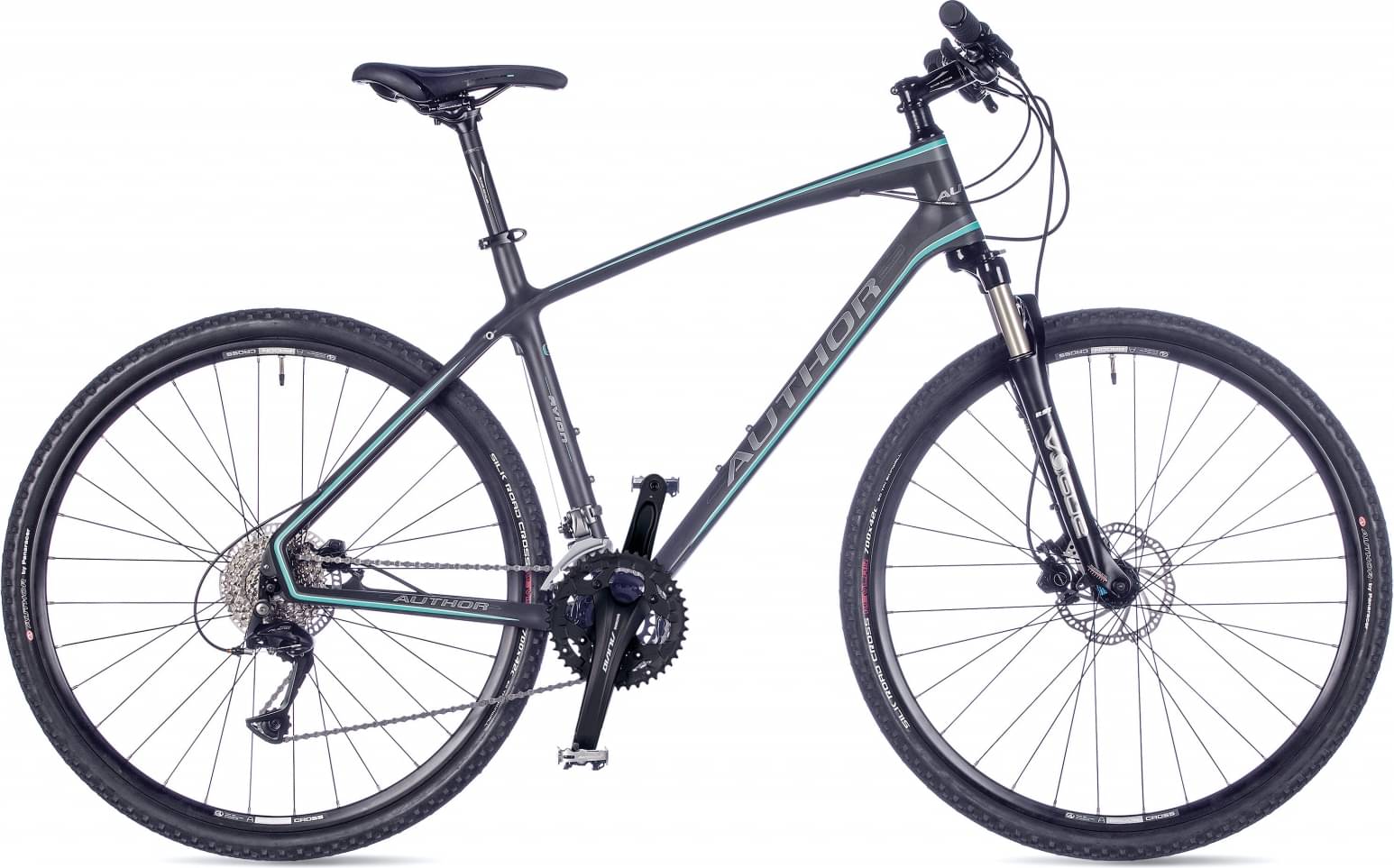

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 60mm -
Fork RST VOGUE
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
150cm - 166cm
18"
164cm - 176cm
20"
174cm - 186cm
22"
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AUTHOR C carbon monocoque 700c
Suspension Fork
RST Vogue Air air, lock out 1.5" tapered steerer (60 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Alivio (34.9)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG400-9 11-34 (9)
Crank
SHIMANO Alivio 44-32-22 teeth 170 / 175 mm cranks
Chain
SHIMANO HG53
Pedals
AUTHOR oneside clipless
Wheels
Front Hub
AUTHOR Radon 32 holes
Rear Hub
AUTHOR Radon 32 holes
Rims
AUTHOR Radon Cross 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR PANARACER Silk Road Cross kevlar 700 x 42c
Brakes
Brakes
TEKTRO Gemini disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 620 / 640 / 660 mm
Grips
AUTHOR Luxus ErgoGrip
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Front Center | 611 mm | 618 mm | 641 mm | 664 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 546 mm | 553 mm | 576 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 461 mm | 512 mm | 563 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1040 mm | 1047 mm | 1070 mm | 1093 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 198 cm |
About this model
Avion completes the Author Avion model. There are 5 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 11.8 kg (26.01 lbs), Author bike is much lighter than average. In conclusion, the average Hybrid bike weighs 17.37% more than Avion.
Avion components
Fork
The Avion comes factory-installed with the RST VOGUE fork. This has a travel range of 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Avion 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Avion is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
