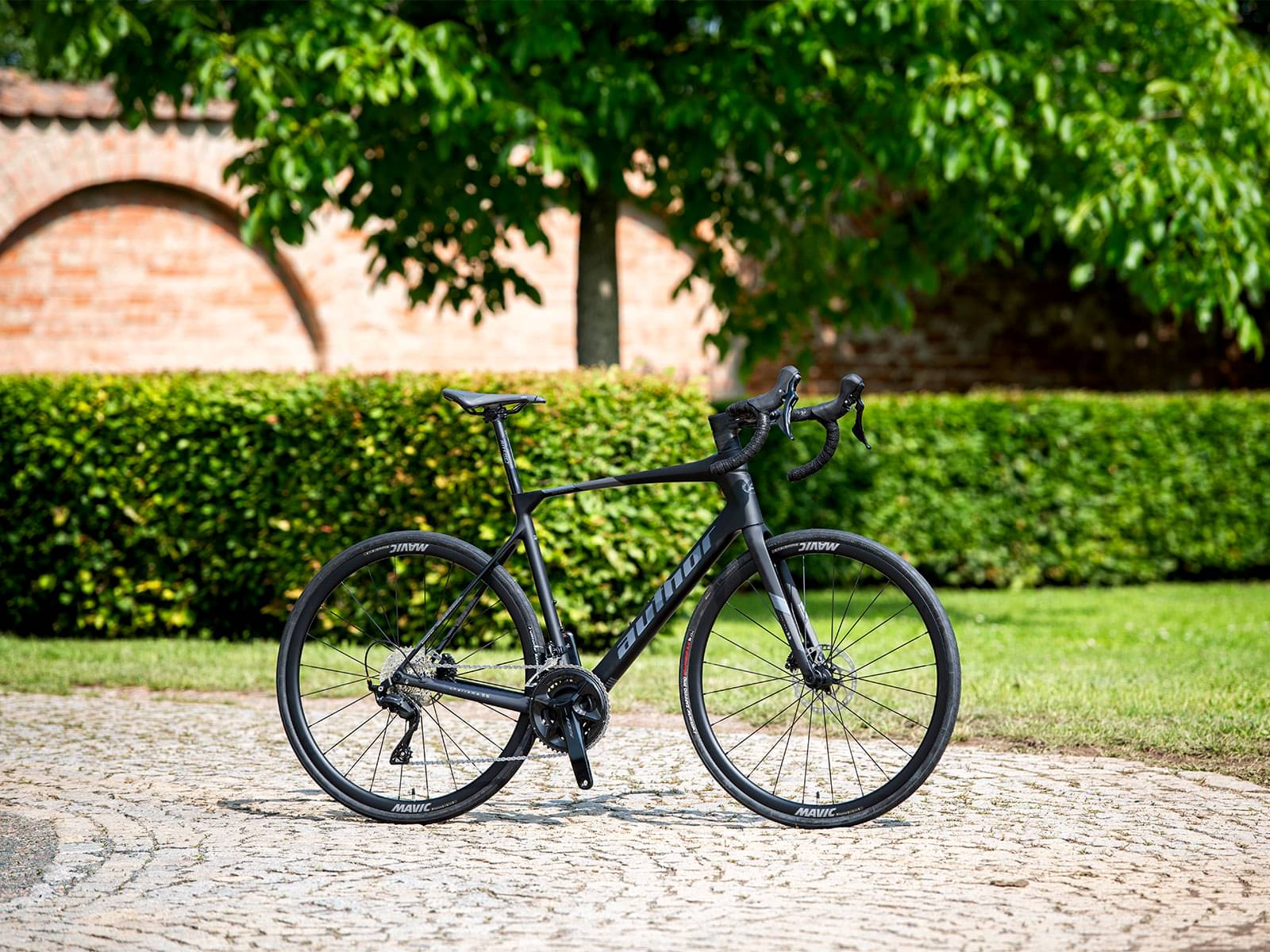

Bike details
Overview
Key information split into simple groups.

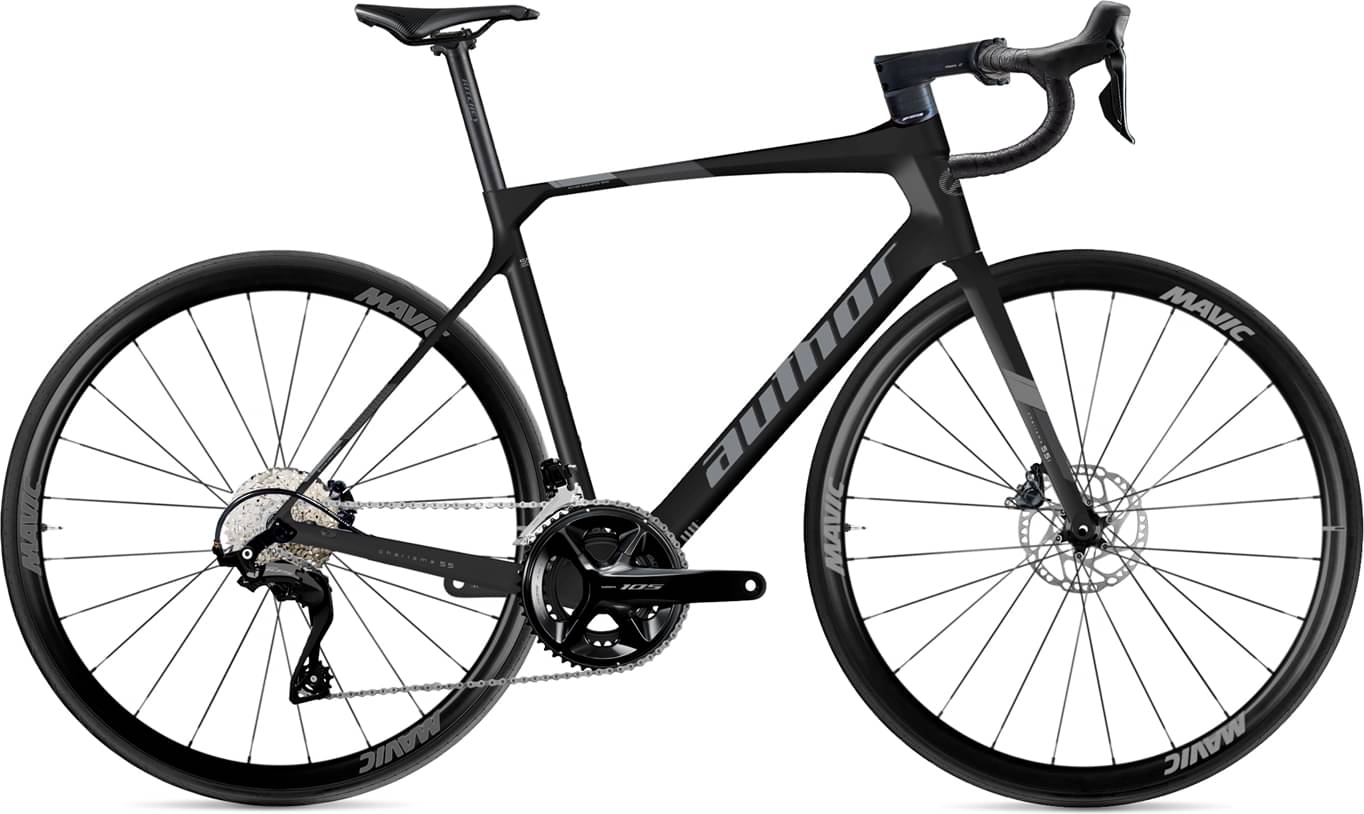

Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 178cm
LG
176cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

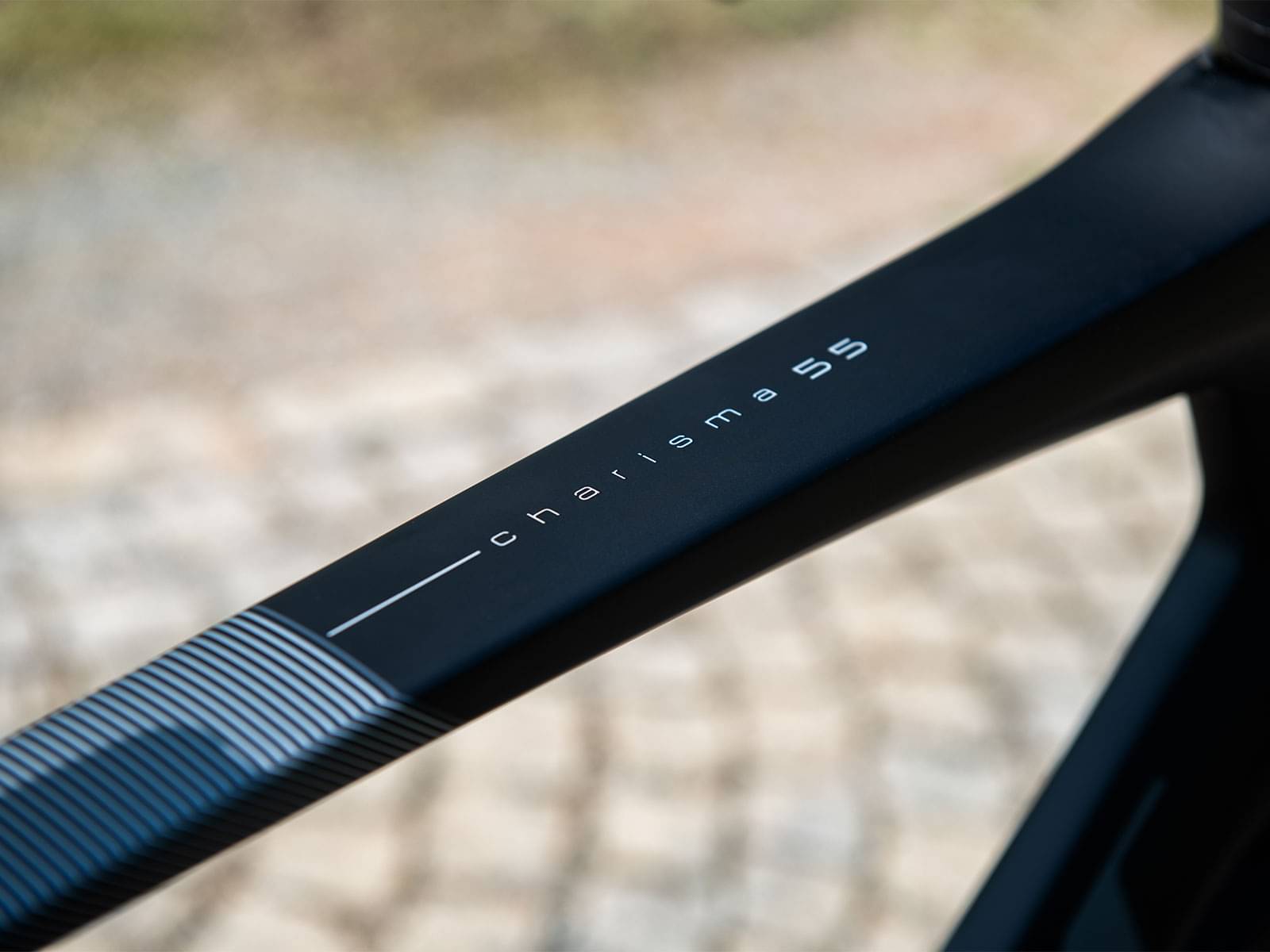

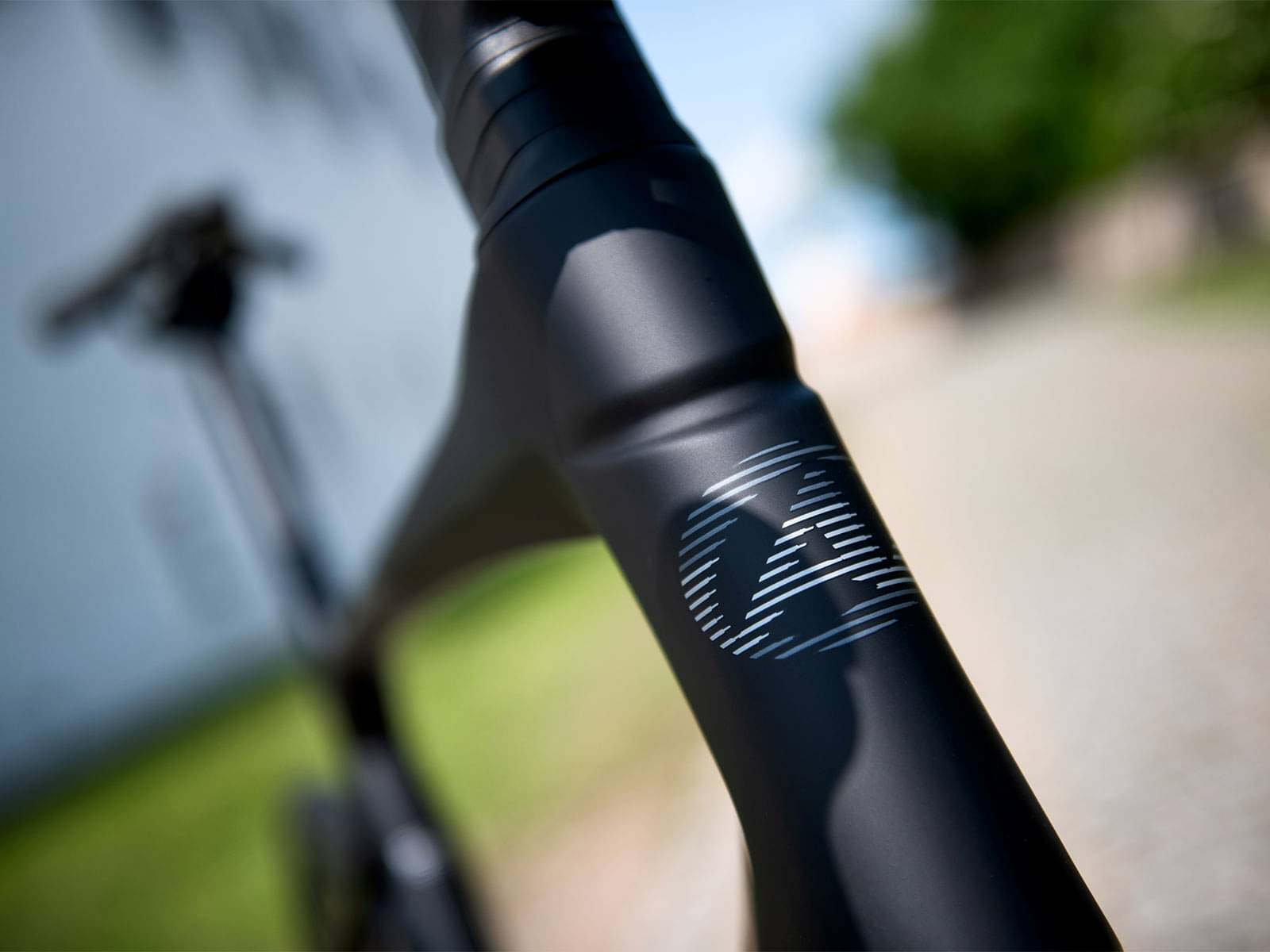

Frame
Frame
AUTHOR carbon Toray T700 monocoque
Suspension Fork
AUTHOR carbon Toray T700 monocoque, 1.5" tapered

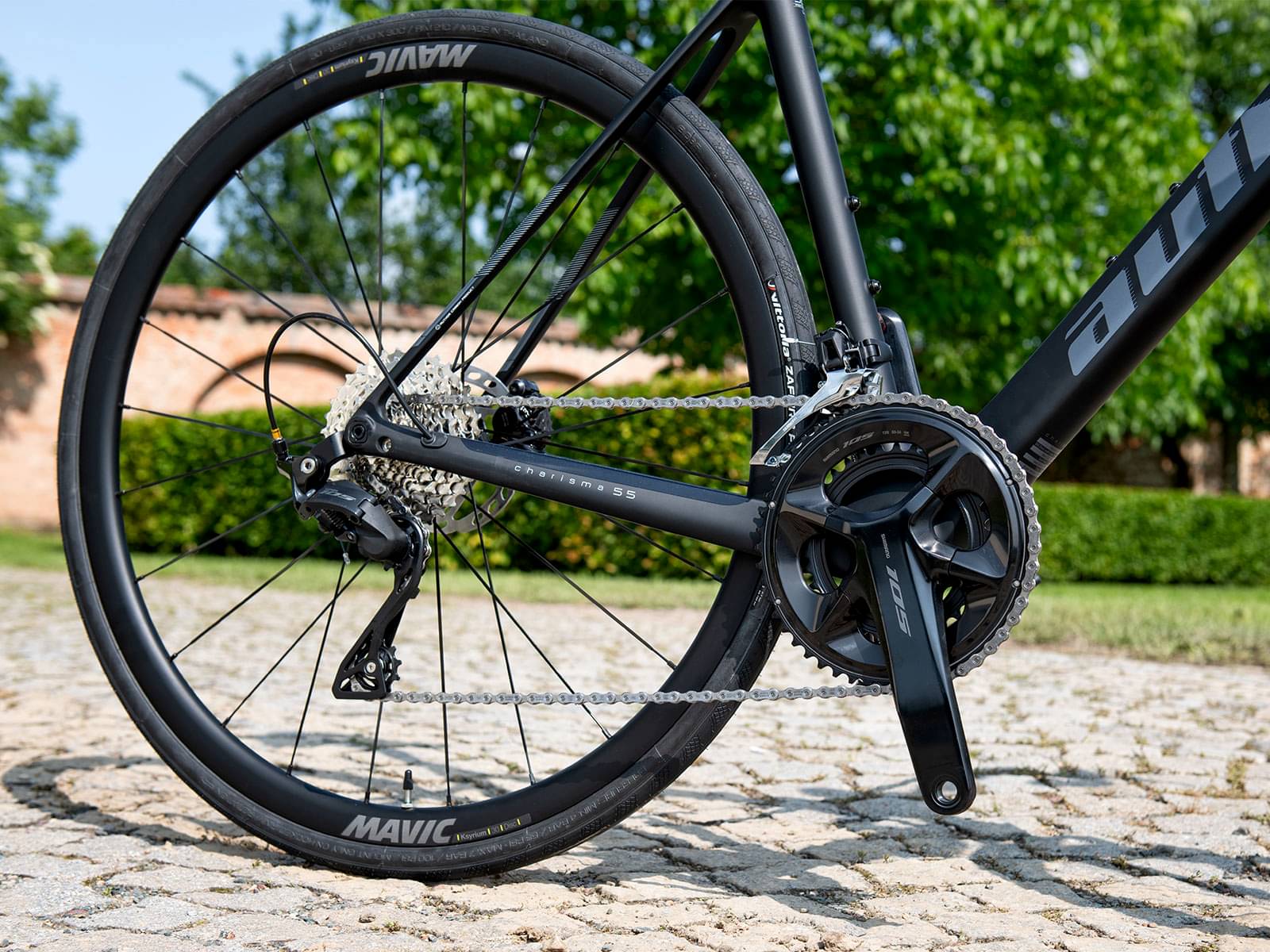

Drivetrain
Rear Derailleur
SHIMANO 105
Front Derailleur
SHIMANO 105

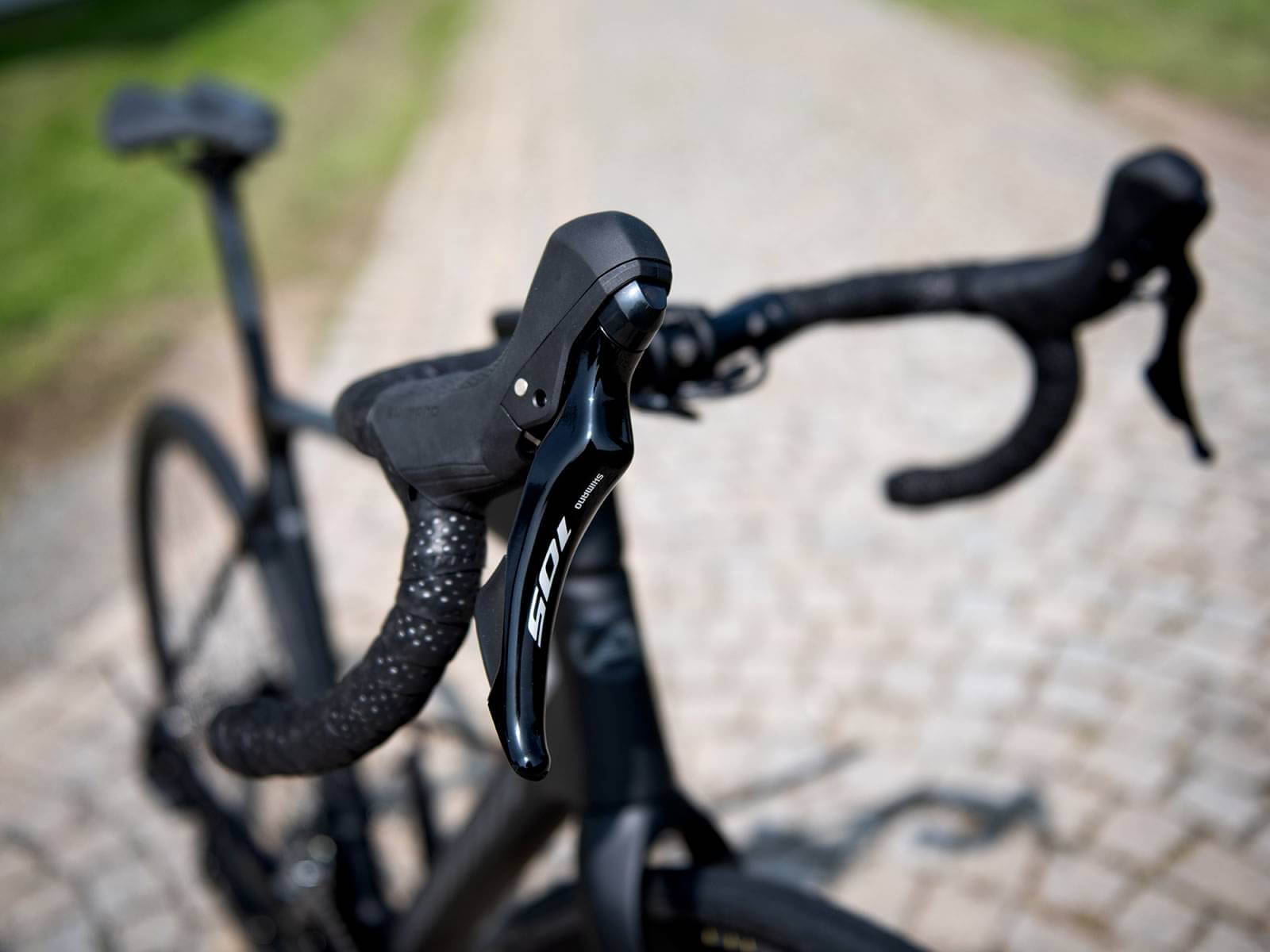

Shift Levers
SHIMANO 105 (24)
Cassette
SHIMANO CS-HG710-12, 11-36 (12)
Crank
SHIMANO 105, 50-34 teeth, 170 / 172,5 / 175 mm cranks
Chain
SHIMANO CN-H7100-12

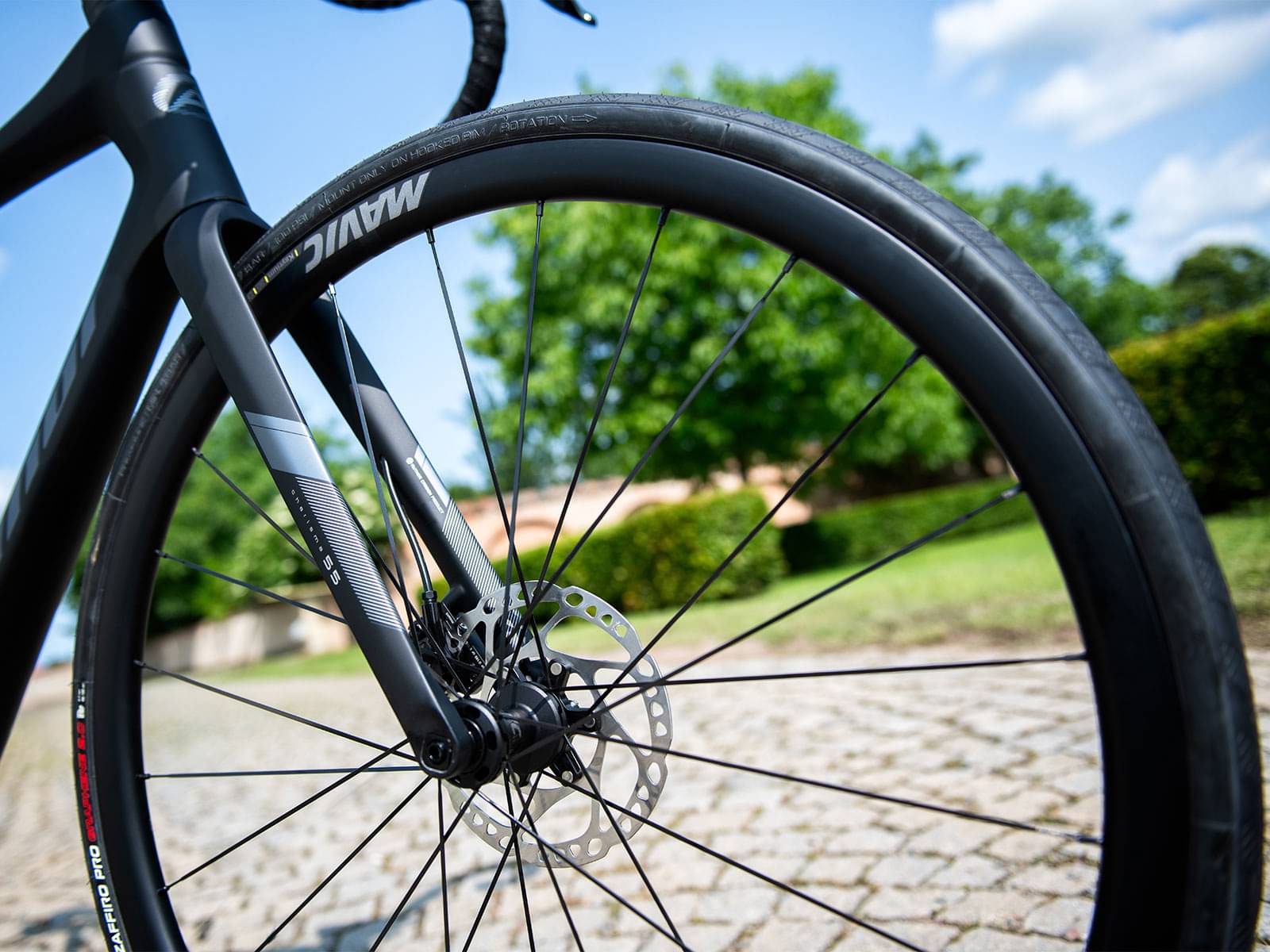

Wheels
Front Hub
MAVIC Ksyrium 30 CL 700 UST, wheel set, 24 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
Rear Hub
MAVIC Ksyrium 30 CL 700 UST, wheel set, 24 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
Rims
MAVIC Ksyrium 30 CL 700 UST, wheel set, 24 holes
Spokes
MAVIC
Tires
VITTORIA Zaffiro Pro V, folding, 700 × 30c
Brakes
Brakes
SHIMANO R7170, disc hydraulic (160/140 mm rotors)

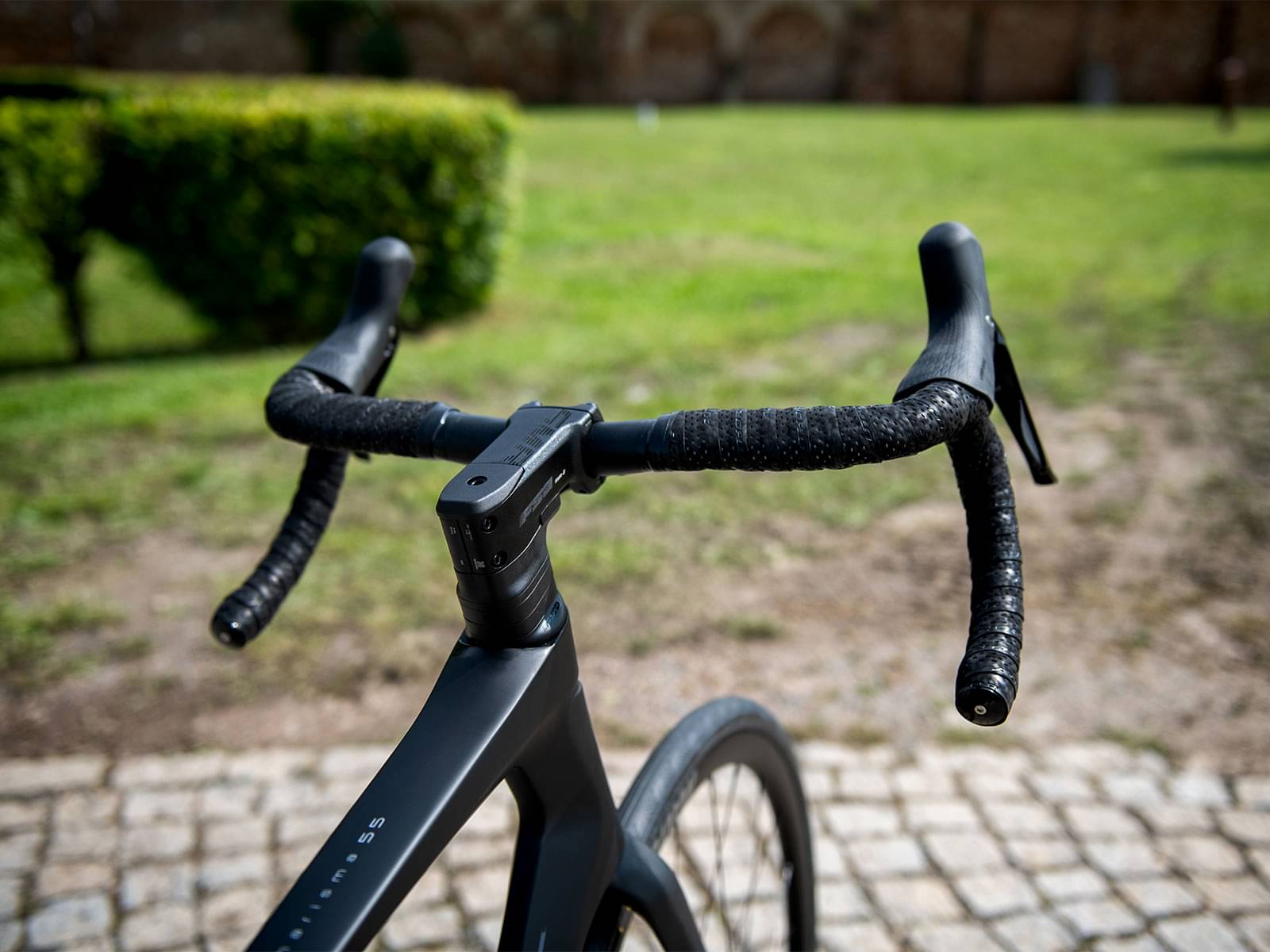

Cockpit
Stem
FSA NS SMR-II

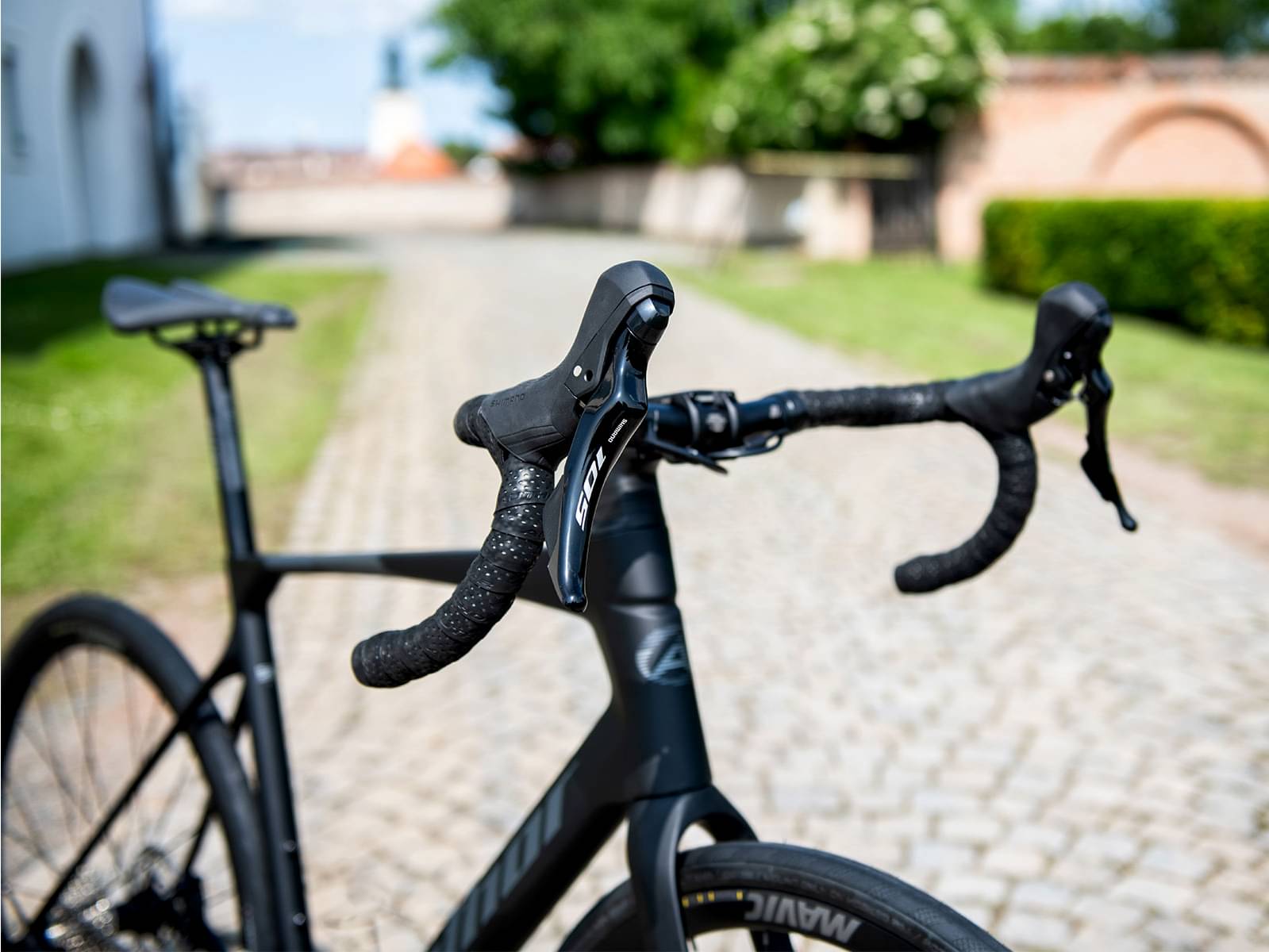

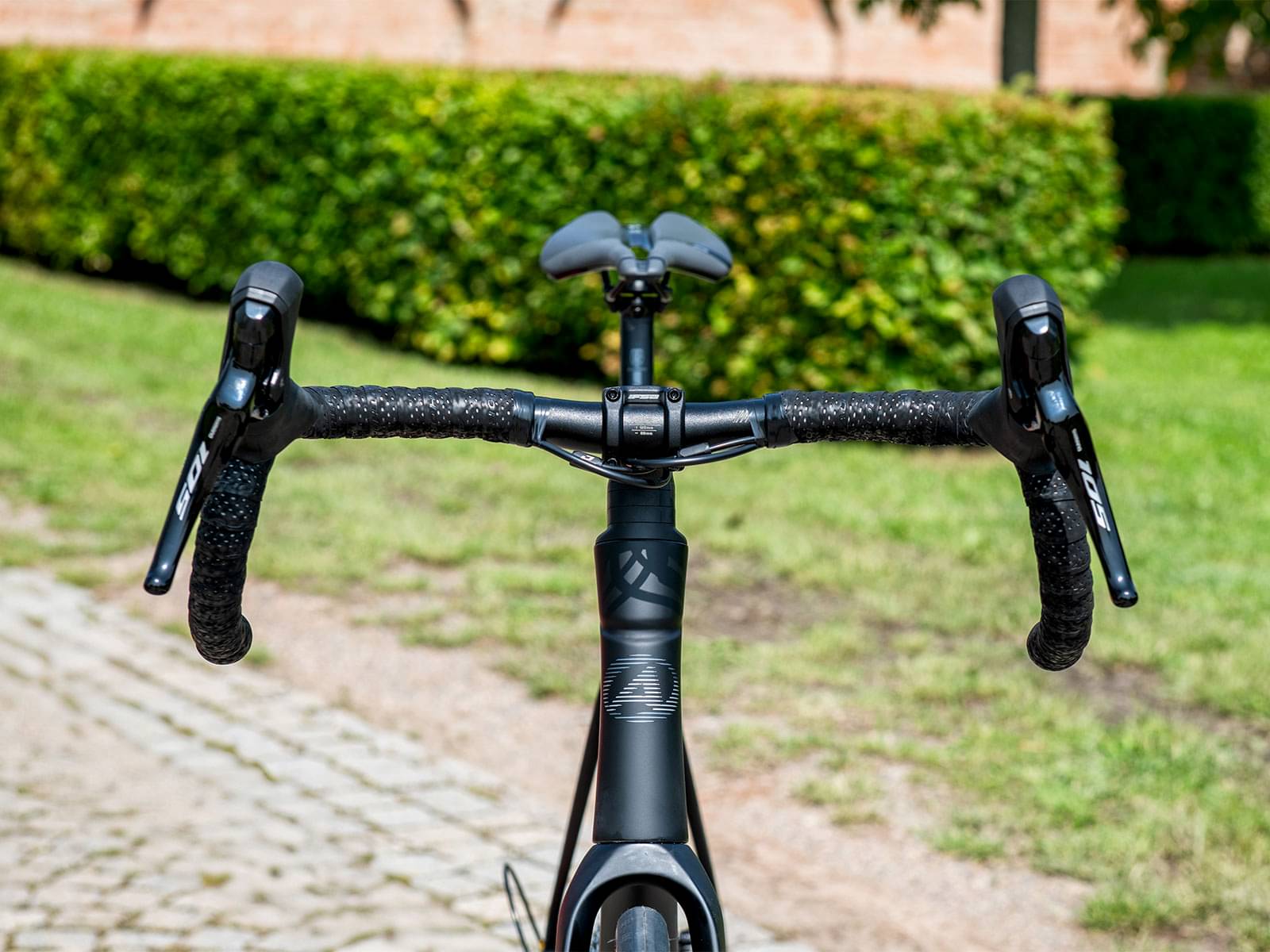

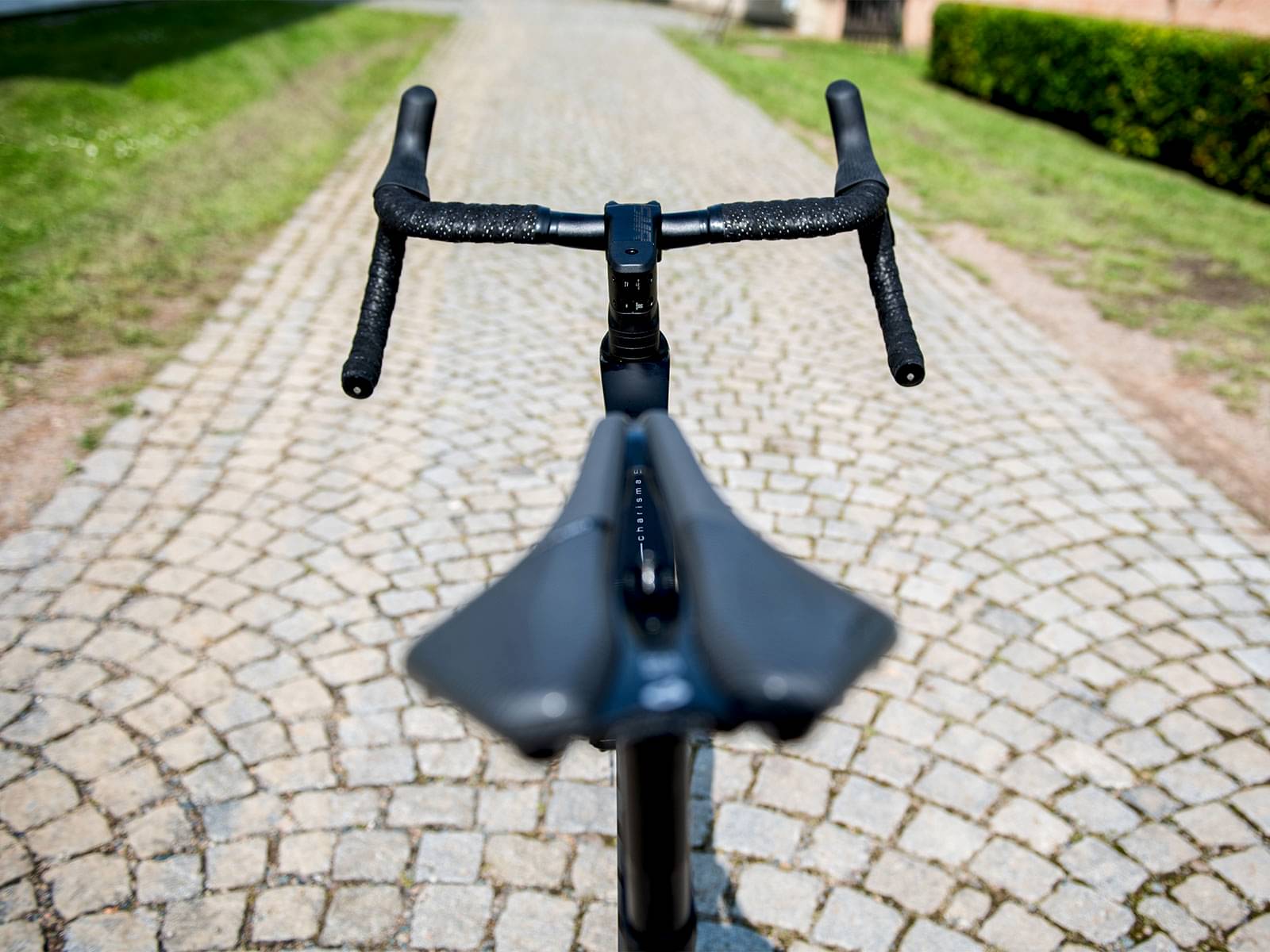

Handlebar
FSA A-Wing, 420 / 440 mm
Seat

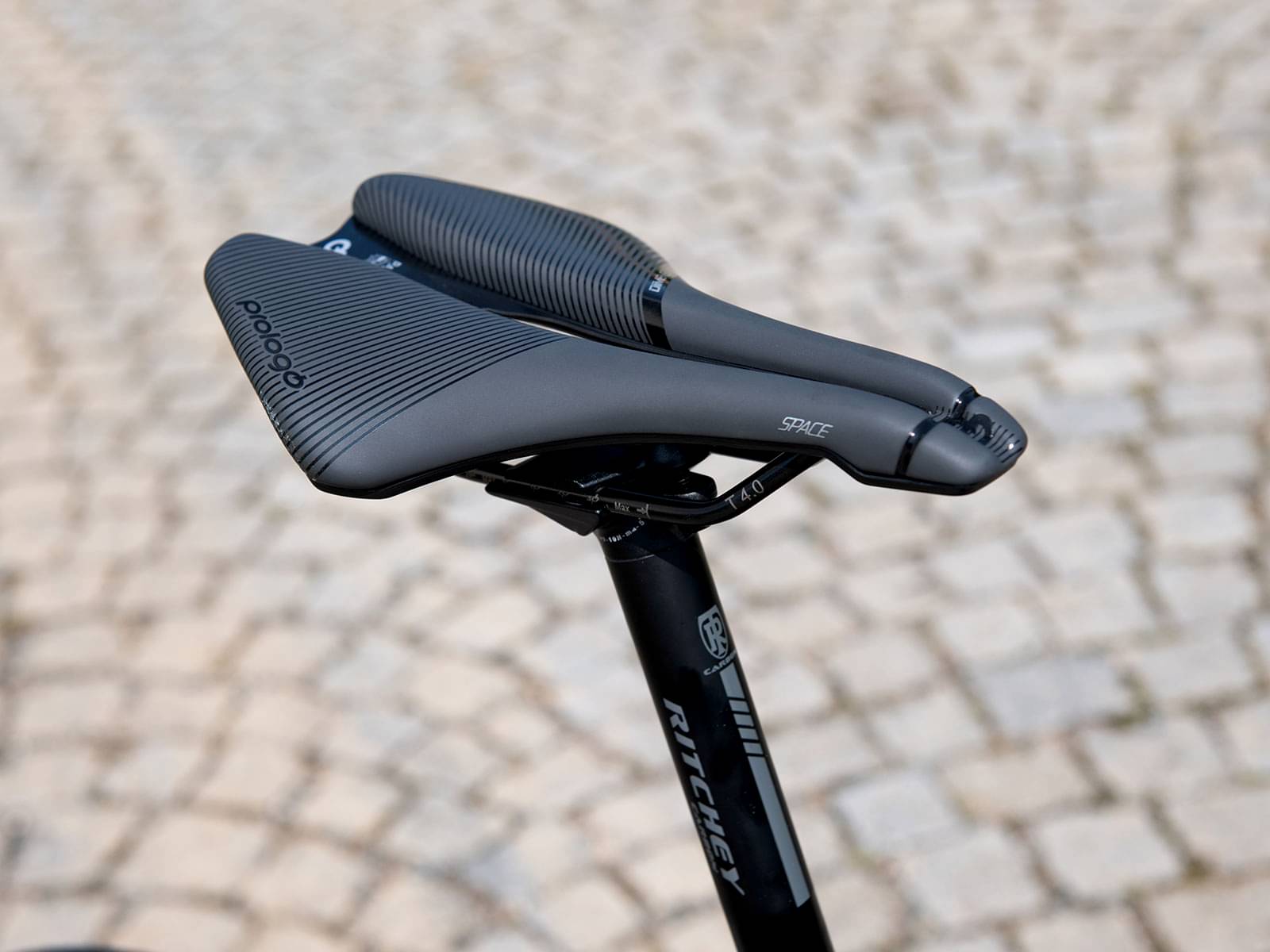

Saddle
PROLOGO Dimension SPACE T4.0
Seatpost
RITCHEY Comp Carbon Zero (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.529 mm | 1.531 mm | 1.565 mm | 1.599 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 585 mm | 595 mm | 600 mm | 611 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 60 mm | 57 mm | 52 mm | 49 mm |
| Stack | 558 mm | 574 mm | 593 mm | 619 mm |
| Reach | 365 mm | 375 mm | 379 mm | 387 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 145 mm | 160 mm | 180 mm | 205 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 993 mm | 1003 mm | 1009 mm | 1020 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 178 cm | 188 cm | 195 cm |
