Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST VOGUE
-
Groupset XT, Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
150cm - 166cm
18"
164cm - 176cm
20"
174cm - 186cm
22"
184cm - 196cm
24"
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted alloy 6061 700c
Suspension Fork
RST Vogue Air air, lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Front Derailleur
SHIMANO Deore (34.9)
Shift Levers
SHIMANO LX (30)
Cassette
SHIMANO HG-81-10 11-34 (10)
Crank
SHIMANO T551-10 48-36-26 teeth 170 / 175 mm cranks
Chain
SHIMANO HG-75
Pedals
AUTHOR oneside clipless
Wheels
Front Hub
AUTHOR Xenon Disc 32 holes
Rear Hub
AUTHOR Xenon Disc 32 holes
Rims
AUTHOR Argon Cross white 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR PANARACER Rolling Stone Cross 700 x 42c
Brakes
Brakes
TEKTRO Draco WH disc hydraulic (6" rotors)
Cockpit
Stem
RITCHEY
Handlebar
RITCHEY Comp 20 mm 620 / 670 mm
Grips
AUTHOR Luxus ErgoGrip
Seat
Saddle
AUTHOR Sphere Gel
Seatpost
RITCHEY Comp 2B (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|
| Front Center | 610 mm | 626 mm | 641 mm | 664 mm | 677 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 559 mm | 574 mm | 589 mm | 611 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1052 mm | 1068 mm | 1083 mm | 1106 mm | 1119 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm | 194 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm | 205 cm |
About this model

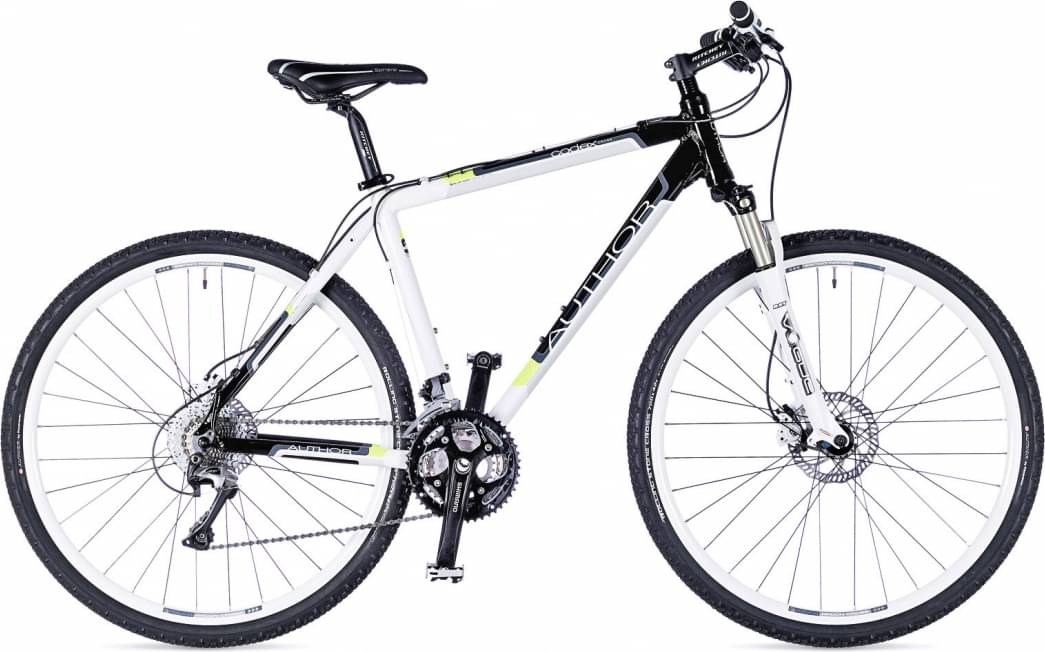

Codex belongs to the Author Codex model. There are 17 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Codex has a weight of 12.6 kg (27.78 lbs). In conclusion, the average Hybrid bike weighs 9.92% more than Codex.
Overview of components
Fork
Author Codex 2014 bike is equipped with the RST VOGUE fork, and has 60mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Author Codex 2014, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Codex has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 150 cm – 205 cm (4.92 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
